Basic Specifications
Model NO.
Floor Tile LED Displays Screens Video Wall
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image & Text Display
Power Consumption
Average 220W / m²
Pixel Density
43265 dots/m²
Application
Stage Performance / Rental
Product Description

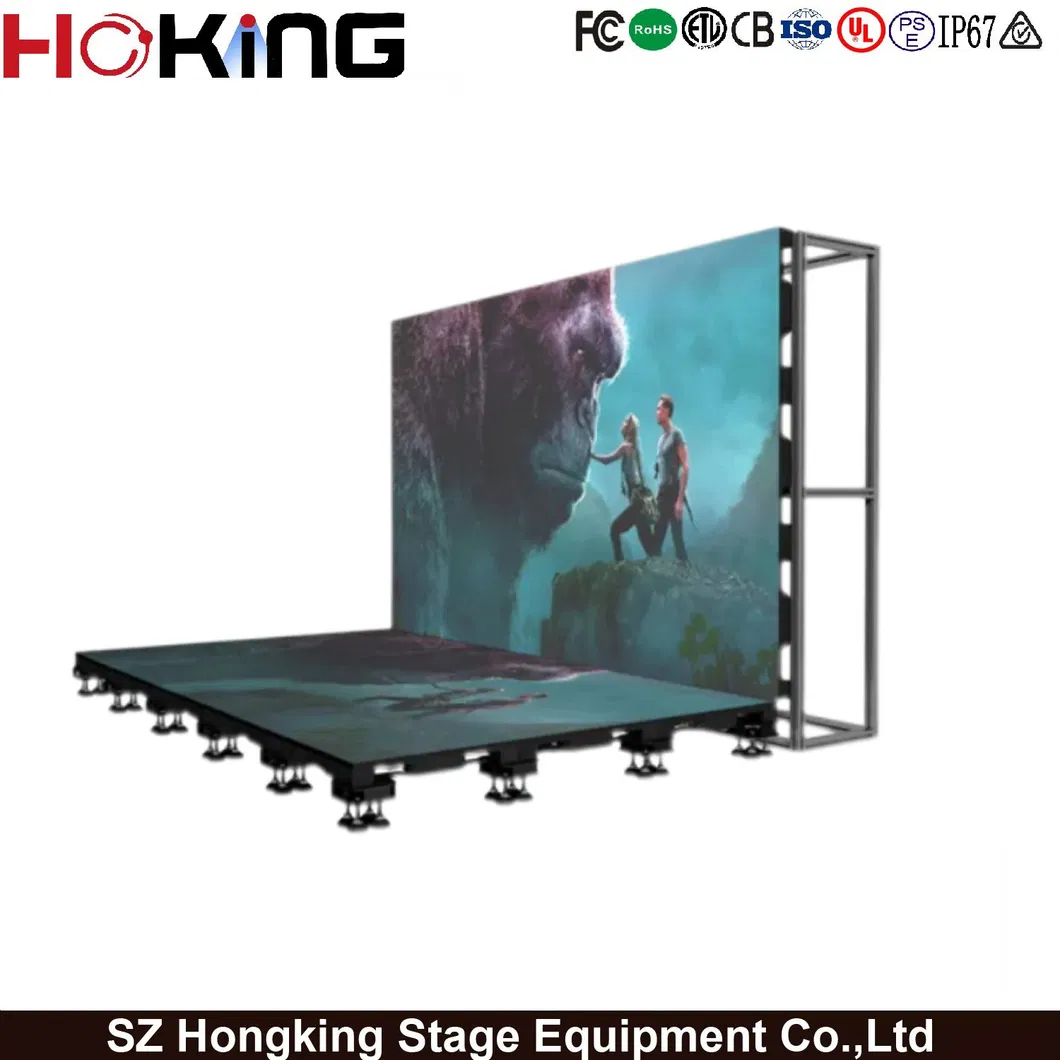

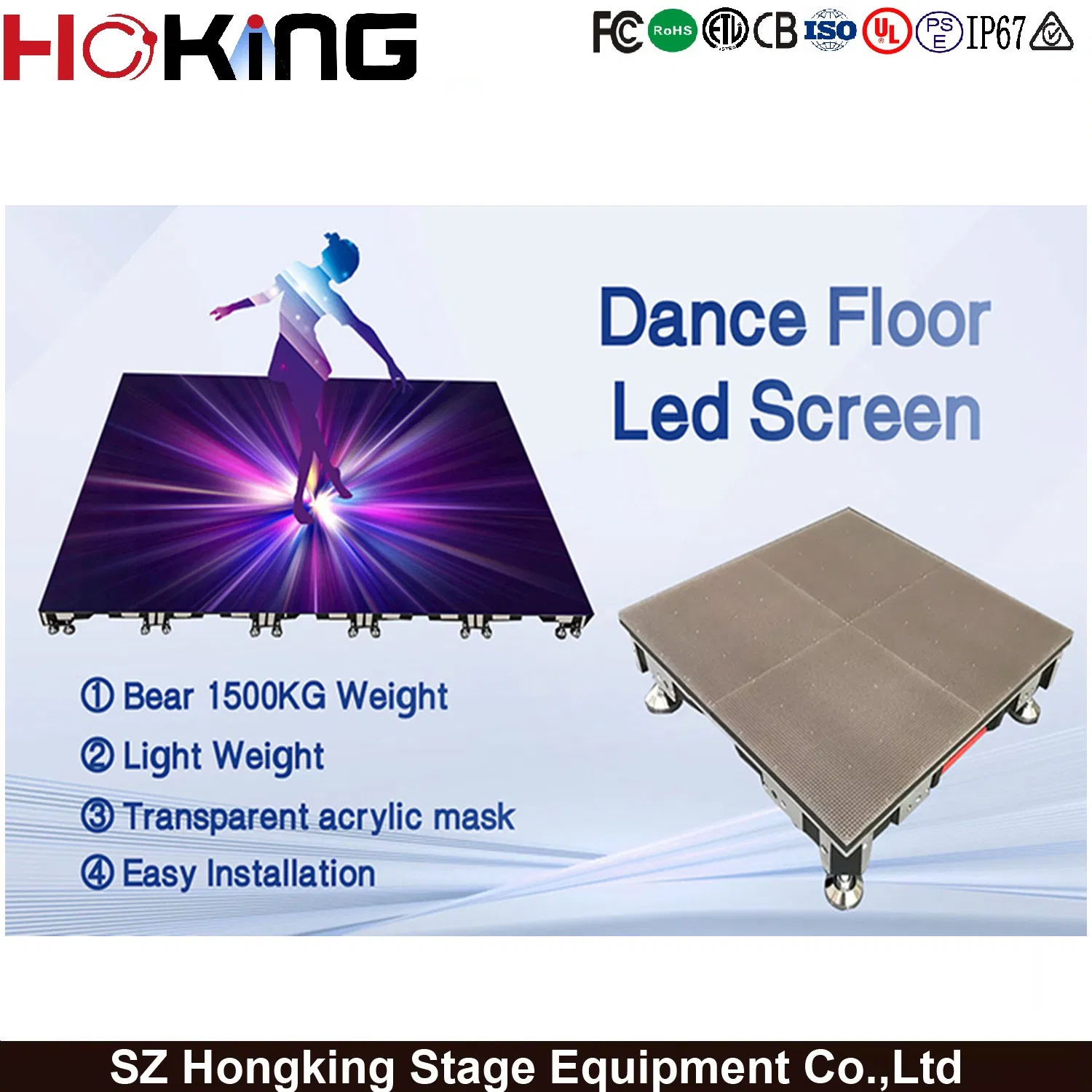

Dance Floor Rental Screen P4.81 Outdoor Video Wall
Our professional-grade LED floor displays are engineered for durability and high visual impact. Using premium MBI5124 Driver ICs and stable G-energy power supplies, we ensure a reliable performance for any stage or event.

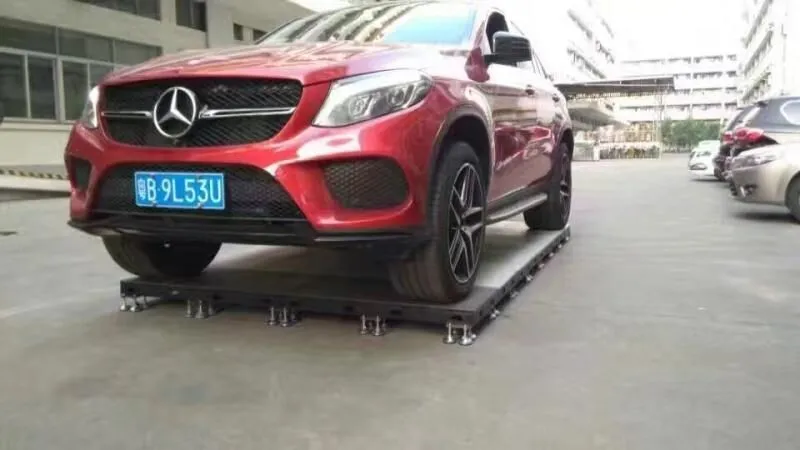

- High Durability: Robust PCB (1.2-1.6mm) with professional mask and base.
- Superior Visuals: High refresh rate and contrast for perfect video reproduction.
- Easy Installation: Rental design with fast locks and aviation plugs for quick setup.
- Versatile Use: Suitable for both indoor and outdoor stage performances.
| NO |
Technical Feature |
Specifications (P4.81 Outdoor) |
| 1 | Pixel Pitch | 4.81mm |
| 2 | Pixel Configuration | 1R1G1B / SMD2525 |
| 3 | Pixel Density | 43642 dots/m² |
| 4 | Brightness | 5000 cd/m² |
| 5 | Module Size | 250*250mm |
| 6 | Cabinet Size | 500mm × 1000mm |
| 7 | Drive IC | MBI5124 |
| 8 | Viewing Angle | 110º |
| 9 | Refresh Rate | ≥1920HZ |
| 10 | Color Temperature | 6500K-9500K |
| 11 | Control System | LINSN, Nova-star, Colorlight selectable |
| 12 | Operating Platform | Windows XP / 7 / 8 / 10 |
Key Features & Design
- Ultra-Thin Design: Less than 80mm thickness; portable and easy to handle.

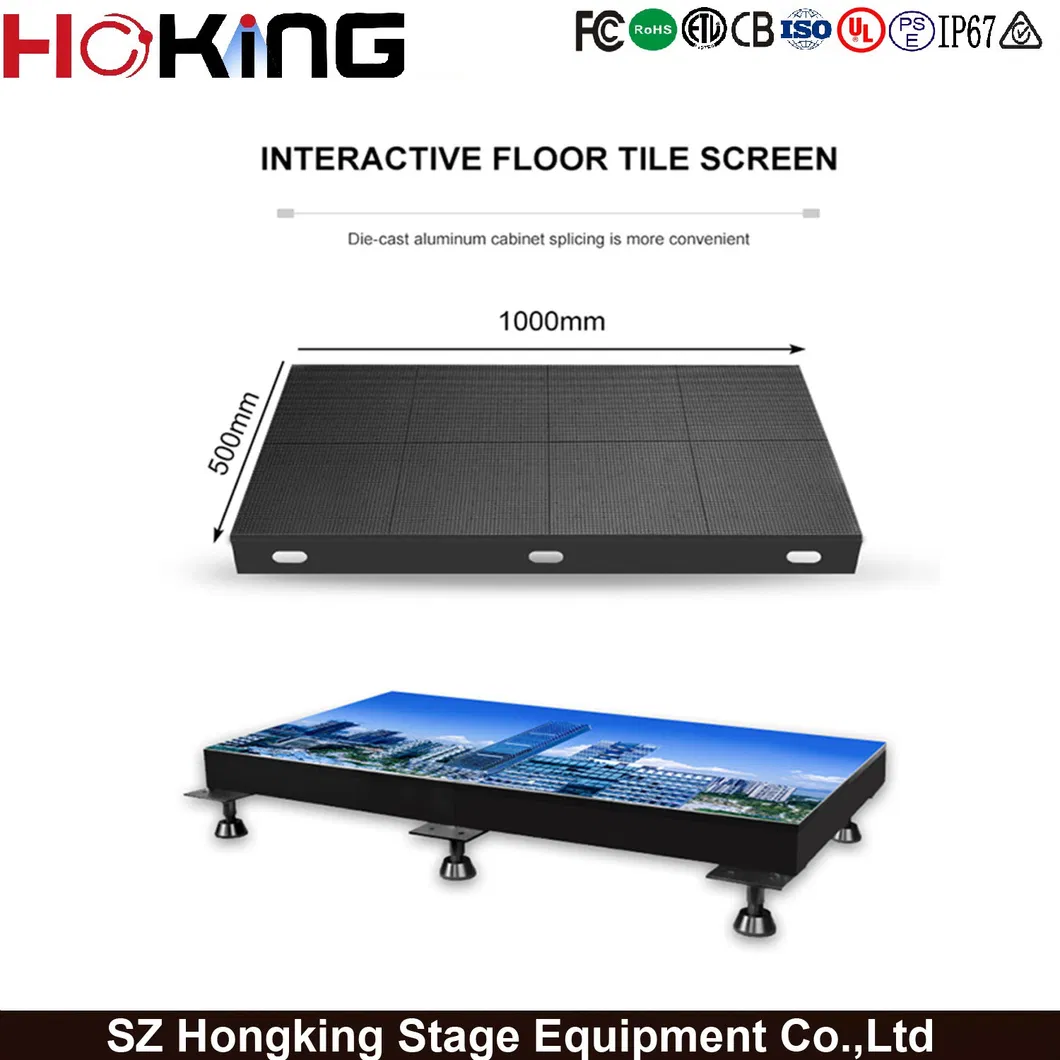

- Lightweight Panels: 6.8kg for 500x500mm, 12.5kg for 500x1000mm.
- High Refresh Rate: Up to 3840Hz for flicker-free camera recording.
- Flight Case Packing: Convenient for transportation and protection in rental environments.
- Flexible Maintenance: Supports front and rear maintenance for various installation types.

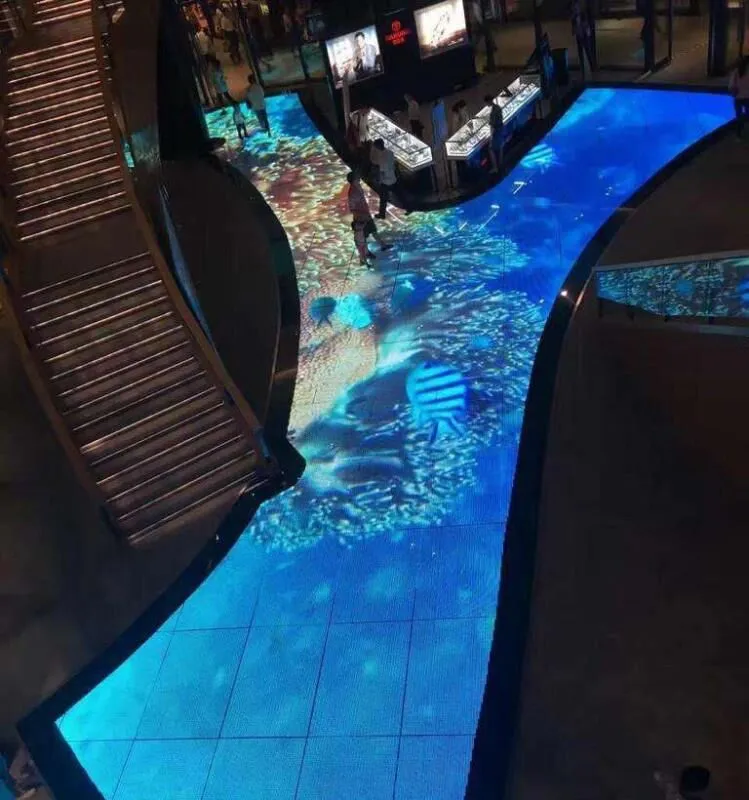

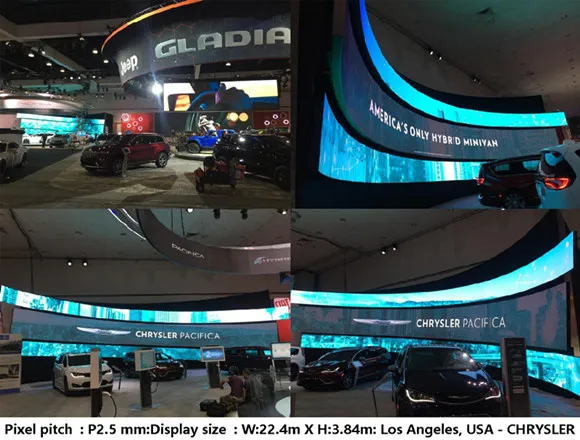

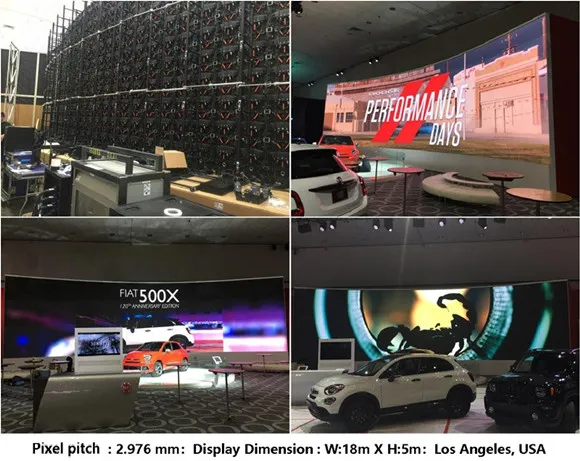

Application Cases

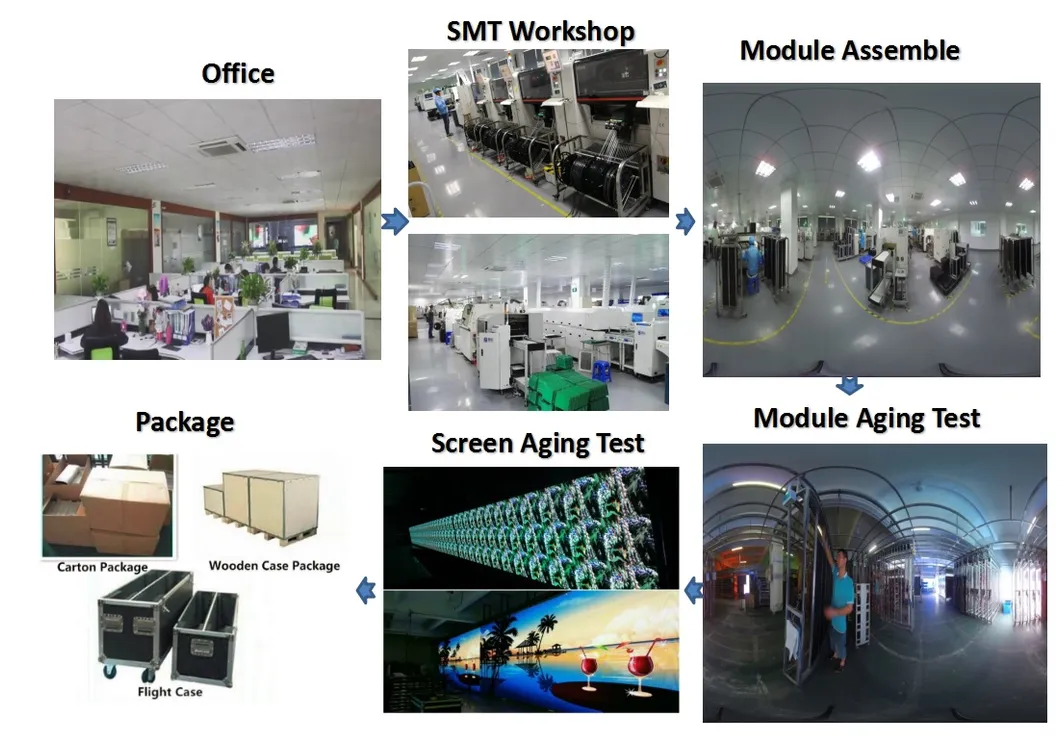

Production & Logistics
Payment Terms: T/T (30-50% down payment, balance before delivery).
Lead Time: 8-12 working days for smaller orders (<20 sqm); 15 working days for larger orders.
Warranty: 2-year quality guarantee. Lifetime technical support with parts provided at material cost.
Frequently Asked Questions
What is the pixel pitch of this dance floor LED display?
The model features a 4.81mm pixel pitch, providing excellent clarity for stage and event video playback.
Is this LED screen suitable for outdoor use?
Yes, with a high brightness of 5000 cd/m², this display is designed to perform clearly even in outdoor environments.
How heavy are the panels for transportation?
The 500x500mm panel weighs only 6.8kg, and the 500x1000mm panel weighs 12.5kg, making them highly portable for rental use.
What is the refresh rate for filming?
The display offers a high refresh rate of up to 1920Hz (standard) or 3840Hz (optional), ensuring smooth visuals without flickering when captured on camera.
What kind of packaging is provided?
We provide several options including anti-shaking wooden cases, carton boxes, and professional flight cases specifically for rental and mobile applications.
What is your standard warranty policy?
We offer a two-year quality guarantee. During this period, repairs and parts are free. After two years, we only charge for the cost of materials.
