Basic Information
Pixel Configuration
1R,1G,1B
Pixel Density
160000 Dots/Sqm
Display Type
LED Video Display
Application

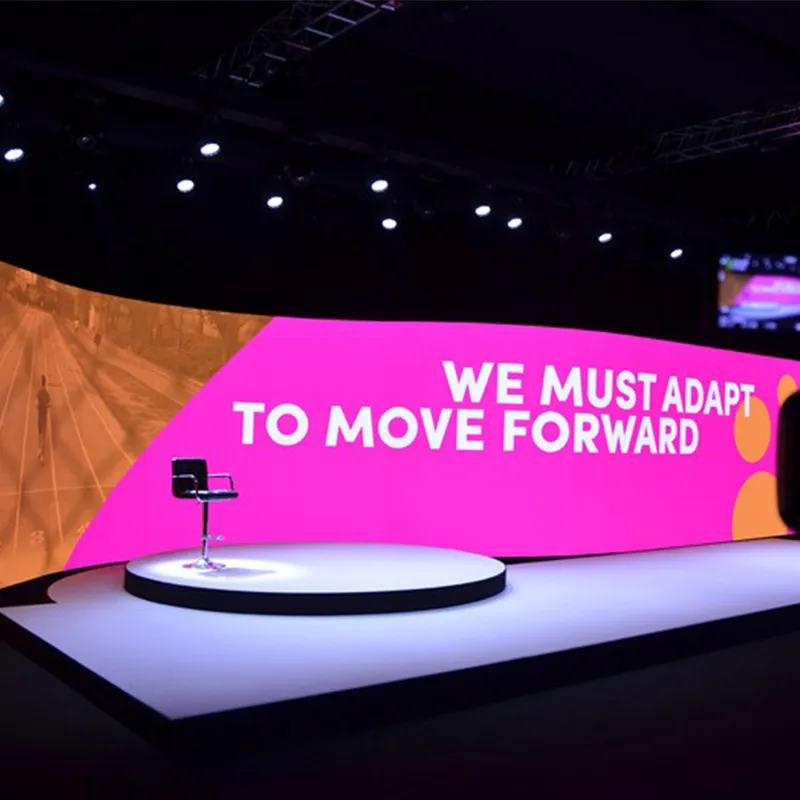

Stage Performance
Certification
CE, RoHS, CCC
Cabinet Material
Die-Casting Aluminum
Control System
Novastar/Colorlight/Huidu
Production Capacity
8000 Sqm/Month
Product Description

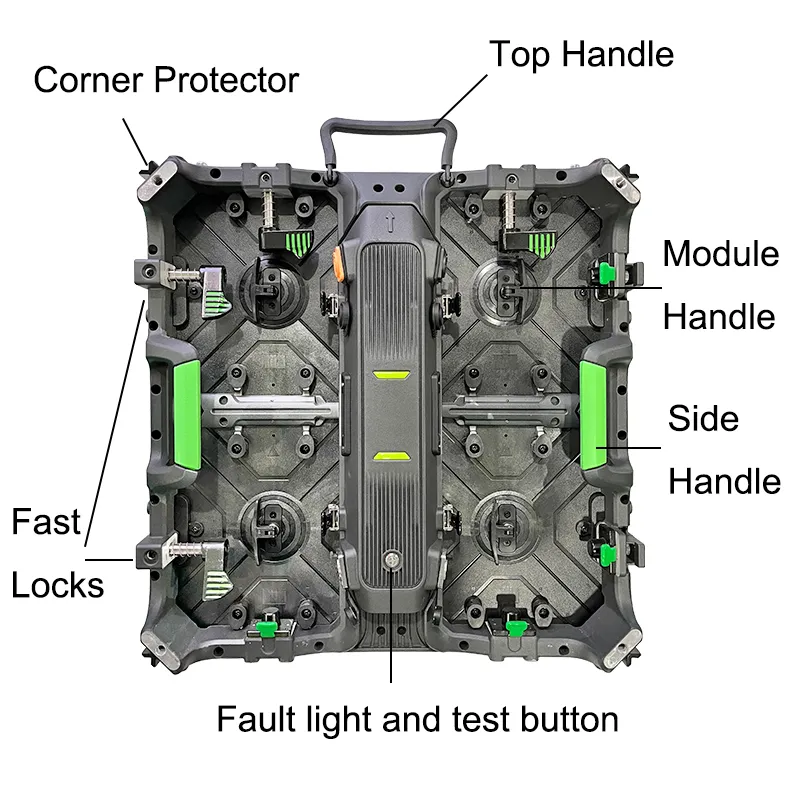

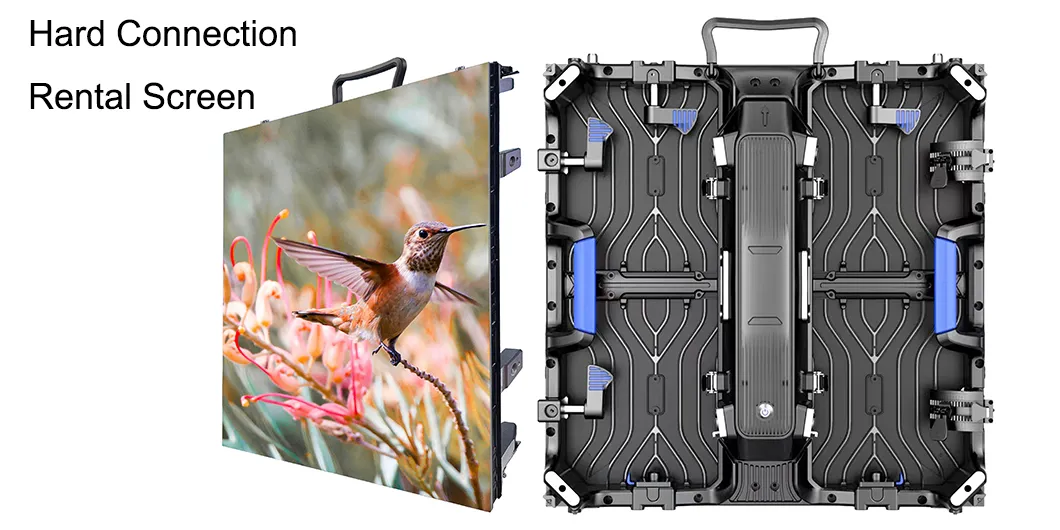

High Precision & Quick Installation
Magnetic module, front maintenance, supports quick installation
Two-in-one module interface (HUB connection), stable transmission

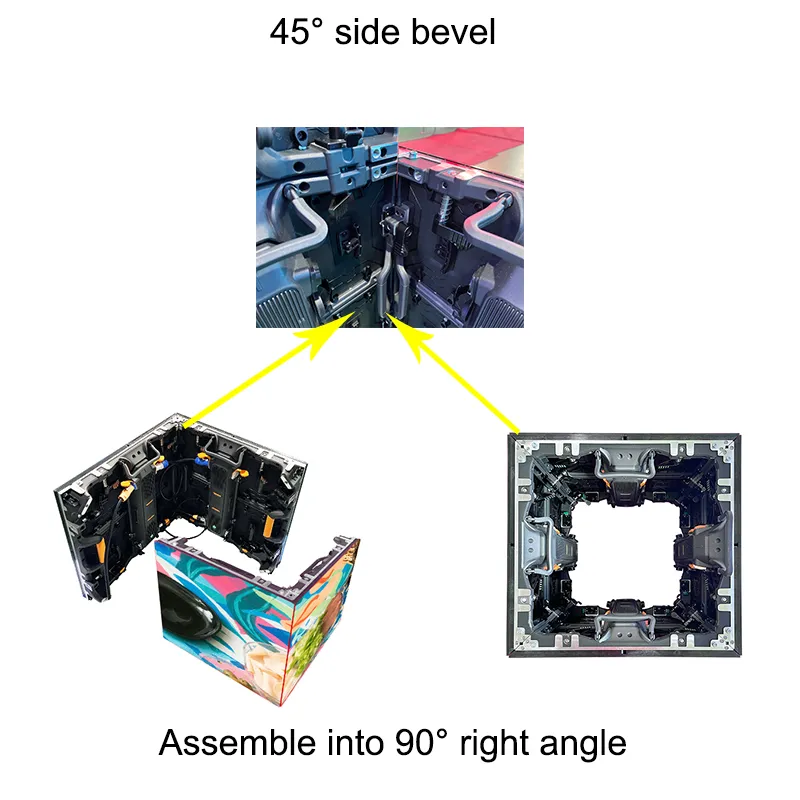

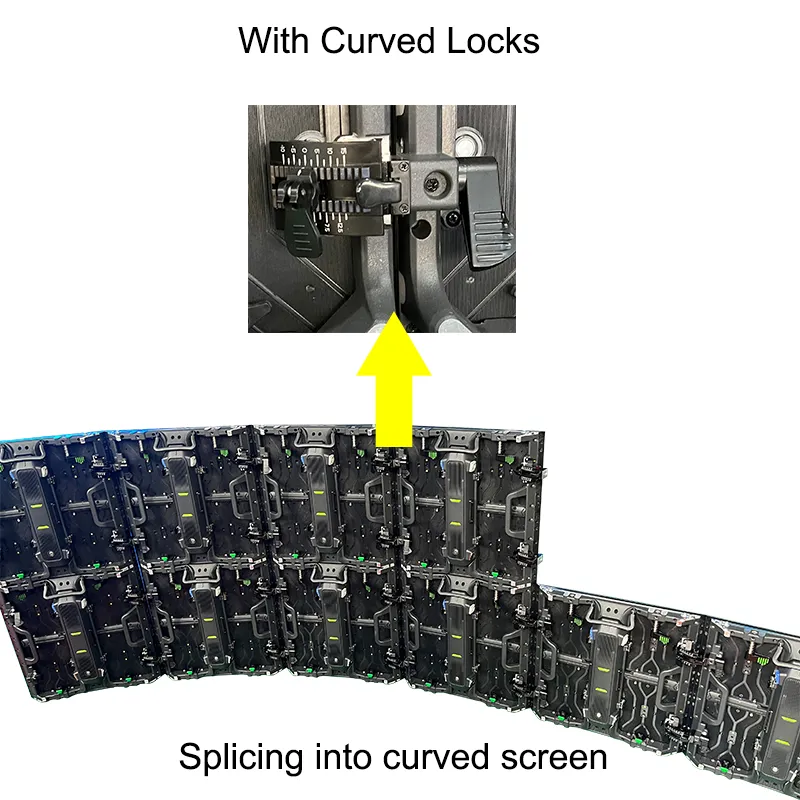

High-precision seamless splicing, can be spliced into arcs and right angles

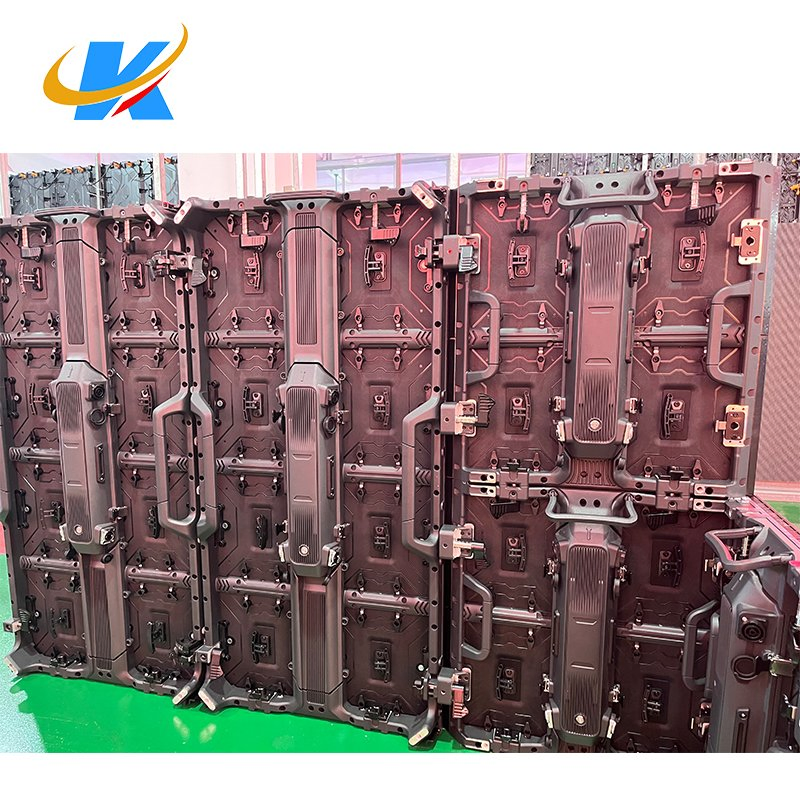

Die-casting aluminum cabinet, only 7kg each
Corner protector with anti-collision design

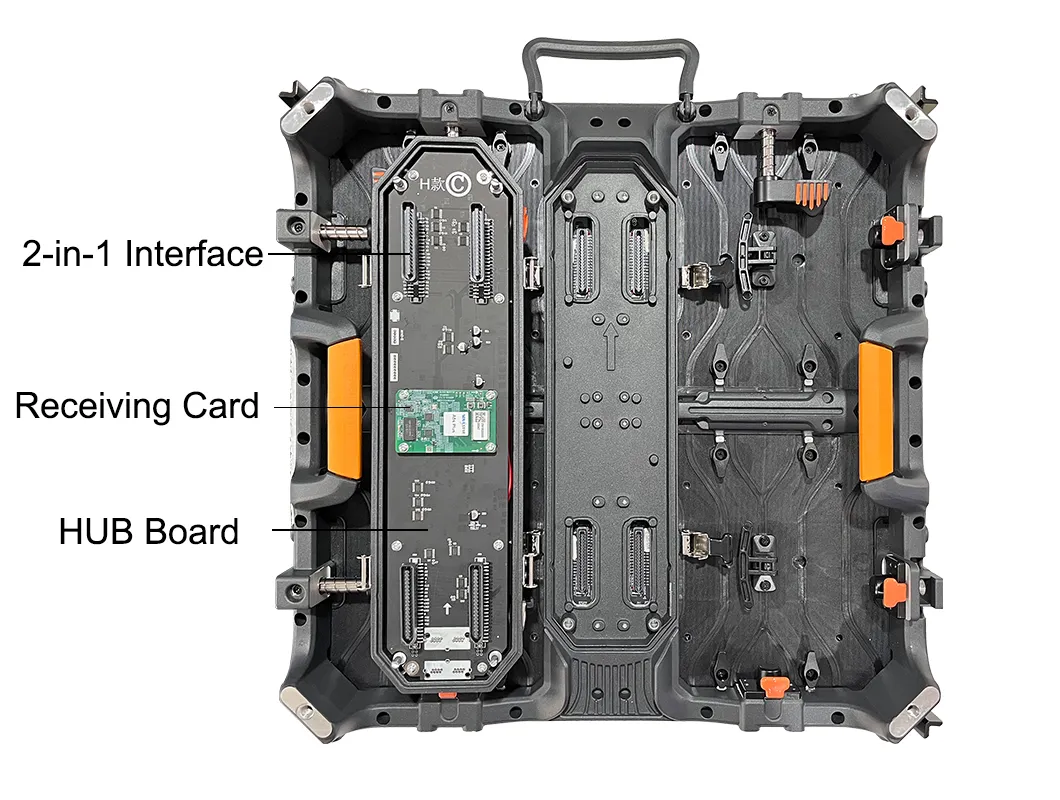

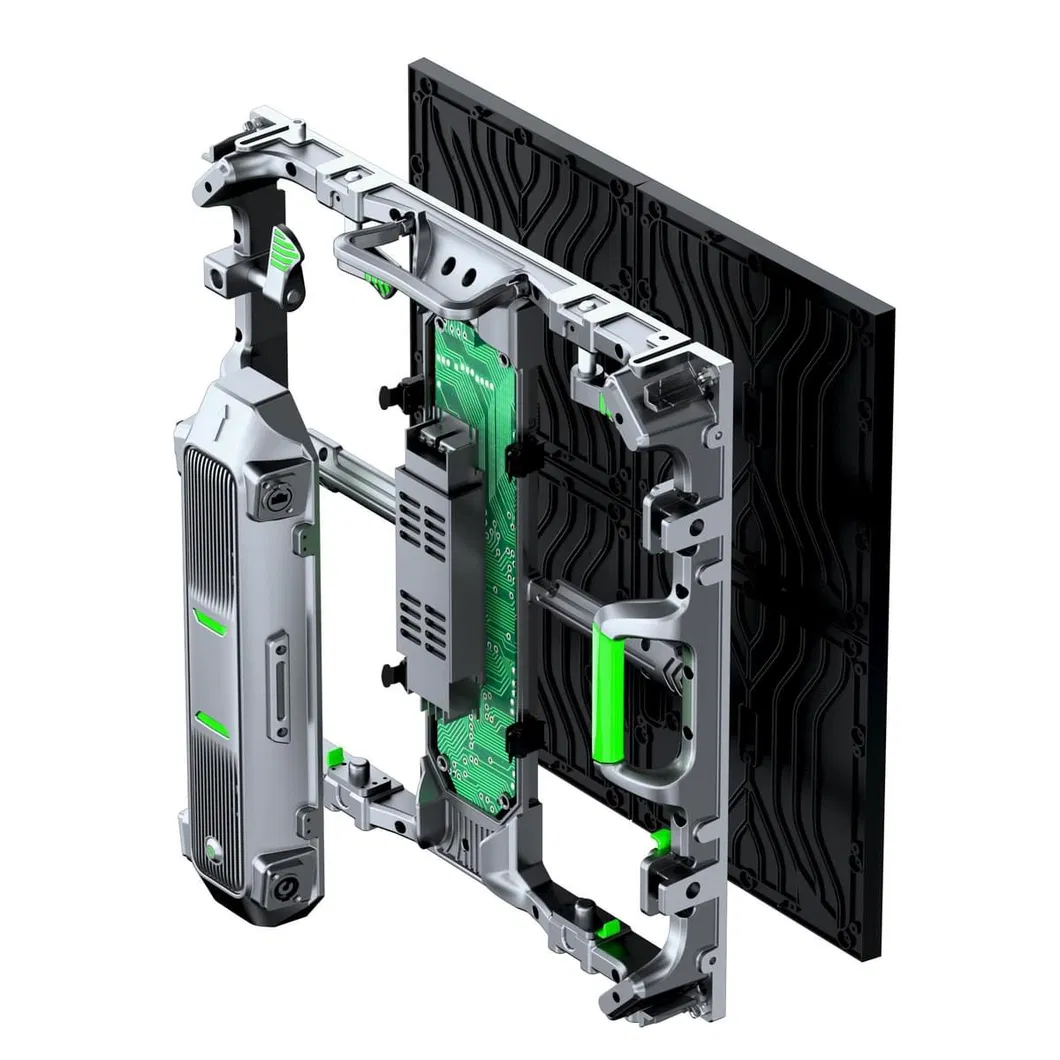

Internal Structure & Configuration
Novastar A5s plus receiving card
Integrated design for high reliability
Plug-in module interface for easy removal
Technical Specifications

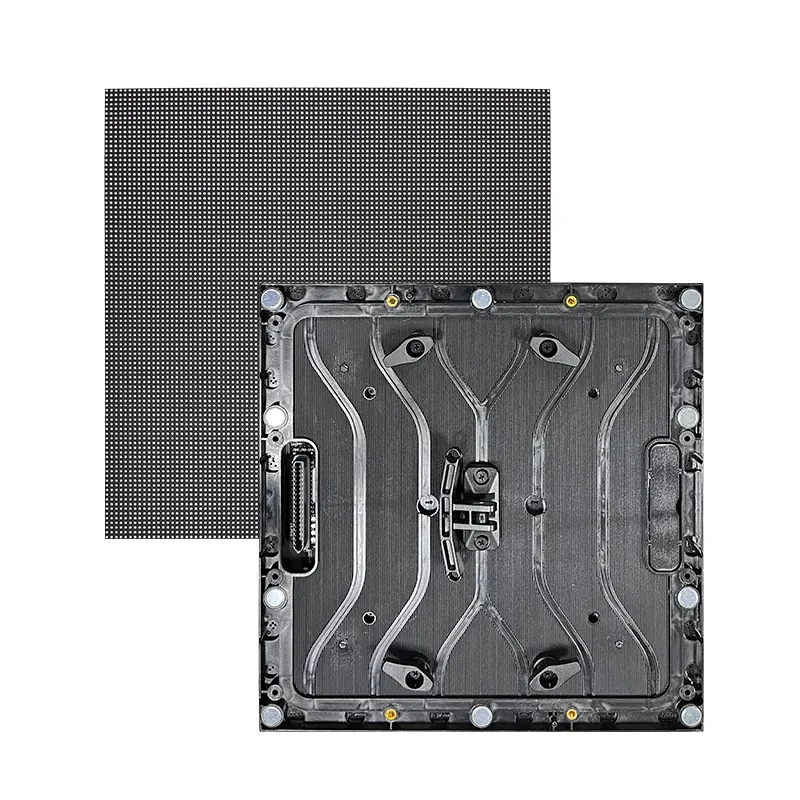

Module Size: 250*250mm
Brightness: 700-800nits (Indoor) / 4000-5500nits (Outdoor)
Refresh Rate: 3840Hz / 7680Hz
Contrast Ratio: 5000:1
Maintenance & Installation

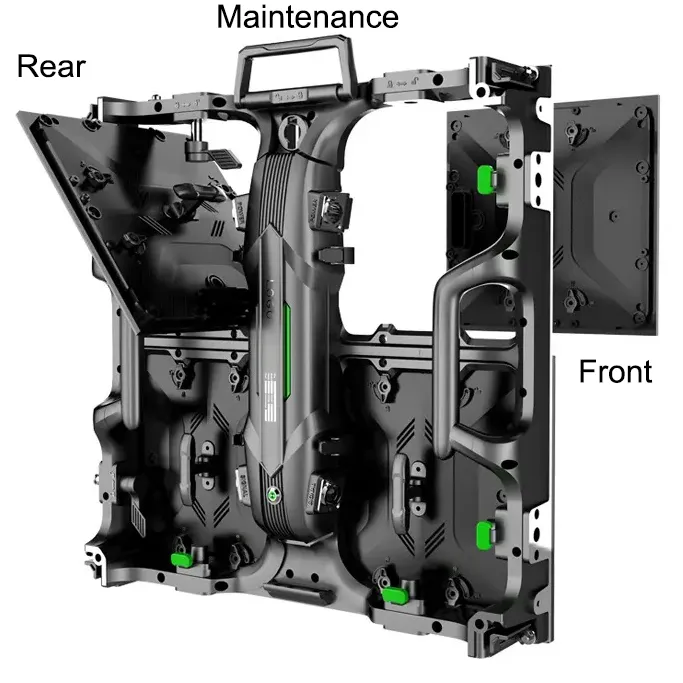

Dual Maintenance Mode
Front Access: Quick module removal from the front
Rear Access: Traditional maintenance from the back

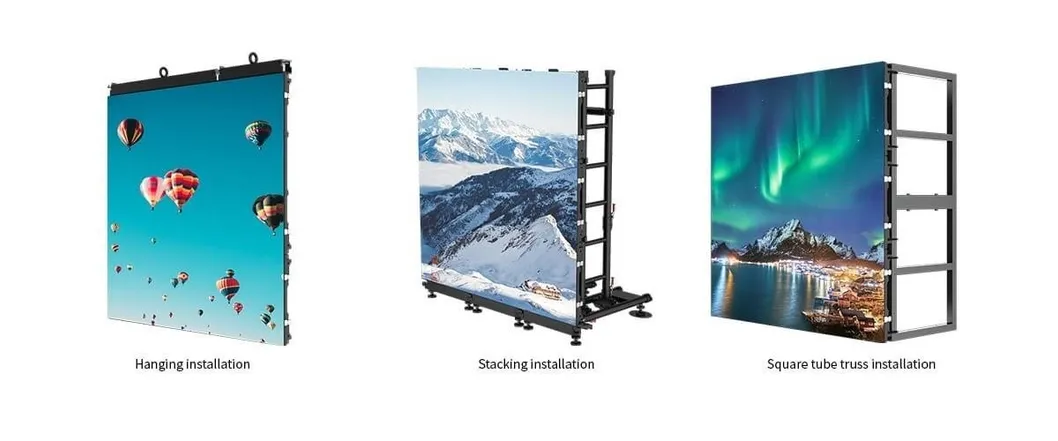

Installation Ways
Product Series Parameters
| Model |
P1.56 GOB |
P1.95 GOB |
P2.5 |
P2.6 |
P2.97 |
P3.91 |
P4.81 |
| Pixel Pitch (mm) | 1.56 | 1.95 | 2.5 | 2.604 | 2.97 | 3.91 | 4.81 |
| Module Size | 250*250mm |
| Cabinet Size | 500*500mm or 500*1000mm |
| Brightness | 800nits | 4000-5500nits |
| Lamp Type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD1921 |
| Refresh Rate | 3840Hz or 7680Hz |
| IP Rate | IP43 | IP65 |

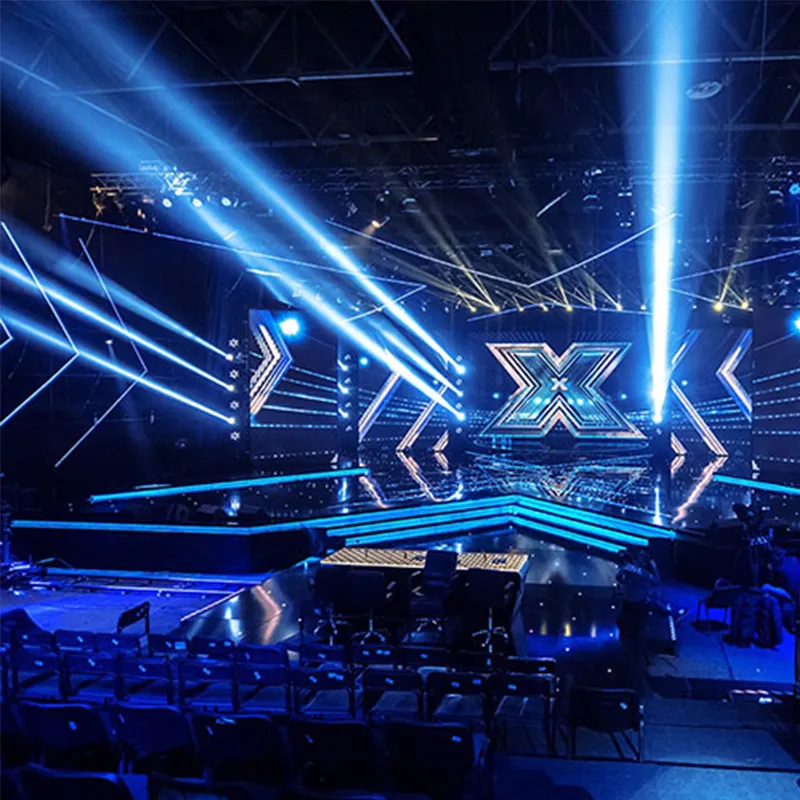

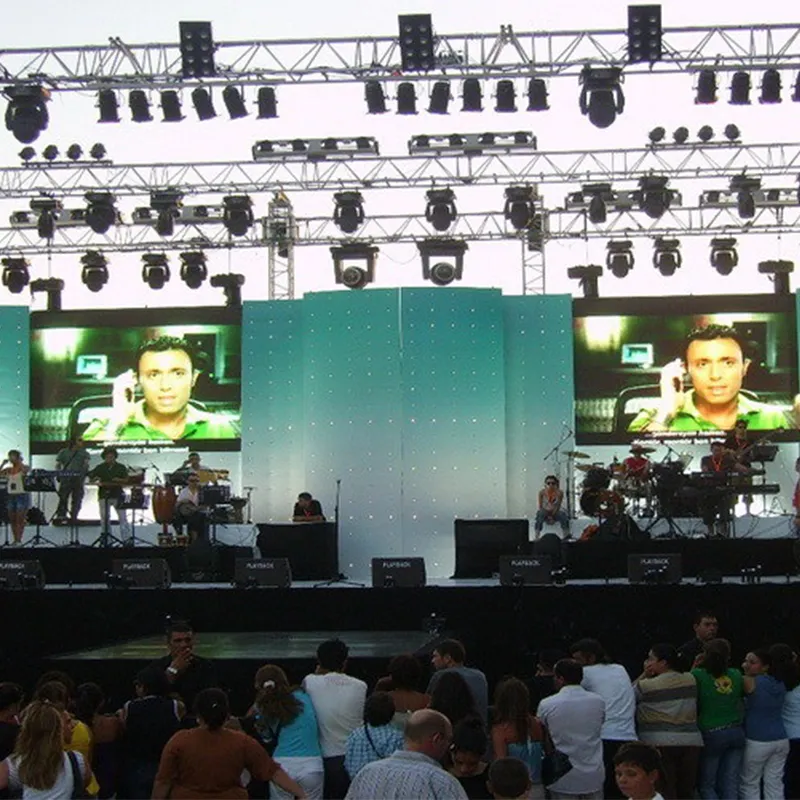

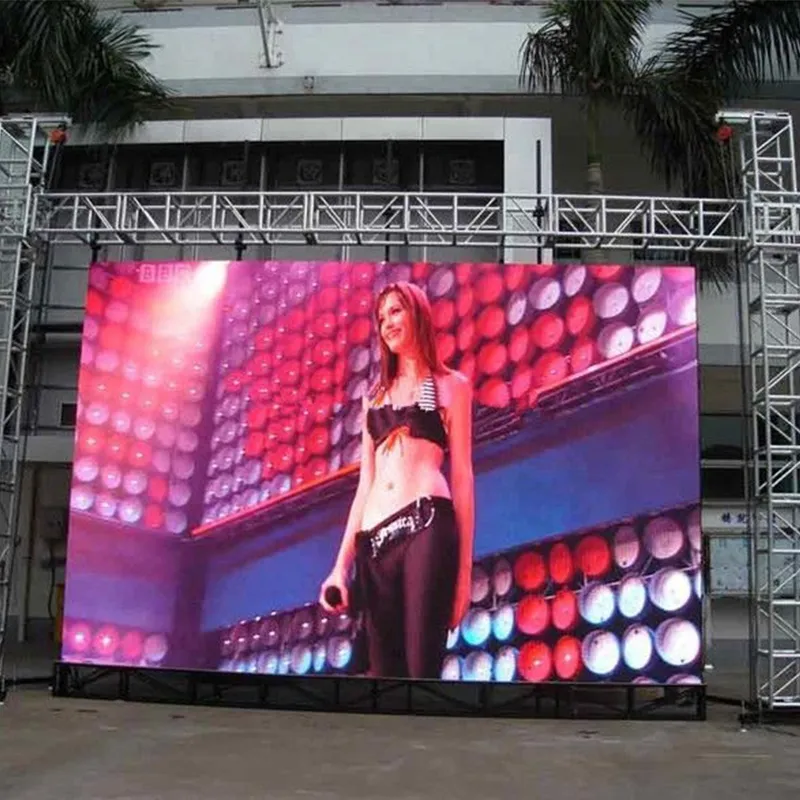

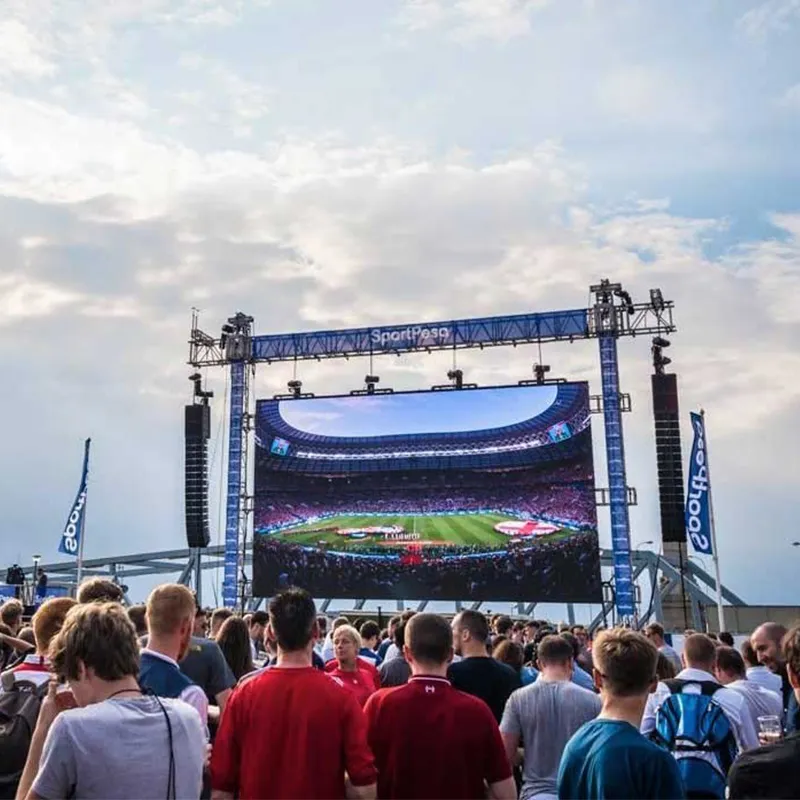

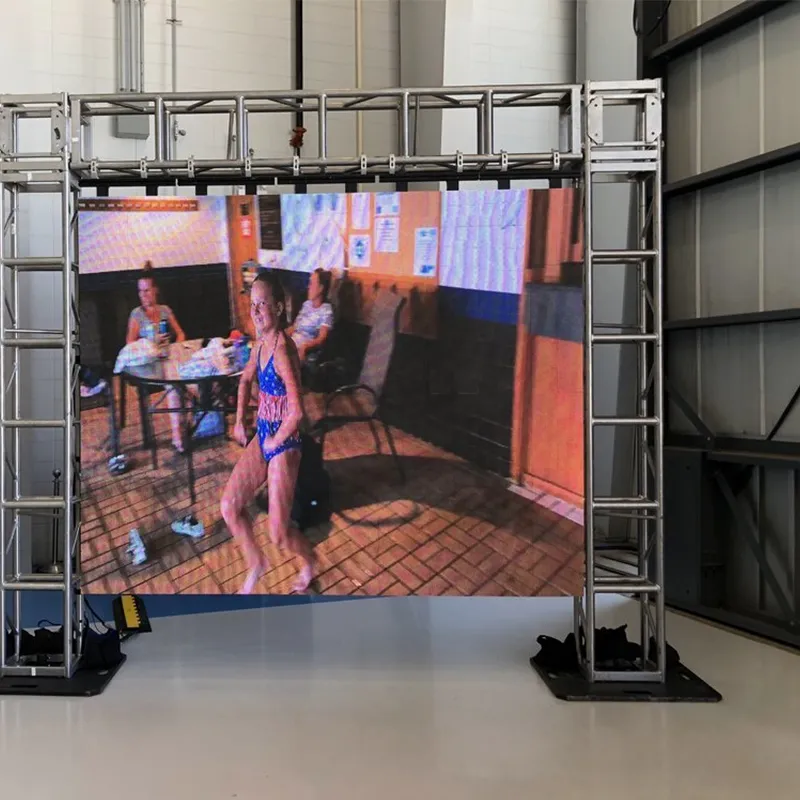

Applications
Packaging & After-Sale Service

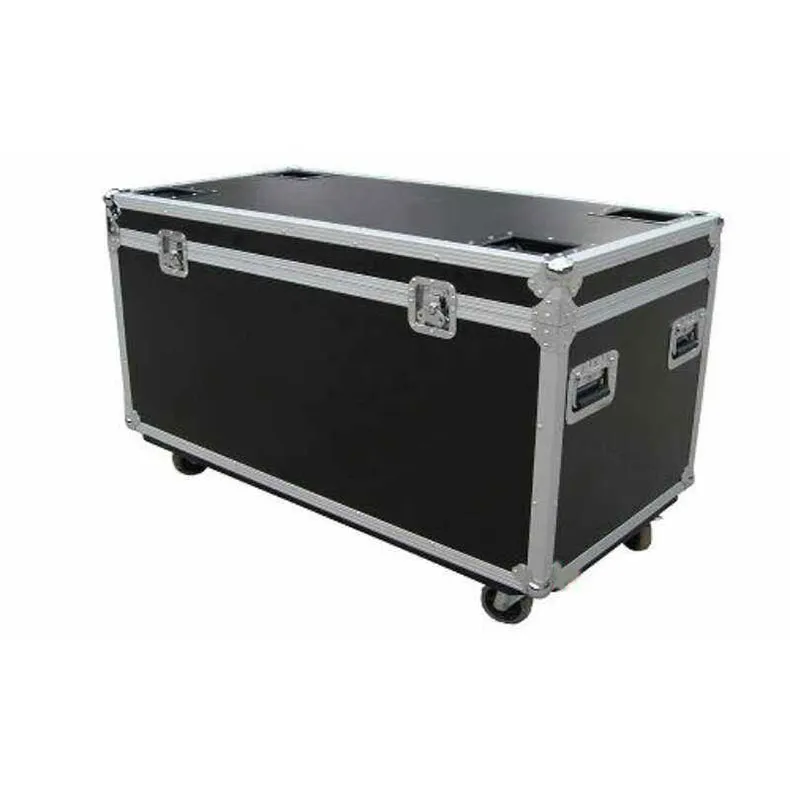

Flight Case: Durable protection with wheels for easy transport.

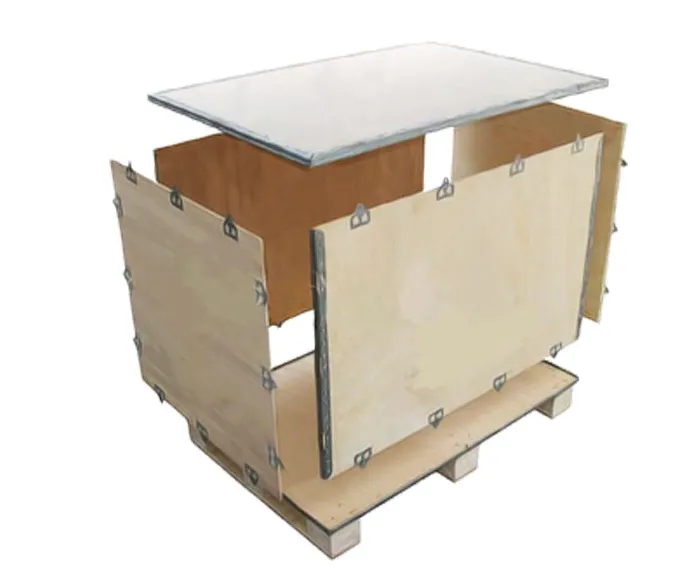

Wooden Case: Cost-effective and customizable for fixed installations.
Service Commitment
2-year comprehensive warranty
Free remote debugging and technical guidance
24-hour hotline service for urgent support
Pre-loaded configuration programs for immediate use
FAQ
Is the product customizable?
Yes, we can customize the product according to specific customer needs. Please provide your detailed requirements for a tailored solution.
Do you test all your goods before delivery?
Yes, we conduct 100% rigorous testing on all components and assembled screens before they leave our facility.
How about your delivery time?
Generally, it takes about 20-22 days after receiving the advance payment. The specific time depends on the order items and quantity.
What are your terms of payment?
Standard terms are T/T 40% as a deposit and 60% before delivery. We provide photos and videos of the products and packages before final payment.
Do you provide free spare parts?
Yes, we provide a standard set of spare parts with each order, including modules, cables, LEDs, ICs, power supplies, and receiving cards.
