Waterproof Indoor Outdoor Full Color SMD Flexible LED Videowall Display Soft Module Bendable Flex Screen Curve LED Display (P1.25 P1.5 P1.6 P1.8 P2 P2.5 P3 P4)

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Overview & Basic Info
Model NO.
FLEX
Pixel Pitch
4mm
Pixel Configuration
1R,1G,1B
Pixel Density
62500 Dots/Sqm
Scanning Mode
1/15 Scan
Display Type
LED Video Display
Application
Stage Performance, Advertising
IP Rating
IP45
Module Material
Silicon Rubber Soft Bracket
Service Access
Front
Viewing Angle
140 / 140
Certification
CE, RoHS, CCC, ETL, FCC/ISO
🖼️ Product Description
Flexible LED Videowall
📊 Specifications
Model FLEX1.25 FLEX1.579 FLEX1.667 FLEX1.875 FLEX2 FLEX2.5 FLEX3 FLEX4
Pixel Pitch(mm) 1.251.5791.6671.87522.534
Pixel Matrix /sq.m 64000040111136000028444425000016000011111162500
Brightness (nits) ≥600≥650≥700≥750≥750≥750≥900≥850
Scan 1/481/381/361/321/301/241/201/15
Refresh Rate (HZ) 384038403840≥2880≥2880≥1920≥1920≥1920
Module Size 240x120mm / 0.79x0.39ft
📷 Product Gallery

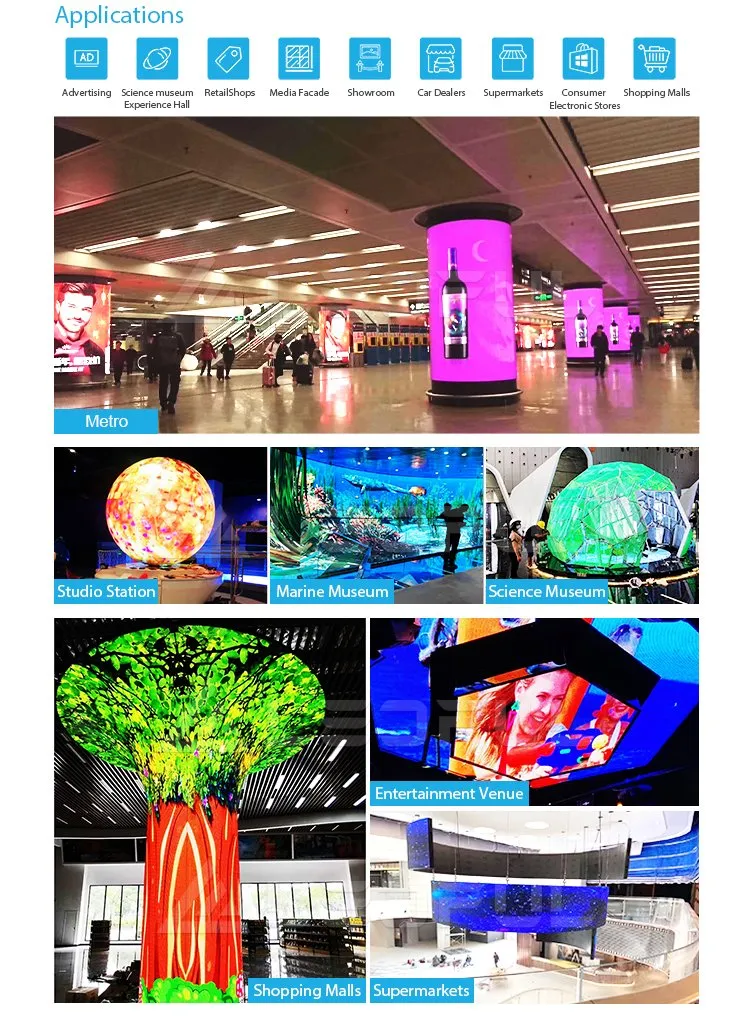

Soft LED Module

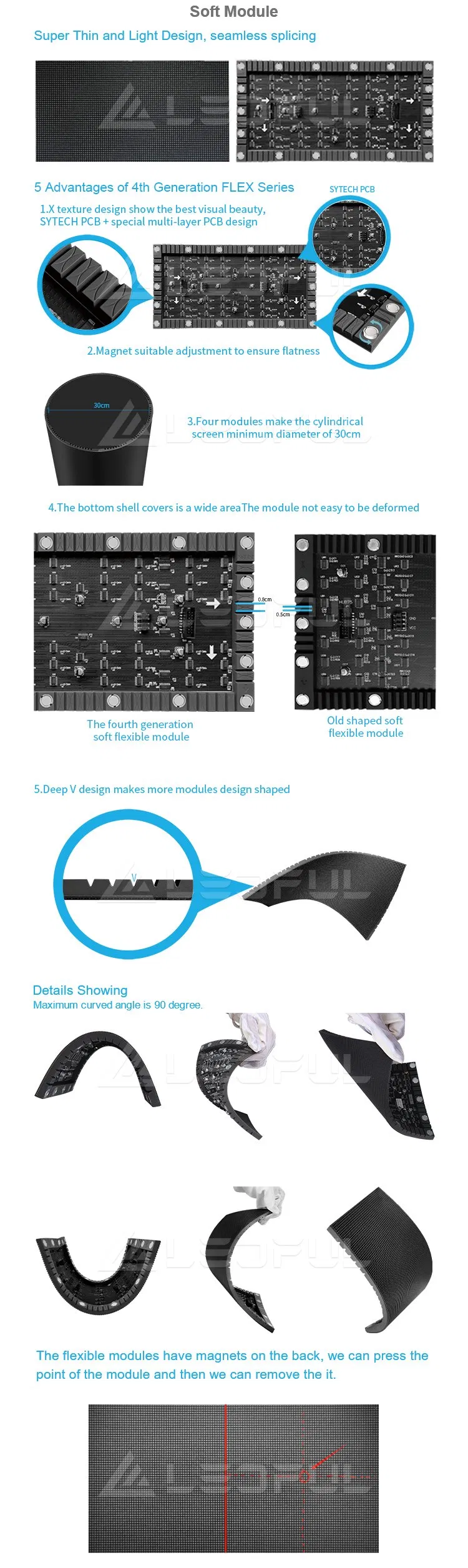

Bendable Screen

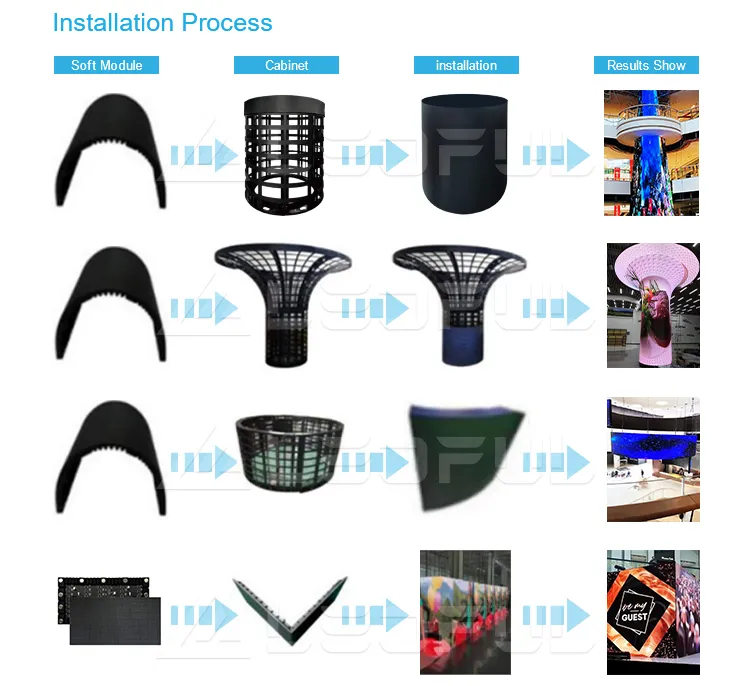

Curve LED Display

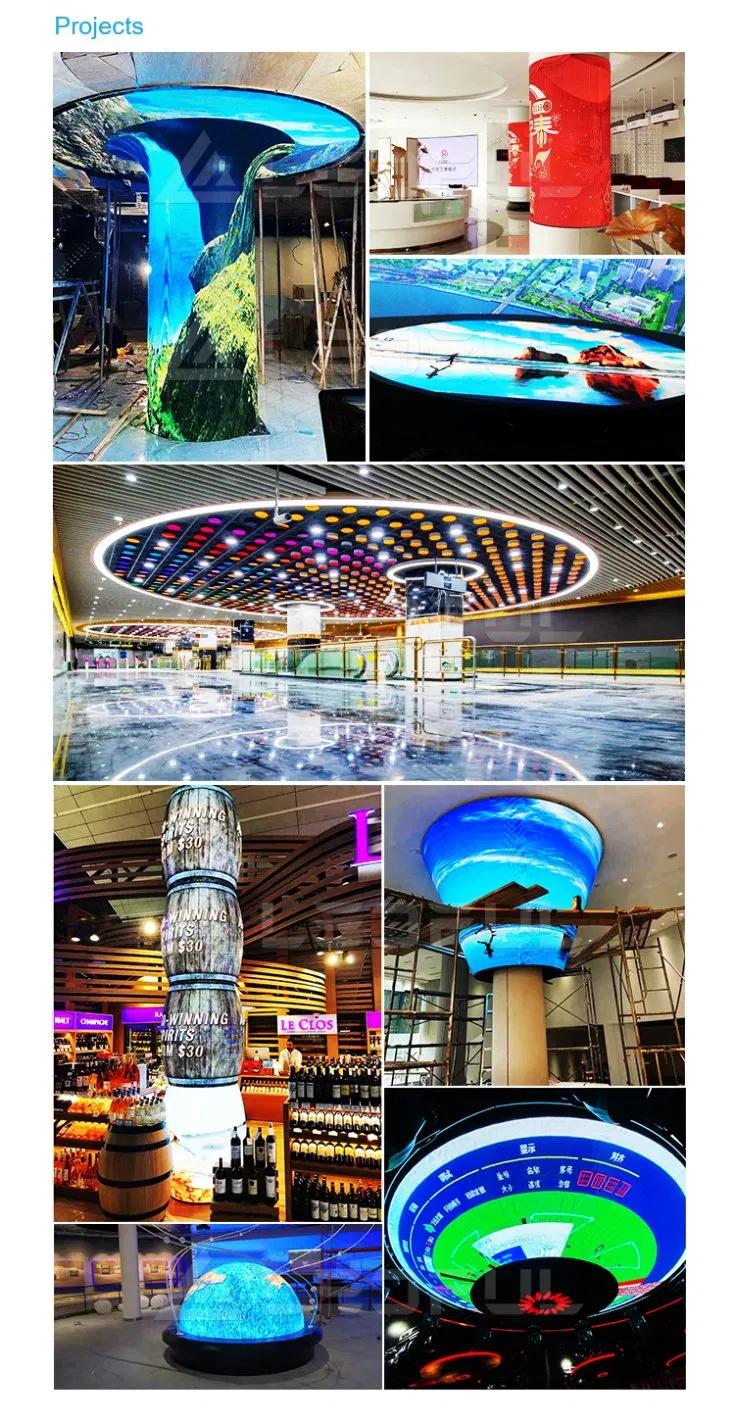

Flexible Solution

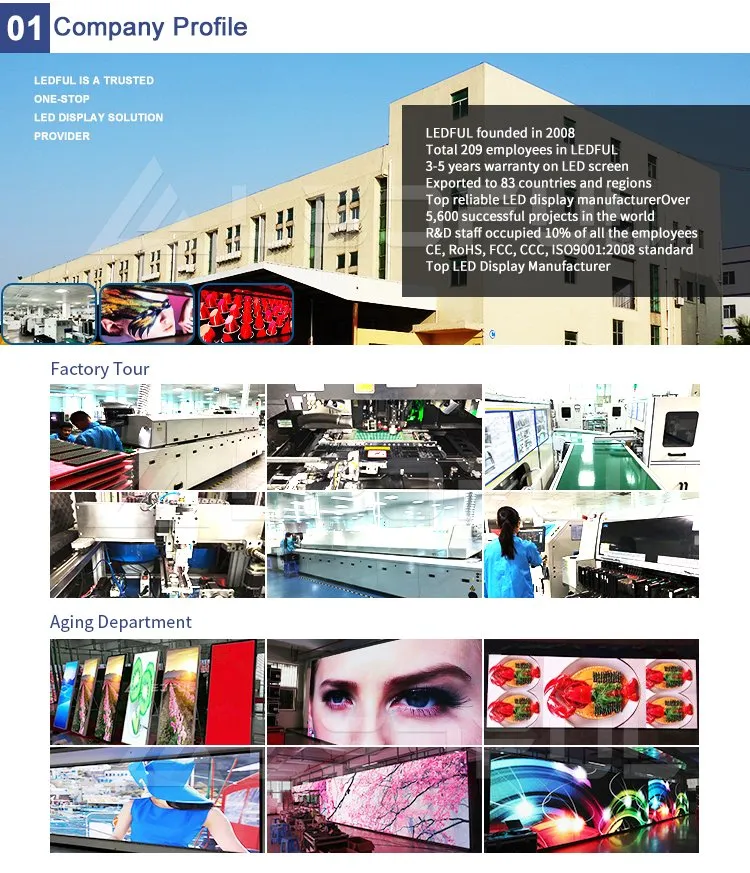

Production Detail
🏢 Professional Manufacturing

We are a top LED display manufacturer with 13 years of rich experience, providing a 3-year warranty. We concentrate on LED Posters, Transparent LED screens, Outdoor & Indoor commercial LED billboards, Rental LED screens, and Sports LED displays.

Our products are exported to 83 countries across Europe, America, Asia, Africa, and Oceania, with over 5600 successful projects. We have obtained CE, FCC, RoHS, CCC, UL, ETL, EMC, and ISO9001 certificates. Each product undergoes 16 monetary procedures and 23 operating procedures across 1500 tests to ensure stable quality.

Certifications Display
📦 Service & Logistics

Our dedicated team handles every detail of your order, packaging, and shipping with extreme care. We welcome customized OEM and ODM orders. As a trusted one-stop LED display solution provider, we offer versatile designs including front service, double-sided, column, flexible, curved, sphere, and 90-degree shapes.

Packaging Process
Shipping Logistics
Frequently Asked Questions
1. What's the minimum diameter for curved displays?
The minimum diameter we can achieve is 153mm, allowing for very tight circular columns.
2. How do you maintain flexible LED modules?
The modules feature magnetic backing. You can simply press the specific points of the modules to remove them for front-access maintenance.
3. What is the maximum curved angle of the modules?
The flexible modules can reach a maximum curved angle of 90 degrees.
4. What control system is used for these screens?
We typically use the Nova Taurus Series asynchronous control system, which supports APP, Phone, WIFI, Laptop, and Cloud-based management.
5. What is your warranty policy?
We provide a comprehensive 3-year warranty backed by a professional after-sales engineering team to solve any technical issues.
6. Can the modules be used for irregular shapes?
Yes, front service, column, flex, curved, sphere, and any irregular shaped LED displays are available using our soft module technology.
