Product Description

Basic Specifications

Model NO.

P4 3D LED DISPLAY

Pixel Pitch

4 mm

Pixel Density

62500 Dots/M2

Brightness

5000CD/M2

Refresh Rate

3840Hz

Scanning Mode

1/10 Scan

Application

Outdoor Advertising

Certification

CE, RoHS, CCC, UL, SGS

Power Cons.

Avg 220W / m²

Life Time

> 100,000 Hours

Product Overview

90 Degree Naked-Eye 3D Outdoor LED Display

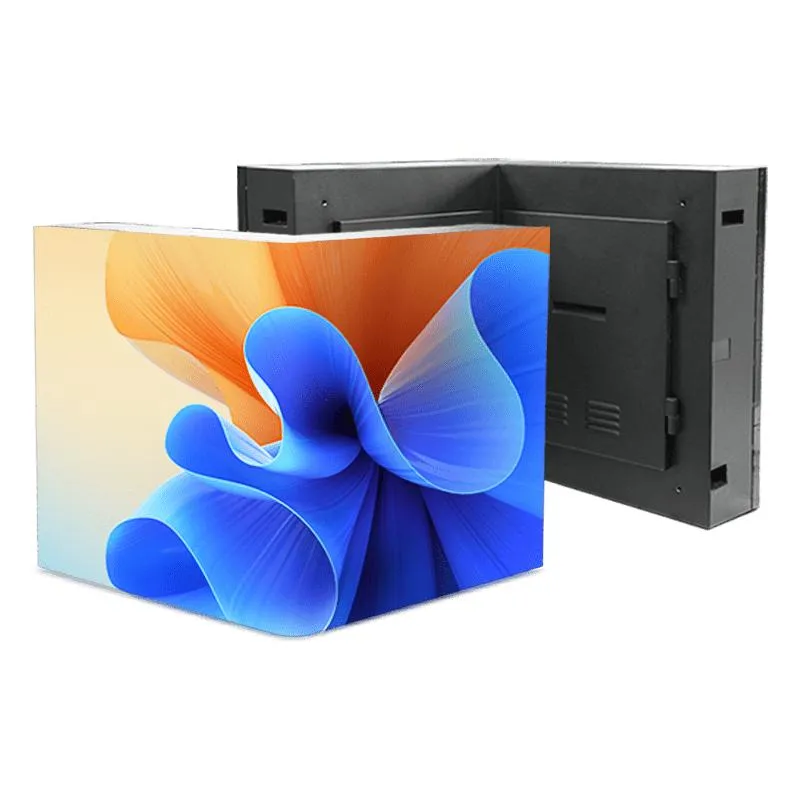

P4 Outdoor LED Display

● Big viewing angle (160º)

● Energy saving technology

● High refresh rate (3840Hz)

● Support TV, S-Video, DVI, AVI, MOV

● 2-3 Years Warranty

● Naked-Eye 3D visual effect

Technical Details

Feature	Specifications
Pixel configuration	1R1G1B (SMD1921)
Module size(W*H)	320*160 mm
Module Resolution	80 dots x 40 dots
Cabinet size	960mm X 960mm
Grey Scale	65536 degree
Operating Voltage	AC110V/220V±10%
Color Temperature	6500K-9500K
Control Distance	100 m (Optical fiber: 500m-15km)
Operating temperature	-30 to +60ºC

Applications

Widely used in retail stores, pubs and hotels, shopping centers, TV and broadcasting centers, worship houses, theaters, auto shows, award and corporate shows, concert touring, festivals, and sports events.

LED Application

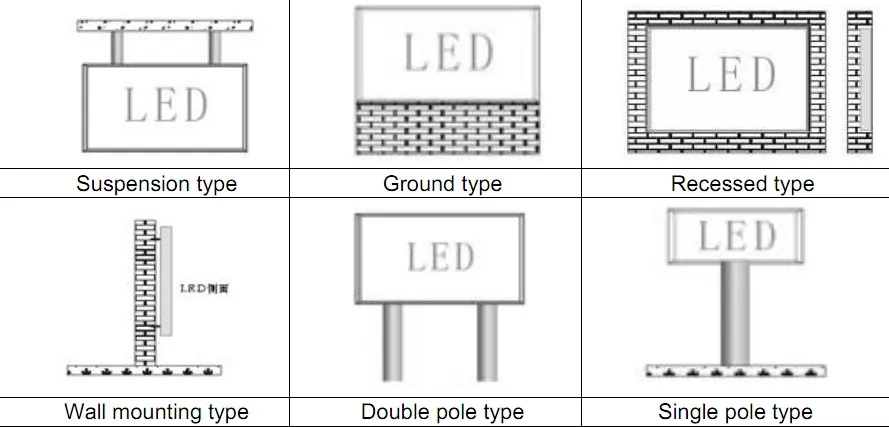

Installation Types

Project Showcase

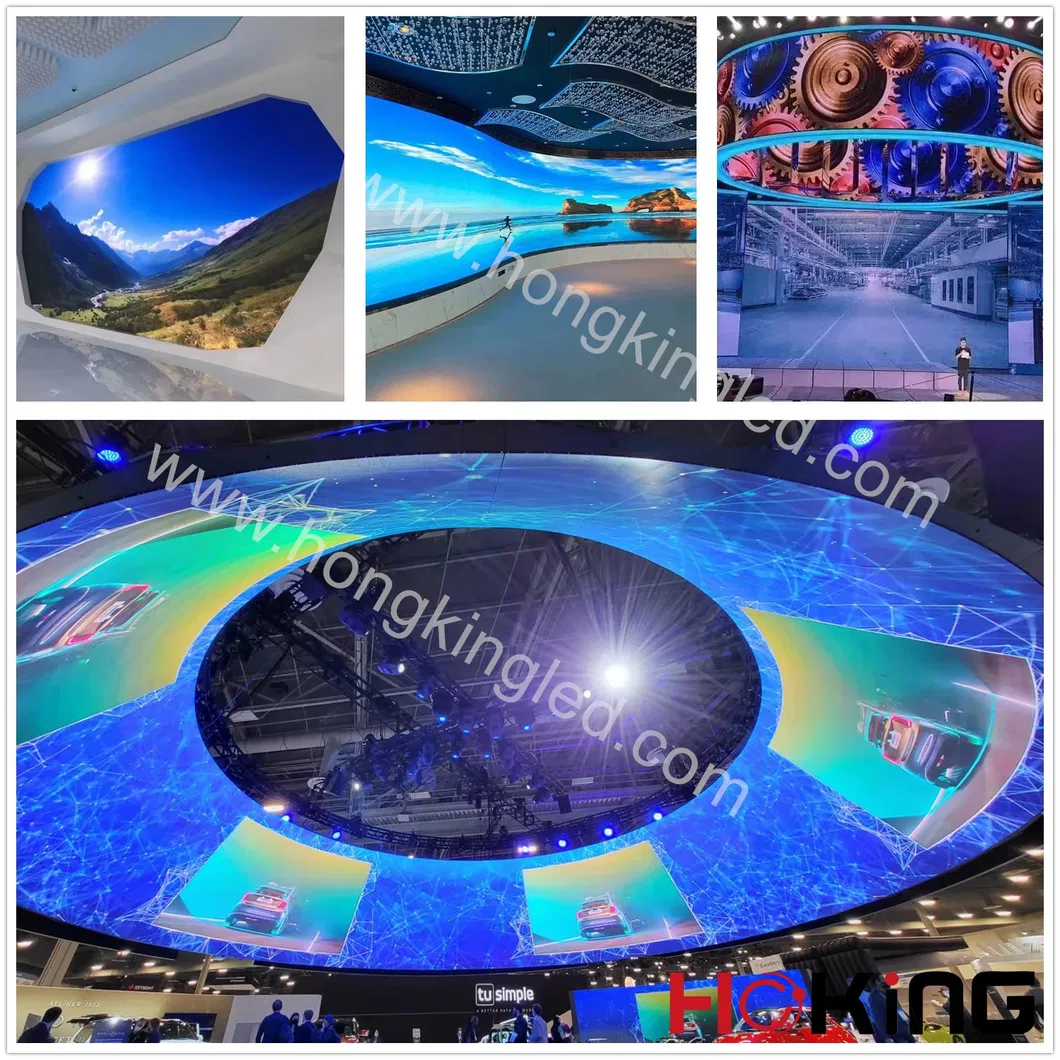

Project Display 1

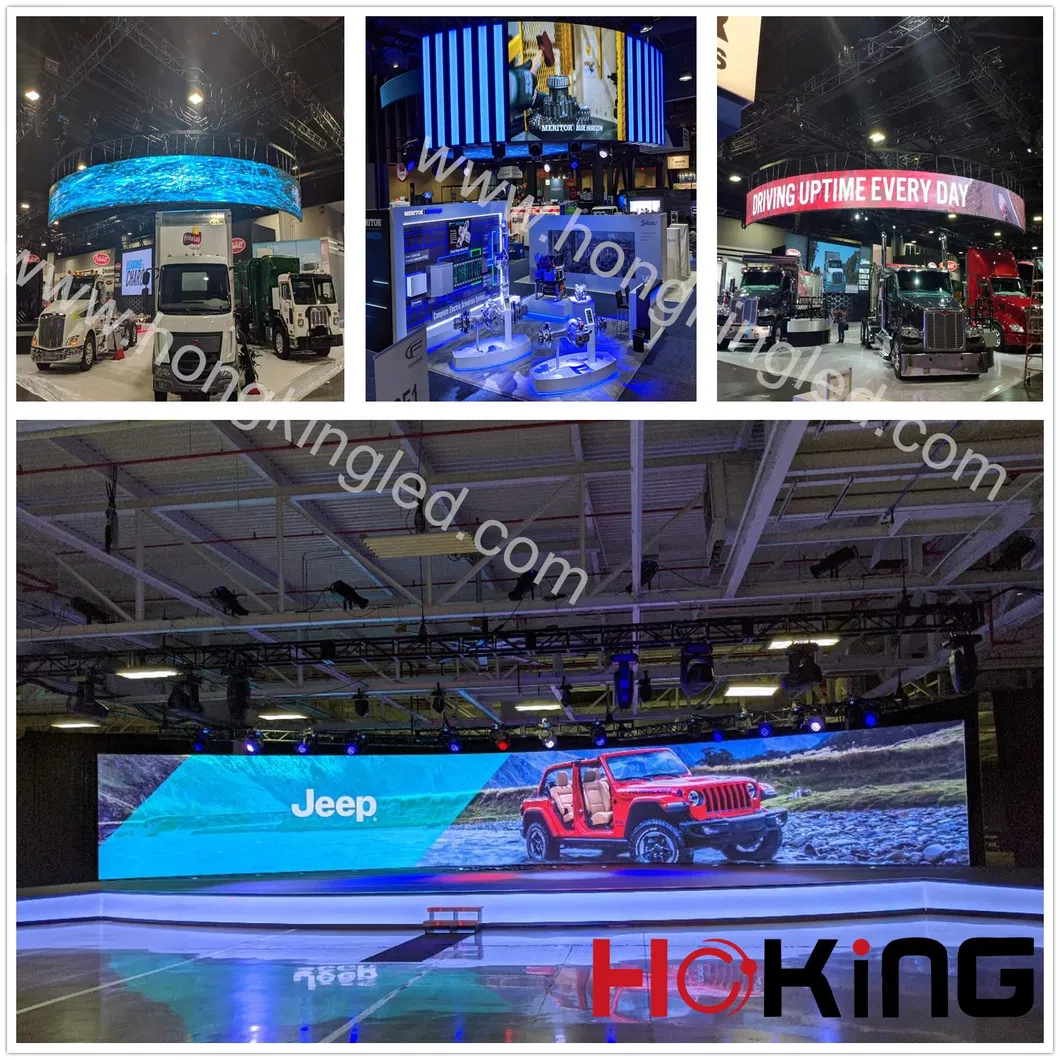

Project Display 2

Project Display 3

Project Display 4

Project Display 5

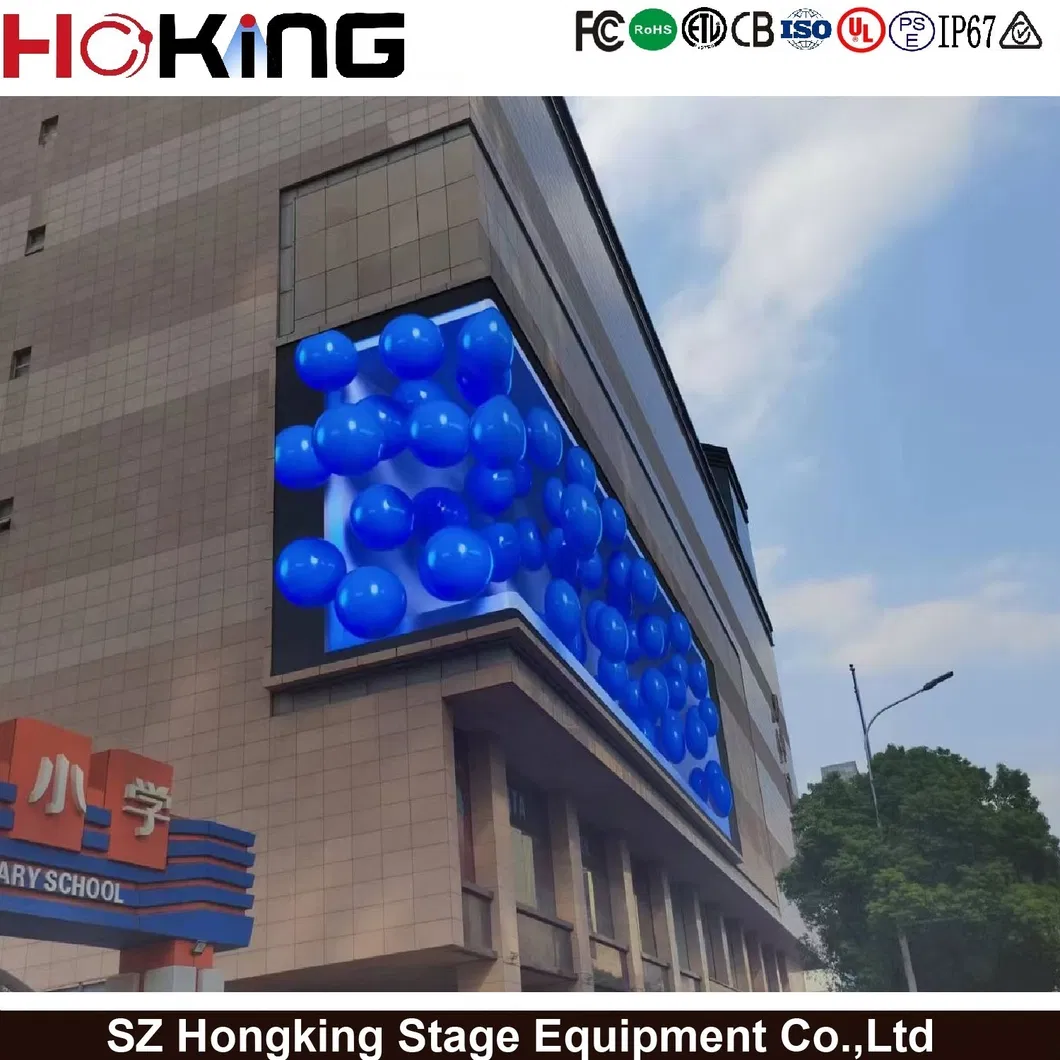

Project Display 6

Certifications & Feedback

Certificates

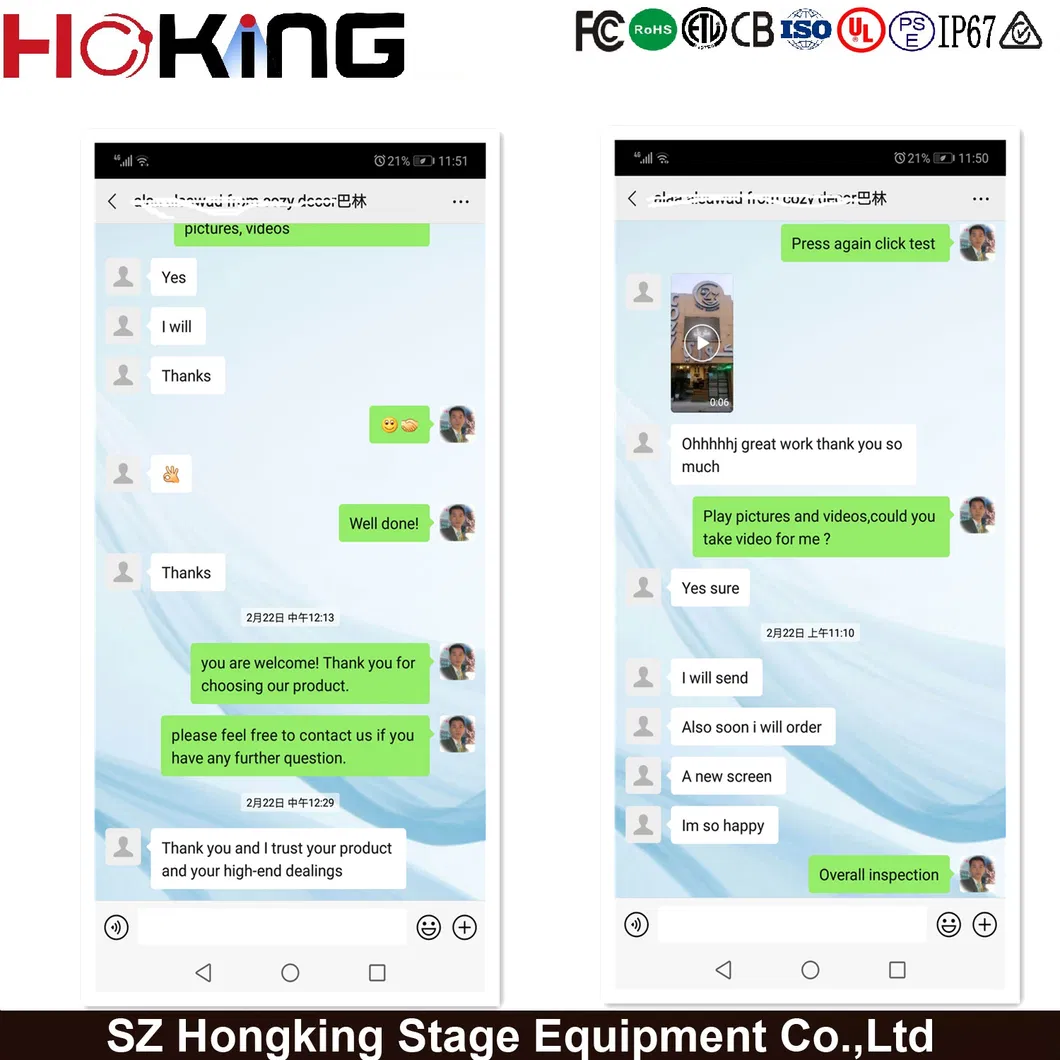

Customer Feedback

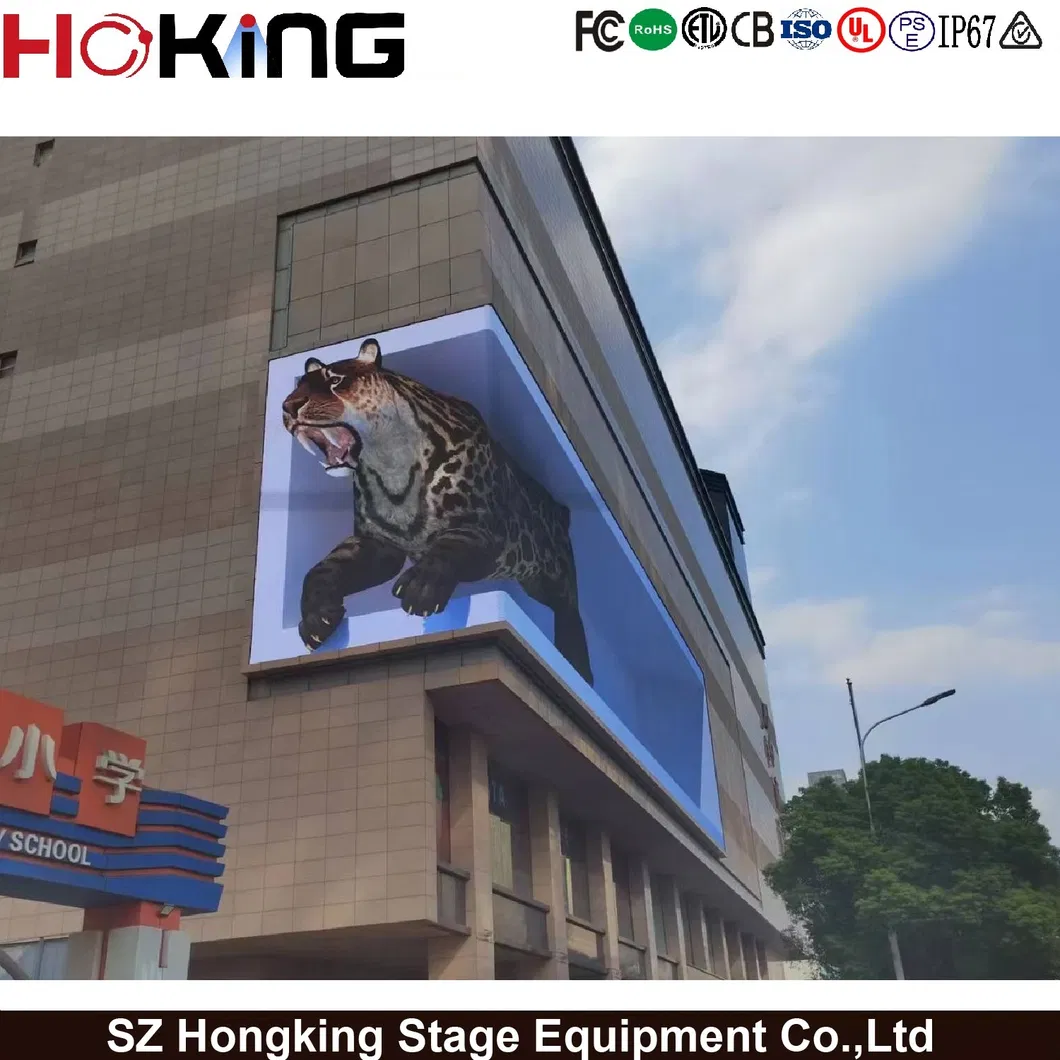

Quality Test

Frequently Asked Questions

Q1: What is the warranty period for this LED display? The product comes with a 2 to 3-year warranty for non-artificial damage. During this period, we repair default parts free of charge.

Q2: What is the average production time? The average production time is 7-18 working days after receiving the deposit. Urgent orders can be prioritized.

Q3: How do you handle quality control? Quality is our priority. Every product is fully assembled and carefully tested before packing and shipping.

Q4: Can I get technical support for installation? Yes, we offer online video help via TeamViewer or can send professional engineers for on-site guidance.

Q5: Which control systems are compatible? Our displays support LINSN, Nova-star, and Colorlight control systems, selectable based on your needs.

Q6: What signals does the video processor accept? It accepts PAL, NTSC, SECAM, S-Video, VGA, RGB, Composite Video, and SDI signals.
