Customization:	Available
Tube Chip Color:	Full Color
IP Rating:	IP65

Send Inquiry

Product Description

i

Basic Information

Model NO.

Naked eye 3D P10

Pixel Pitch

10mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video, Image, Text

Power Consumption

220W / m² (Avg)

Pixel Density

10,000 dots/Sqm

Scanning Mode

1/2 scan

Display Type

LED Video Display

Certification

CE, RoHS, CCC

Module Size

480X320mm

Cabinet Material

Die-Casting Aluminum

Refreshrate

3840Hz

Brightness

6500CD/Sqm

Package Size

110cm * 110cm * 25cm

★

Outdoor Naked Eye 3D P10 LED Display

Core Features:

3D LED displays are constructed using standard high-quality LED modules.
The immersive 3D effect is achieved through specially-created video content combined with high-refresh display hardware.
Large-scale and corner-angled screen designs provide the most impactful 3D visual experiences.

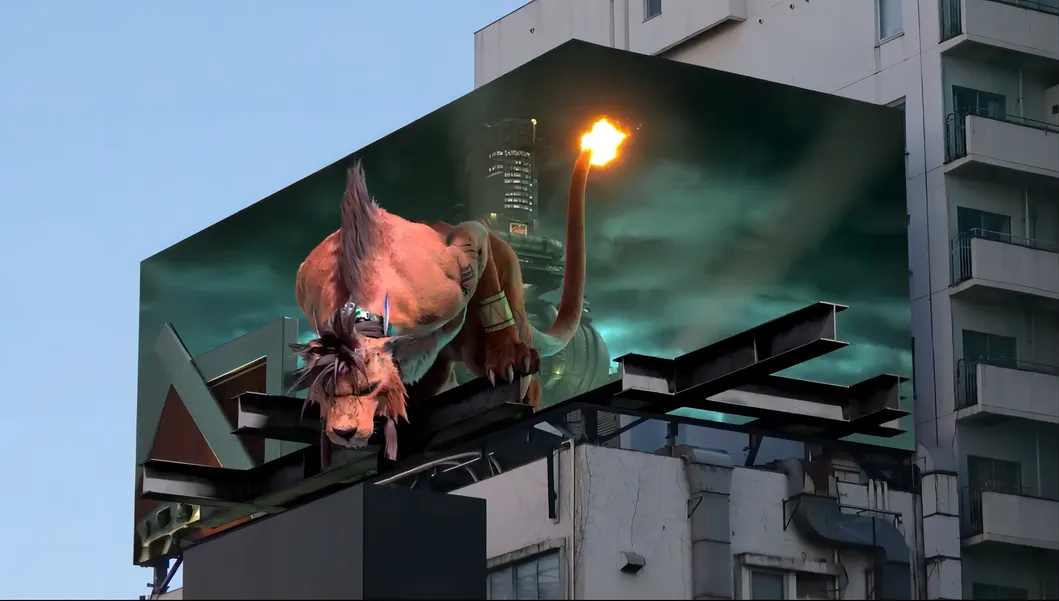

3D LED Display Overview

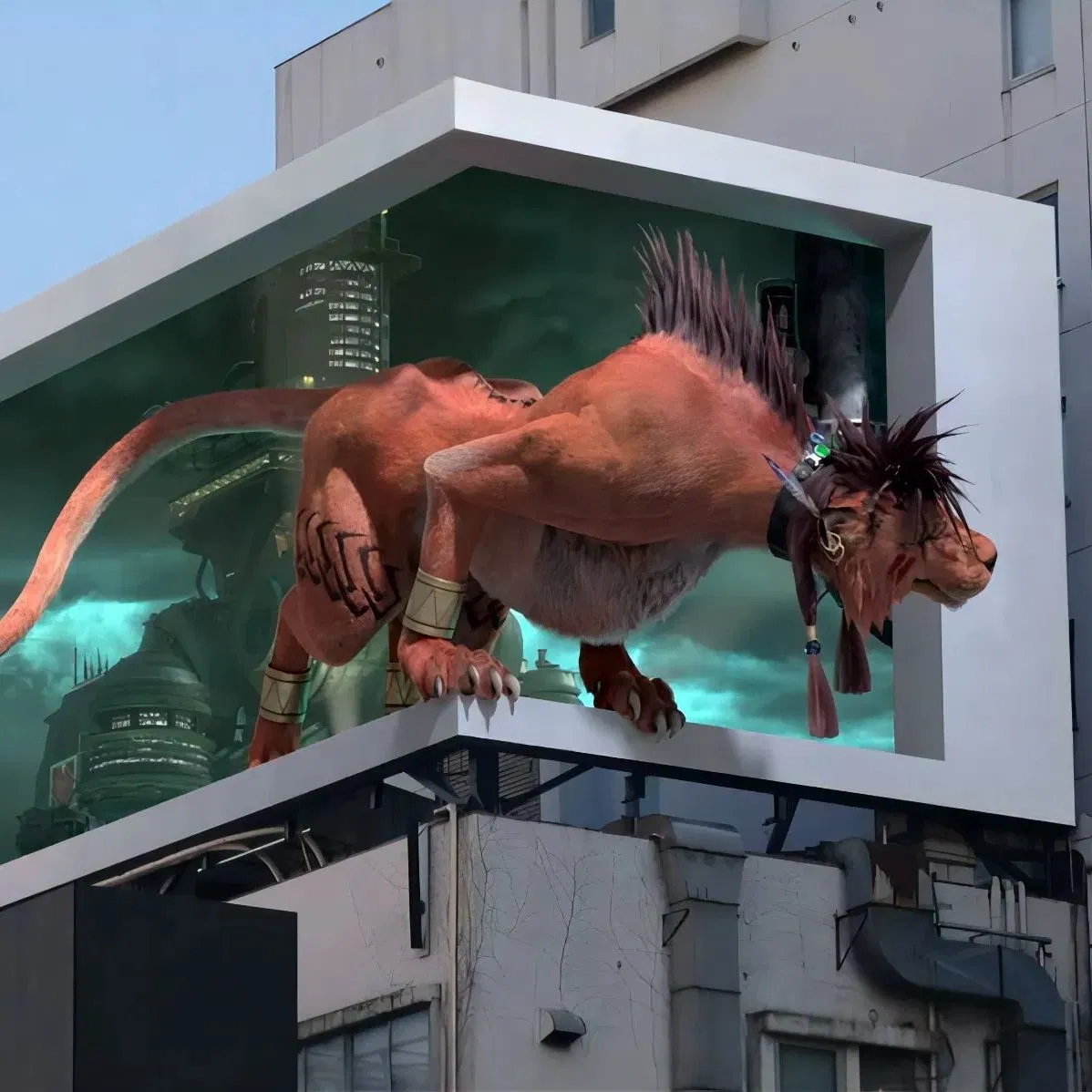

Naked Eye 3D Effect 1

Naked Eye 3D Effect 2

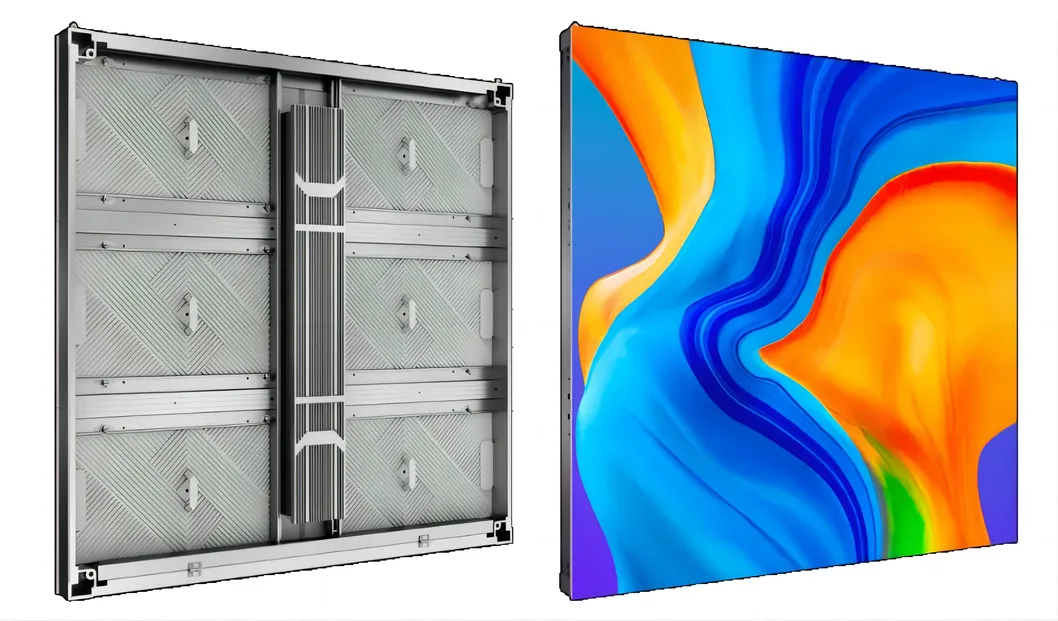

Product Detail 1

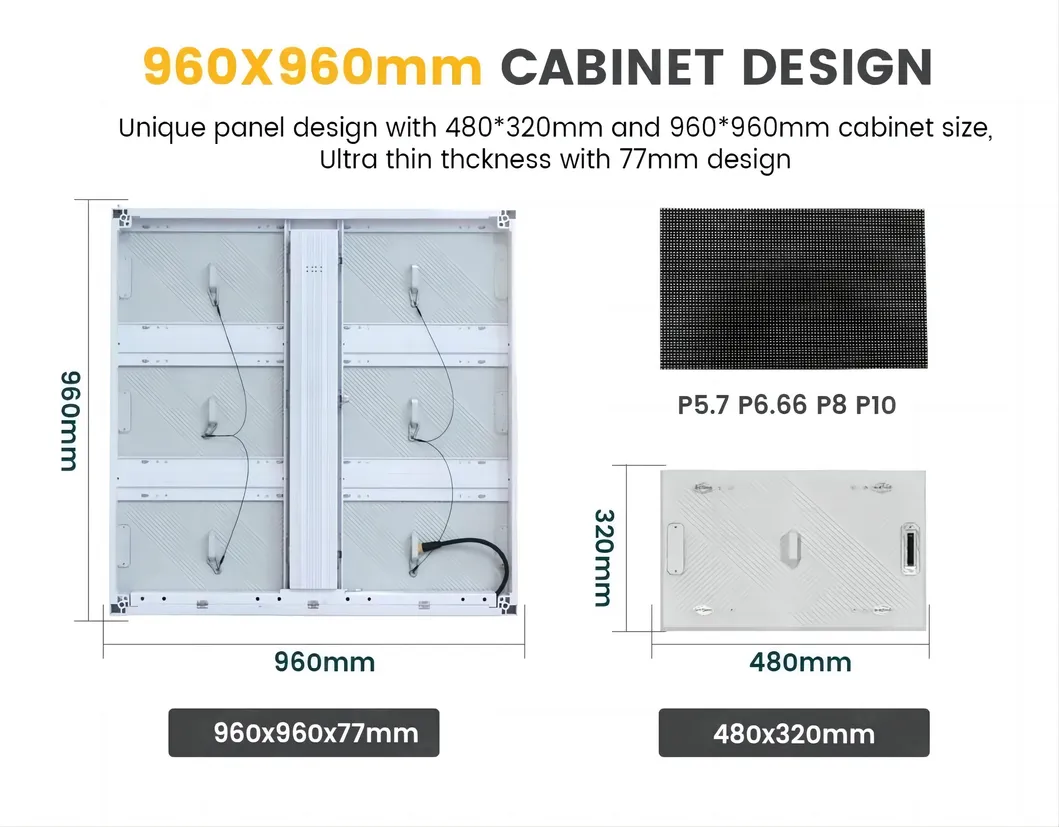

Product Detail 2

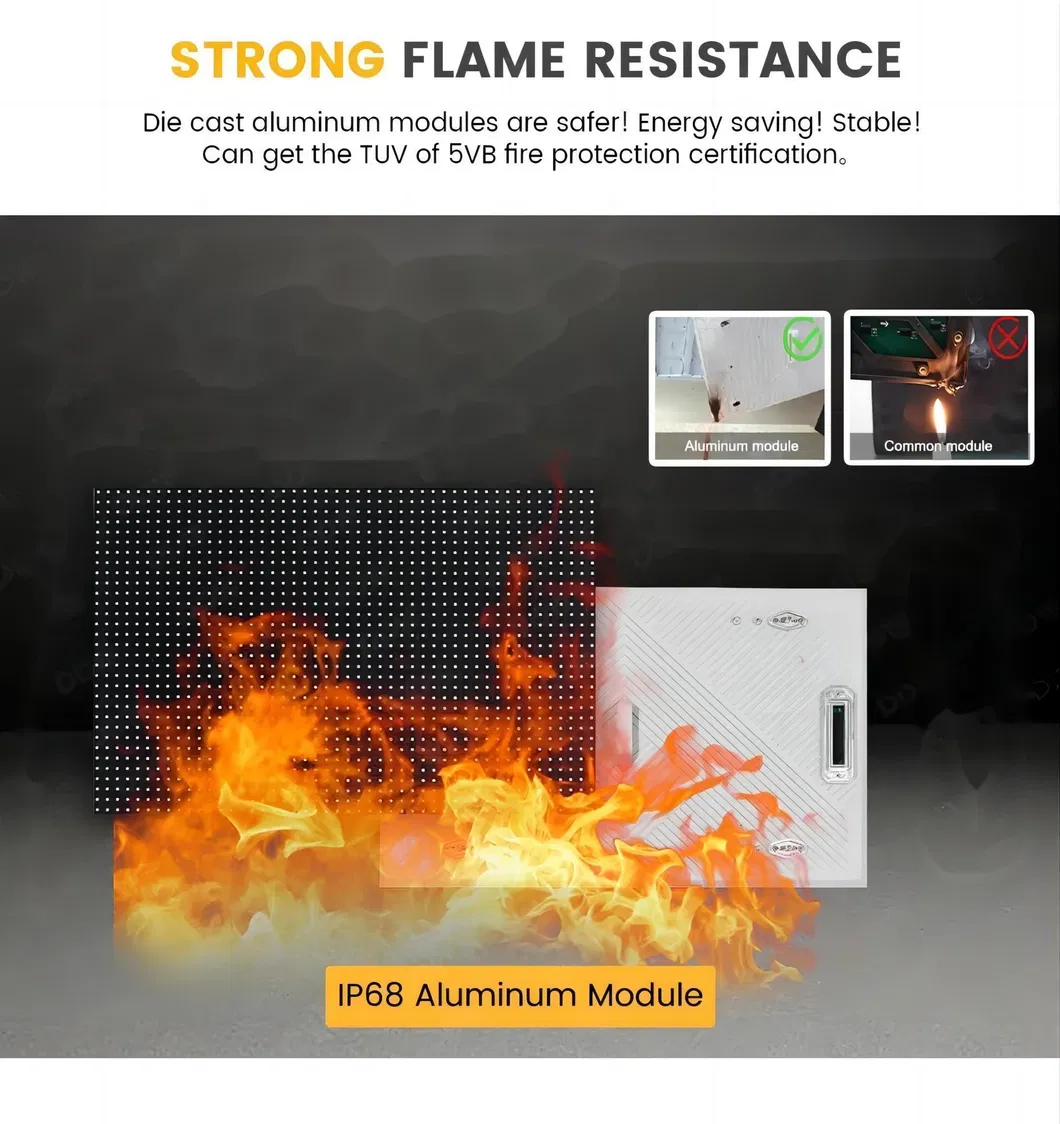

Product Detail 3

⚙

Technical Specifications

Model Parameter	CN-FFH571	CN-FFH667	CN-FFH800	CN-FFH1000
Pixel Pitch	5.71mm	6.67mm	8mm	10mm
Pixel Density	30625 dot/m²	22500 dot/m²	15625 dot/m²	10000 dot/m²
Module Size	480 × 320 mm
Cabinet Material	Aluminum
Brightness	≥6500 cd/m²
Refresh Rate	≥3840Hz
Gray Scale	14 Bit
IP Rating	IP65 (Outdoor Waterproof)

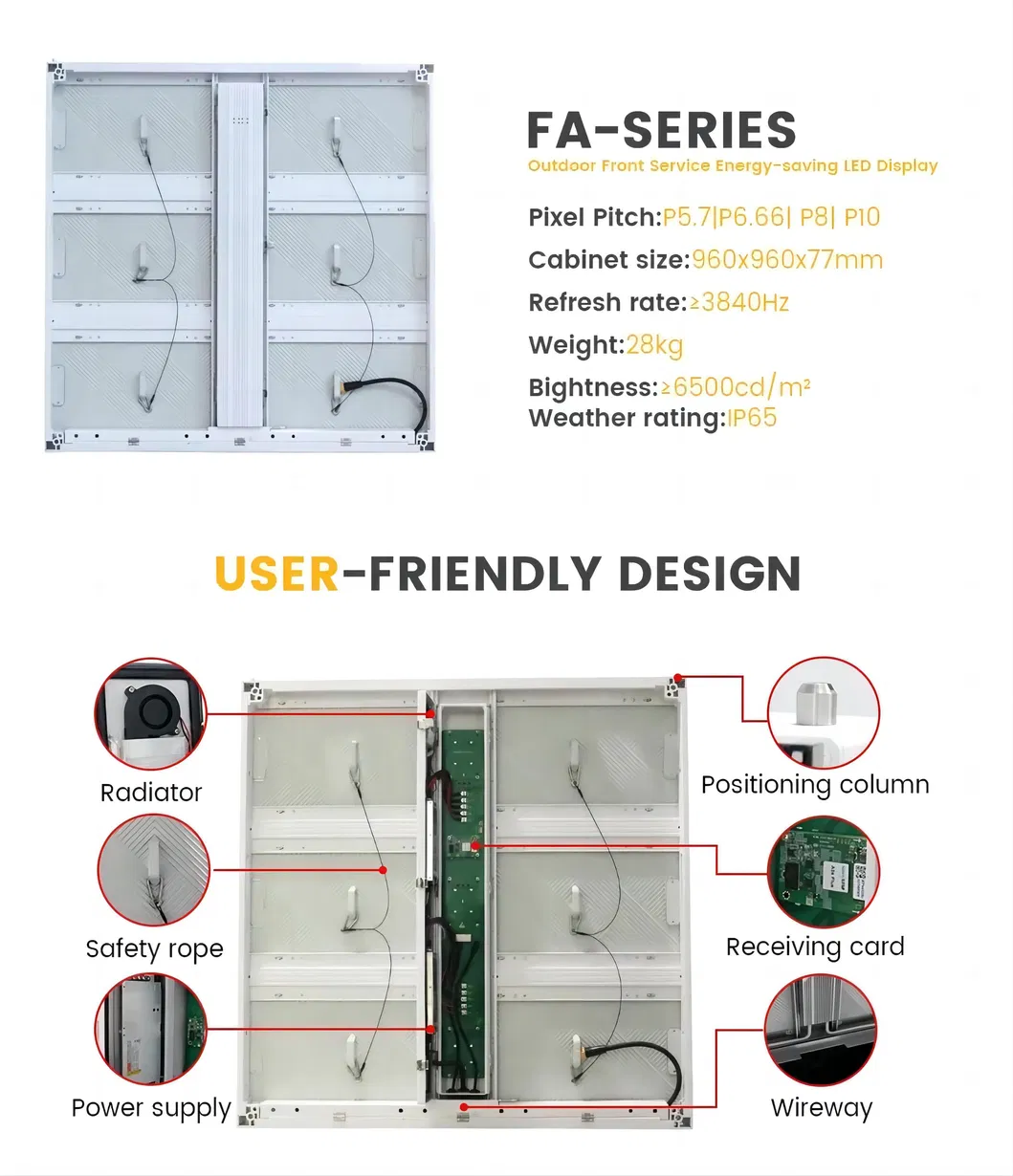

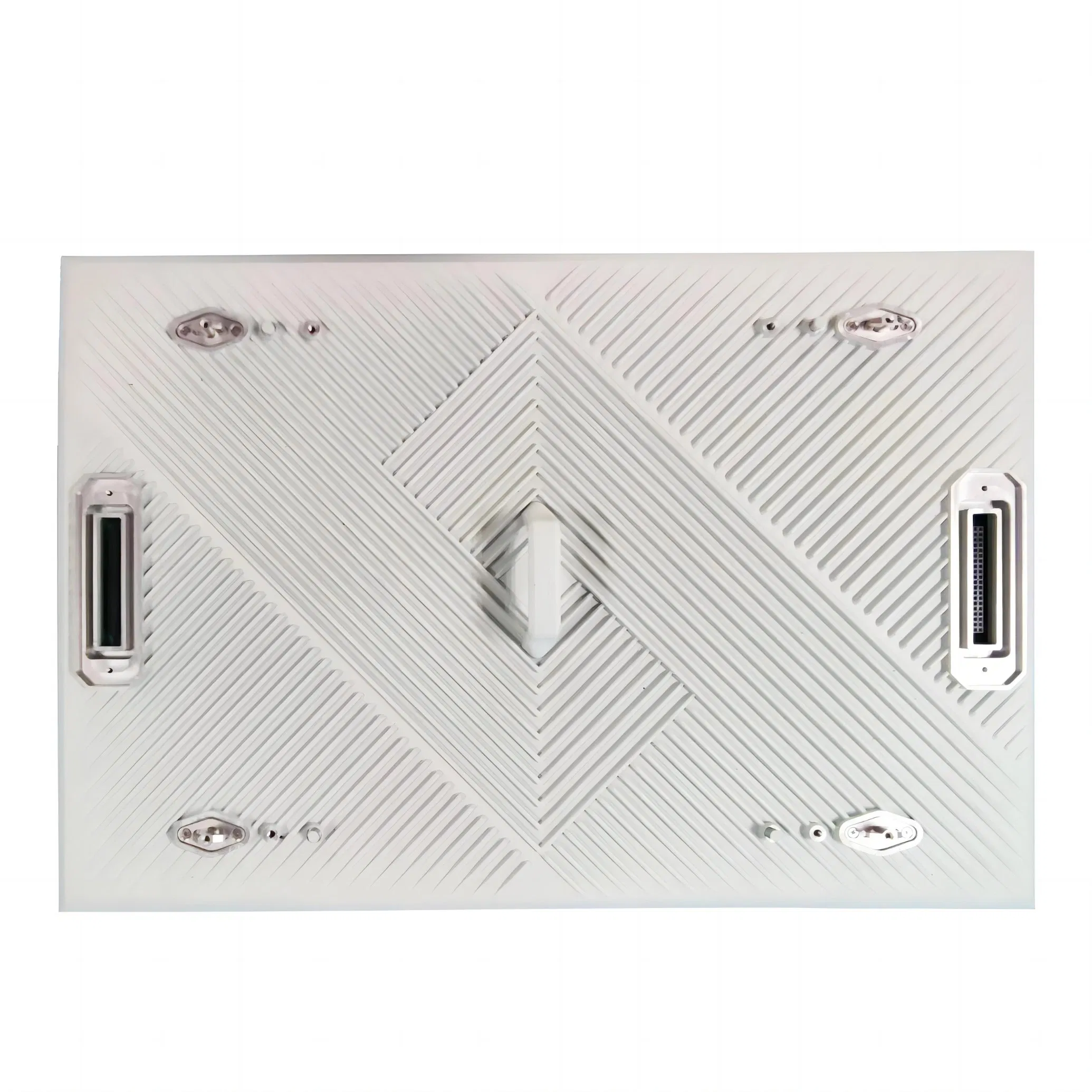

LED Panel Structure

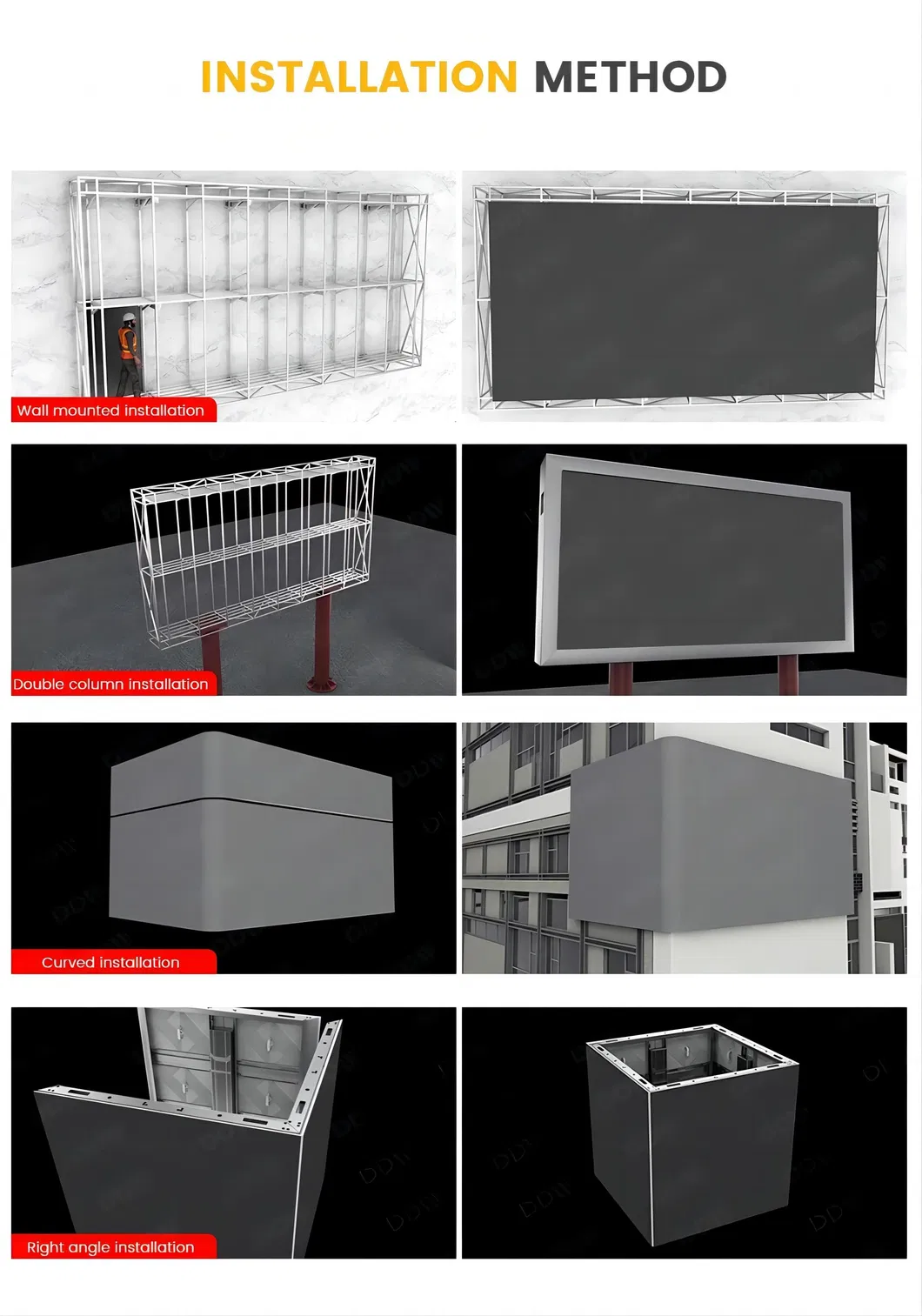

Installation Guide 1

Installation Guide 2

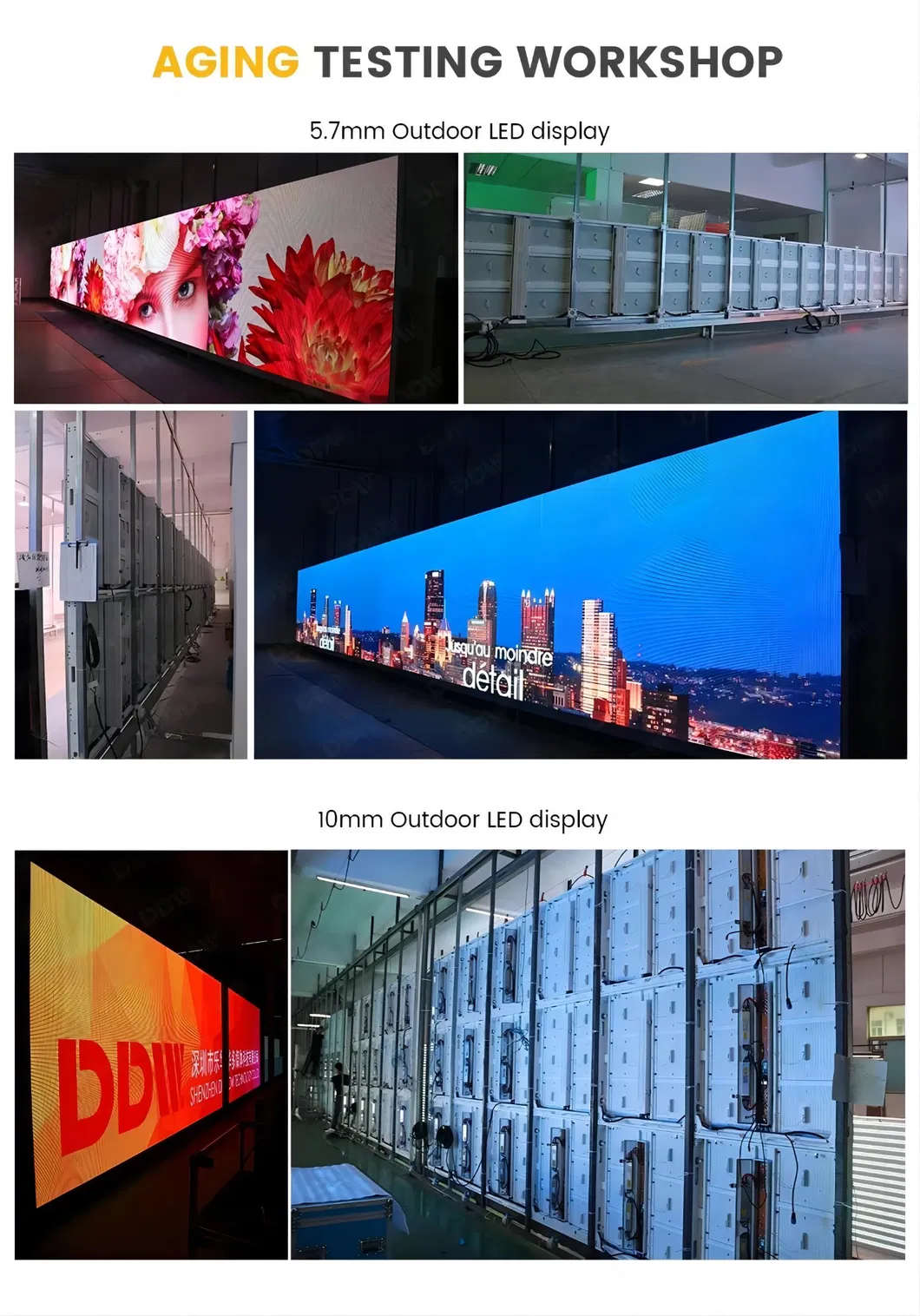

Factory Testing

Real SMT Workshop & Quality Control:

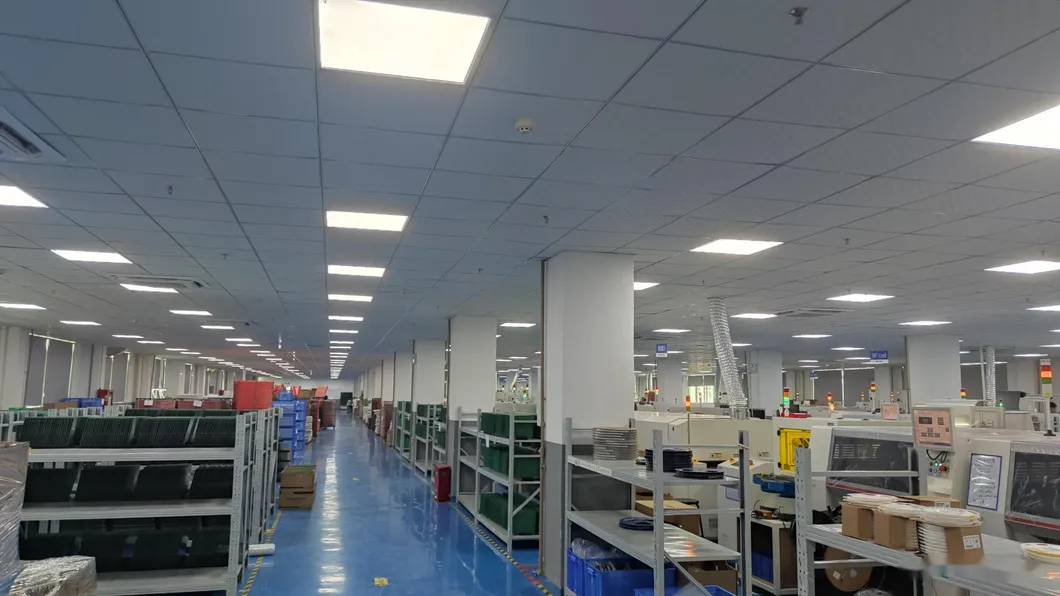

SMT Workshop

Product Quality Inspection

?

Frequently Asked Questions

What kinds of LED displays do you provide?

We offer a wide range of solutions including indoor, outdoor, mobile, rental LED displays, advertising billboards, and transparent flexible film screens.

Is there a minimum order quantity (MOQ)?

As an OEM factory, we support trial orders. There is no strict minimum order quantity, though pricing is optimized based on the total quantity ordered.

What is the typical lead time for an order?

Standard products typically take 3-8 days. For customized solutions or large container orders, the lead time is approximately 10-20 days.

What is the warranty period for the 3D LED screens?

We provide a two-year warranty. Our products are engineered for longevity and can typically operate for more than 10 years with proper maintenance.

How do you ensure product quality?

All products undergo strict quality control and are tested for at least 72 hours before packing. We comply with international standards including ISO9001, CE, CB, FCC, and CCC.

Do you offer technical support for first-time users?

Yes, we provide free training on screen setup and content broadcasting via popular control systems. Remote technical assistance is also available whenever needed.
