3D Advertising Digital China Hologram Outdoor Stadium Advertising Wall Stage Rental Indoor Flexible Transparent Street Video LED Display Screen Module Panel P5

Customization:	Available
Tube Chip Color:	Full Color
IP Rating:	IP65

Send Inquiry

Product Description

Basic Info

Model NO.

LW-FO 10

Pixel Pitch

10mm

Configuration

SMD3535 (1R, 1G, 1B)

Brightness

Up to 7000CD/M2

Module Size

320X160 mm

Cabinet Size

960X960 mm

Scan Mode

1/2 Scan

Application

Outdoor Advertising

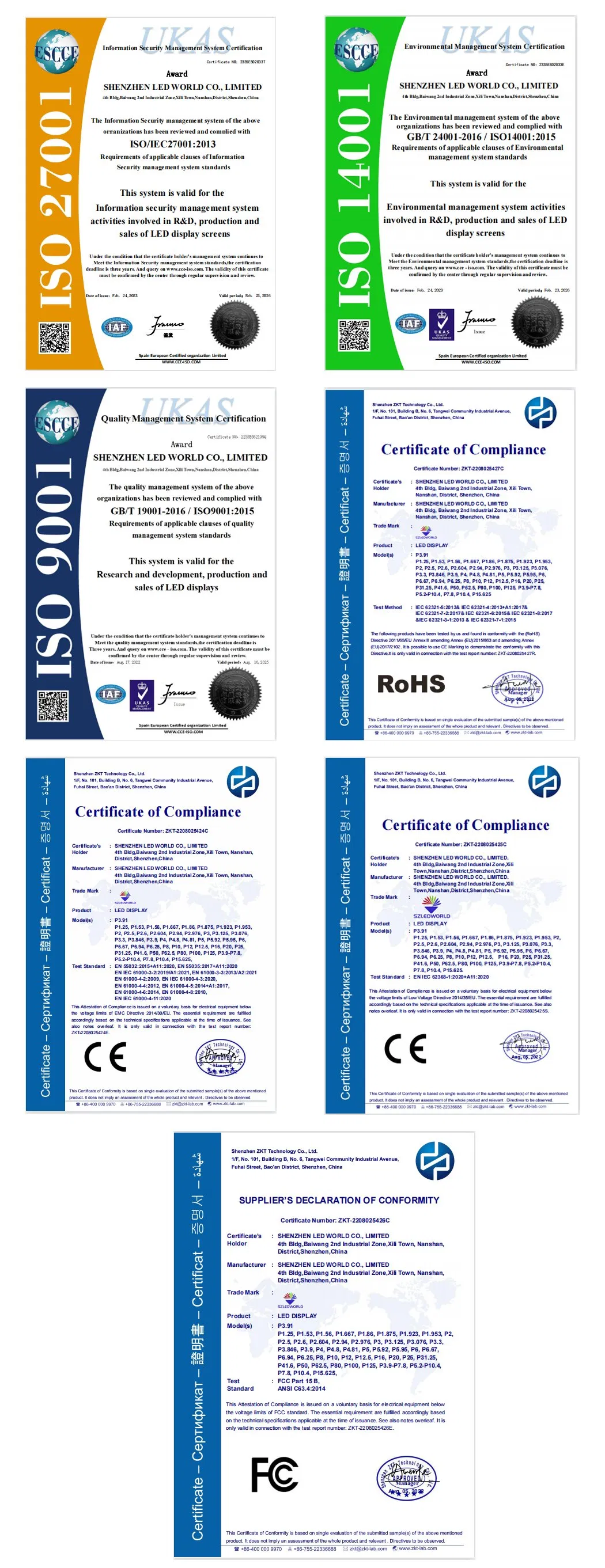

Certification

CE, RoHS, CCC, ETL, UL

Capacity

10000sqm Per Month

Product Description & Features

🛡️

High Protection: Waterproof cover for outlet and air inlet, higher level than standard products.

🔆

High Brightness: 1/2 scan drive design reaching up to 7000 nits.

🎨

Superior Visuals: Uniform color and high contrast ratio for natural images.

⚡

Efficiency: Low power consumption and excellent heat dissipation.

↔️

Wide Angle: Super wide viewing angle to cover more audience.

☀️

Anti-UV: No deformation under direct sunlight due to anti-UV modules.

Technical Parameters

Pixel Pitch	P3.33	P4	P5	P6.67	P8	P10
LED Type	SMD1921	SMD1921	SMD1921	SMD3535	SMD3535	SMD3535
Pixel Density (dots/m2)	90,000	62,500	40,000	22,500	15,625	10,000
Module Size	320*160mm	320*160mm	320*160mm	320*160mm	320*160mm	320*160mm
Brightness (cd/m2)	≥5500	≥5500	≥5500	6000	5800	6500
Refresh Rate	≥1920HZ	≥1920HZ	≥1920HZ	≥1920HZ	≥1920HZ	≥1920HZ
Protection Rating	IP65	IP65	IP65	IP65	IP65	IP65

* Specifications are for reference only. Please contact sales for specific details.

Core Advantages

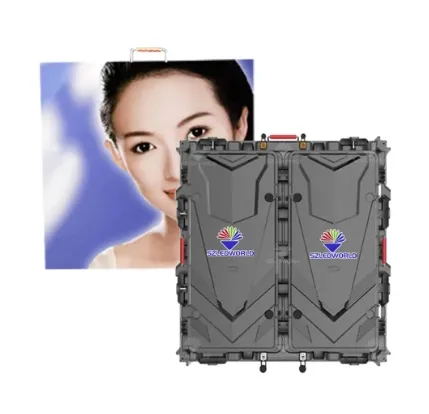

Die Casting Magnesium Alloy Cabinets

Stronger and more precise than normal steel panels. Features include:

Lightweight magnesium alloy material

Aerospace signal & electrical connectors

Superior accuracy for seamless joints

Anti-corrosion & Excellent heat dissipation

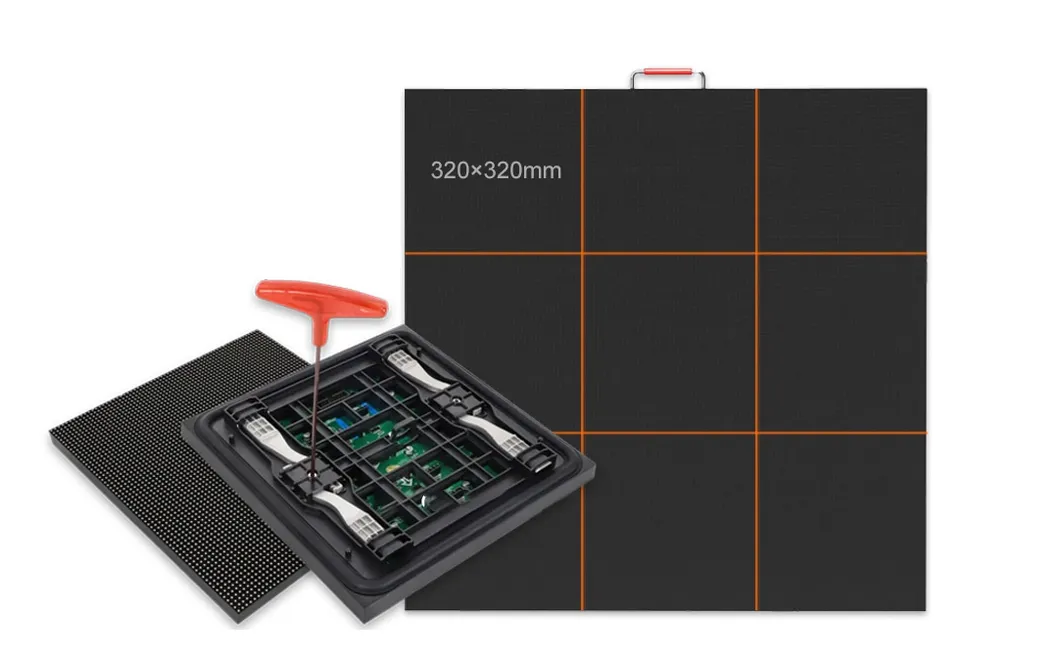

Standard LED Module Design

Supports 320×320mm dual maintenance series. Enables seamless integration across P4, P5.33, P6.67, P8, and P10mm without altering cabinet structure.

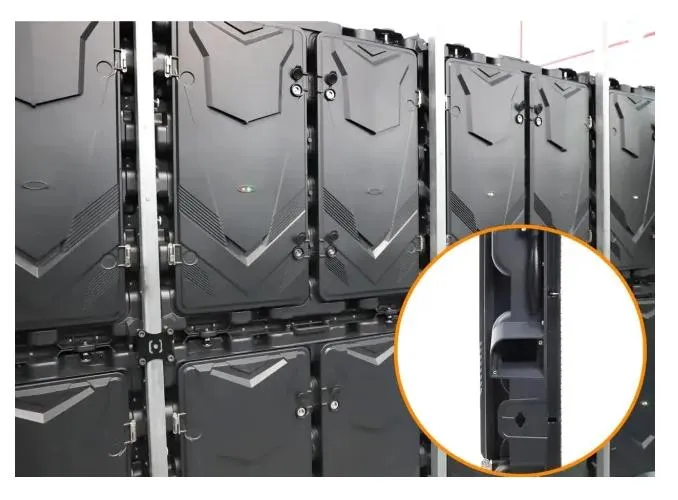

Hidden Line & Structural Design

Direct power and signal lines connect through reserved side holes. Innovative structure features located bins, fast locks, and handles for effortless assembly.

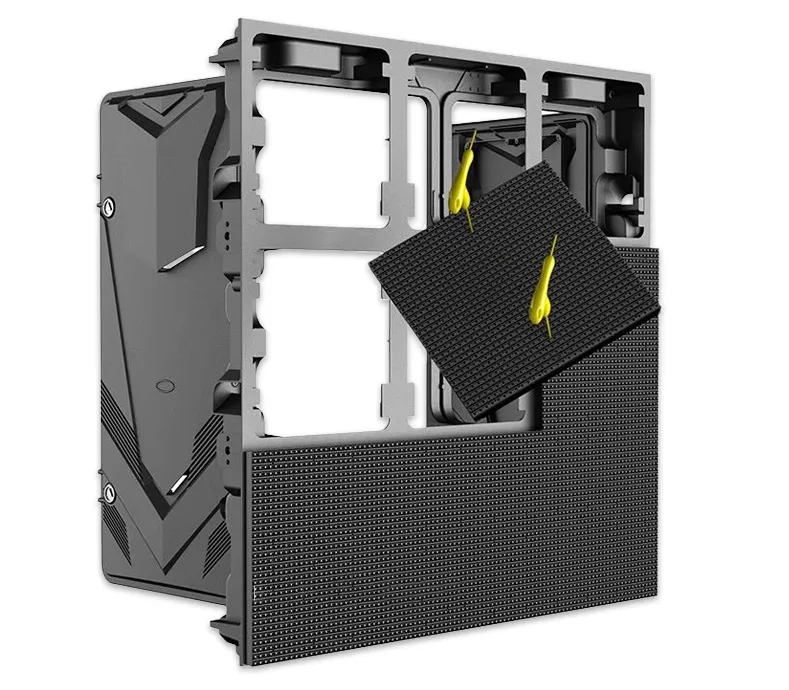

Double Service Maintenance

The MF960 series offers convenient Frontal & Rear maintenance, allowing modules to be replaced by a single person in seconds.

Typical Applications

Digital Billboards

Stadium Scoreboards

Mobile LED Trucks

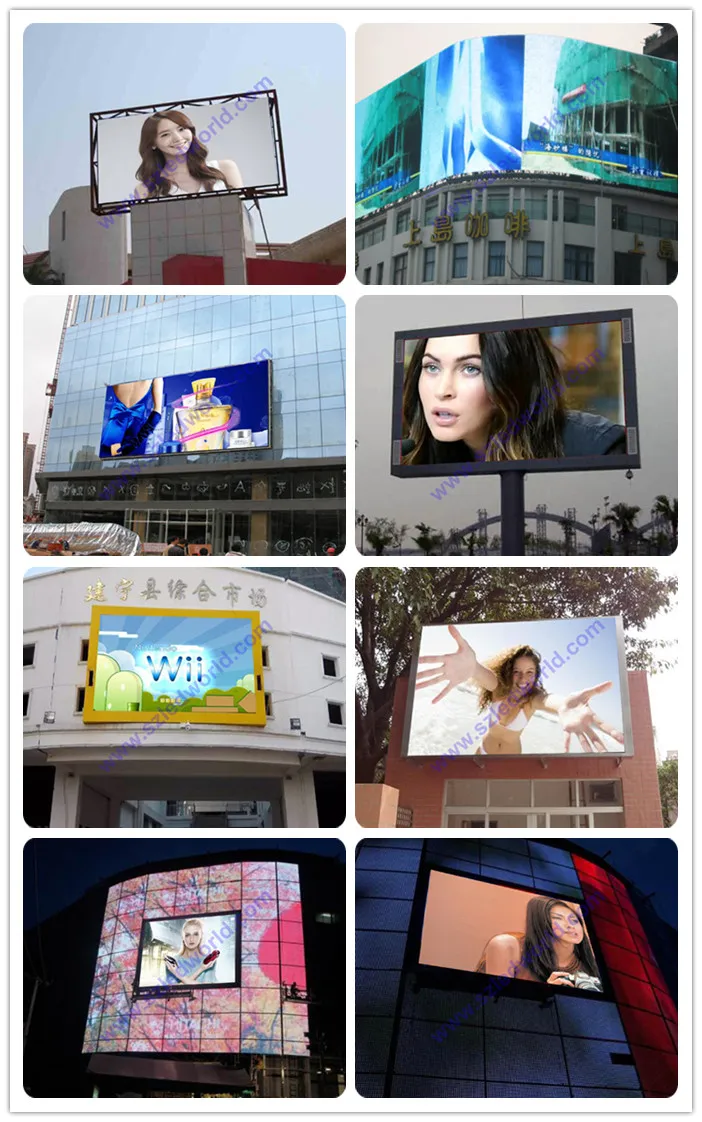

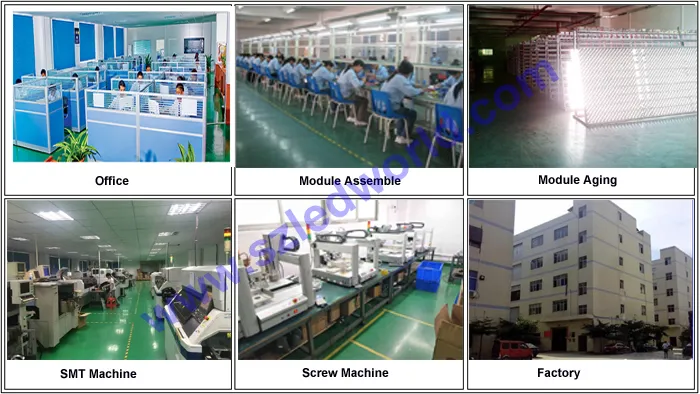

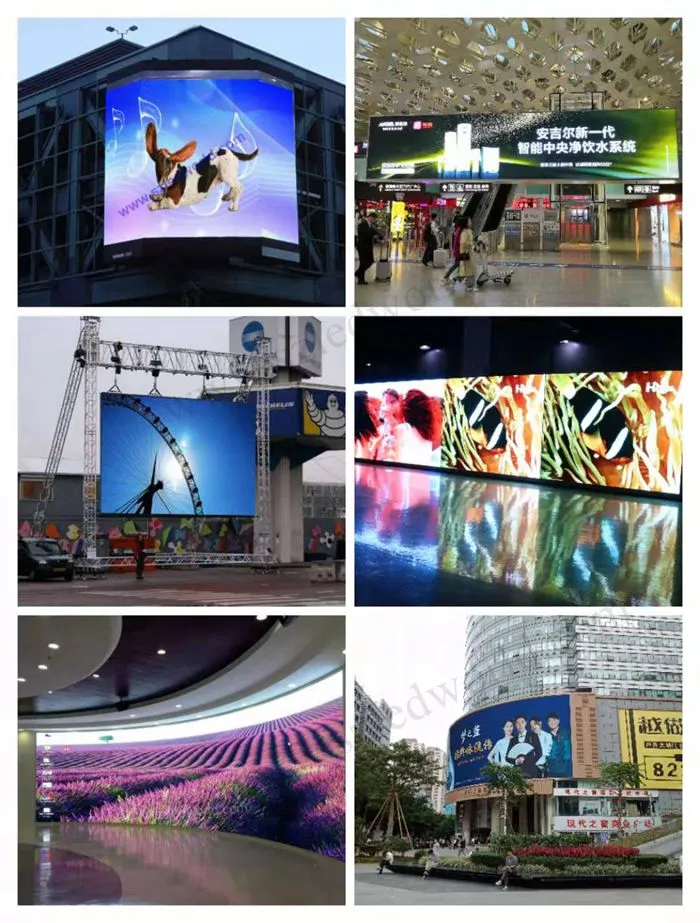

Project Cases & Workshop

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

There is no strict limit on the screen size, but for clear video quality, we generally recommend a configuration with more than 50,000 dots.

What is the standard production and delivery time?

Production typically takes 10-25 working days. Shipping time depends on the distance from the port and the forwarder's status.

How are the LED screens packaged for transport?

For fixed installations, we use veneer cases (4 cabinets per case). For rentals, we recommend flight cases (8 cabinets per case) for better protection and mobility.

Are there other pixel pitch options available?

Yes, we offer a wide range of options from 1.5mm to 20mm for both indoor and outdoor applications, with various cabinet materials like steel and aluminum.

What kind of after-sales support do you provide?

We provide a minimum of two years warranty, free remote technical configuration, troubleshooting, and lifetime software upgrades.

Can the software be customized for specific needs?

Yes, we offer software customization to suit your specific usage requirements and offer technical training for operation and maintenance.
