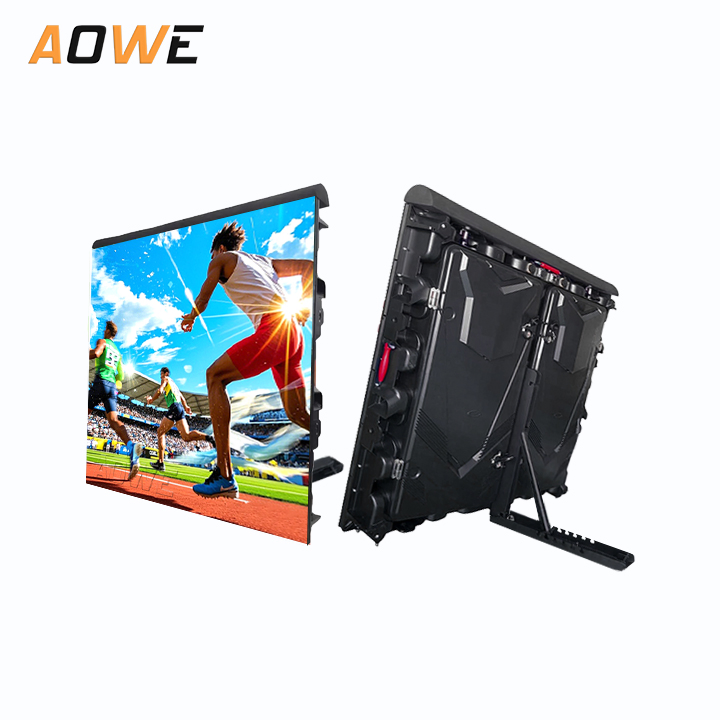

Aowe High Brightness Scoreboard Portable Sport LED Sign Board P5 P8 P10 Football Stadium Perimeter LED Screen Display

1 / 5

Aowe High Brightness Scoreboard Portable Sport LED Sign Board P5 P8 P10 Football Stadium Perimeter LED Screen Display

Customization:	Available
Tube Chip Color:	Full Color
IP Rating:	IP67

Send Inquiry

Product Description

Basic Specifications

Pixel Pitch

4/5/6.67/8/10mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video Display, Text, Picture, 3D Text, Office

Avg Power Consumption

300W / m²

Pixel Density

10000 dot / m²

Scanning Mode

1/2 Scan

Display Type

LED Video Display

Application

Advertising

Certification

CE, RoHS, CCC, ETL

Warranty

3 Years

LED Module Size

320mmx320mm

Brightness

7000-10,000nits

Material

Aluminum / Iron

Refresh Rate

3840Hz

Maintenance

Front Access Service

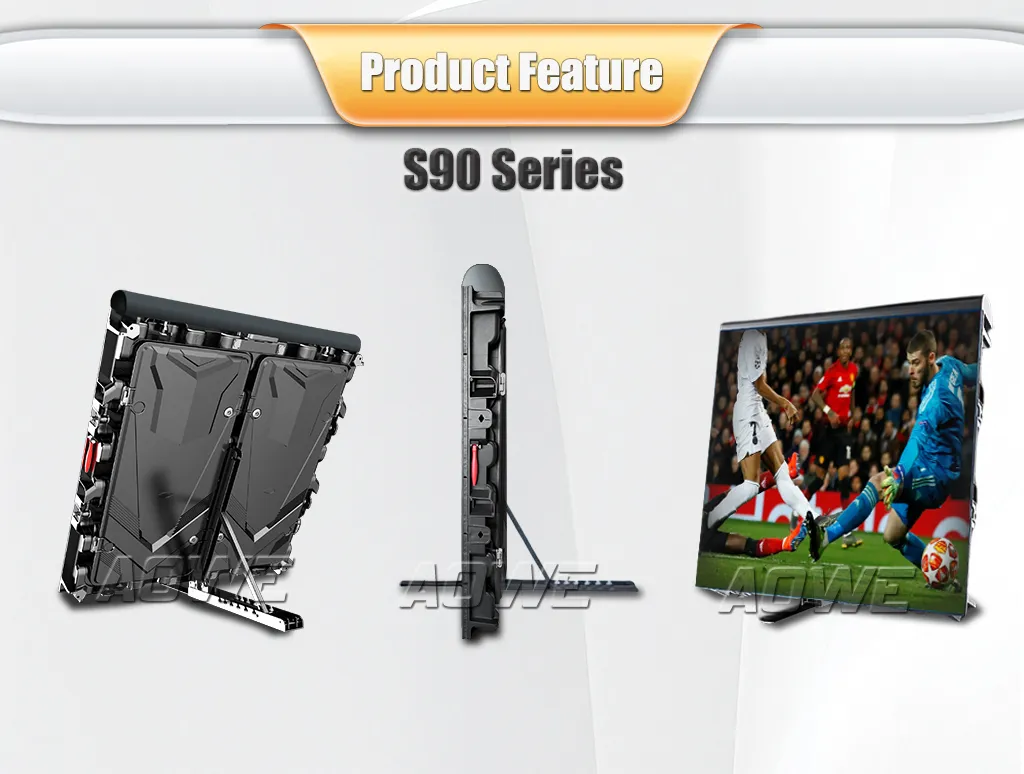

S90 Series LED Display Features

🎯

Multiple Pixel Options for Versatility

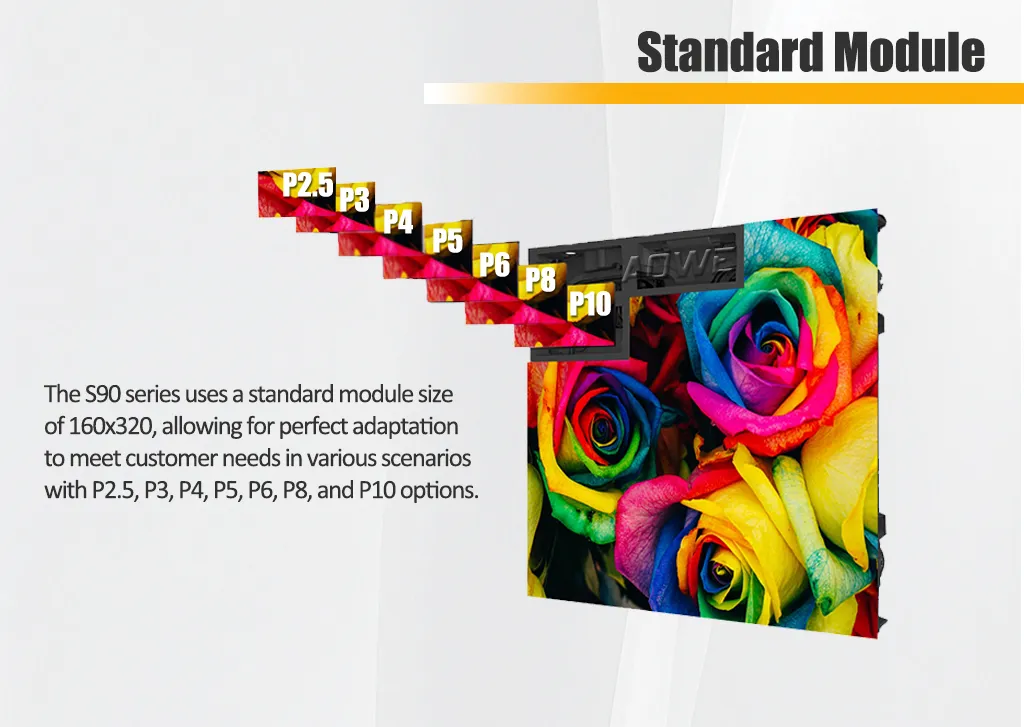

Offers P2.5-P10 pixel pitches with 160×320mm standard modules, ideal for flexible indoor/outdoor splicing.

🛡️

Lightweight & Durable Design

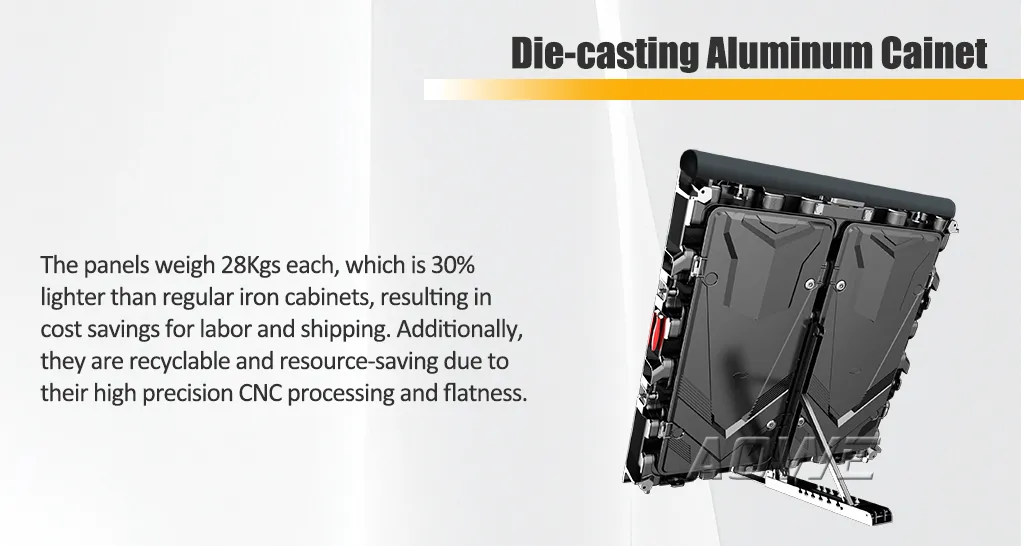

Die-cast aluminum cabinets weigh 28kg (30% lighter than iron), IP65 waterproof for all-weather use.

⚙️

Smart Tech for Optimal Performance

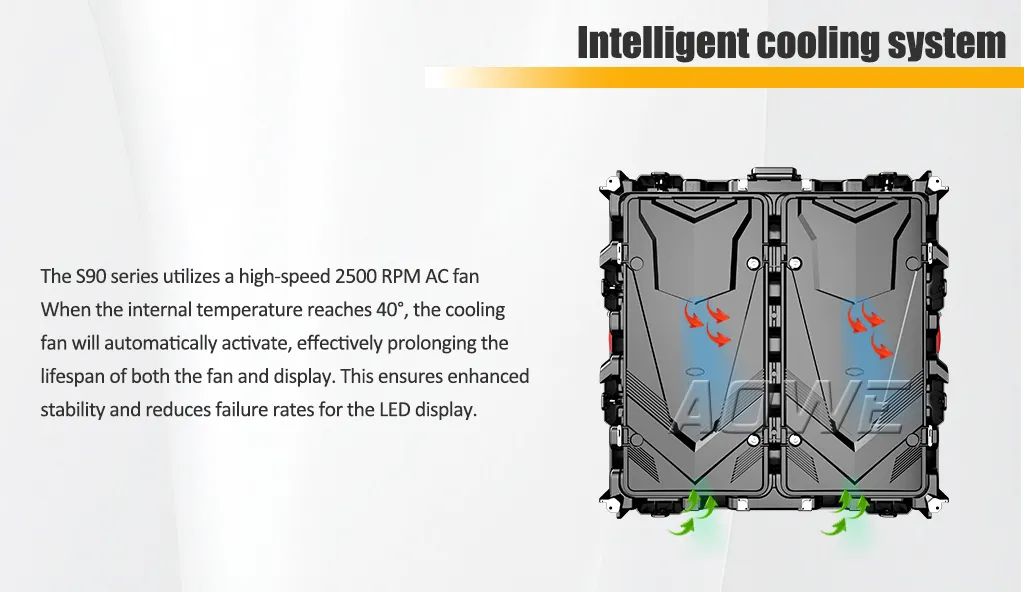

2500 RPM intelligent cooling fan, 140°-160° wide viewing angle, and auto brightness adjustment.

🚀

Flexible Installation & High Refresh Rate

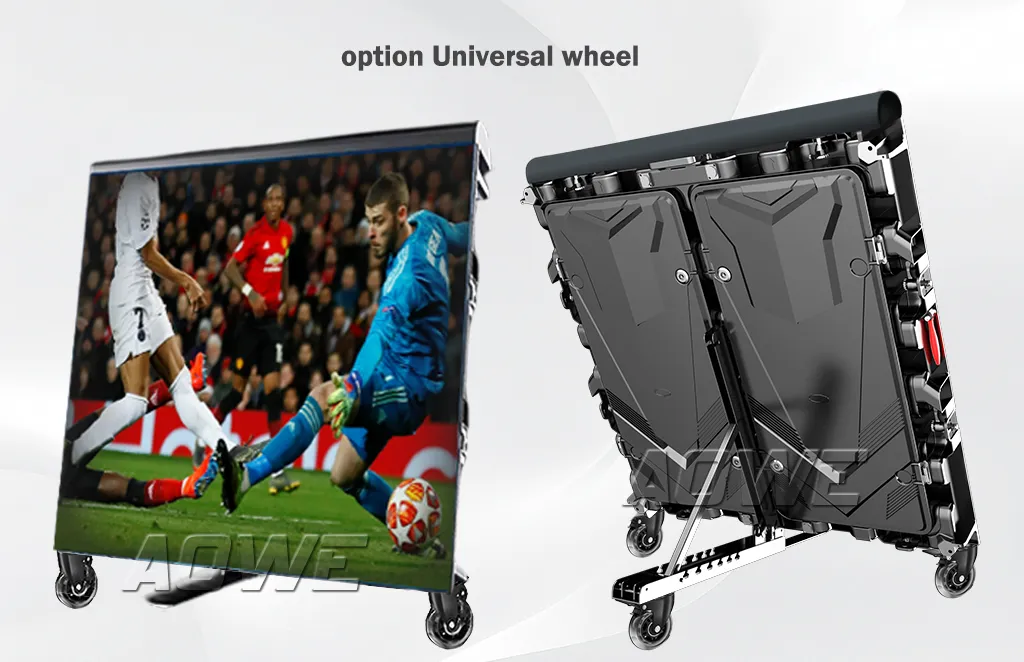

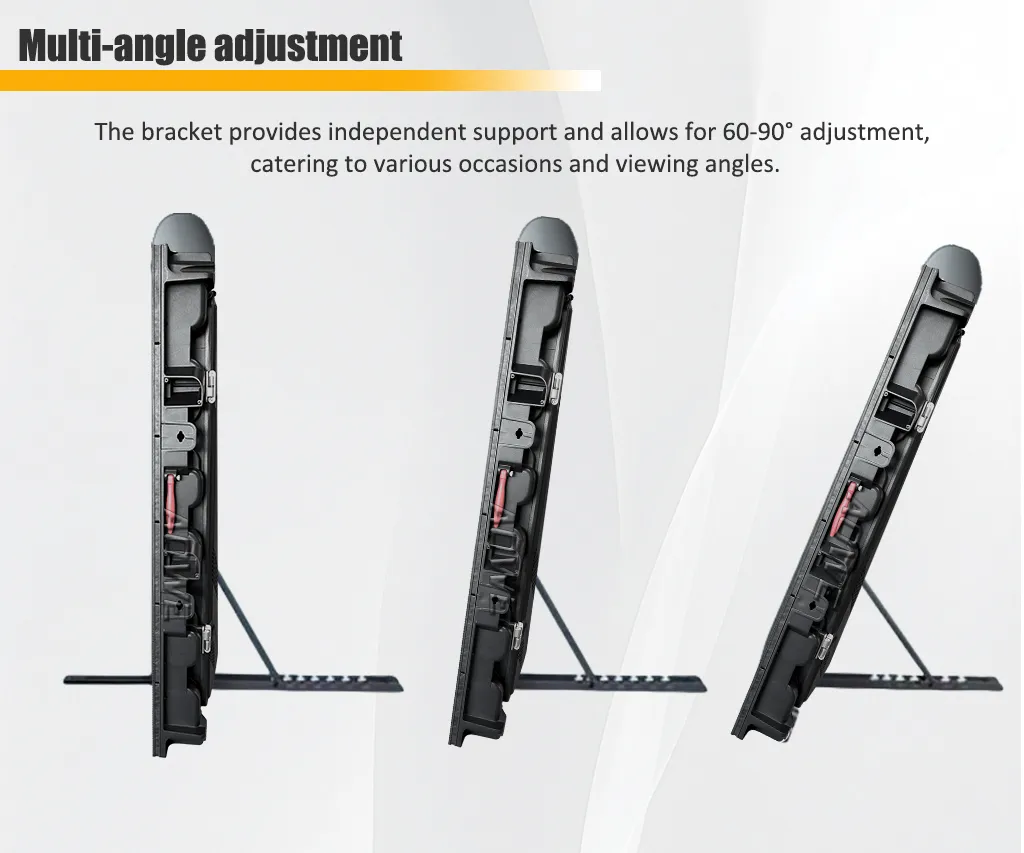

Supports fixed/hanging/standing setups, 1920-7680Hz refresh rate for smooth visuals.

Technical Specifications

Pixel Pitch	Modules Resolution	Cabinet Size	Density	Refresh Rate	Brightness	Scan
2.5mm	64x128pixel	960x960mm	160,000pixel	1920-7680Hz	4,500cd/sq.m	1/16
3.076mm	52x104pixel	960x960mm	105,625pixel	1920-7680Hz	5,000cd/sq.m	1/13
4mm	40x80pixel	960x960mm	62,500pixel	1920-7680Hz	5,000cd/sq.m	1/10
5mm	32x64pixel	960x960mm	40,000pixel	1920-7680Hz	5,500cd/sq.m	1/8
6.67mm	24x48pixel	960x960mm	22,500pixel	1920-7680Hz	5,500cd/sq.m	1/6
8mm	20x40pixel	960x960mm	15,625pixel	1920-7680Hz	5,500cd/sq.m	1/4
10mm	16x32pixel	960x960mm	10,000pixel	1920-7680Hz	5,500cd/sq.m	1/2

Frequently Asked Questions

What are the available pixel pitch options for the S90 series?

The S90 series offers a wide range of pixel pitches including P2.5, P3.076, P4, P5, P6.67, P8, and P10mm, making it suitable for both high-resolution indoor and long-distance outdoor viewing.

How does the aluminum cabinet benefit the installation?

The die-cast aluminum cabinets weigh only 28kg, which is approximately 30% lighter than traditional iron cabinets. This makes transportation easier and reduces the load-bearing requirements for installation structures.

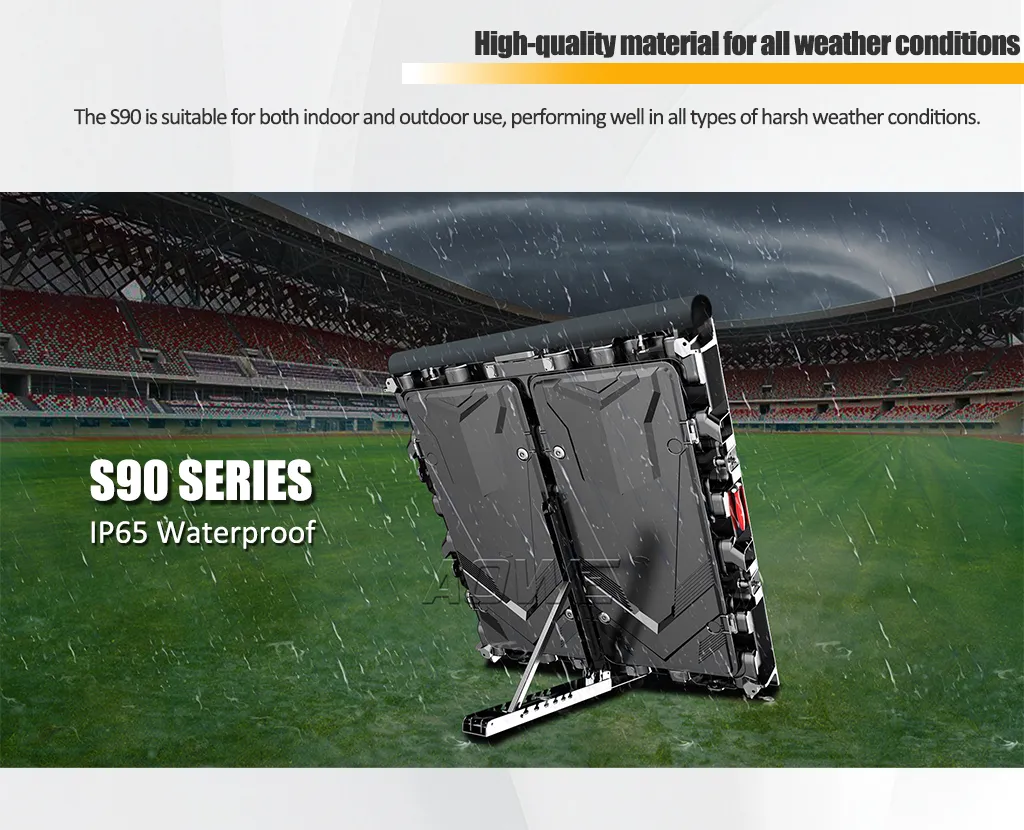

Is the S90 series LED display waterproof?

Yes, the display features an IP65 waterproof rating, ensuring stable and durable performance in various outdoor weather conditions.

What is the refresh rate of these LED screens?

The S90 series supports a high refresh rate ranging from 1920Hz to 7680Hz, providing smooth, flicker-free visuals for video playback and live broadcasting.

Does the display support front maintenance?

Yes, it supports front access service, which simplifies maintenance and allows for installation in spaces where rear access is limited.

What is the maximum brightness level?

The display can achieve high brightness levels between 7,000 and 10,000 nits, ensuring clear visibility even under direct sunlight.
