| Model NO. | TS-3.96 | Pixel Pitch | H3.96/V7.81mm |
| Pixel Configuration | 1R,1G,1B | Pixel Density | 32256 DOT/M2 |
| Scanning Mode | 1/7 Scan | Operating Platform | WIN XP |
| Display Type | LED Video Display | Application | Advertising |
| IP Rating | IP30 | Certification | CE, FCC |
| Cabinet Material | Die Cast Aluminum | Brightness | 4000 CD/Sqm |
| LED Type | Nationstar SMD1921 | IC | Mbi5124 |
| Package Size | 50.00cm * 50.00cm * 10.00cm | Gross Weight | 7.000kg |
| Pixel Pitch | H3.96/V7.81 (1R1G1B) | LEDs Type | SMD1921 NationStar |
|
|||
| Item | Brand | Luminous Intensity | Wavelength |
| Red LED Chip | Epistar | 450 mcd | 622 nm |
| Green LED Chip | Epistar | 730 mcd | 522 nm |
| Blue LED Chip | Epistar | 105 mcd | 472 nm |

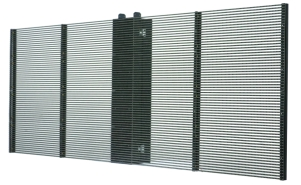

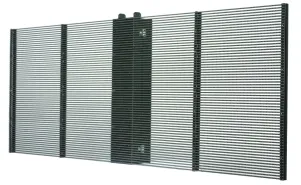

Module: 500*125 mm

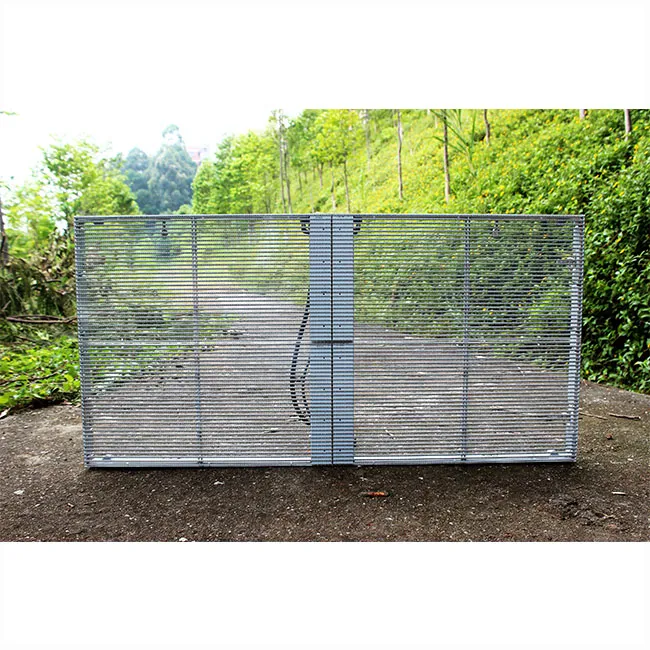

Cabinet: 1000*500 mm
| Pixel density | 32256 dots/sqm | Transmittance | >75% |
| Viewing Angle | H 140°, V 140° | Min. Distance | ≥4m |
| Max Power | 680 W/m² | Avg Power | 240 W/m² |
| Refresh Rate | >1920 Hz | Grey Scale | 16 bit |
Fixed Installation Plywood Case
Rental & Movable Flight Case

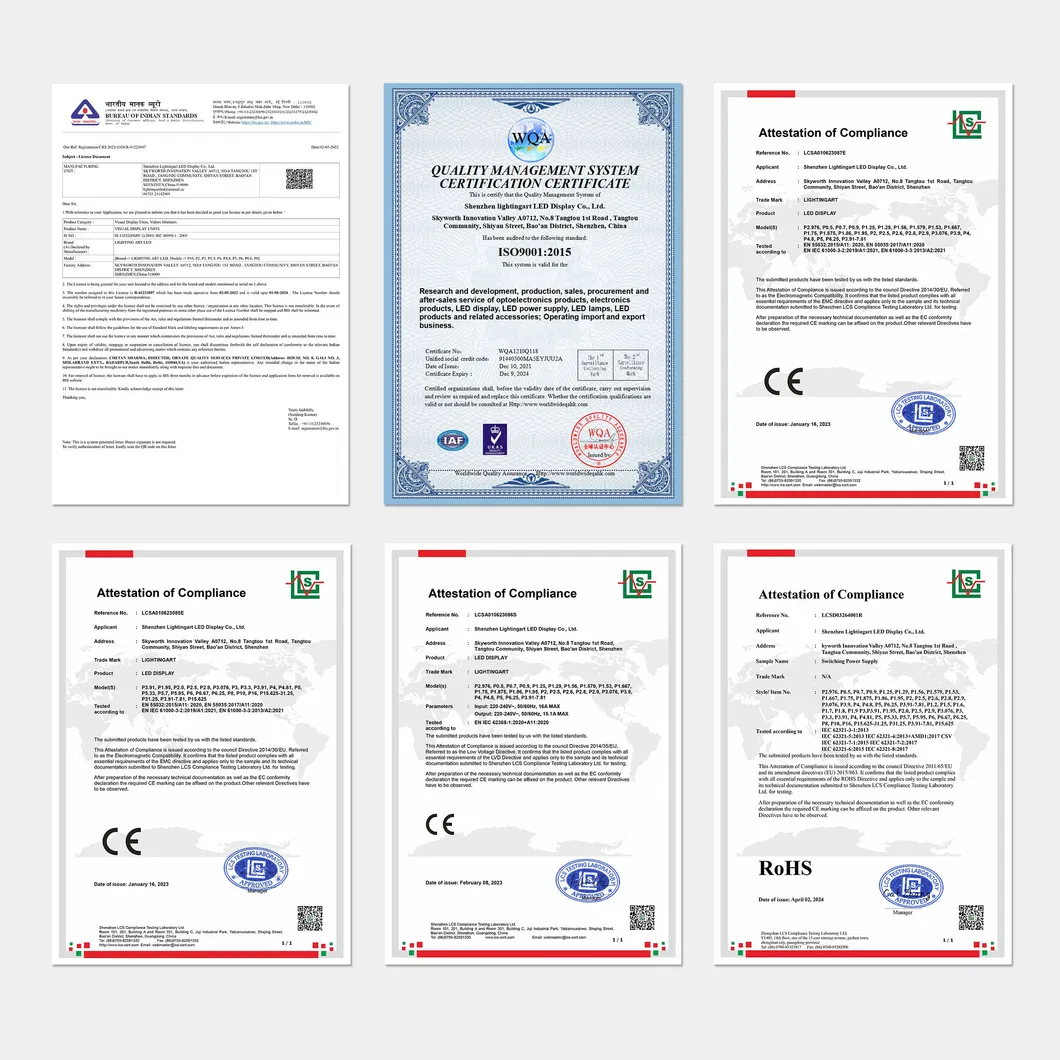

Our Quality Certificates

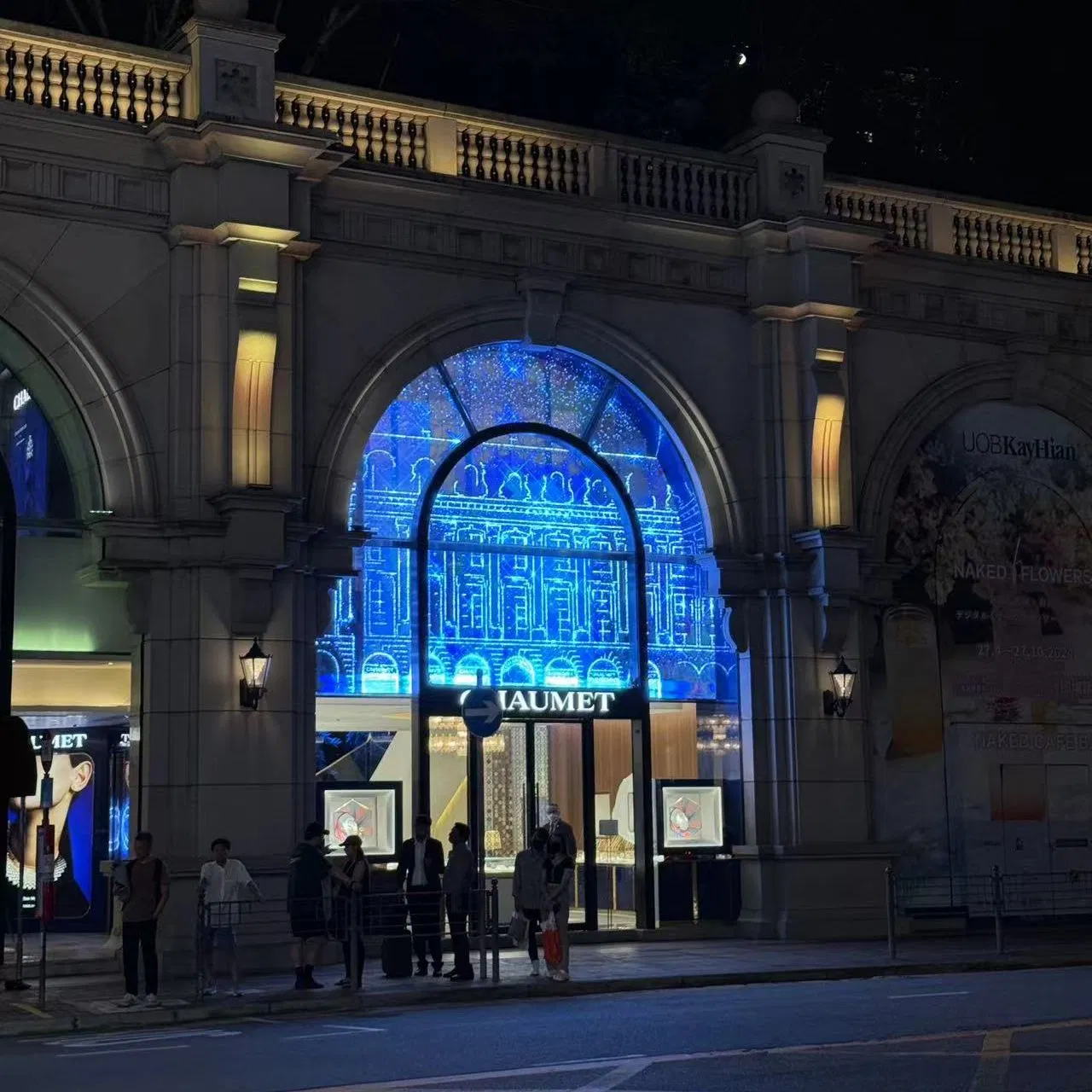

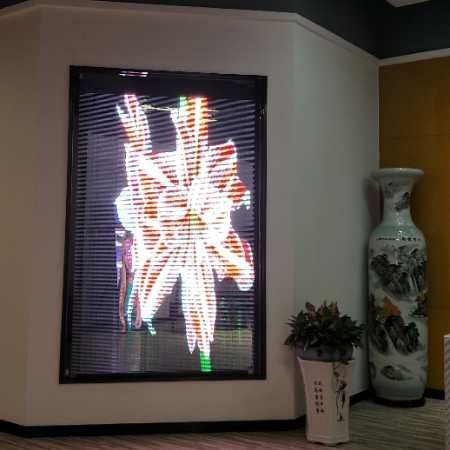

A: Although it features a high brightness of 4000 nits, this specific model is designed for indoor fixed installation, typically behind glass windows.

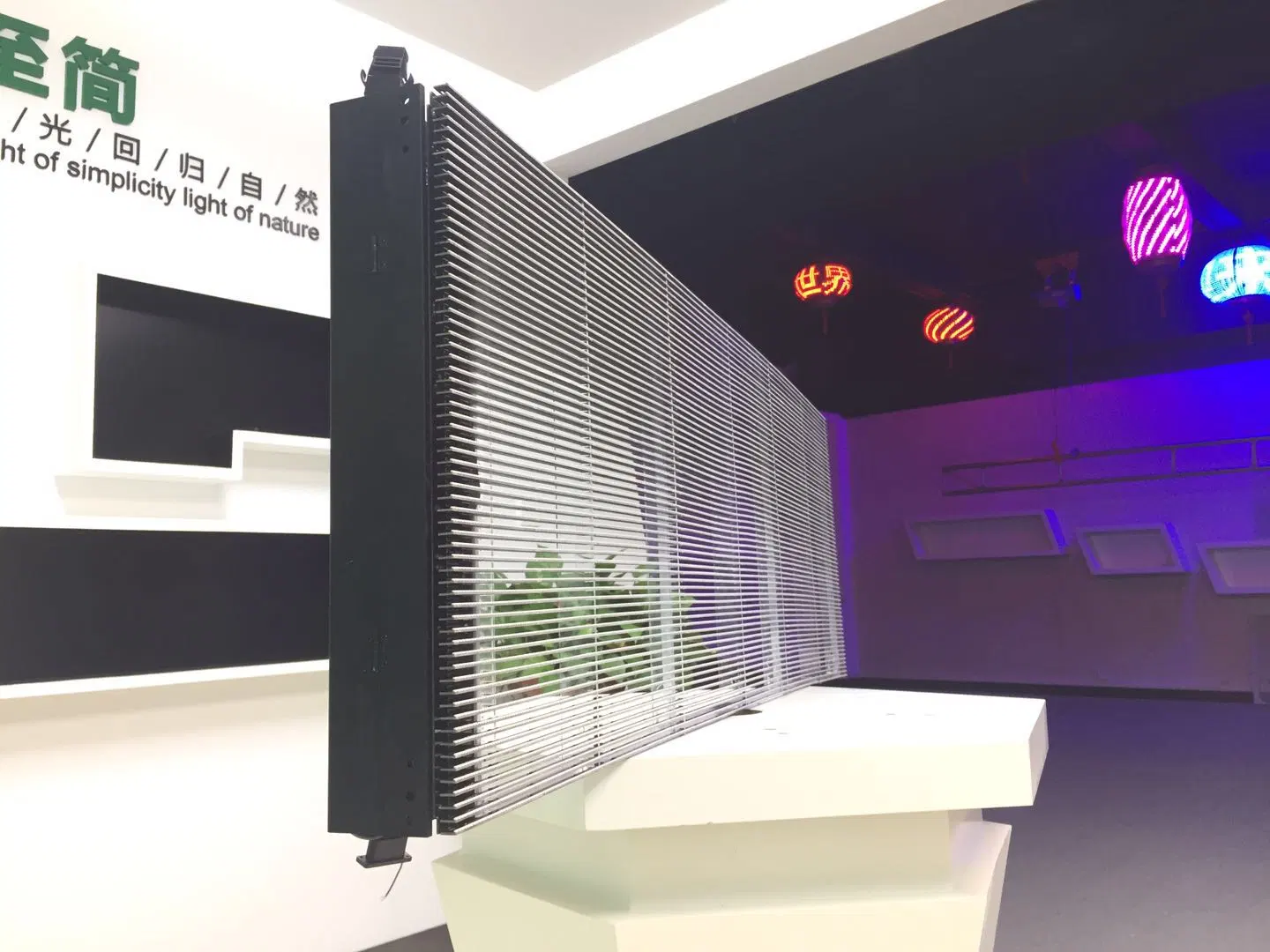

A: The light transmittance of this LED screen reaches up to 70-75%, ensuring it does not block the view behind the screen.
A: We support standard cabinet sizes of 1000mm*500mm and 1000mm*1000mm to fit various installation requirements.

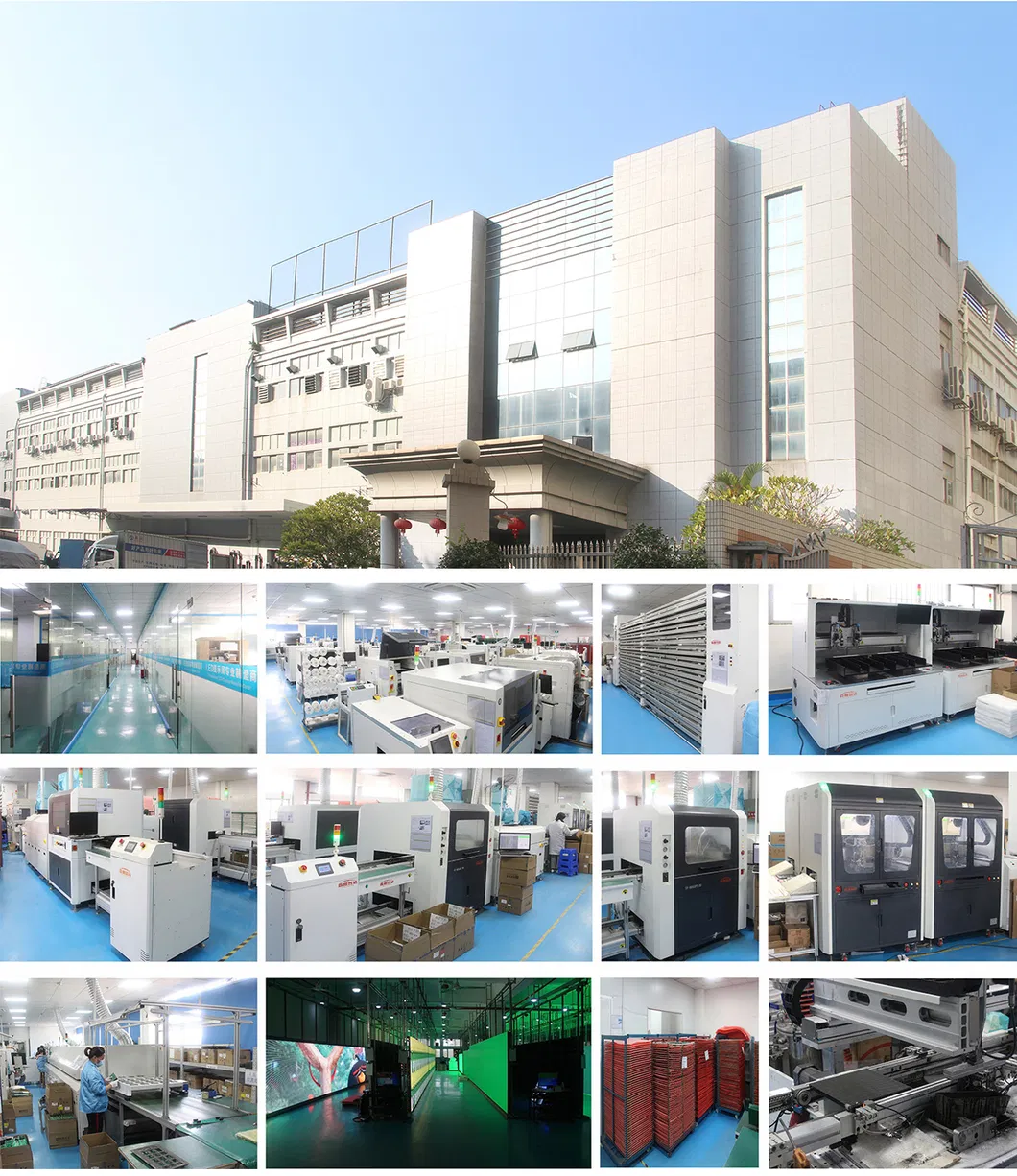

A: For orders between 1-200 m², the production time is approximately 25 days, which includes a comprehensive aging test.
A: We offer a two-year warranty along with 24-hour lifetime online technical support and depot repair services.
A: The system is synchronized with a computer monitor via DVI/VGA and supports a wide range of formats including AVI, JPEG, MOV, MPEG, and BMP.
