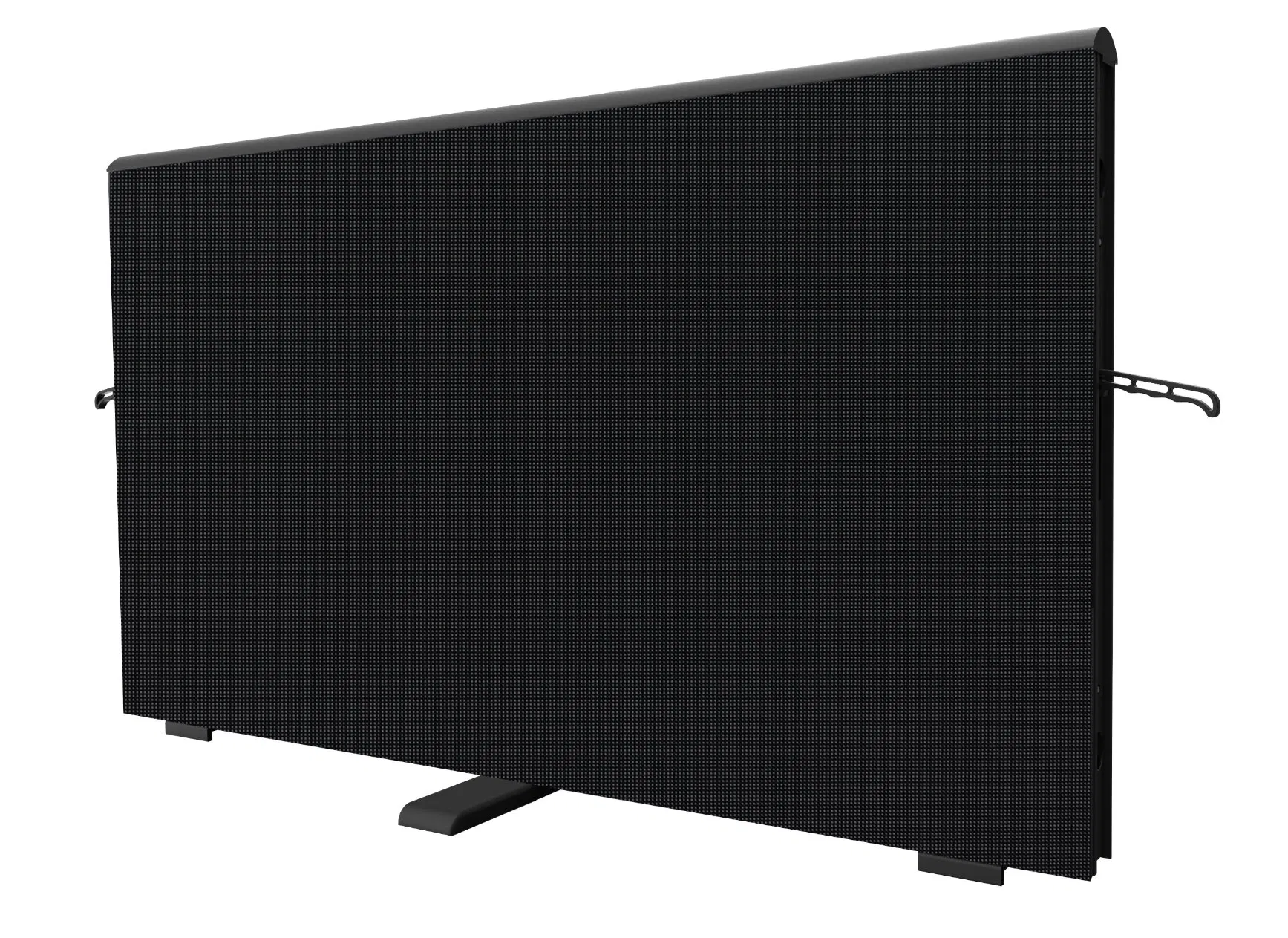

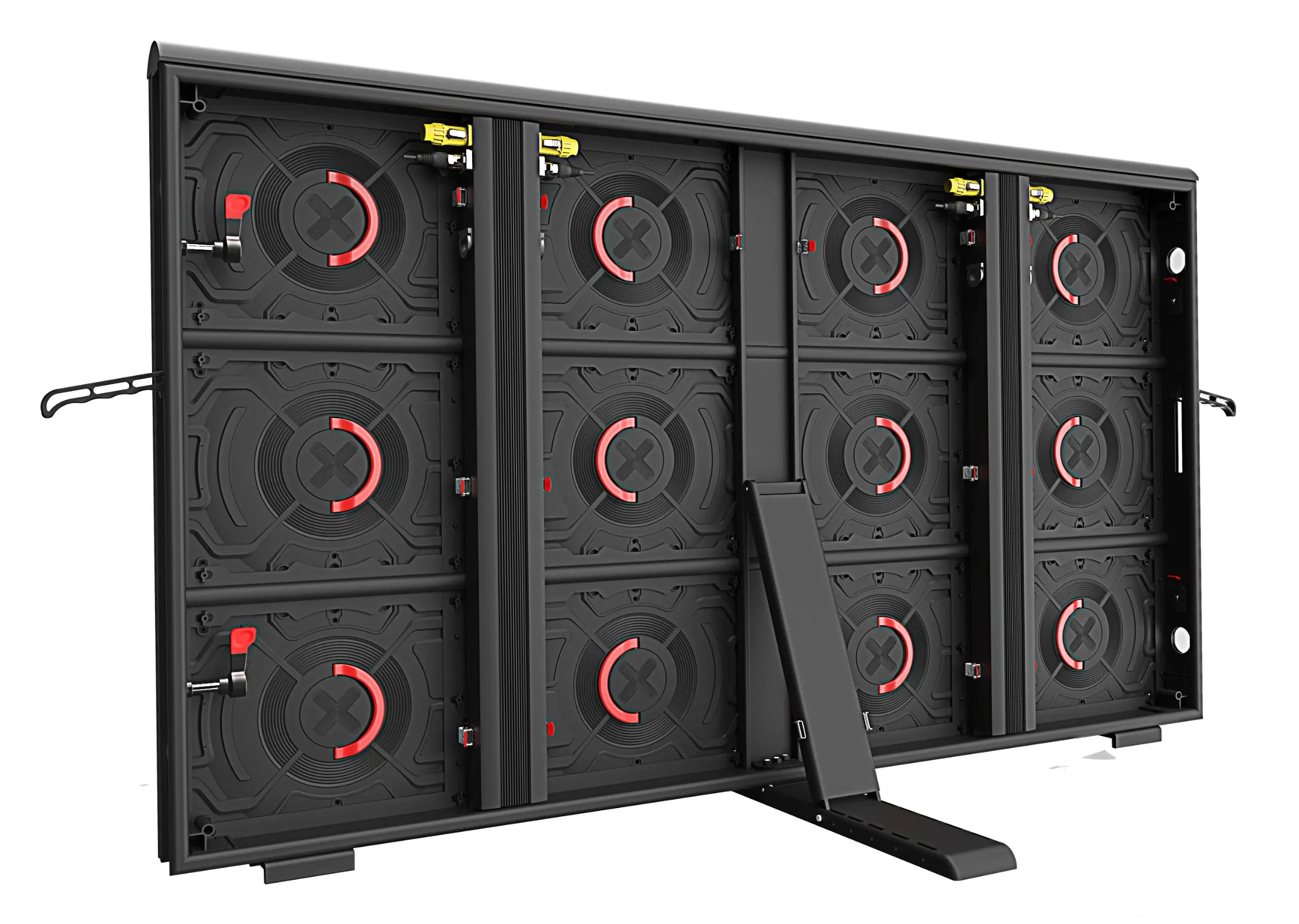

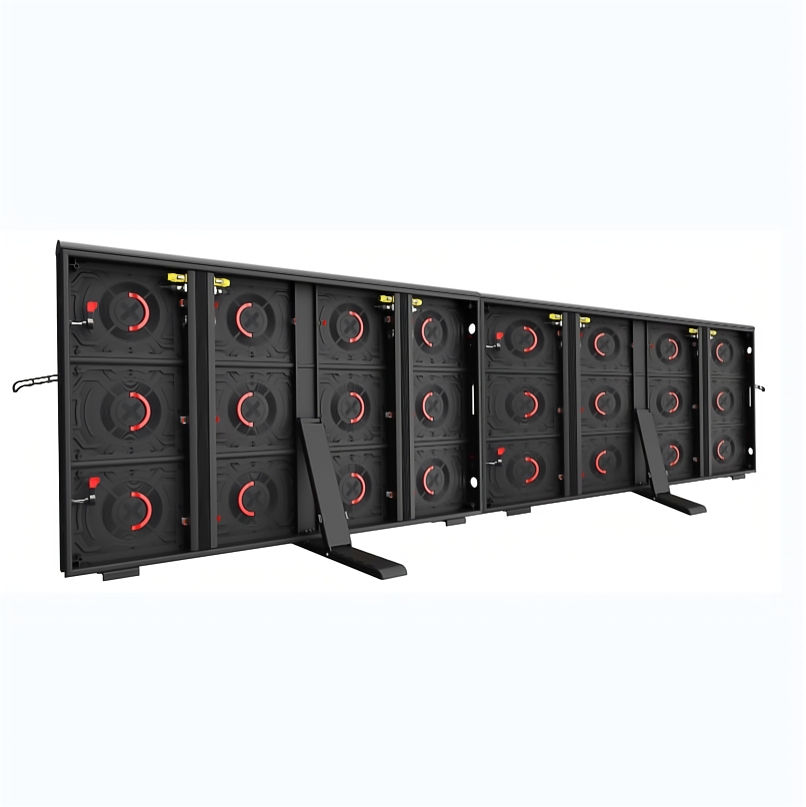

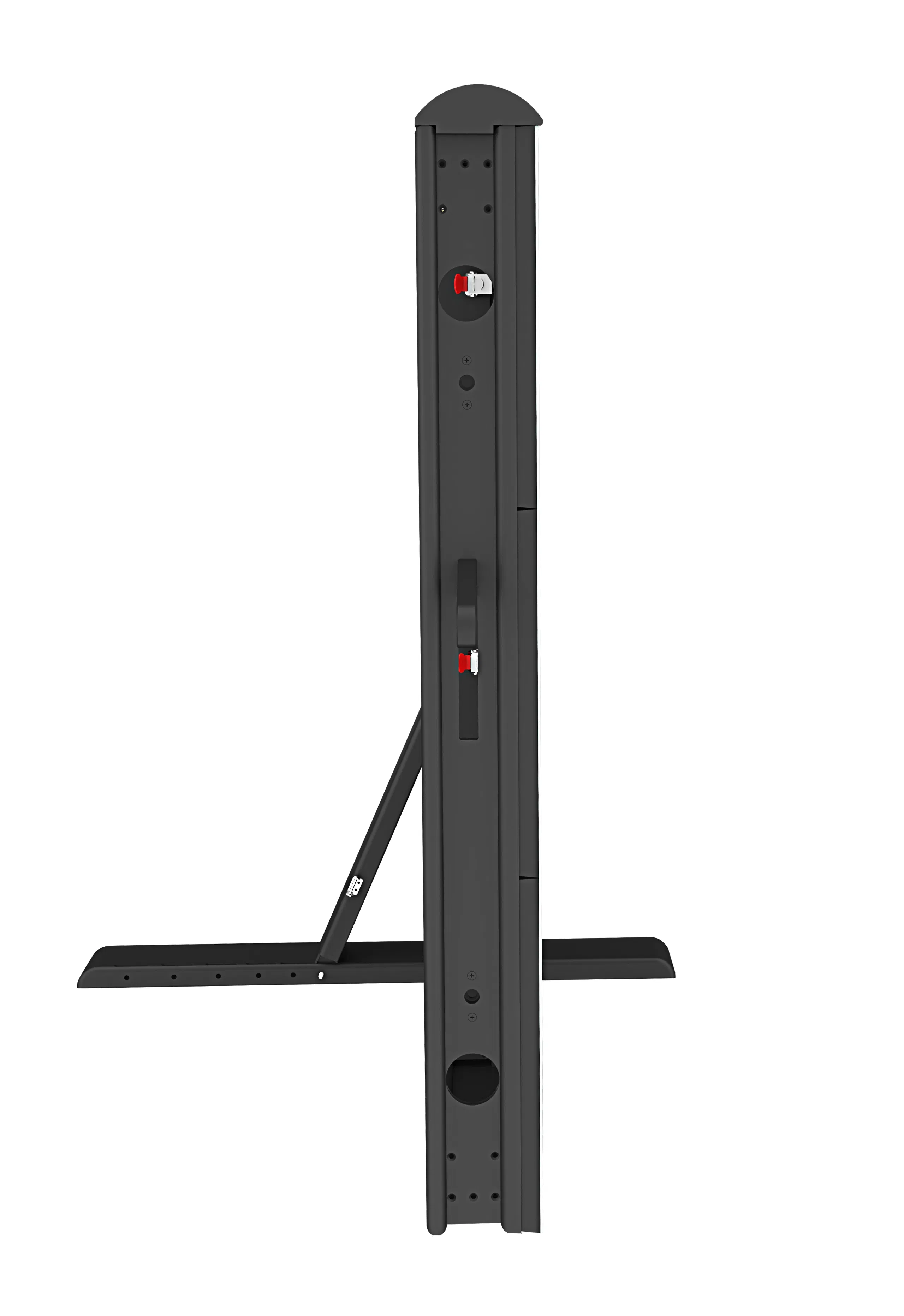

High-End Energy-Saving Stadium Hardware-Connection Perimeter P8.33 LED Display
High-End Energy-Saving Stadium Hardware-Connection Perimeter P8.33 LED Display
High-End Energy-Saving Stadium Hardware-Connection Perimeter P8.33 LED Display
High-End Energy-Saving Stadium Hardware-Connection Perimeter P8.33 LED Display
High-End Energy-Saving Stadium Hardware-Connection Perimeter P8.33 LED Display
1 / 5
High-End Energy-Saving Stadium Hardware-Connection Perimeter P8.33 LED Display
High-End Energy-Saving Stadium Hardware-Connection Perimeter P8.33 LED Display
High-End Energy-Saving Stadium Hardware-Connection Perimeter P8.33 LED Display
High-End Energy-Saving Stadium Hardware-Connection Perimeter P8.33 LED Display
High-End Energy-Saving Stadium Hardware-Connection Perimeter P8.33 LED Display

High-End Energy-Saving Stadium Hardware-Connection Perimeter P8.33 LED Display

Customization: Available
Tube Chip Color: Full Color
IP Rating: IP65
Send Inquiry

Product Description

📋

Basic Specifications

Model
Stadium P8.33
Pixel Pitch
8.33mm
Configuration
1R, 1G, 1B
Function
Video, Image & Text Display
Avg. Consumption
220W / m²
Pixel Density
14,400 dots/Sqm
Scanning Mode
1/3 scan
Refresh Rate
3840Hz
Cabinet Material
Die-Casting Aluminum
Module Size
400X300mm
🚀

Product Highlights

Energy-Saving Hardware Connection Outdoor High-end Stadium LED Display P8.33
Stadium LED Display Specification
Detailed Technical Parameters
Pixel & Optical Pixel Pitch 8.33mm
Pixel Configuration SMD2727
Contrast Ratio 10,000:1
Brightness 6500cd/sqm (adjustable)
Module Module Size 400mm (W) * 300mm (H)
Resolution 48 * 36 dots
Cabinet Material Die casting Aluminum

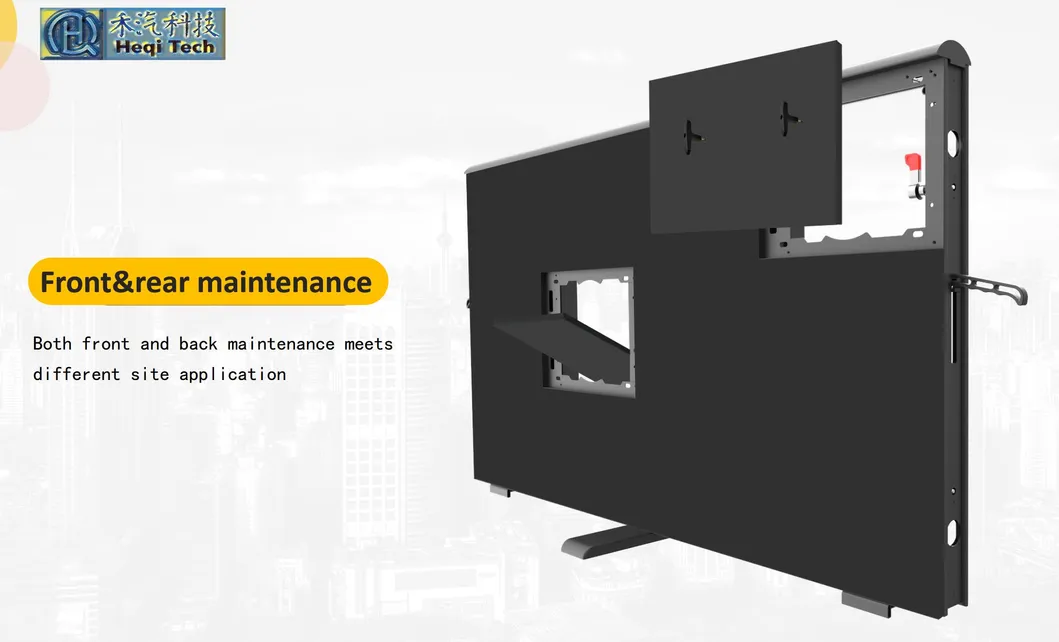

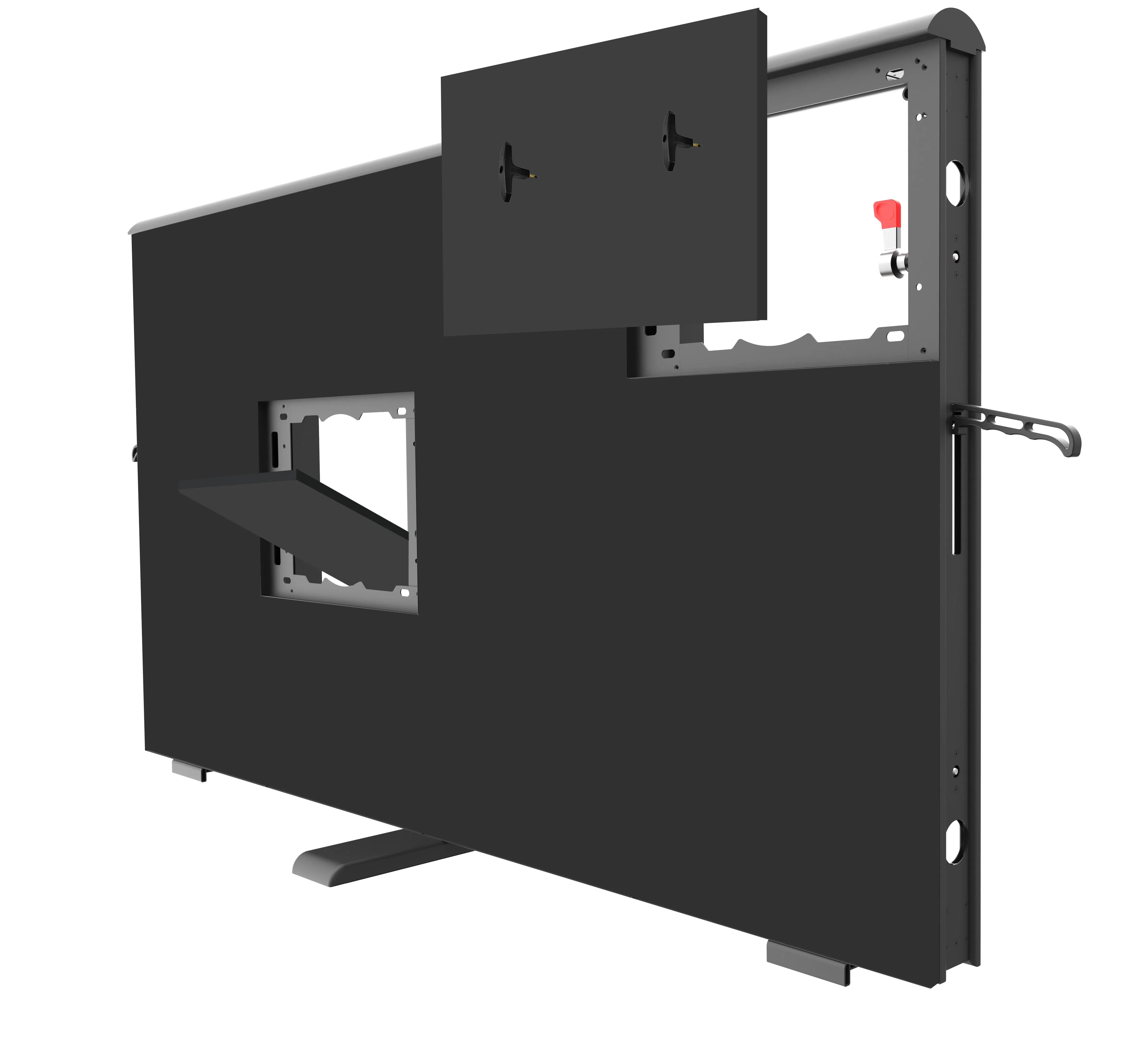

Maintenance Front / Rear Access
Power Max Power 780 Watt/sqm
Average Power 200-300 Watt/sqm

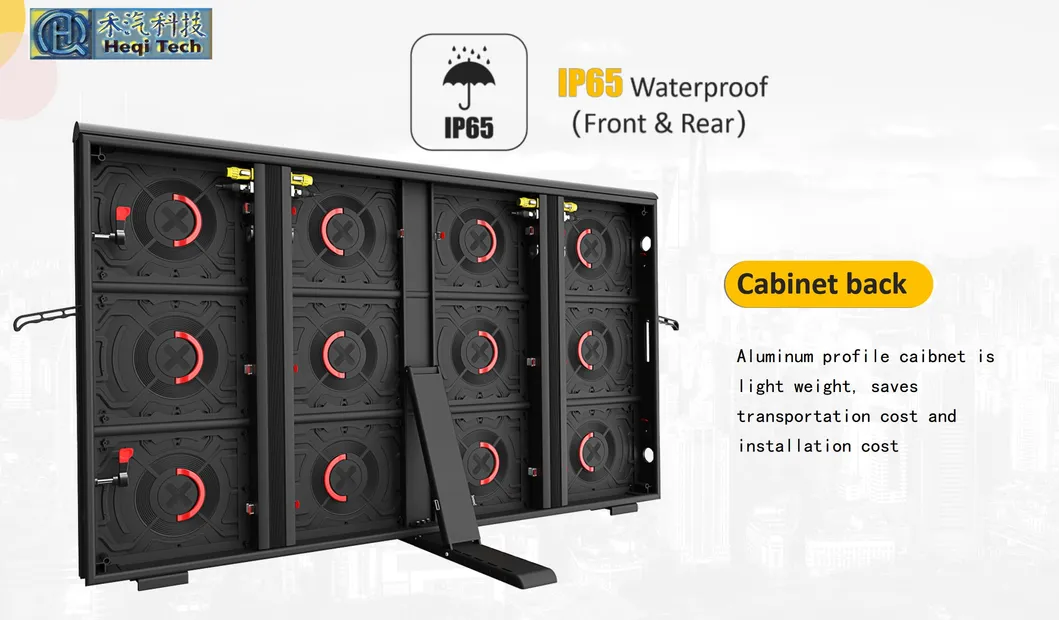

Operation Ingression Protection IP65
🖼️

Product Showcase

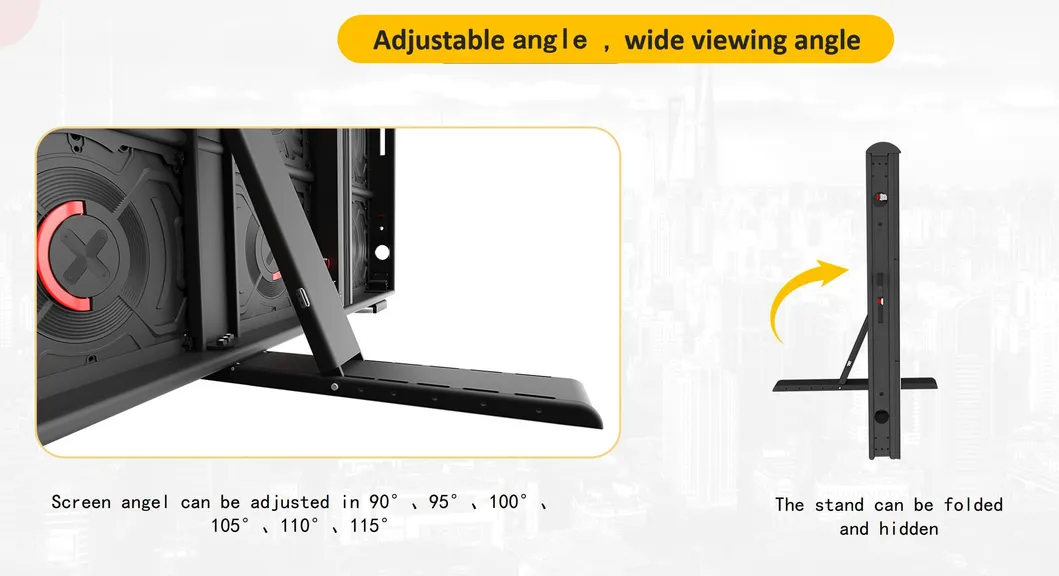

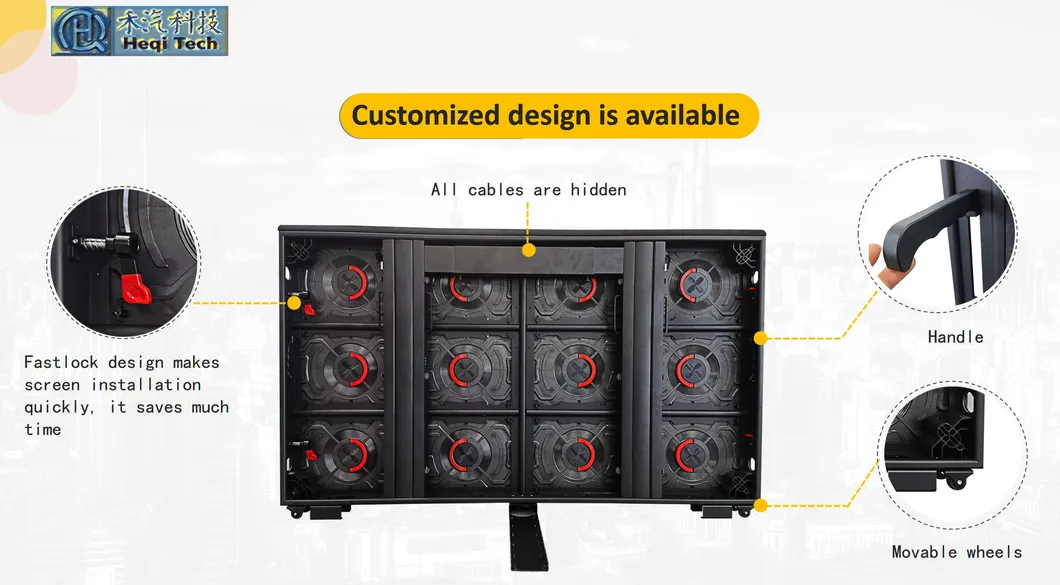

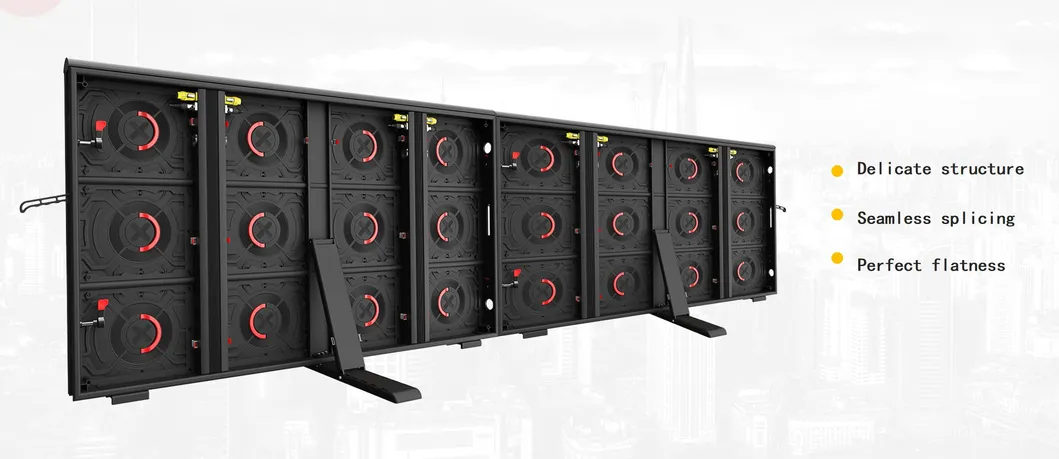

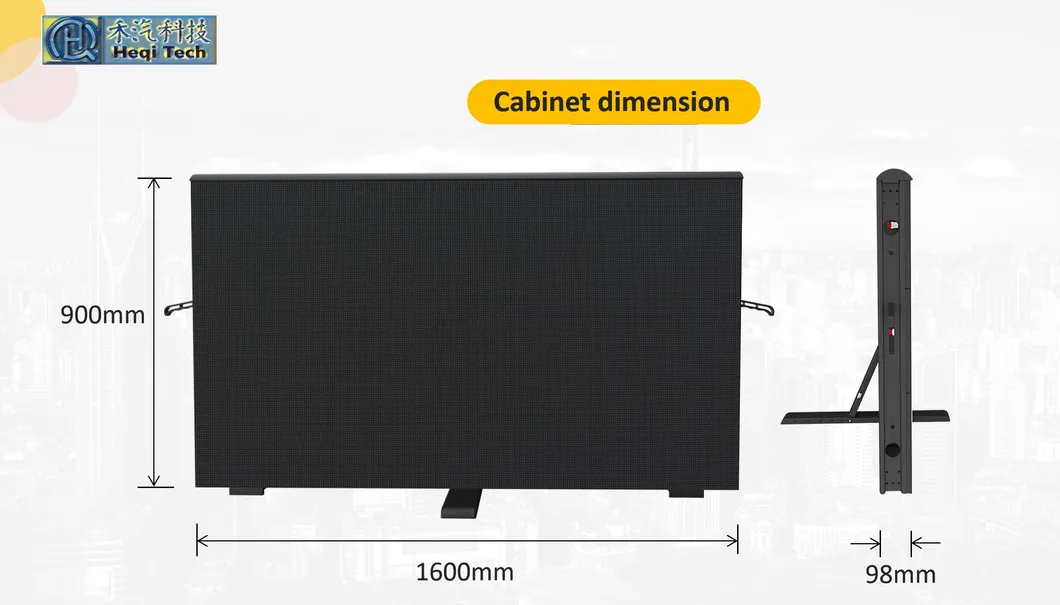

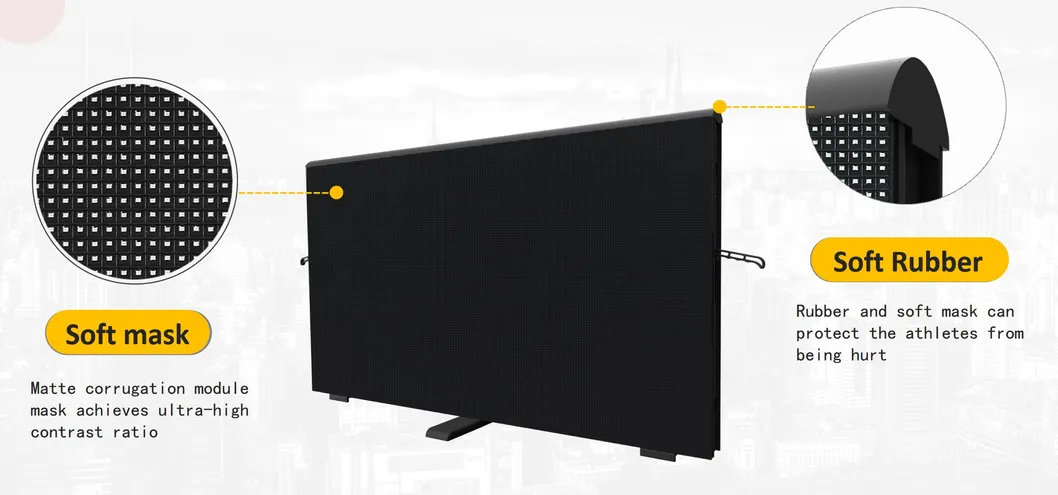

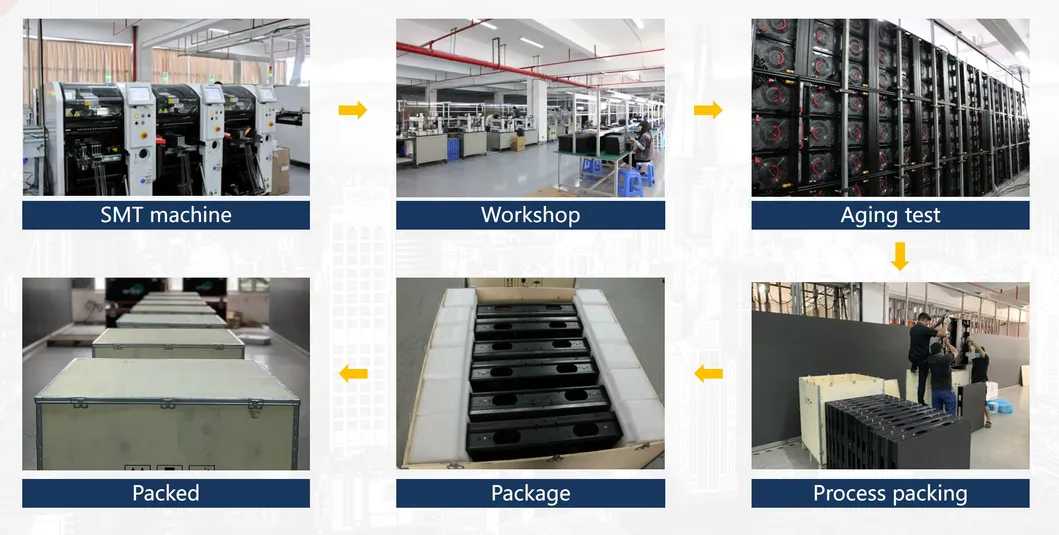

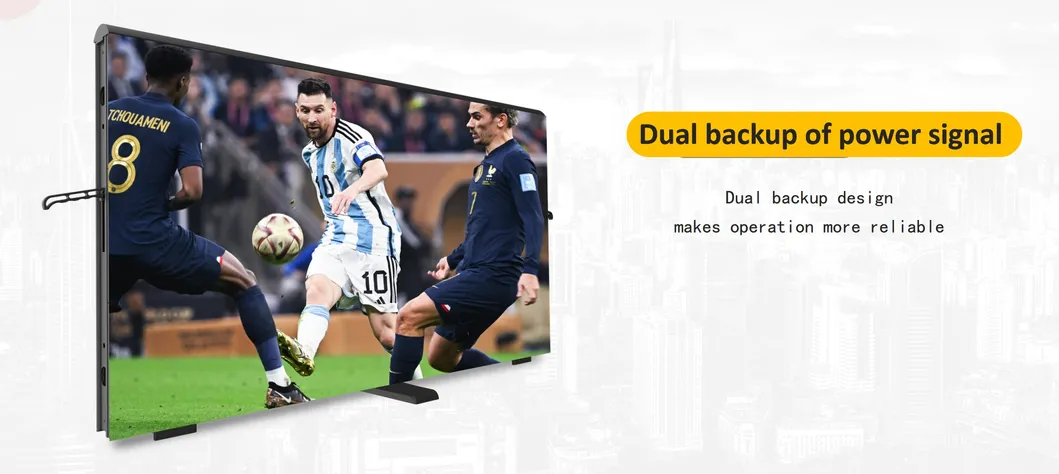

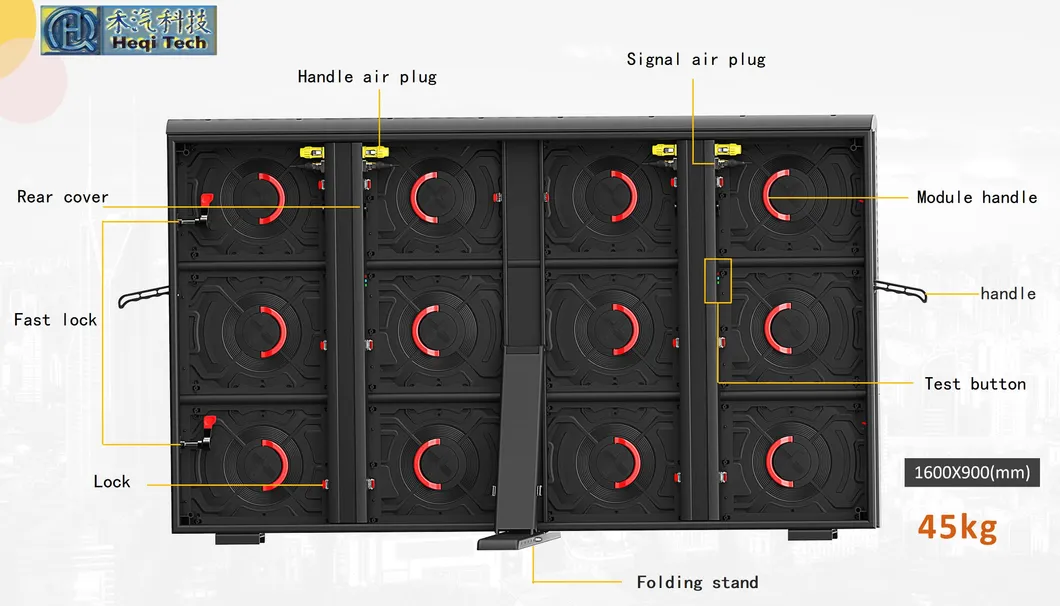

P8.33 Display Detail 1 P8.33 Display Detail 2 P8.33 Display Detail 3 P8.33 Display Detail 4 P8.33 Display Detail 5 P8.33 Display Detail 6 P8.33 Display Detail 7 P8.33 Display Detail 8 P8.33 Display Detail 9 P8.33 Display Detail 10 P8.33 Display Detail 11
💡

Frequently Asked Questions

What types of LED displays do you offer?
We provide a wide range of solutions including indoor, outdoor, mobile, and rental LED displays, as well as advertising screens and transparent flexible film screens.
Is there a minimum order quantity (MOQ)?
As an OEM factory, we support trial orders to help customers test products. There is no strict minimum order quantity, though pricing is optimized based on the total quantity ordered.
What is the typical lead time for an order?
Standard delivery usually takes 3-8 days. For customized projects or full container orders, the lead time is approximately 10-20 days depending on the complexity.
What is the warranty period for your LED products?
We offer a two-year warranty, which is double the industry standard. Our high-quality components are designed to operate reliably for over 10 years.
How do you ensure product quality?
We are ISO9001 certified and our products meet CE, FCC, and RoHS standards. Every unit undergoes strict quality control and a minimum 72-hour aging test before shipment.
Do you provide technical support for new users?
Yes, we offer free training on screen setup and content broadcasting via control systems like Novastar and Colorlight. Remote technical assistance is also available whenever needed.
