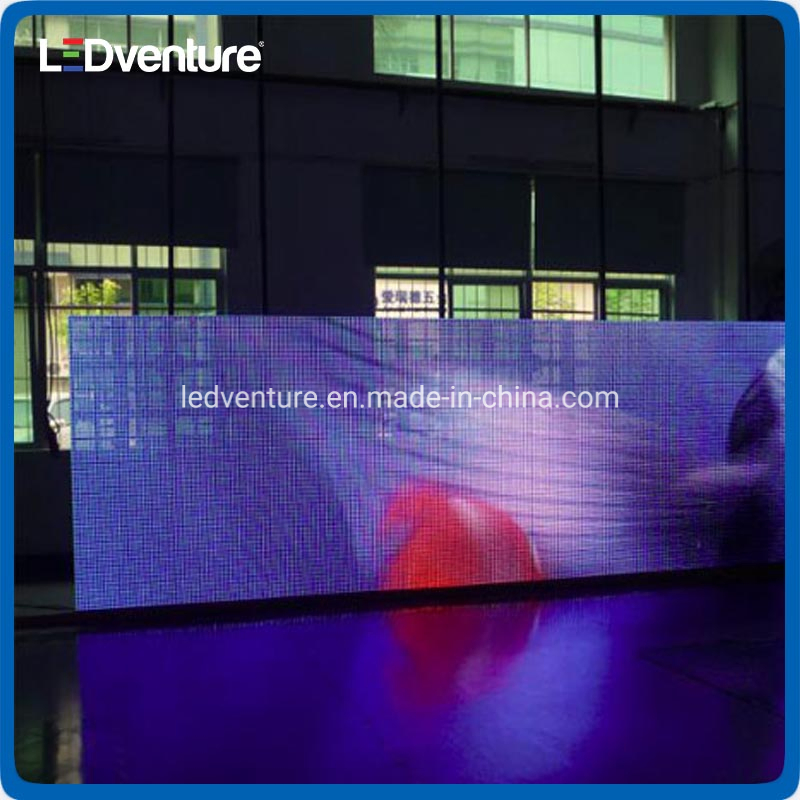

Naked Eye 3D P8.9 Indoor Outdoor LED Curtain Screen Display

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
CX-P8.9S
Pixel Pitch
8.9mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image & Text Display
Avg Power Consumption
180W / m²
Pixel Density
12546 Dots/M2
Scanning Mode
1/4 Scan
Display Type
LED Video Display
Application
Advertising
Certification
CE, RoHS, CCC, ETL
Cabinet Material
Aluminium
Refresh Rate
>1920Hz
Brightness
3000-3500nits
Contrast Rate
3000:1
LED Lamps
Epistar
Cabinet Size
500x1000mm

Product Description

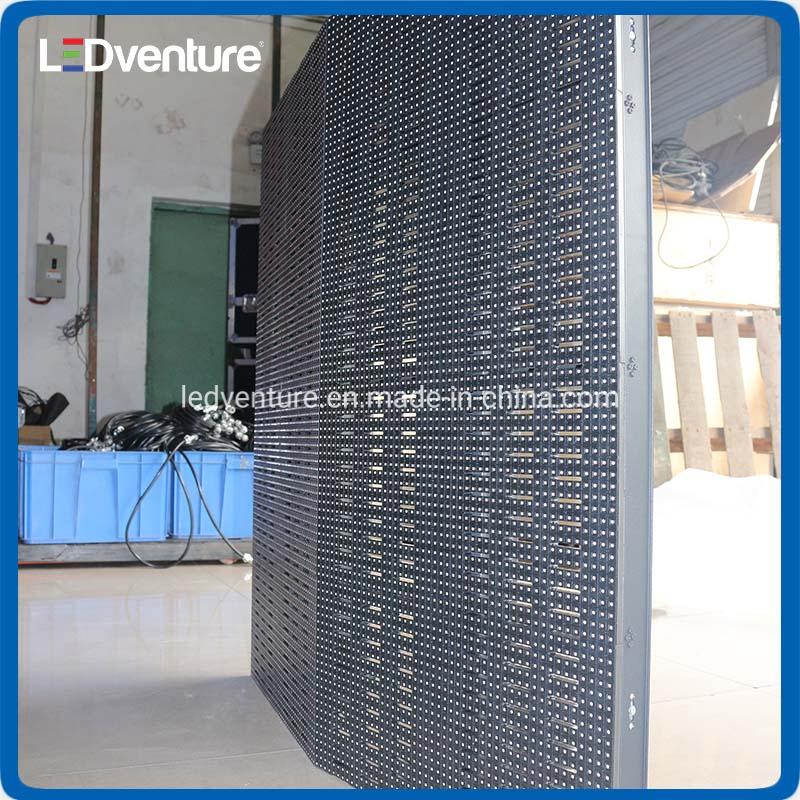

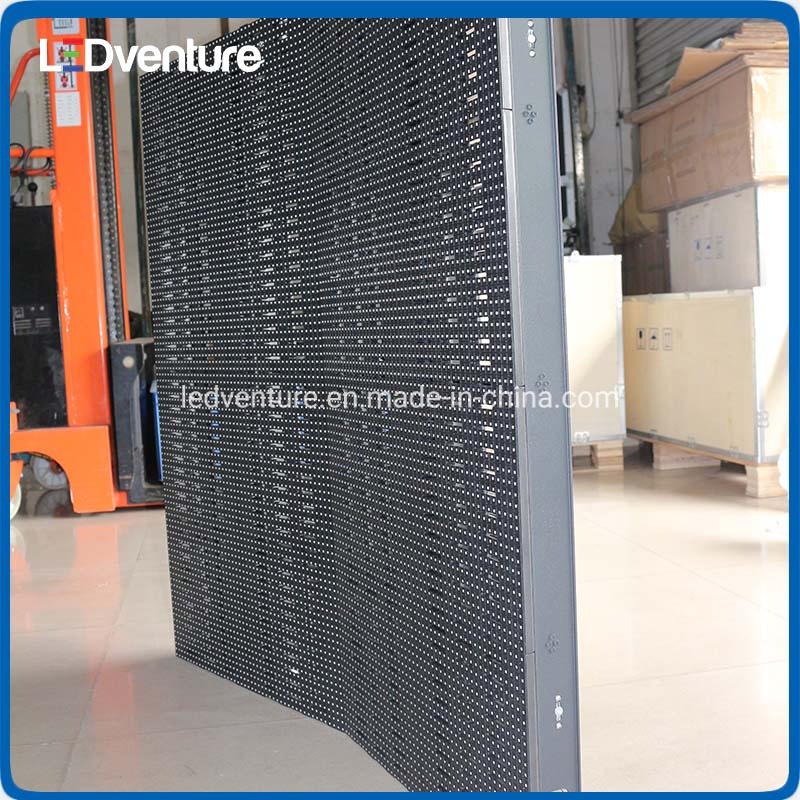

Naked Eye 3D P8.9 Indoor Outdoor LED Curtain Screen Display

We focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display, stadium sport led display screen, led sign, led display board and led billboard.

LED Curtain Screen

Product Main Features

Curtain LED display screen is very hot sale for indoor outdoor media solution series, it is very cost effective, and high refresh rate more than 1920hz, also light weight design cabinet for options, image quality is top, running stable, resolution is high density, plus simple installation.

Pixel Pitch8.9mm / 10.4mm
Brightness3000-3500nits
Cabinet Size500x1000mm (optional)
Max. Power Consumption500W/panel
Refresh Rate>1920HZ
📷

Product Detail Images

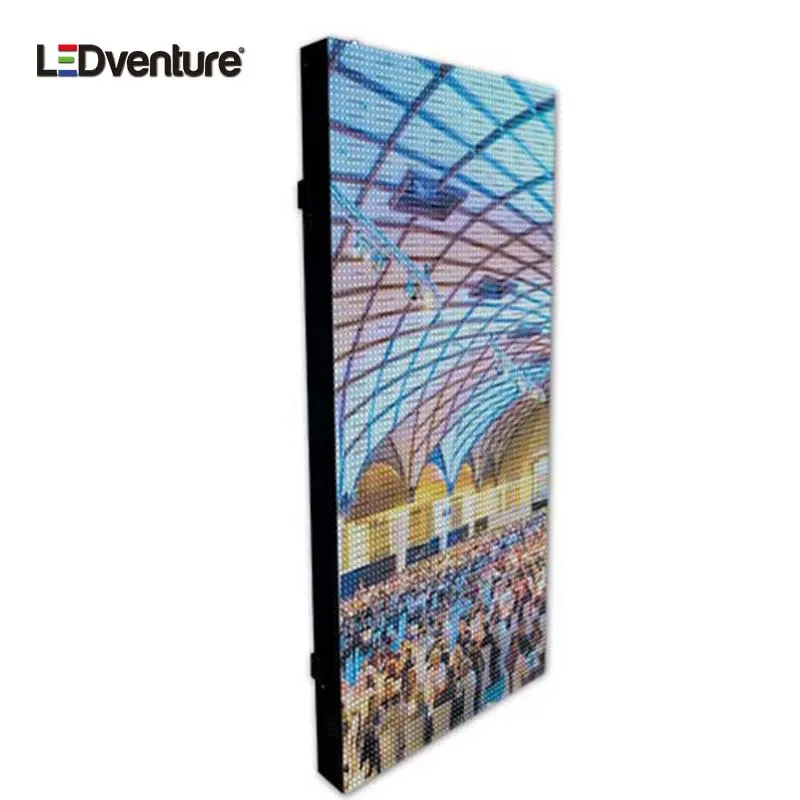

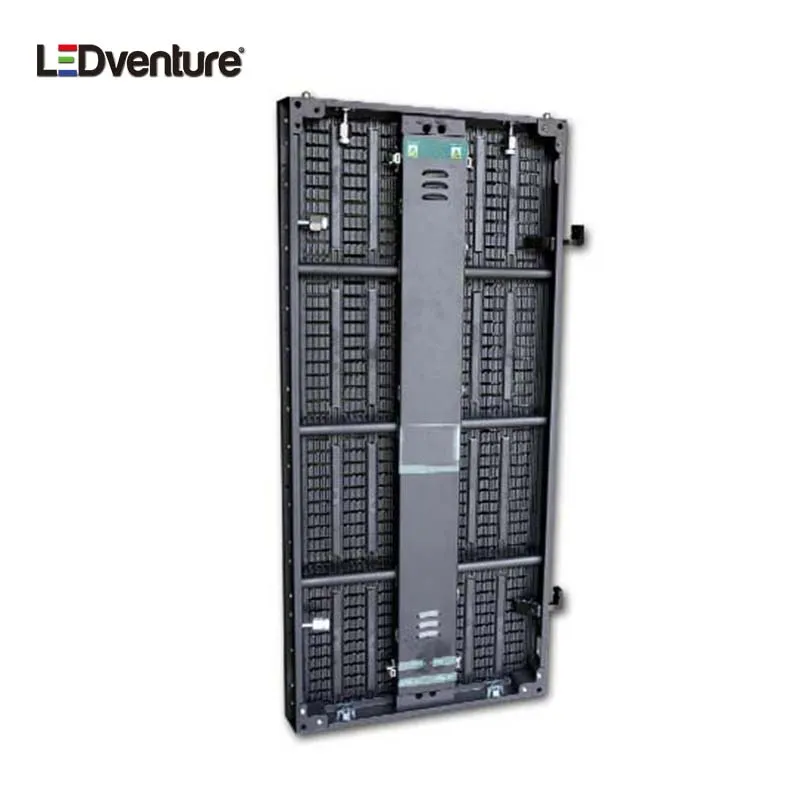

LED Detail 1 LED Detail 2

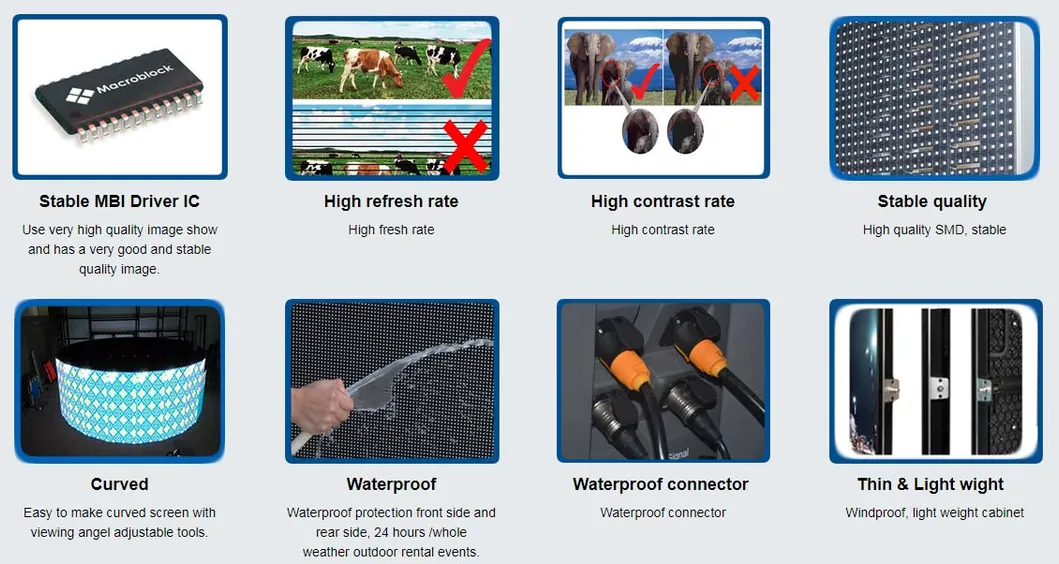

LED Structure
💎

Material Quality Level

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, to make sure led display screen stable and less aftersale services.

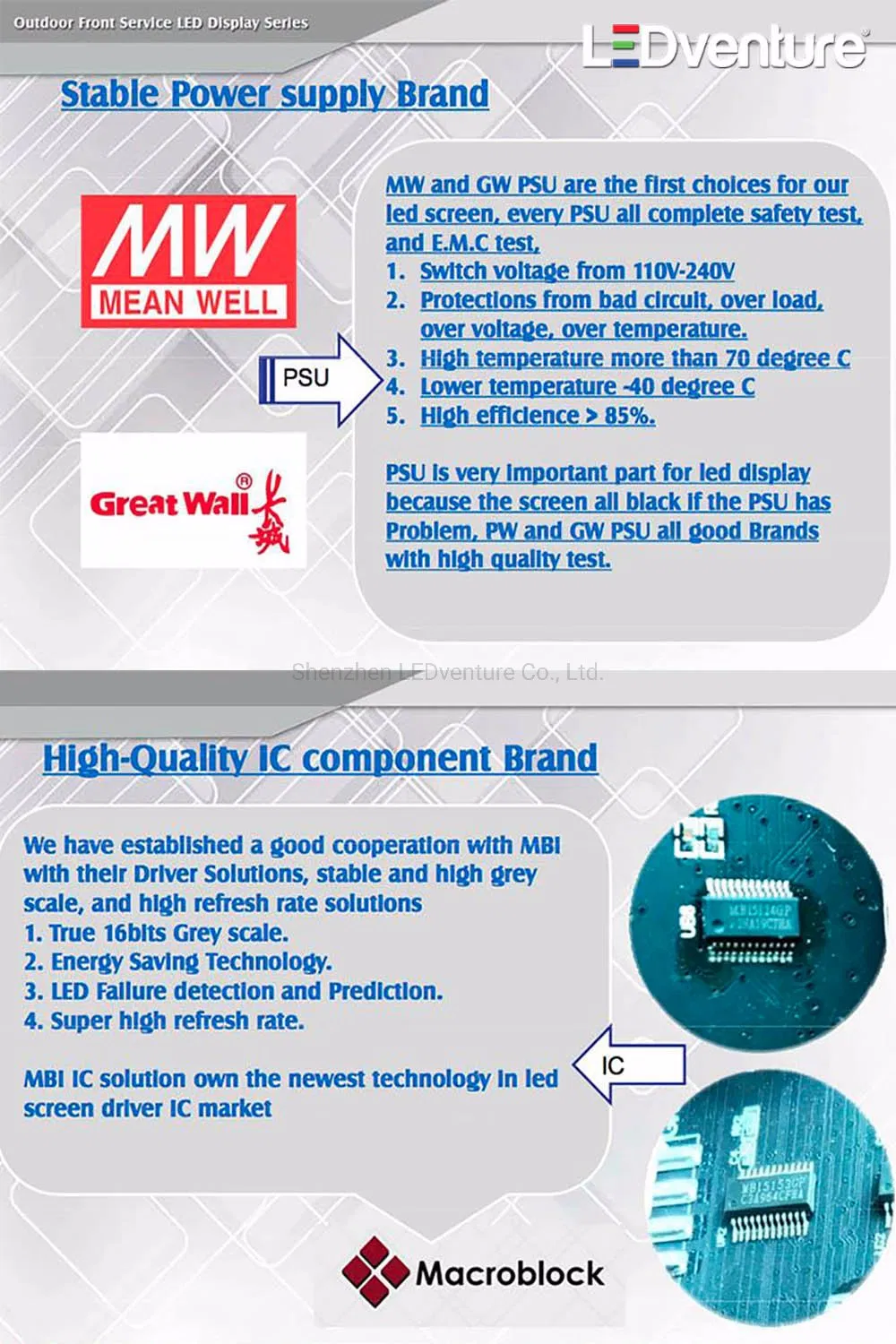

Quality Materials 1 Quality Materials 2
📋

Technical Specification

ItemIndoor Outdoor Curtain Mesh LED Display Screen
Model NumberCX-P8.9S
Pixel Density12546 pixels/M2
LED TypeNS, SMD 3 IN 1
Module Size250x250mm
Viewing Angle≤140°
Protection LevelIP65
Input VoltageAC110-240V, 50Hz/60Hz
Gray Scale16 bits
Lifespan≥100,000 hours
🛠

Installation & Packing

Outdoor front service and back service LED Display screen fixed on the wall, on pillars, standing etc are all available.

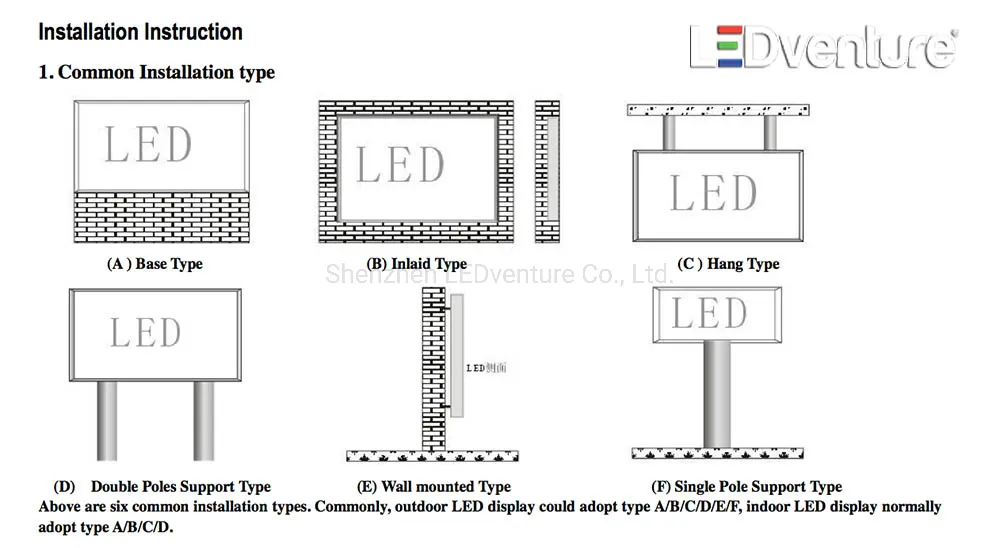

Installation Methods

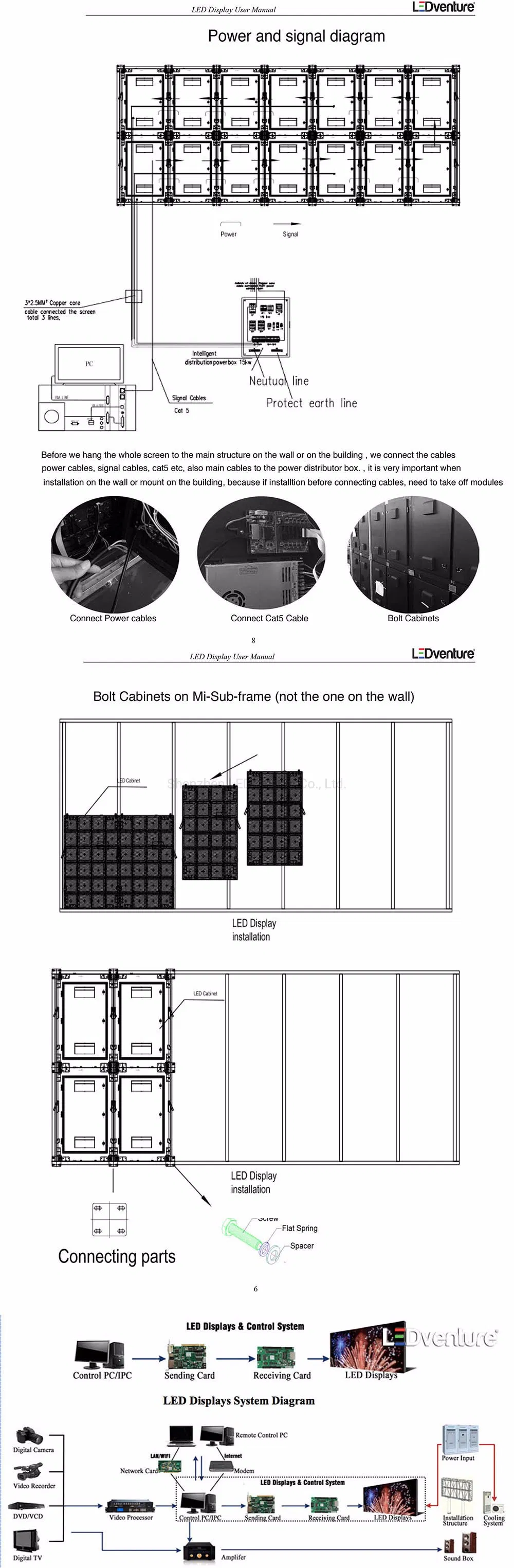

System Hardware

Packing: Information by plywood cases, packing well and easy to load.

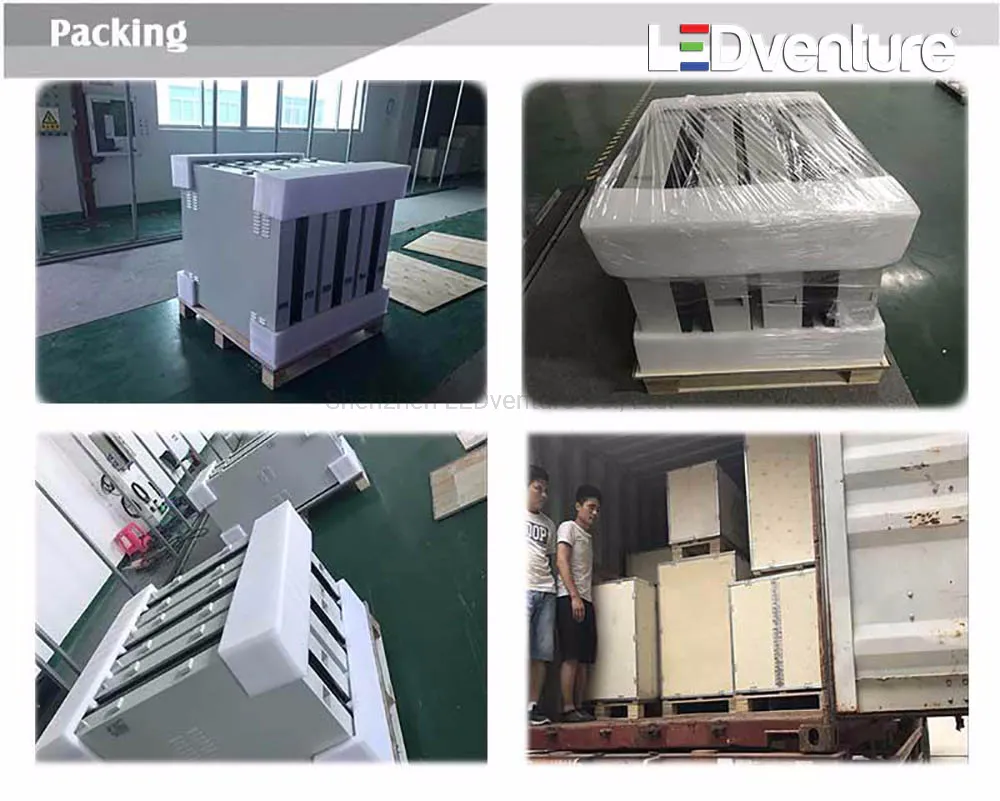

Packing
📜

Certificates

All products passed CE, EMC FCC, UL and other security tests to meet market laws and standard requirements.

Certificates
🌍

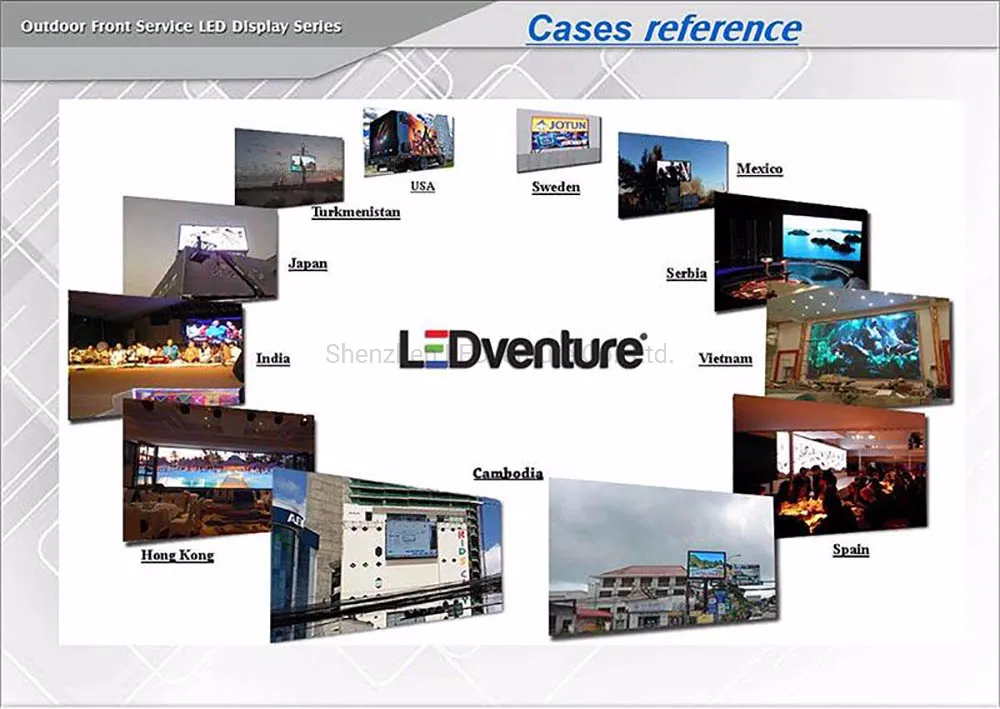

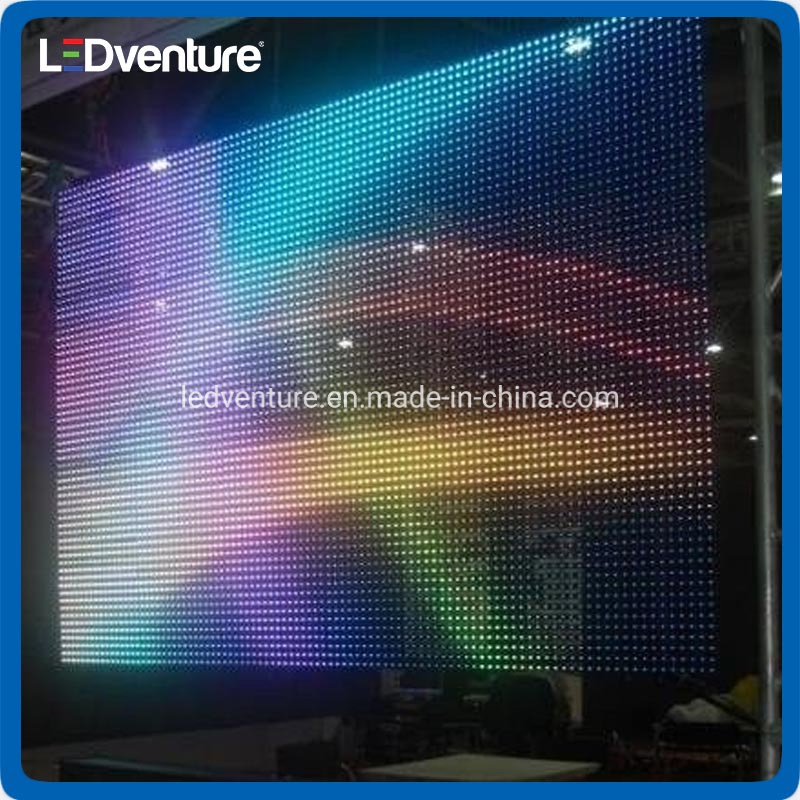

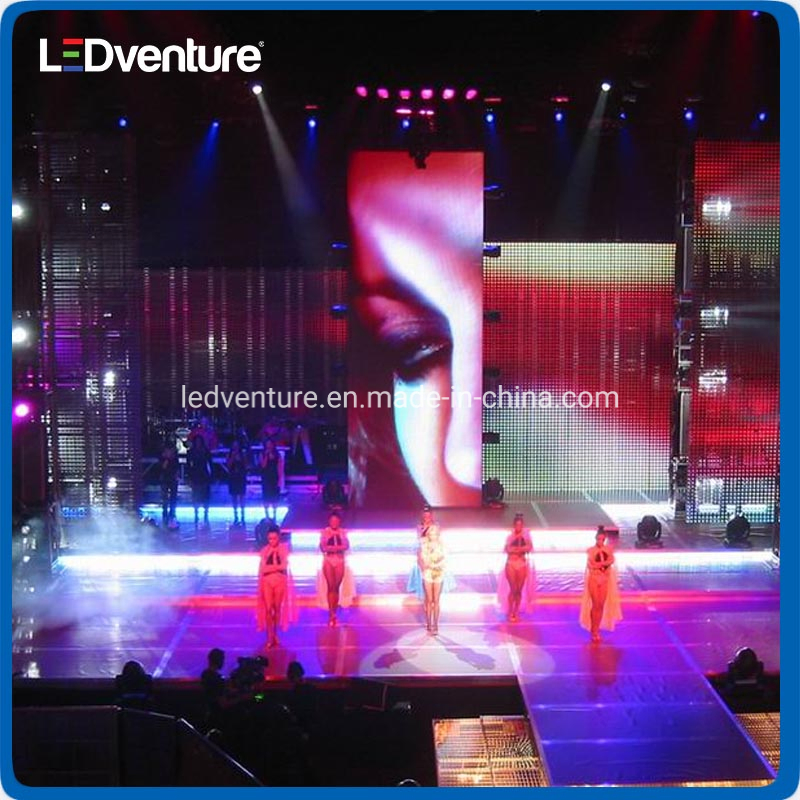

Installation Cases

Case 1 Case 2
?

Frequently Asked Questions

What is the pixel pitch and resolution of the CX-P8.9S model?
The CX-P8.9S features a pixel pitch of 8.9mm and a pixel density of 12546 dots per square meter, providing high-density resolution for clear video display.
Is this LED curtain screen suitable for outdoor environments?
Yes, it has an IP65 protection level and a brightness range of 3000-3500 nits, making it durable and visible for outdoor advertising.
What is the refresh rate of the display?
The display offers a high refresh rate of over 1920Hz, ensuring smooth video playback without flickering, even on camera.
What installation methods are supported?
The screen supports versatile installation methods including wall-mounted, pillar installation, and standing structures for both front and back service.
What are the power requirements and consumption?
The screen operates on AC110-240V (50/60Hz) with an average power consumption of approximately 180W per square meter.
How is the product packed for international shipping?
Products are packed in professional plywood cases to ensure maximum protection during transit and to facilitate easy loading and unloading.
