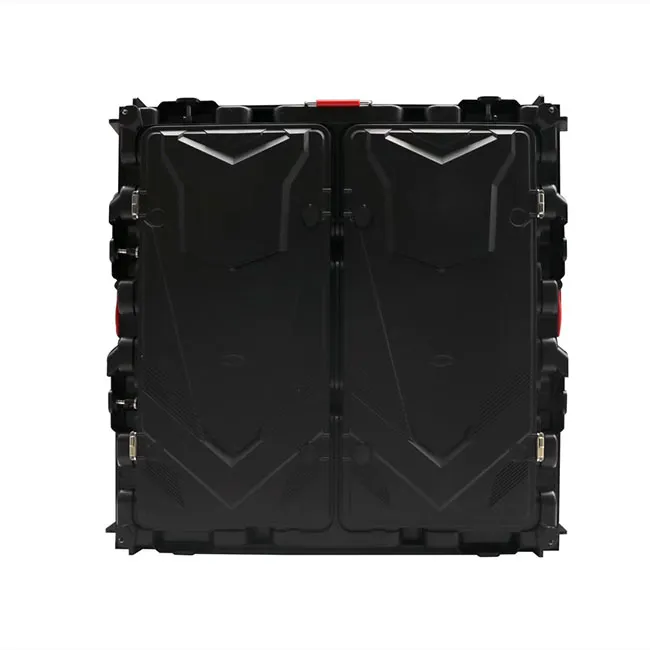

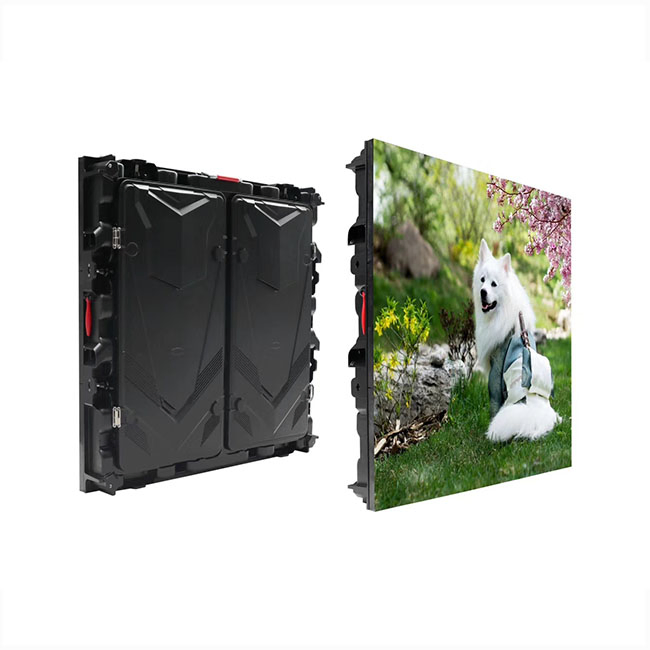

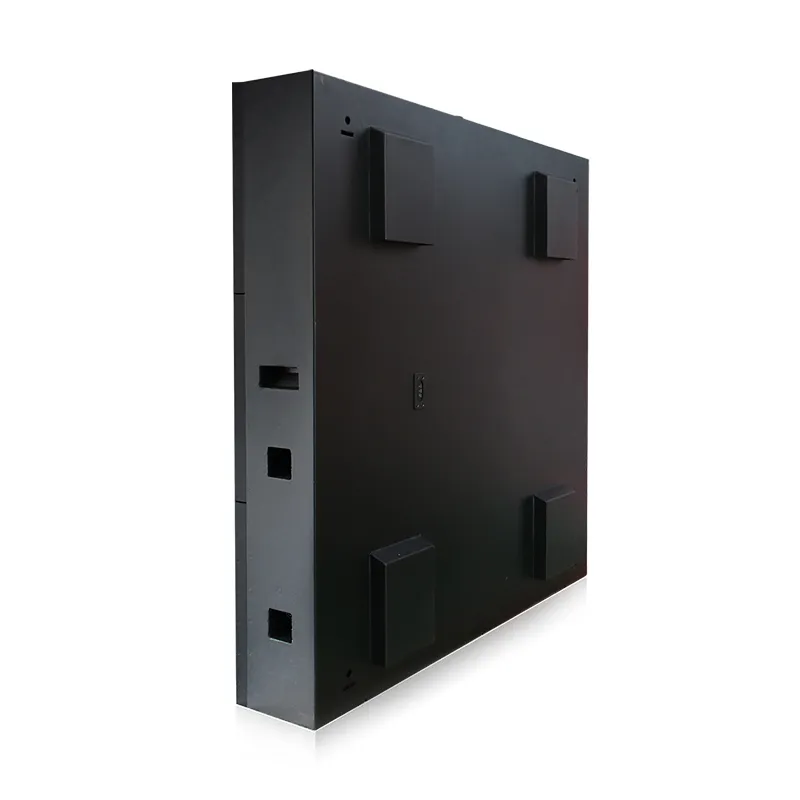

Our display supports both Steel cabinets and die-cast magnesium cabinets. The size of the steel cabinet can be adjusted according to your requests and needs, while the die-cast magnesium cabinet is a standard 960mm*960mm.
| Model | OFC 6.67 | OFC 8 | OFC 10 |
|---|---|---|---|
| Pixel Pitch(mm) | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD2727 | SMD3535 | SMD3535 |
| Pixel Density(pixel/sqm) | 22477 | 15625 | 10000 |
| Brightness(cd/sqm) | 5500 | 5000 | 6500 |
| Module Dimension(mm) | 320*160 | 320*160 | 320*160 |
| Cabinet Dimension(mm) | 960*960*120 | 960*960*120 | 960*960*120 |
| Max power (W/sqm) | 790 | 690 | 840 |
| Average power (W/sqm) | 260 | 230 | 280 |
| IC | ICN2045 | ||
| Refresh rate(HZ) | 1920 | ||
| Protection grade | IP65 | ||

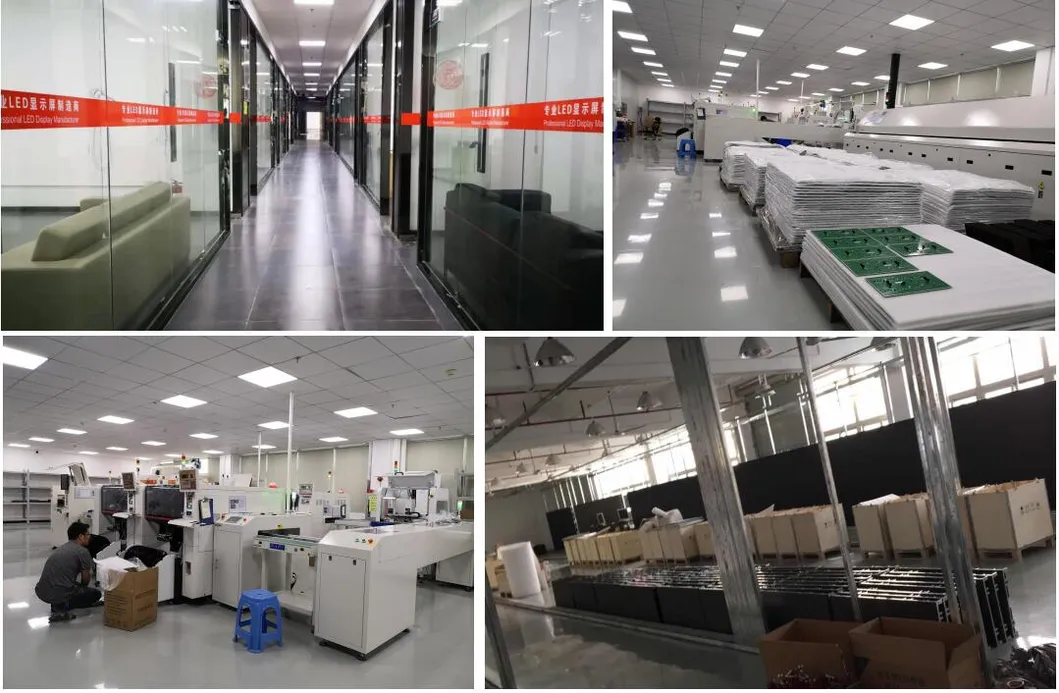

We are an original factory in Shenzhen with 6 years of experience. We provide all accessories including sending cards, video processors, software, and cables. Our facilities include SMT rooms and professional assembly lines.
