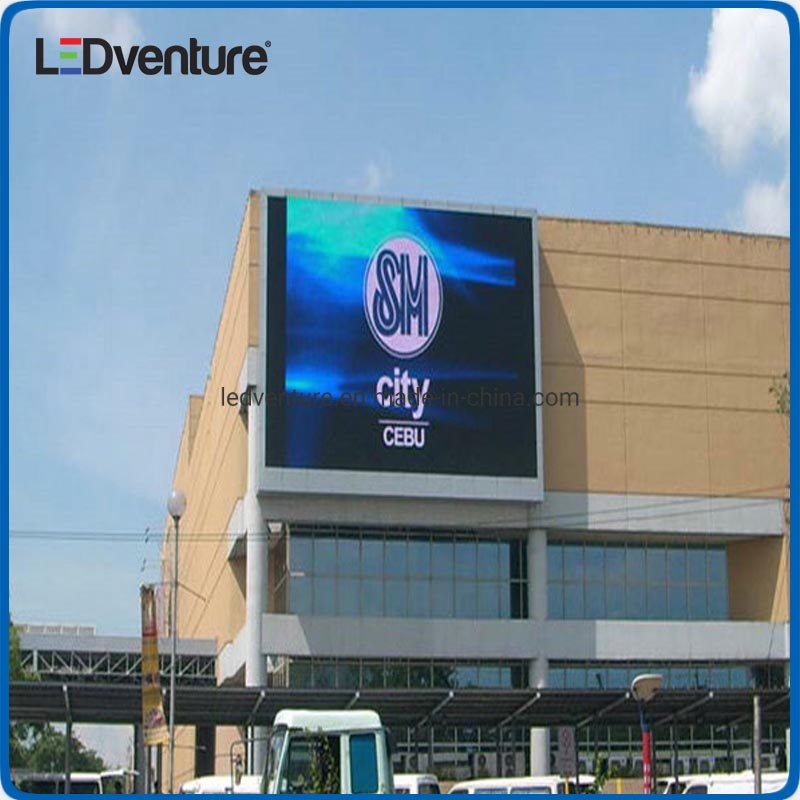

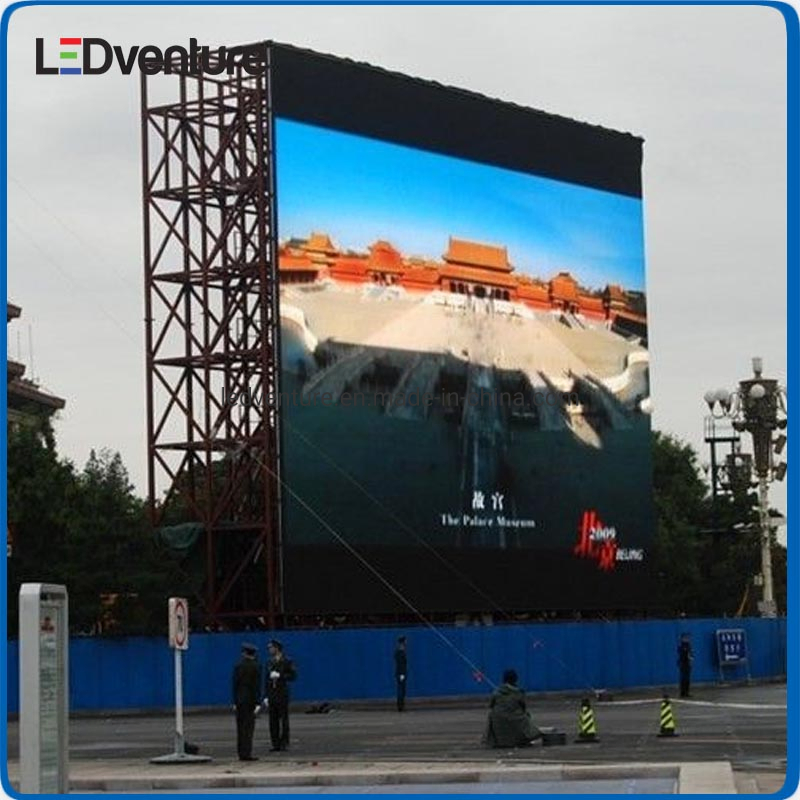

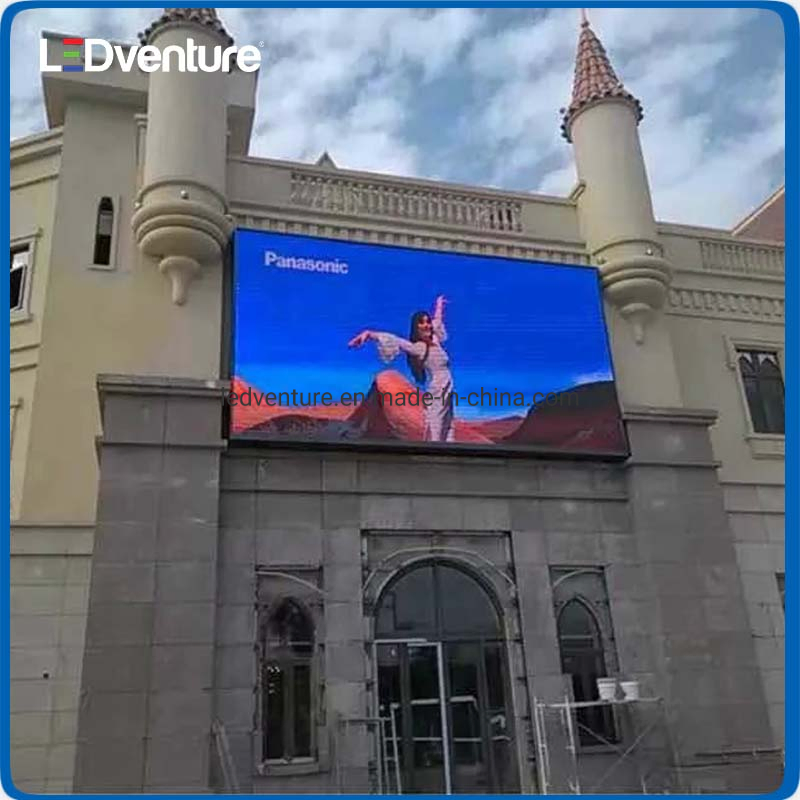

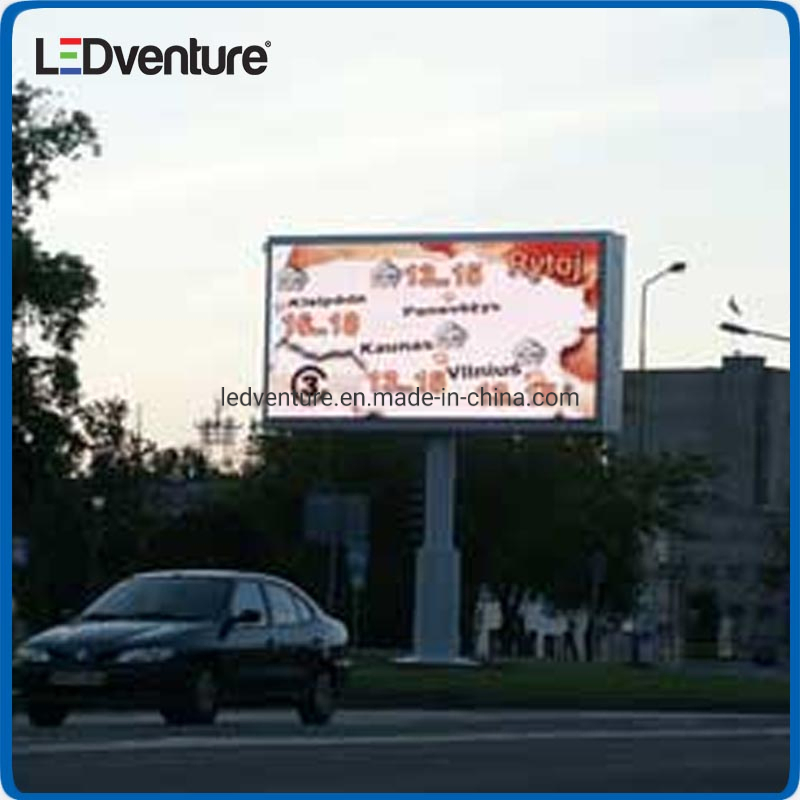

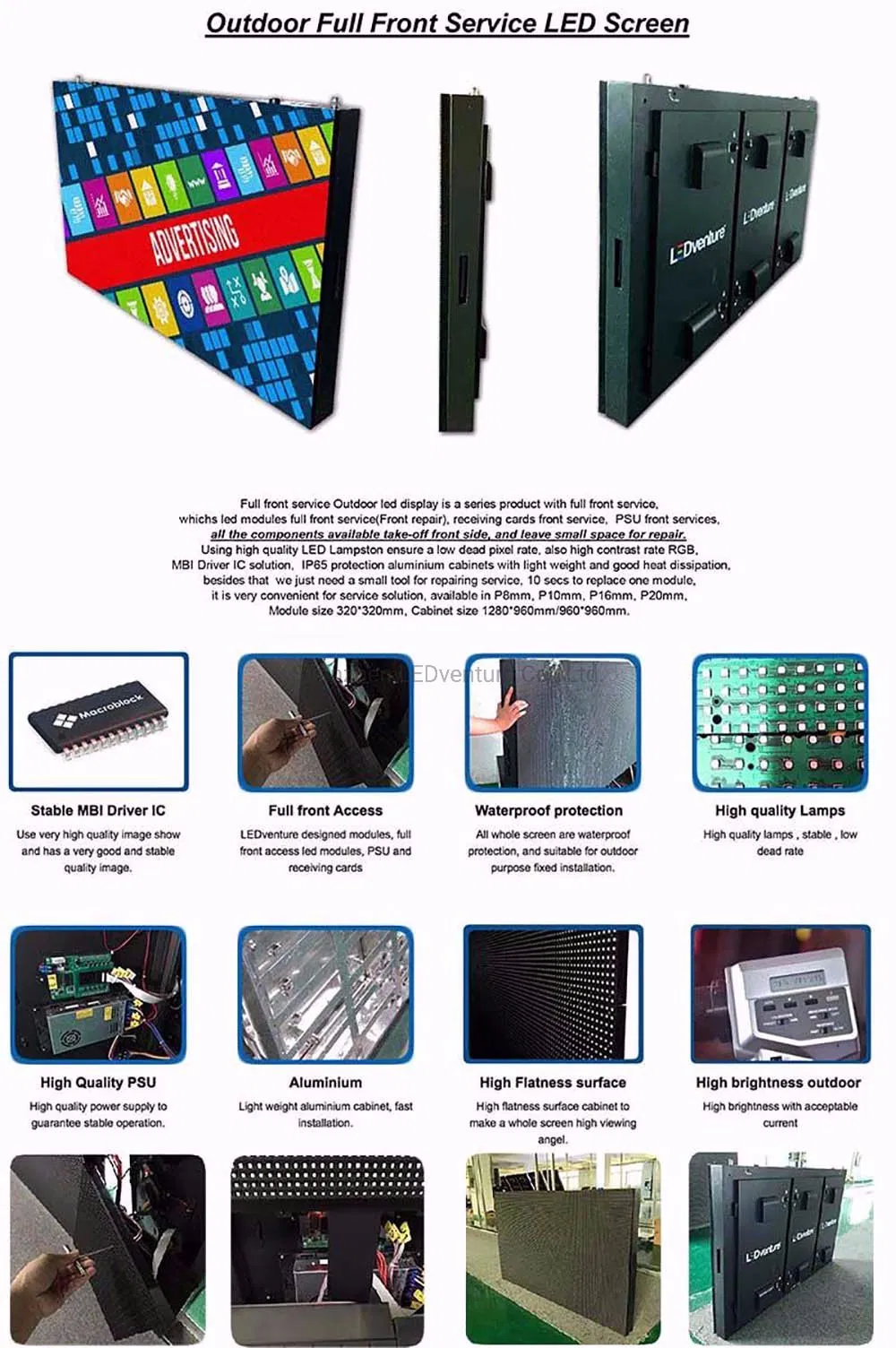

P10 Outdoor SMD Naked Eye 3D Commercial LED Display

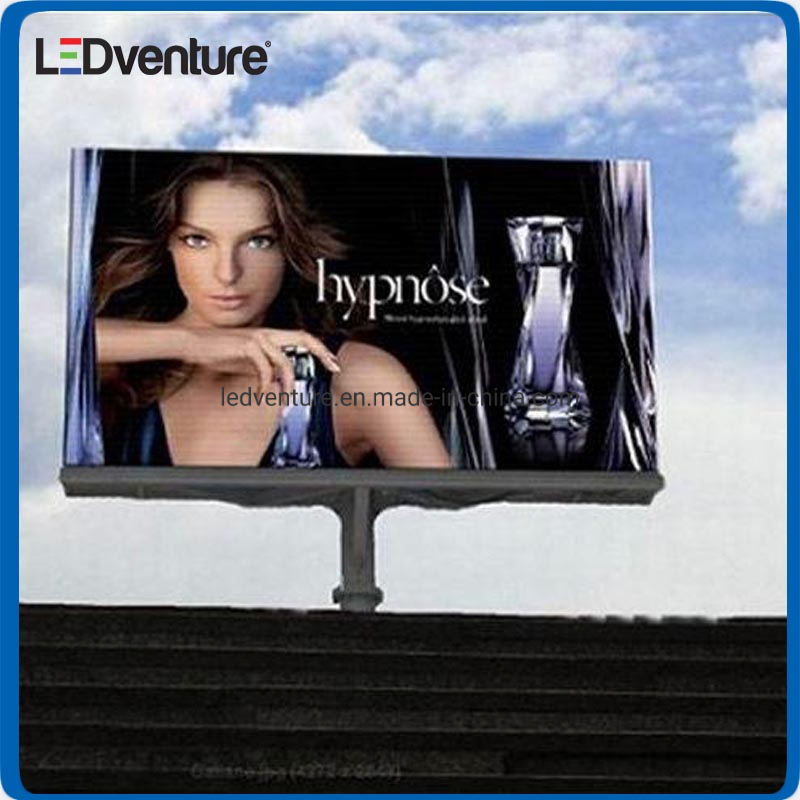

This series focuses on high-performance outdoor media solutions. It features a cost-effective design with a high refresh rate (over 1920Hz) and stable resolution, making it ideal for outdoor advertising and large-scale billboards. The lightweight cabinet design and high-density image quality ensure easy installation and superior visual impact.
| Parameter | Specification |
|---|---|
| Pixel Pitch Range | 2.9mm to 20mm |
| Brightness | > 5000nits |
| Cabinet Size | 960x960mm | 1280x1280mm (optional) |
| Max. Power Consumption | 720W/panel |
| Driver IC | MBI |
| Refresh Rate | >1920HZ |
Materials are selected for top-tier quality, including high-grade SMD components, ICs, and durable PCBs. This ensures stability, minimizes maintenance costs, and extends the lifespan of the display.
| Pixel Configuration | SMD 3 IN 1 |
| Module Size | 320x320 mm |
| Viewing Angle | ≤140° (Horizontal/Vertical) |
| Protection Level | IP65/IP54 |
| Lifespan | ≥100,000 hours |
| Gray Scale | 16 bits |
| Environment Temp | Operation: -20 °C~+45°C |
| Control Mode | Video frequency synchronization |

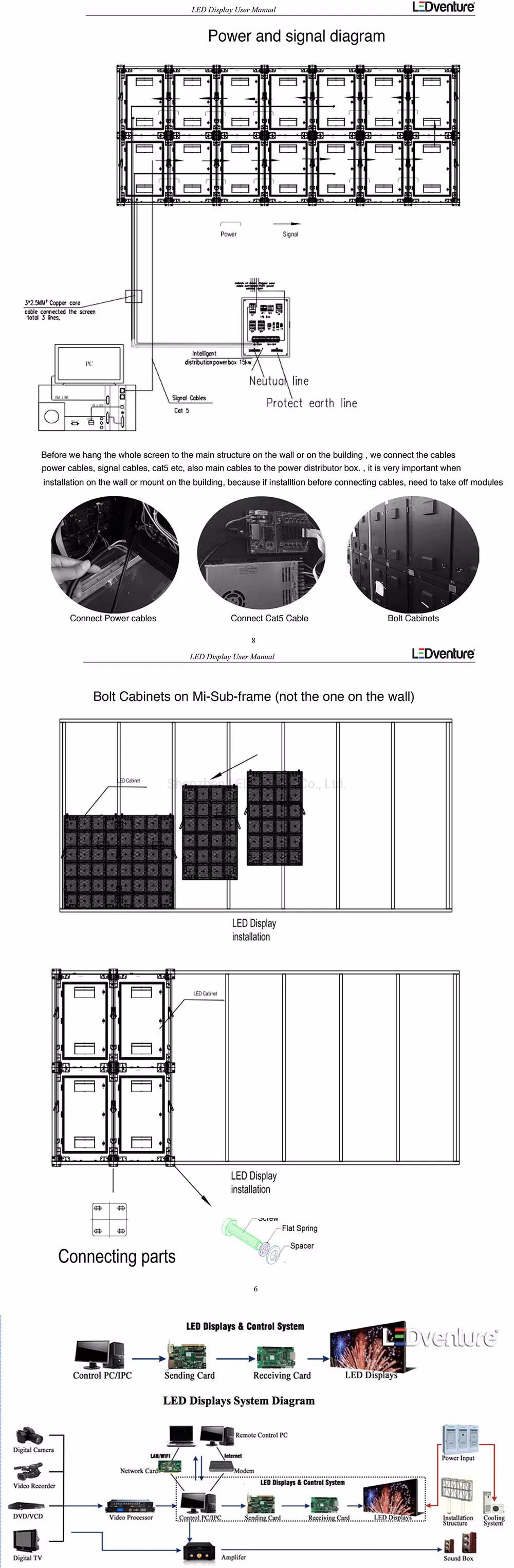

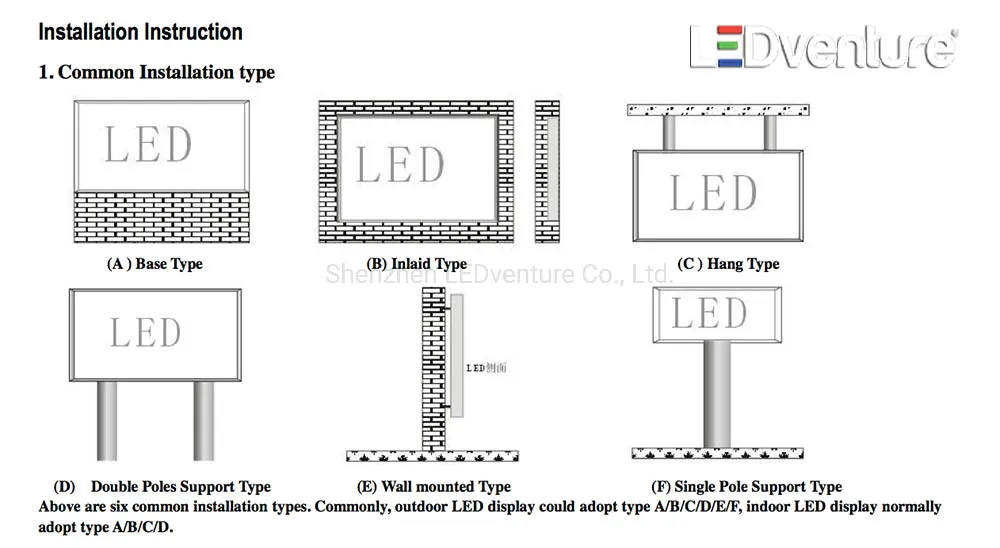

Supports multiple mounting options: fixed on walls, pillars, or standing structures. Full system hardware included (sending boxes, processors, and receiving cards).
