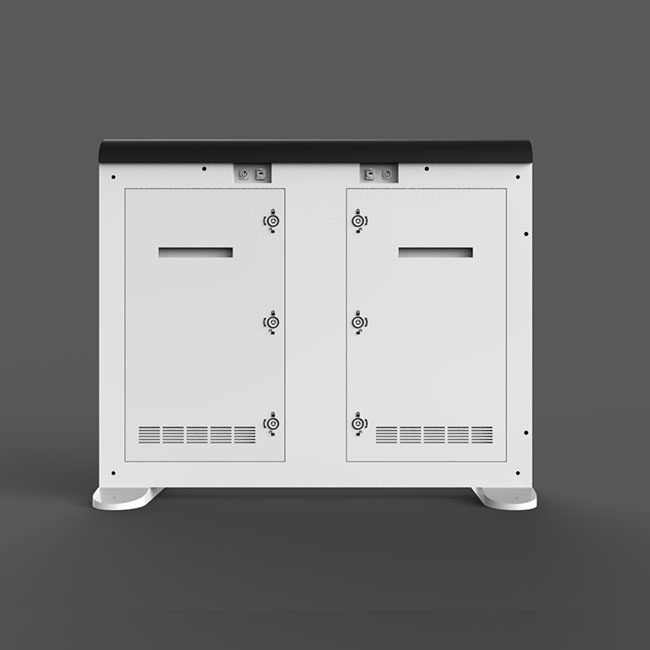

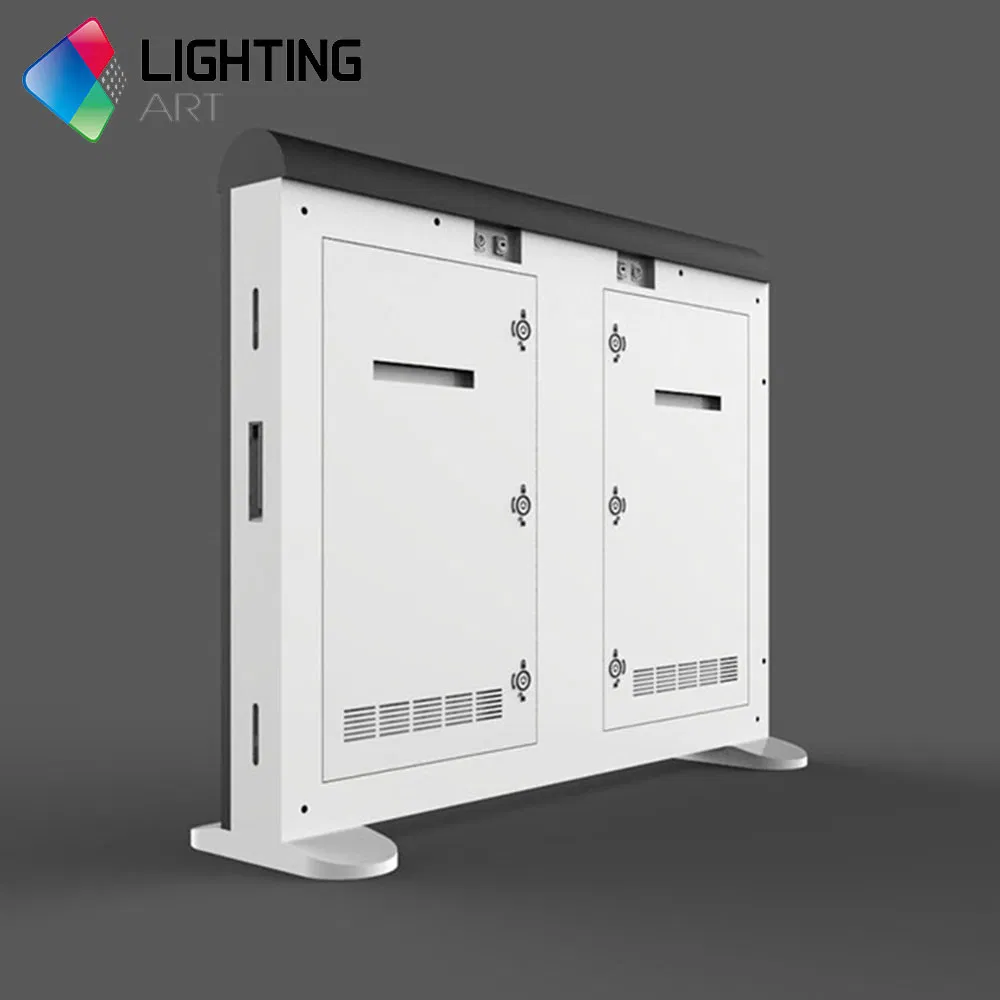

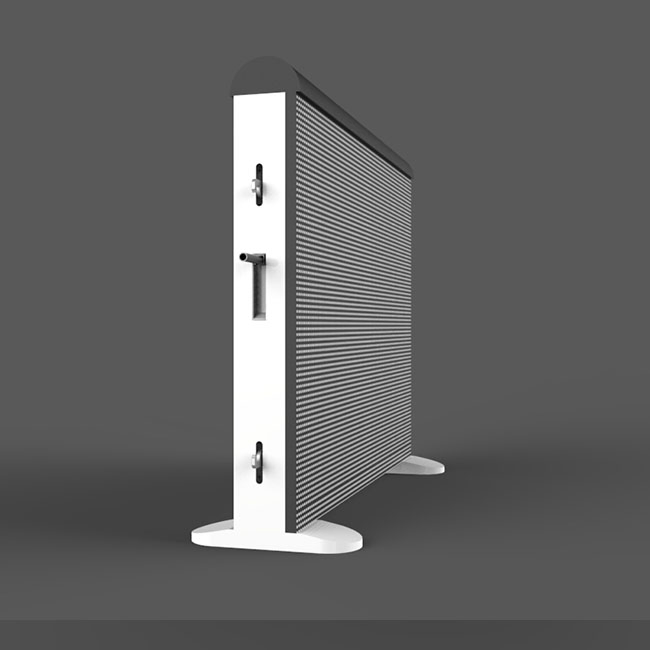

P10 Outdoor Stadium LED Display / Perimeter LED Screen Display Around Football Stadium SMD3535
P10 Outdoor Stadium LED Display / Perimeter LED Screen Display Around Football Stadium SMD3535
P10 Outdoor Stadium LED Display / Perimeter LED Screen Display Around Football Stadium SMD3535
P10 Outdoor Stadium LED Display / Perimeter LED Screen Display Around Football Stadium SMD3535
P10 Outdoor Stadium LED Display / Perimeter LED Screen Display Around Football Stadium SMD3535
1 / 5
P10 Outdoor Stadium LED Display / Perimeter LED Screen Display Around Football Stadium SMD3535
P10 Outdoor Stadium LED Display / Perimeter LED Screen Display Around Football Stadium SMD3535
P10 Outdoor Stadium LED Display / Perimeter LED Screen Display Around Football Stadium SMD3535
P10 Outdoor Stadium LED Display / Perimeter LED Screen Display Around Football Stadium SMD3535
P10 Outdoor Stadium LED Display / Perimeter LED Screen Display Around Football Stadium SMD3535

P10 Outdoor Stadium LED Display / Perimeter LED Screen Display Around Football Stadium SMD3535

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.:SPAS10
Pixel Pitch:10mm
Configuration:1R, 1G, 1B
Display Function:Video, Image, Text
Avg Consumption:250W/M2
Pixel Density:10000 dot / m²
Scanning Mode:1/2 Scan
Cabinet Material:Aluminum
Best Distance:>20m
Certification:CE, FCC
Application & Environment

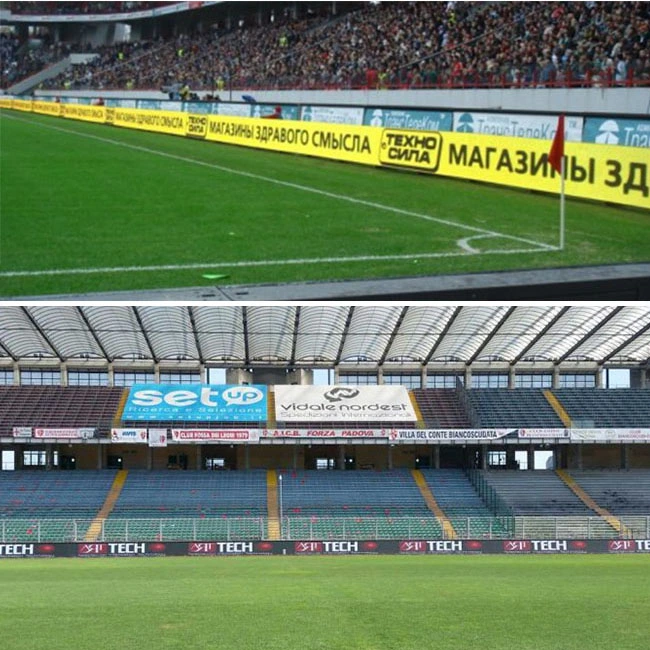

🏆 Sport Stadiums

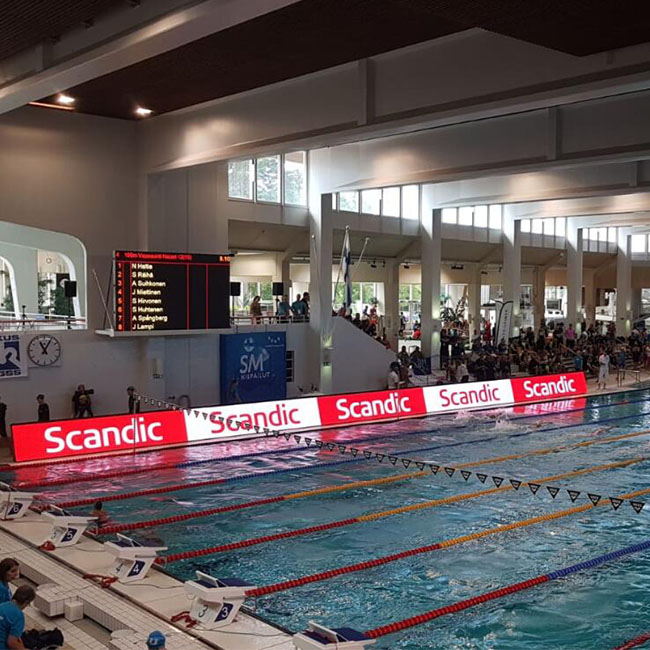

Advanced LED screen designed for football, basketball, hockey areas, and swimming pools.
📢 Advertising
Popular solution for perimeter stadium advertisement and high-impact visual displays.

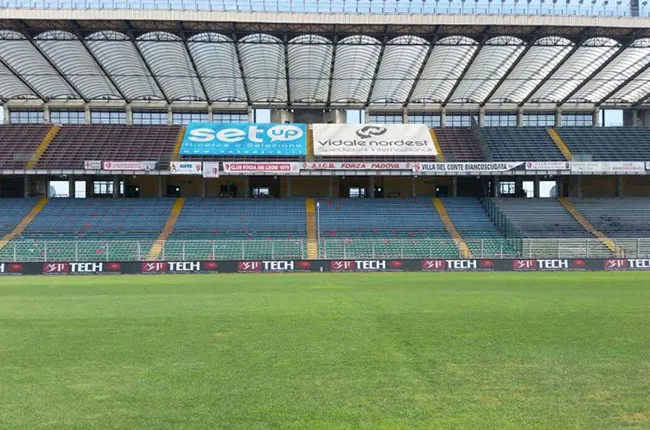

Stadium LED Display

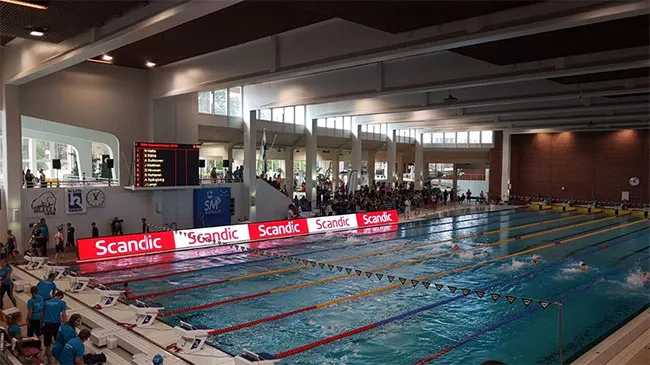

Perimeter LED Screen
Product Key Features
🛡️ Athlete Protection
Equipped with a soft top cover and soft mask to ensure safety for athletes during play.
⚙️ Adjustable Angle
Supports precise angle adjustment from 0 to 15 degrees for optimal viewing.
⚡ Cost Effective
Lightweight and durable aluminum cabinet materials for long-term reliability.
Technical Specifications
No. Parameters Details
1Model No.SPAS10
2Pixel Pitch (mm)10
3Module Size (mm)320*160
4Cabinet Size (mm)1280*960*120
5LED EncapsulationSMD3535 KINGLIGHT
6Brightness (NIT)6500
7Refresh Rate (Hz)3840
8Protection GradeIP65
9Contrast Ratio3000:1
10Viewing Angle±140°/±140°
Manufacturing & Quality Control
✅ Strict Testing
Aging test and Grayscale test performed for every single module before assembly.
🏭 Advanced Equipment
Utilizing high-technology automatic machines for precision manufacturing.

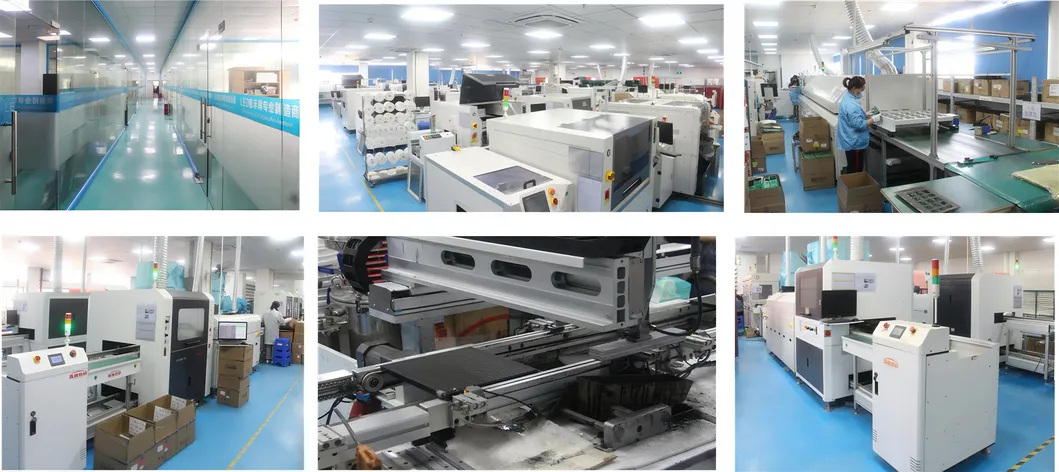

Factory Aging Test

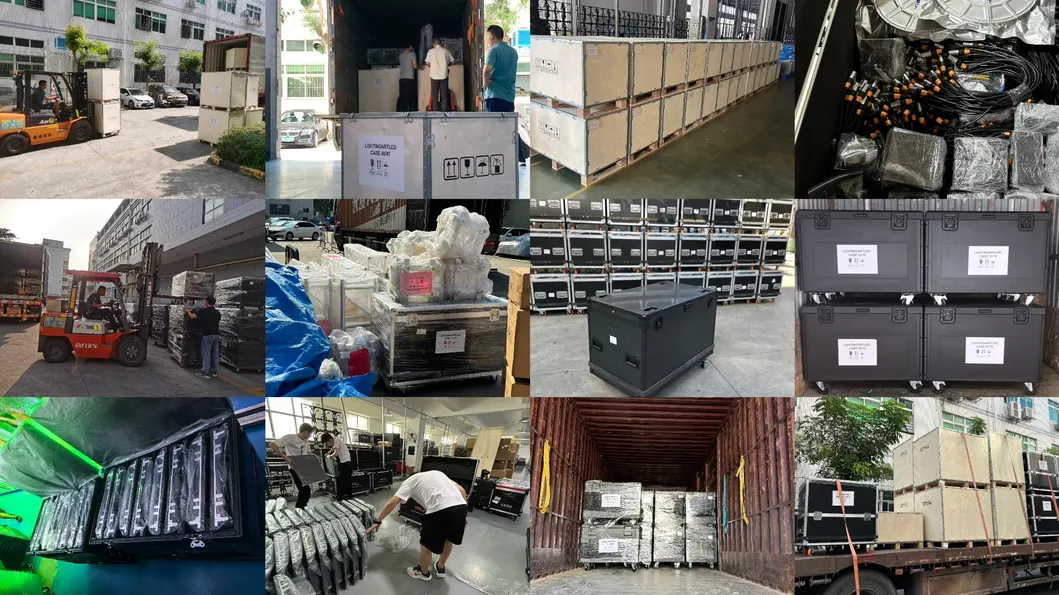

Delivery and Packaging
Delivery & Trade Terms
  • Production Time: Approx. 25 days for 0-200 m² (including aging test).
  • Payment: 30% T/T in advance, 70% before shipping.
  • Trade Terms: FOB Shenzhen, CIF, DDU, DDP.
  • Packaging: Professional Plywood case or Flight case provided.
Frequently Asked Questions
1. What makes this screen suitable for football stadiums? It features a soft top cover and a soft mask specifically designed to protect athletes from injury upon impact, as well as an adjustable viewing angle (0-15°).
2. Can this LED display be used outdoors in the rain? Yes, the display has an IP65 protection grade, making it highly resistant to water and dust for outdoor environments.
3. What is the typical brightness level and refresh rate? The SPAS10 offers a high brightness of 6500 NIT and a refresh rate of 3840 Hz, ensuring clear visibility and flicker-free video even under sunlight.
4. How is the product packaged for international shipping? We provide durable Plywood cases or Flight cases to ensure the modules and cabinets are protected during transit.
5. What are the cabinet material and weight? The cabinets are made of cost-effective and lightweight aluminum, with each cabinet weighing approximately 43kg.
6. What is the optimal viewing distance for this P10 display? The recommended best viewing distance is 20 meters or more, making it ideal for large stadium perimeters.
