📋 Basic Information
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image & Text Display
Certification
CE, RoHS, CCC, ETL
🚀 Product Description

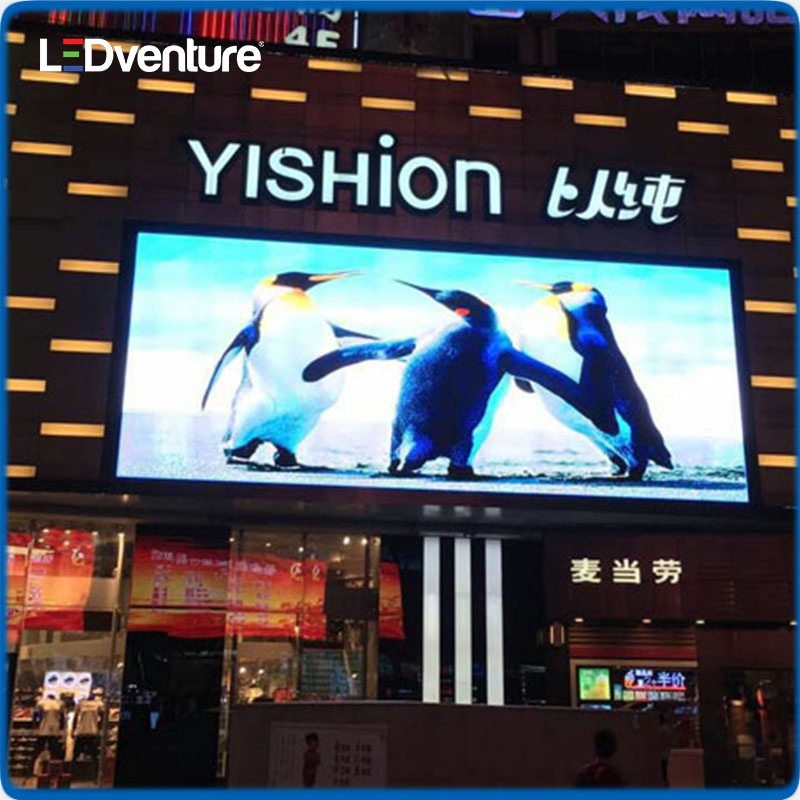

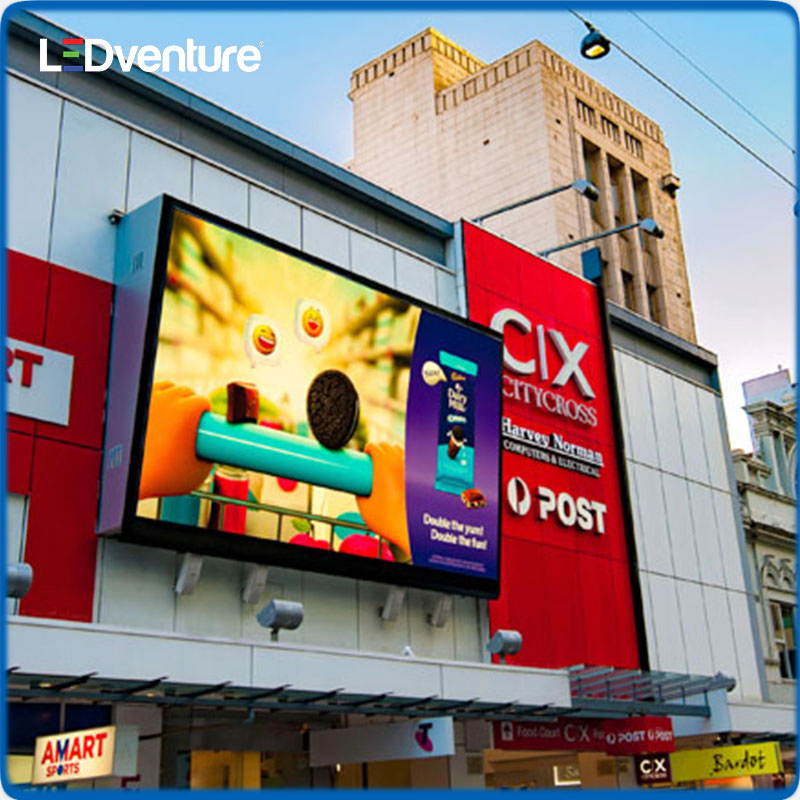

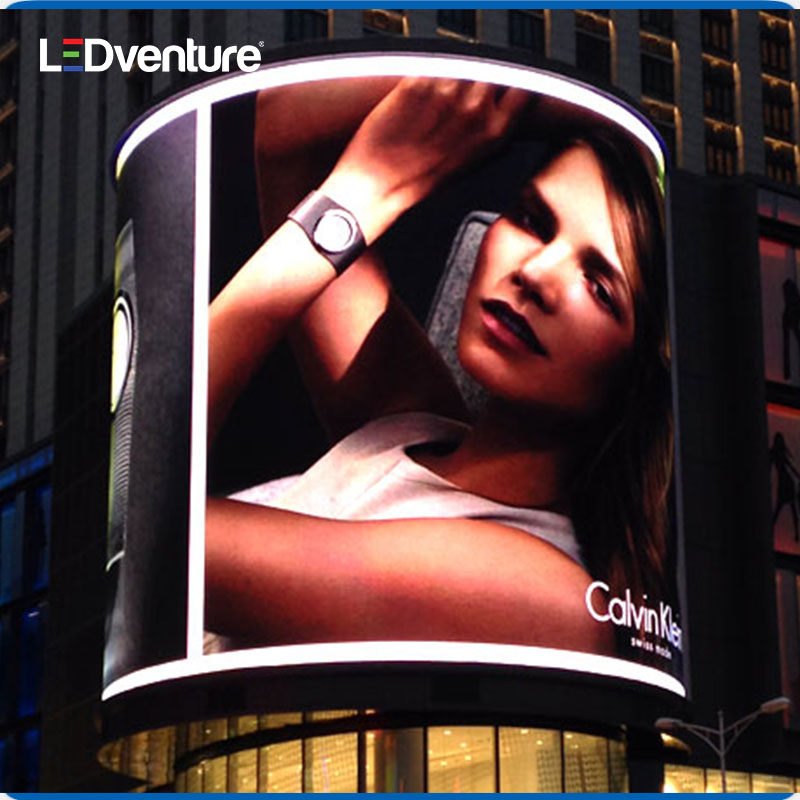

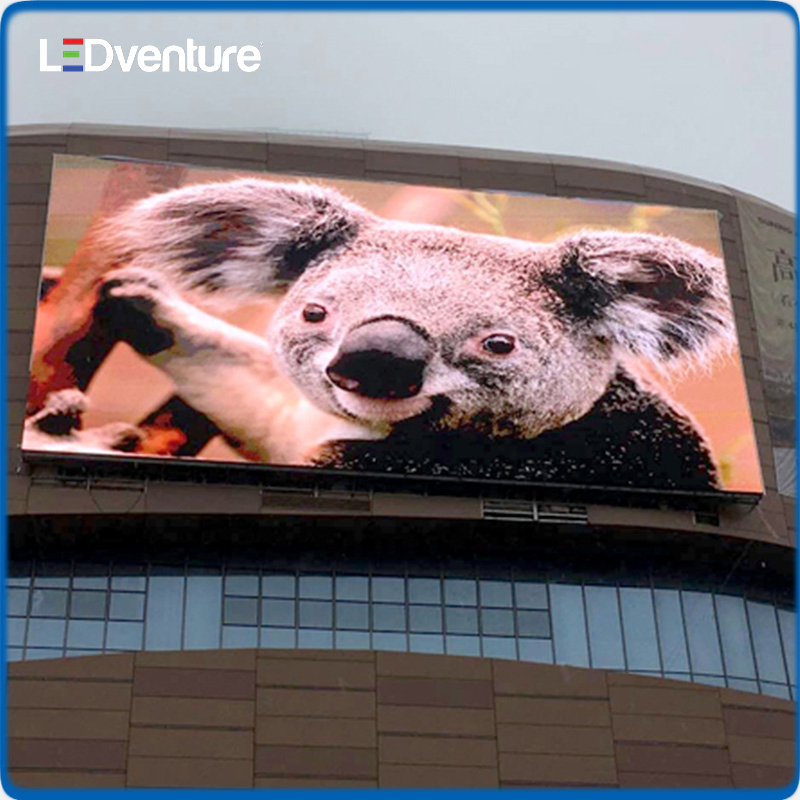

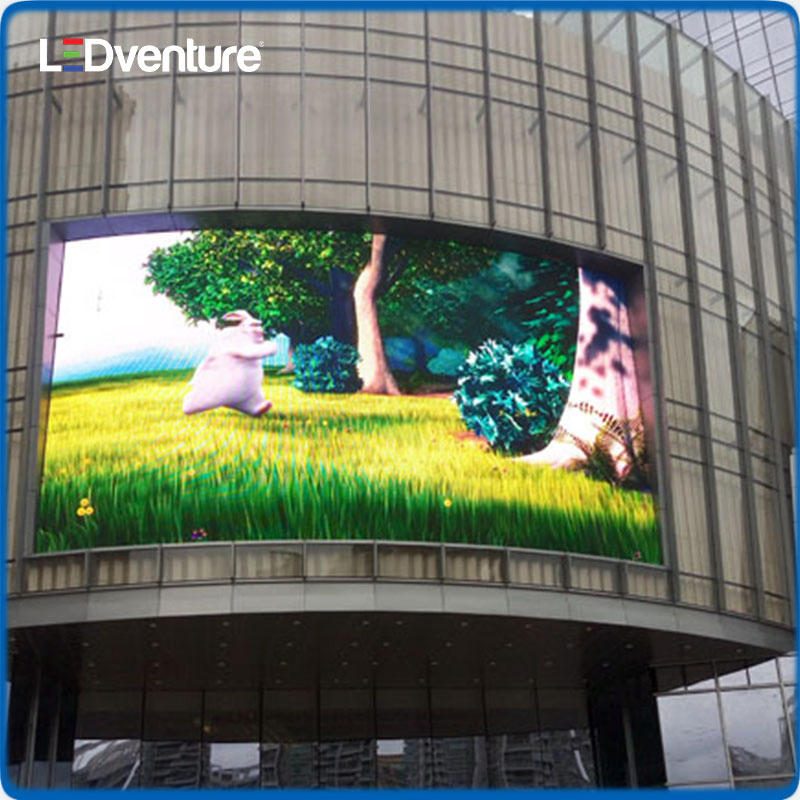

P3.91 Outdoor Advertising Digital Billboard LED Video Wall
We focus on a wide range of LED display manufacturing including indoor/outdoor displays, rental series, flexible, transparent, and stadium solutions. The Outdoor New Technological Full Color LED Screen is a cost-effective media solution featuring a high refresh rate (over 1920Hz-3840Hz) and a lightweight cabinet design, providing top-tier image quality and stable resolution for various environments.
🛠️ System & Hardware Details

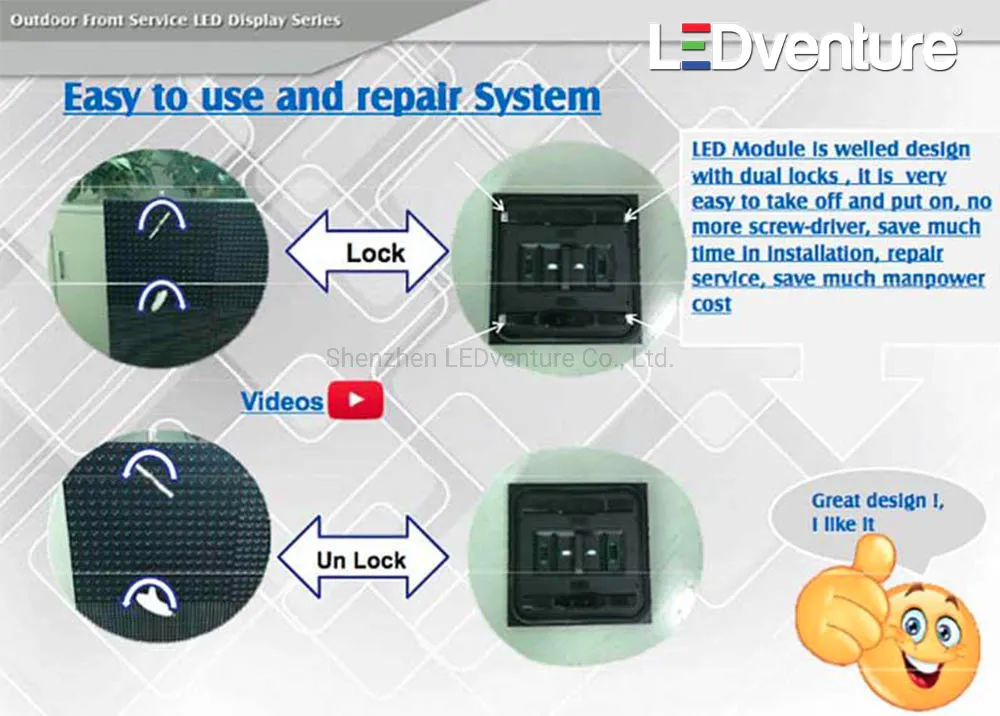

Lock System & Design: Optimized for quick installation and seamless connection.

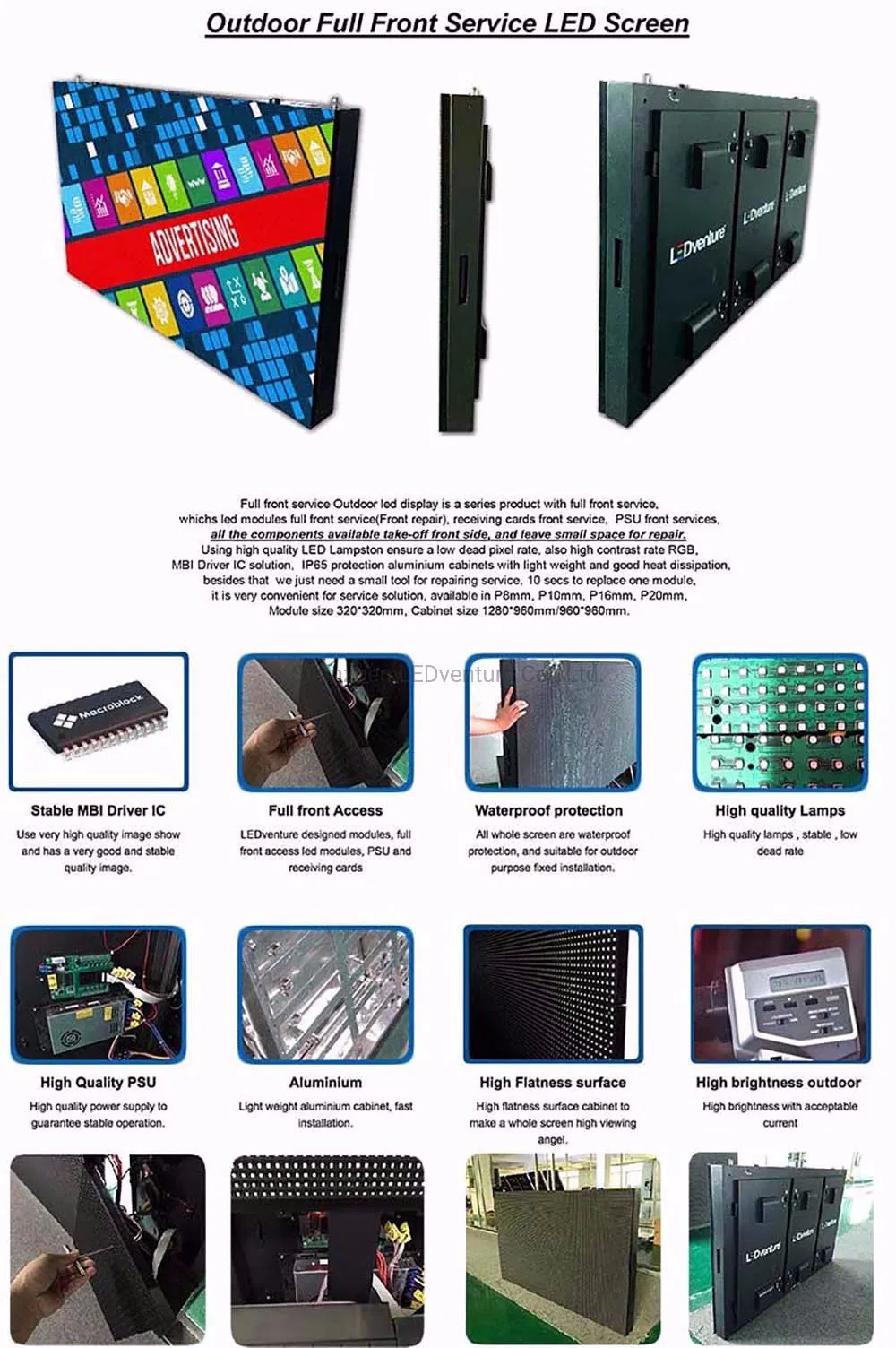

Front and Back Service: Designed for easy maintenance from both sides, ensuring long-term stability and reduced labor costs.
💎 Material Quality & Standards
All product materials are selected from top-tier quality levels, including SMD components, ICs, PCBs, and power supply units (PSU). This helps minimize after-sales service costs and ensures stable operation.
📊 Technical Specifications
| Item | P3.91 Outdoor Advertising Digital Billboard |
| Pixel Pitch | OX II-P3.91 |
| Pixel Density | 65536 pixels/M2 |
| LED Type | NS, SMD 3 IN 1 |
| Module Size | 500x250mm |
| Brightness | >6000nits |
| Viewing Angle | ≤140° |
| Power Consumption | Avg. 200W/M2 |
| Protection Level | IP66 |
| Cabinet Size | 1000x1000mm |
| Refresh Rate | 3840Hz |
| Lifespan | ≥100,000 hours |
| Control Mode | Video frequency synchronization |

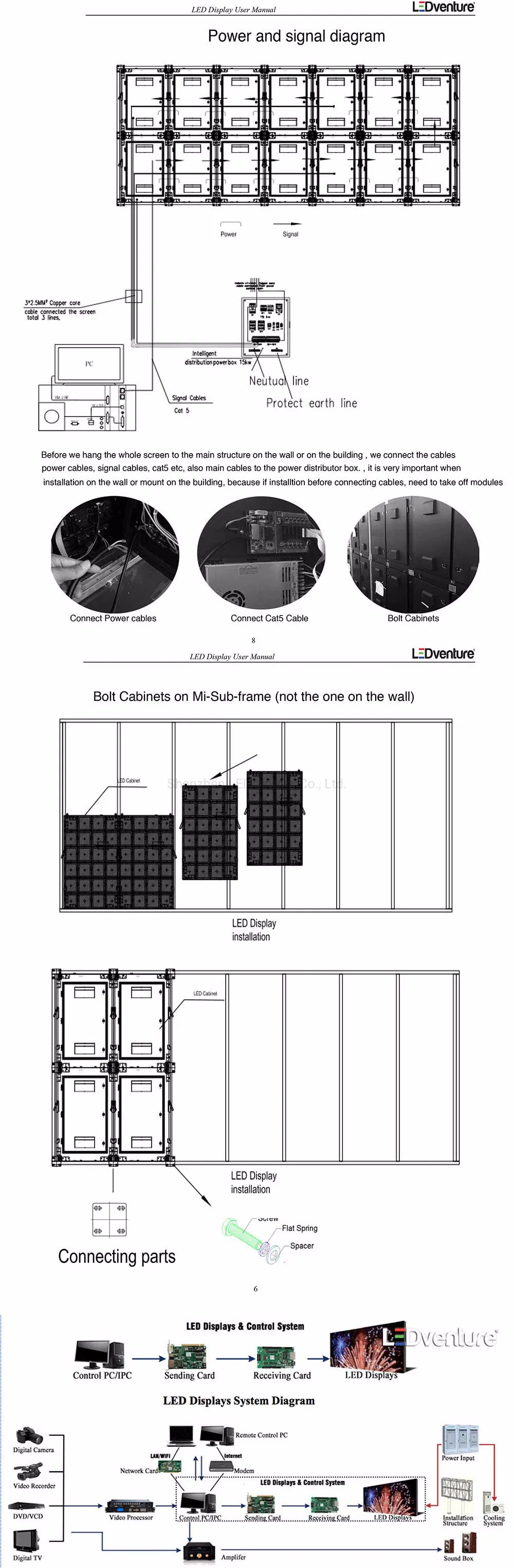

🏗️ Installation & Packaging

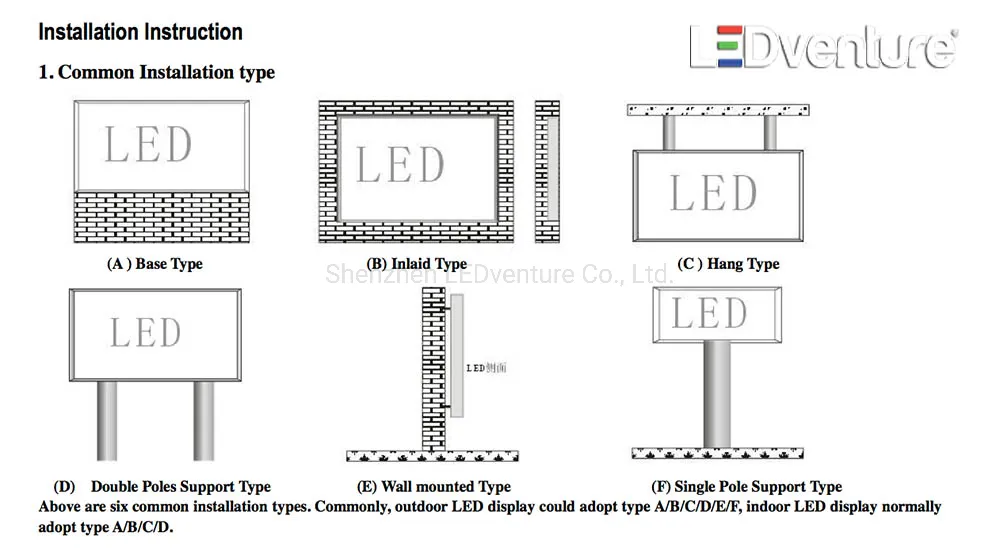

Supported methods include wall-mounted, pillar-mounted, or standing installations. The system hardware includes sending cards, processors, and receiving cards.

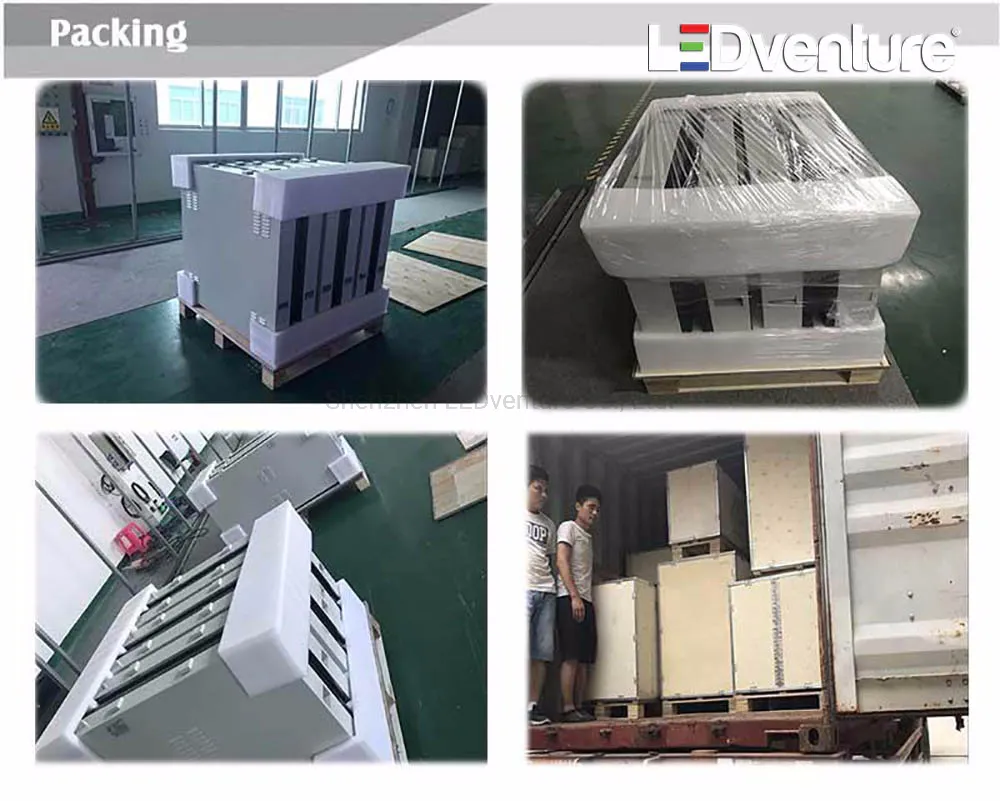

Packing: High-quality plywood cases are used for secure transportation and easy loading.

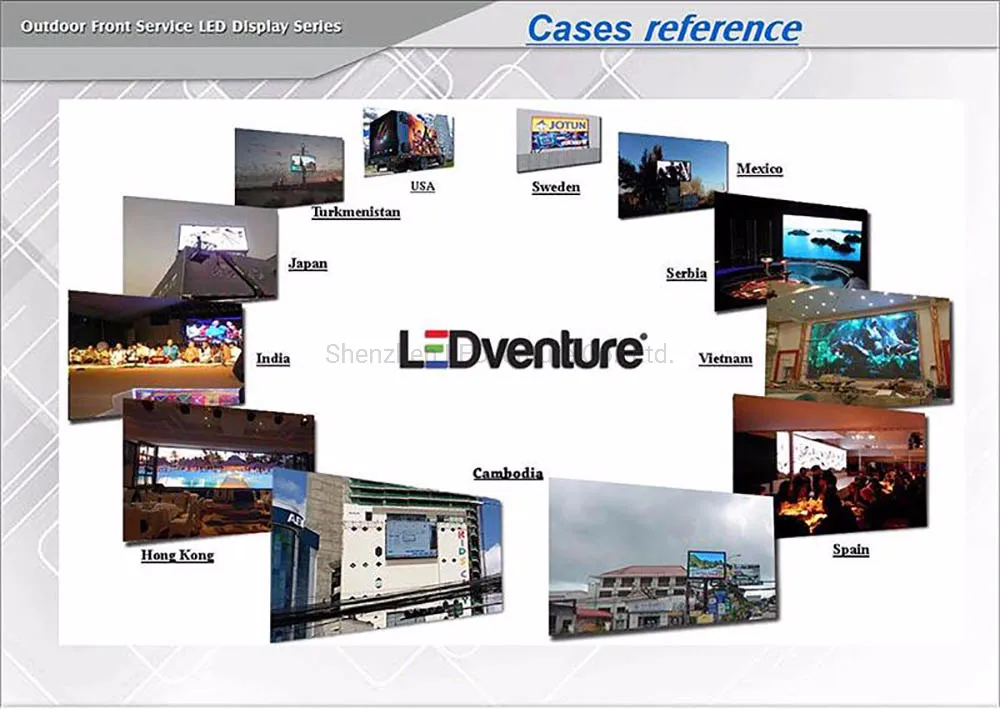

📜 Certificates & Global Projects
Our products have passed CE, EMC, FCC, UL, and other security tests to meet international market laws and standards.
❓ Frequently Asked Questions
Q1: What is the pixel pitch and best viewing distance for the P3.91 LED wall?
A1: The pixel pitch is 3.91mm, and the recommended minimum viewing distance is approximately 4 meters for optimal visual clarity.
Q2: Is this LED display bright enough for direct sunlight?
A2: Yes, with a brightness level of over 6000 nits, the display remains clearly visible even in bright outdoor environments and direct sunlight.
Q3: What is the waterproof rating of this outdoor billboard?
A3: The product features an IP66 protection level, making it highly resistant to dust and heavy rain, suitable for all-weather outdoor use.
Q4: Does the screen support front-side maintenance?
A4: Yes, it supports both front and back service, allowing for easier maintenance depending on your specific installation environment.
Q5: What certifications does the P3.91 LED display have?
A5: The display has passed multiple international safety and quality tests, including CE, RoHS, CCC, ETL, EMC, and FCC.
Q6: What is the typical lifespan of the LED lamps?
A6: The LED lamps have an effective lifespan of ≥100,000 hours under normal operating conditions.
