Basic Specifications
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image, Text, Market Display
Power Consumption
300W / m² (Avg)
Certification
CE, RoHS, CCC, ETL
Cabinet Material
Aluminium / Steel
Service Solution
Front + Rear Service
Product Description
Specializing in a comprehensive range of LED display solutions including indoor/outdoor displays, rental series, flexible and transparent screens, dance floors, HD resolution displays, and perimeter stadium signage.
Core Features

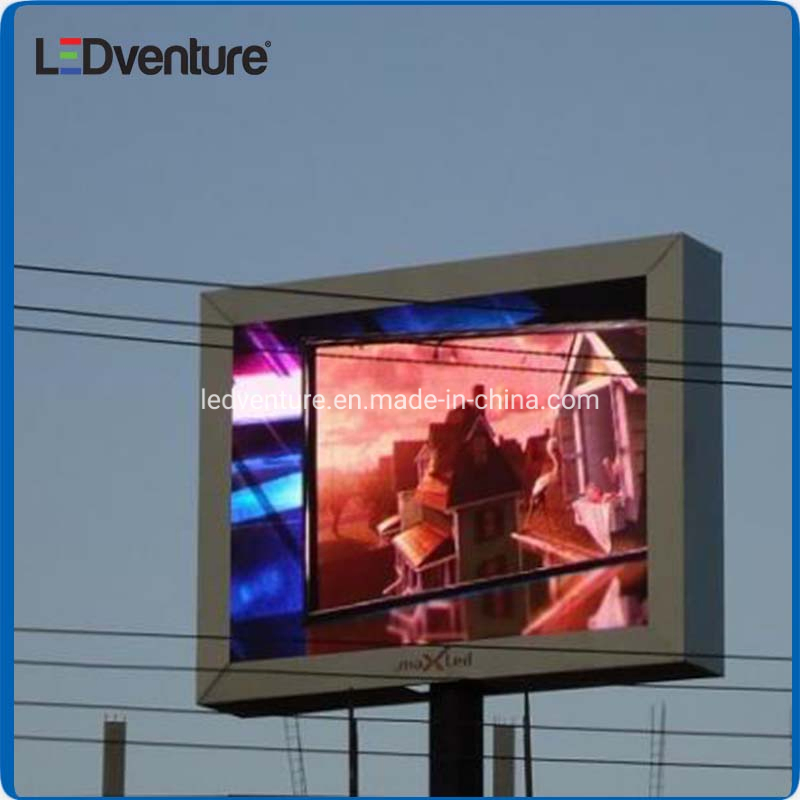

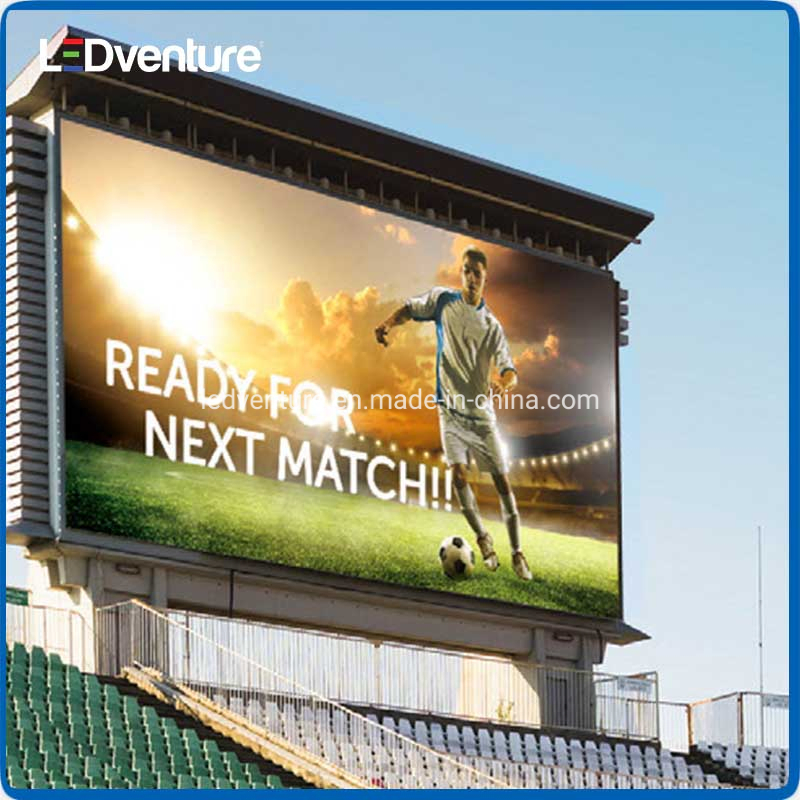

The P4.81 High Brightness Full Color Outdoor LED Display is a leading solution for outdoor media. It offers a highly cost-effective performance with a refresh rate exceeding 1920Hz. The lightweight cabinet design, top-tier image quality, and high-density resolution make it a preferred choice for outdoor screens. Available in various pixel pitches: 3.91mm to 20mm.
| Feature | Specifications |
|---|
| Pixel Pitch Options | 3.91mm, 4.81mm, 6.67mm, 8mm, 10mm, 16mm, 20mm |
| Brightness | >6000 nits |
| Cabinet Size | 500x1000mm / 960x960mm (optional) |
| Max Power Consumption | 700W/M2 |
| LED Brand | Epistar |
| Driver IC / PSU | MBI / MW |

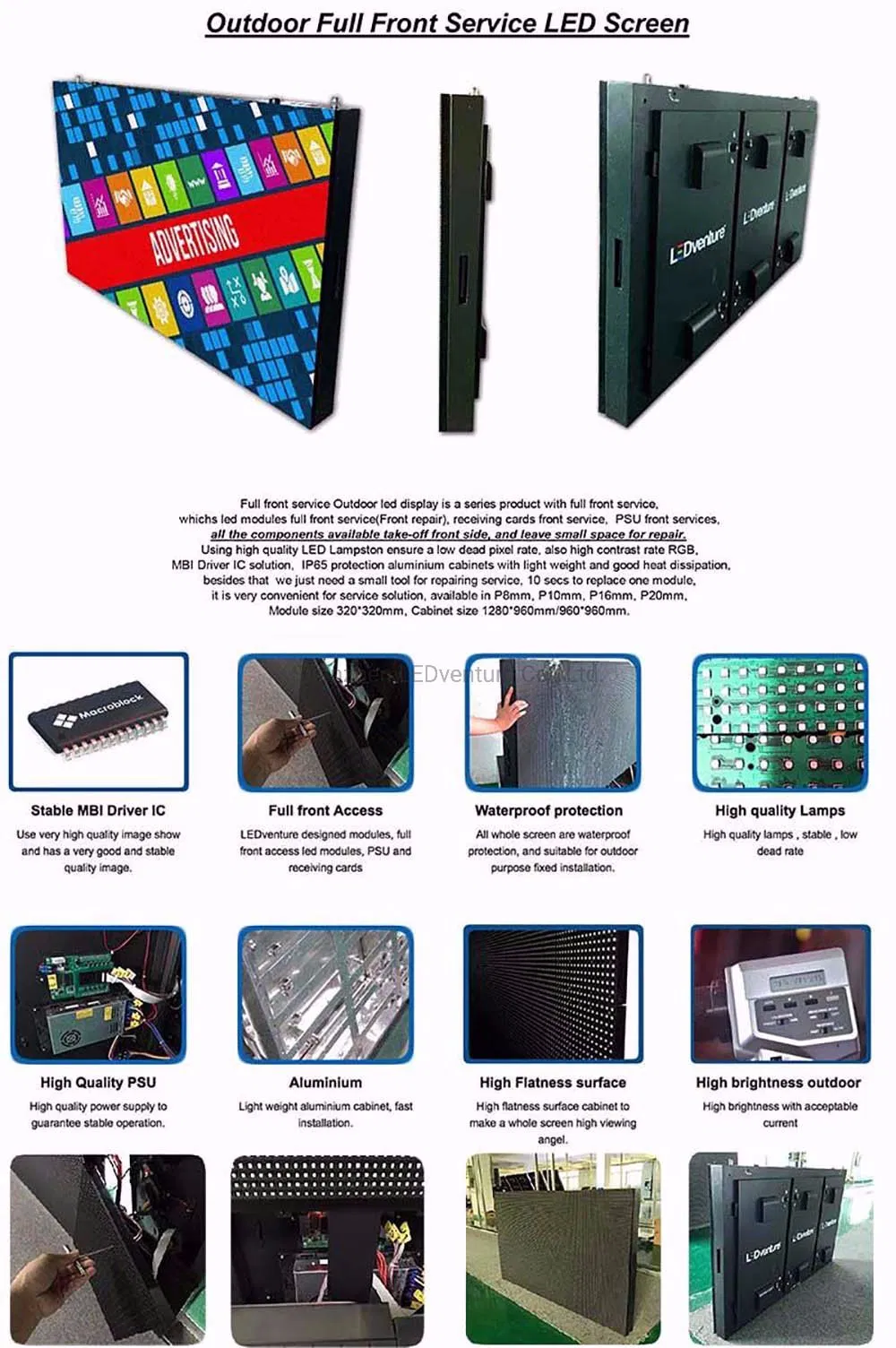

System & Details

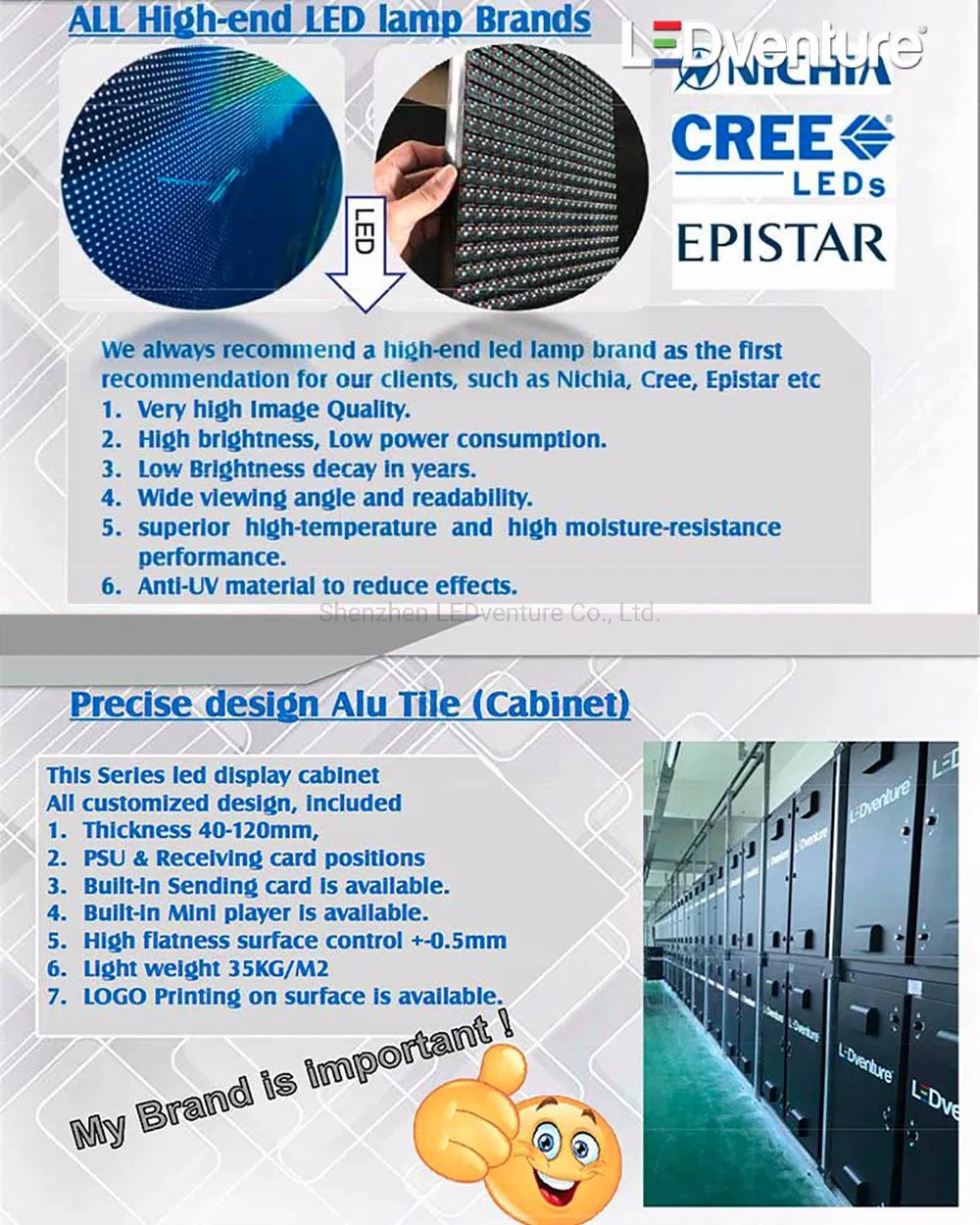

Material Quality Level

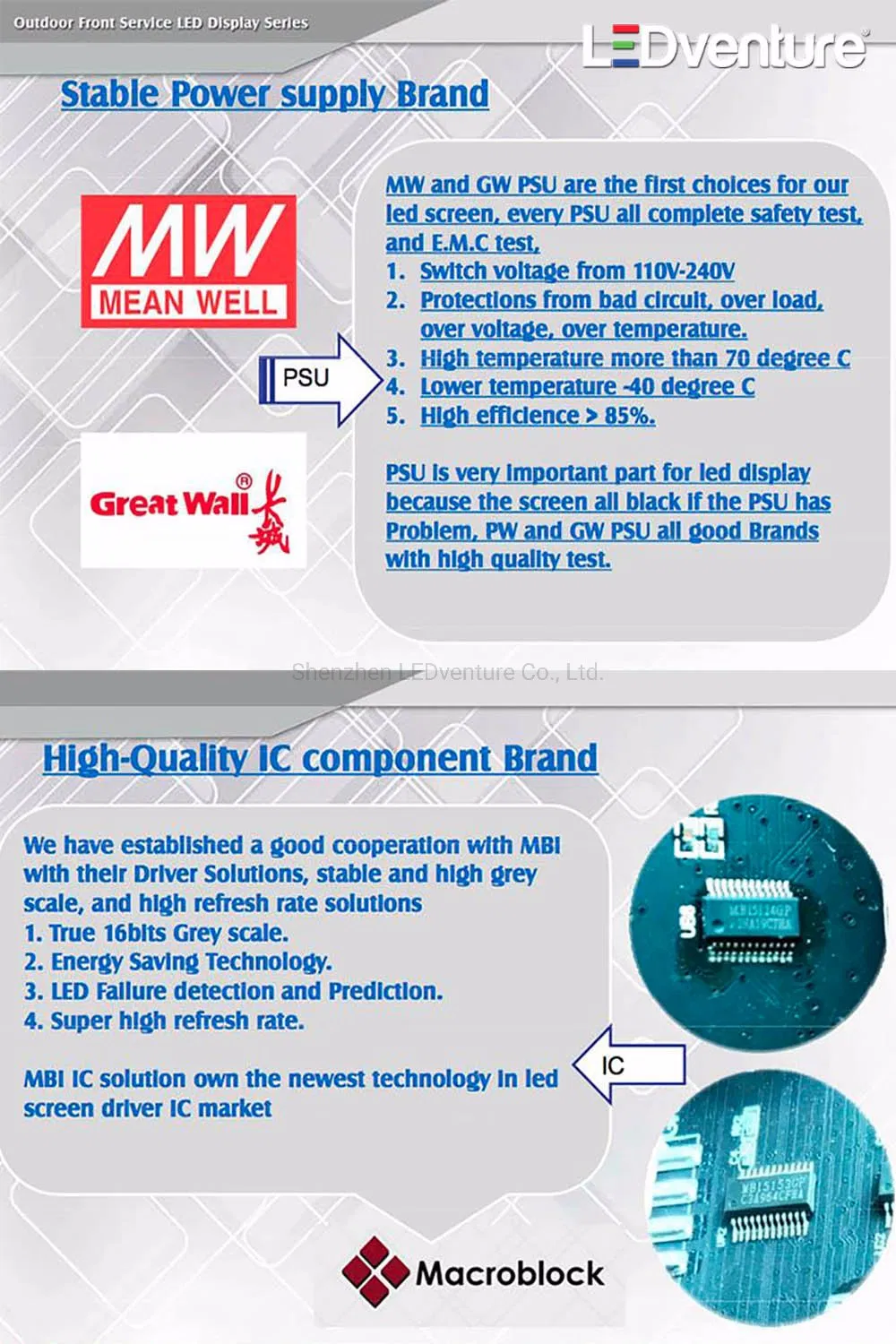

We utilize premium quality materials, including top-tier SMD, IC components, PCBs, and reliable PSU brands. This ensures high stability, longevity, and significantly reduced maintenance costs over the screen's lifespan.
Detailed Technical Specification
| Pixel Density | 43264 pixels/M2 |
| Module Size / Res | 250x250mm / 52x52 pixels |
| Min. Viewing Distance | 5m |
| Protection Level | IP65/IP54 |
| Color Temperature | Adjustable R.G.B (100 levels) |
| Input Voltage | AC110-240V, 50/60Hz |
| Refresh Rate | Up to 3840Hz |
| Grey Scale | 16 bits |
| Lifespan | ≥100,000 hours |
| Operation Temp | -20°C ~ +45°C |
Installation & Packing

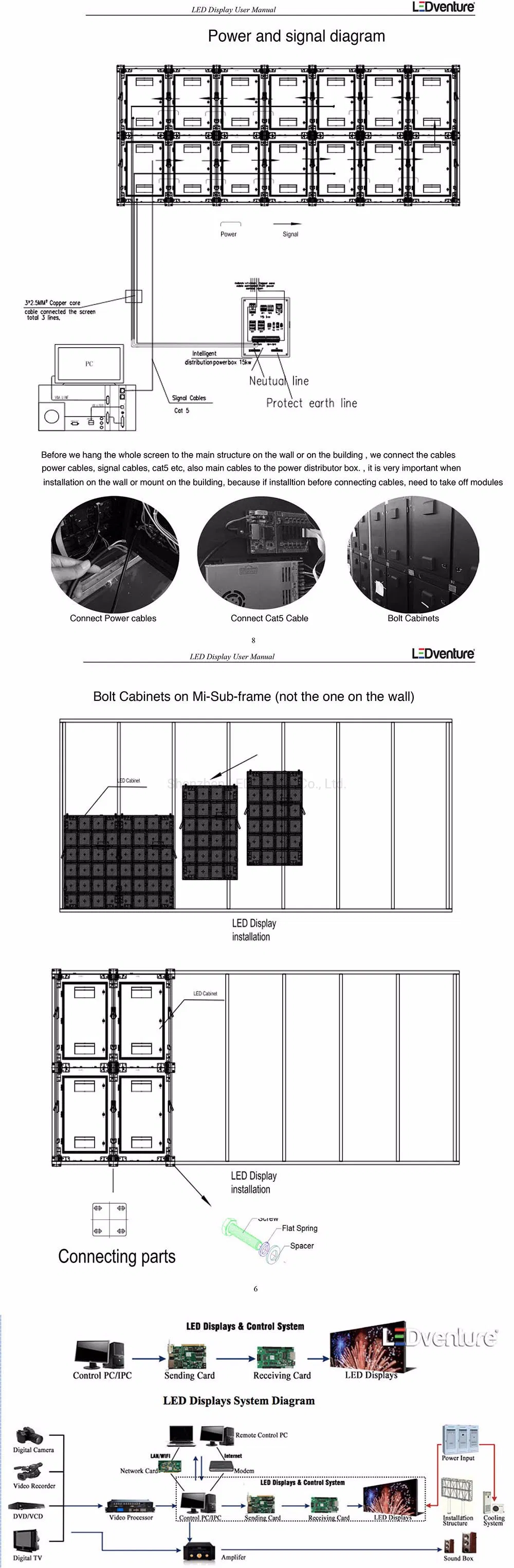

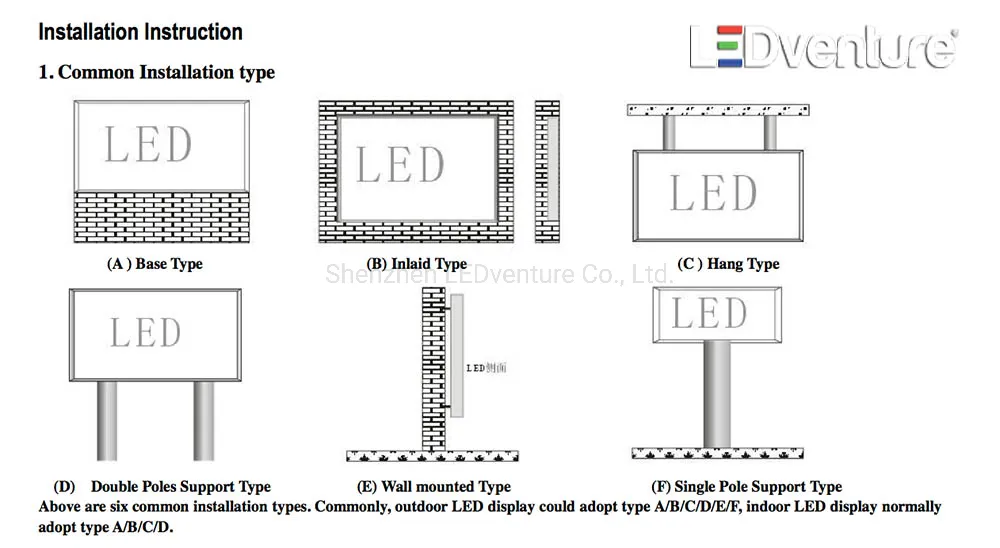

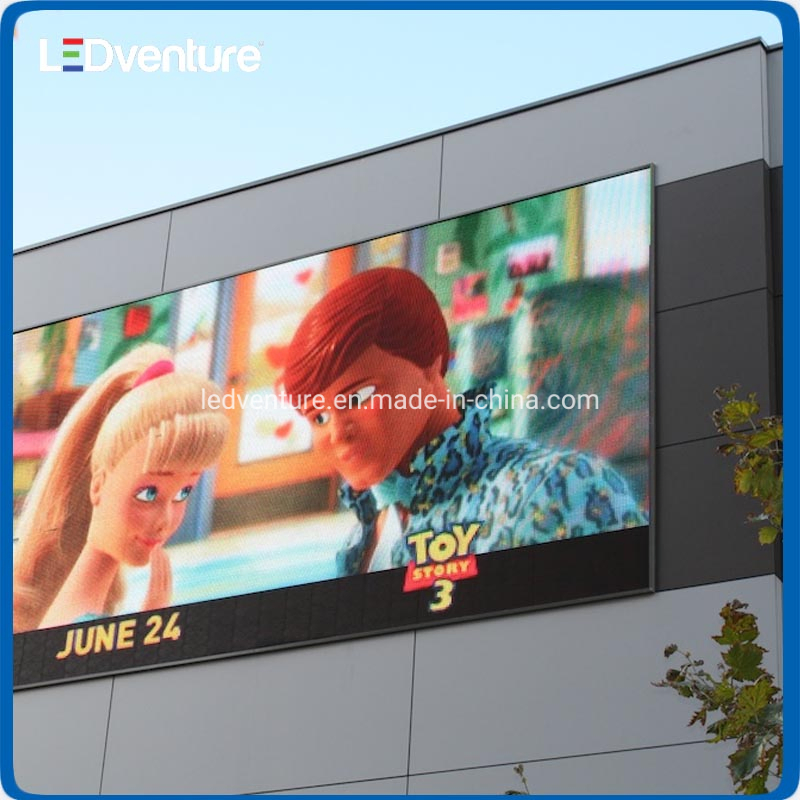

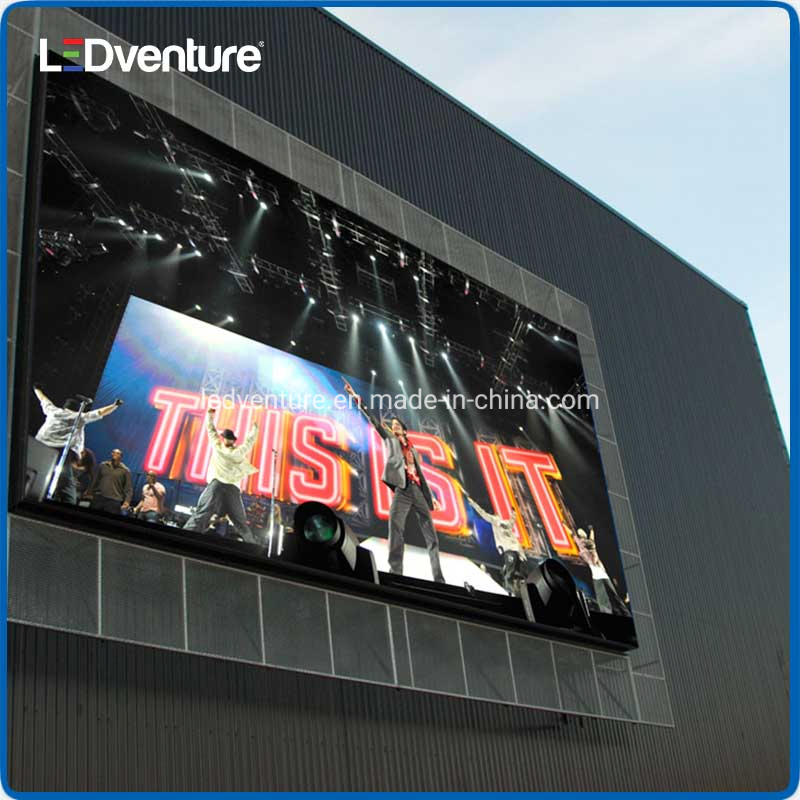

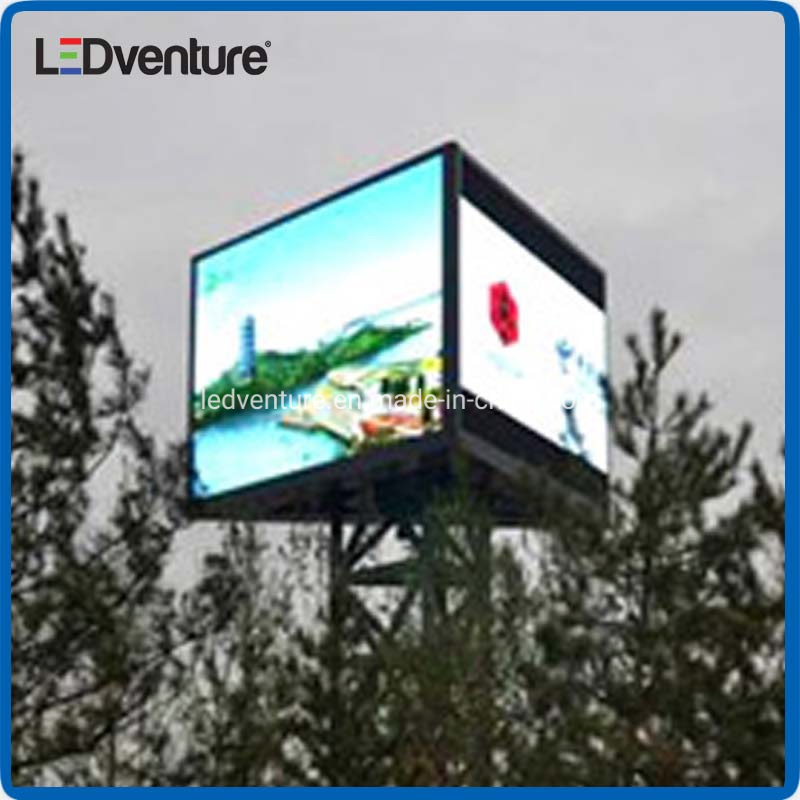

Versatile installation methods including wall-mounted, pillar-mounted, or standing structures. Full system hardware support including processors and receiving cards.
Certifications & Shipping

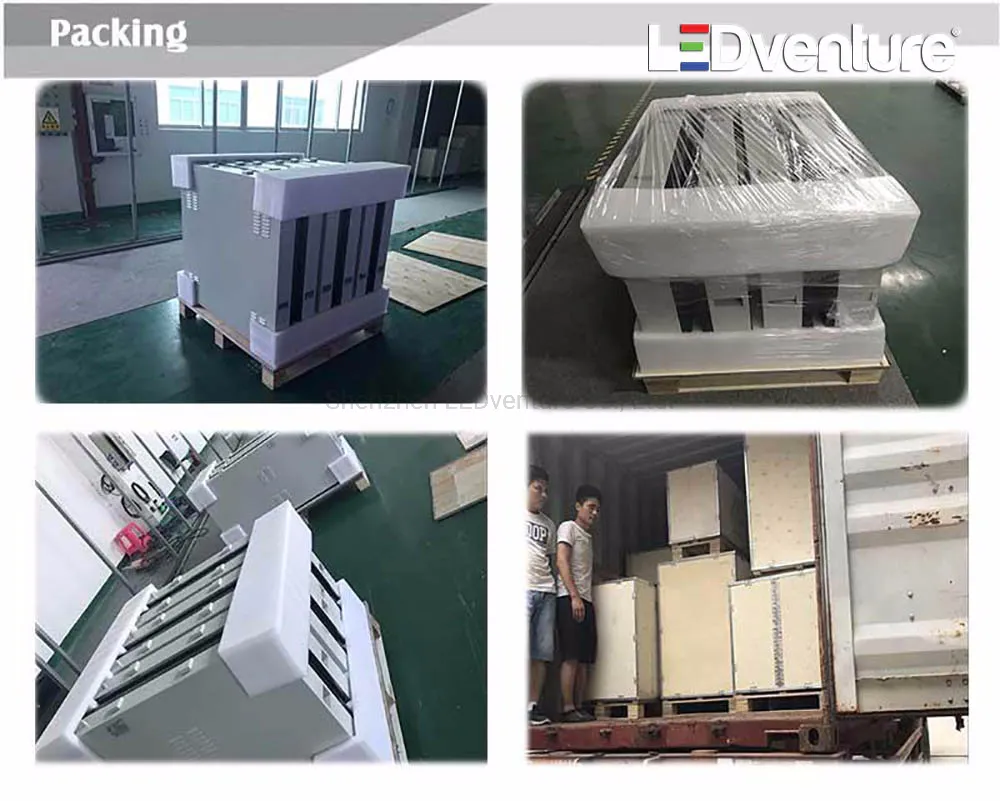

Products are securely packed in plywood cases for safe transport. All displays meet CE, EMC, FCC, and UL safety standards.
Frequently Asked Questions
What is the optimal viewing distance for a P4.81 LED screen?
The minimum viewing distance is approximately 5 meters, with an effective viewing range extending up to 50 meters, making it ideal for outdoor advertising.
Is this display suitable for permanent outdoor installation?
Yes, with an IP65 protection rating and high brightness (>6000 nits), it is designed to withstand outdoor environments and remain visible under direct sunlight.

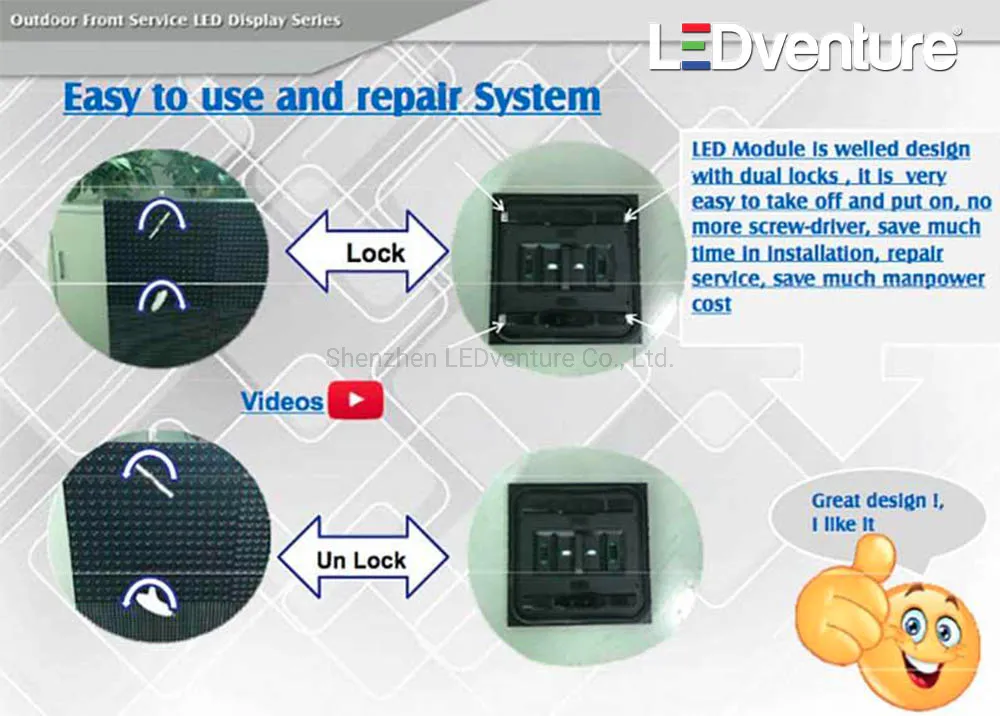

Does the screen support front maintenance?
This model supports both front and rear service solutions, allowing for flexible maintenance depending on the installation environment.
What control systems are compatible with this LED display?
The display typically utilizes the Nova control system, which is widely recognized for its stability and ease of use with Windows-based software.
How is the product protected during international shipping?
All modules and cabinets are packed in high-quality plywood cases to ensure protection against impact and moisture during transport.
