Overview - Basic Specifications
Model NO.IF-P5S
Pixel Pitch5mm
Pixel Configuration1R,1G,1B
Pixel Density40000 Dots/M2
Scanning Mode1/8 Scan
Display TypeLED Video Display
ApplicationStage, Advertising, Shopping Guide
IP RatingIP31
LED LampsEpistar
Brightness800nits-1200nits
Refresh Rate1920-3840Hz
Service SolutionFront Service
Product Description

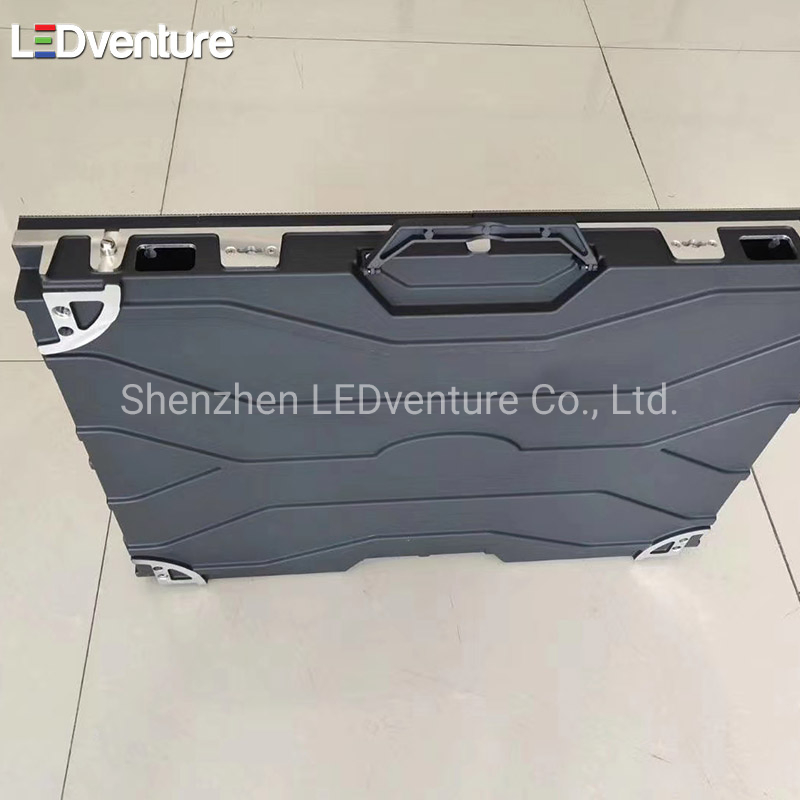

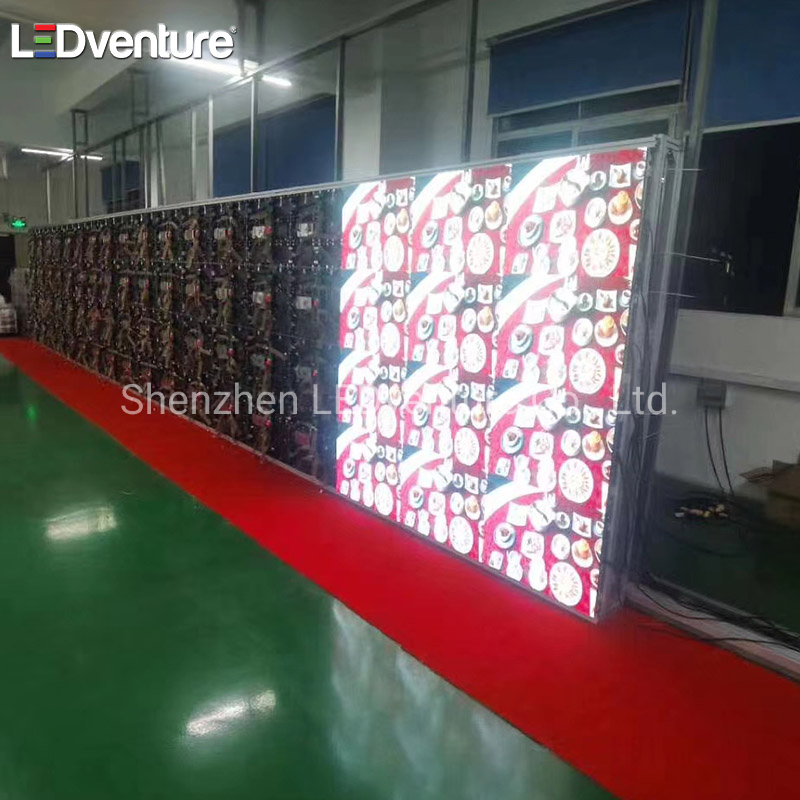

Hot Selling P5 Indoor Front Service LED Screen Displays
We focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display, stadium sport led display screen, led sign, led display board and led billboard.

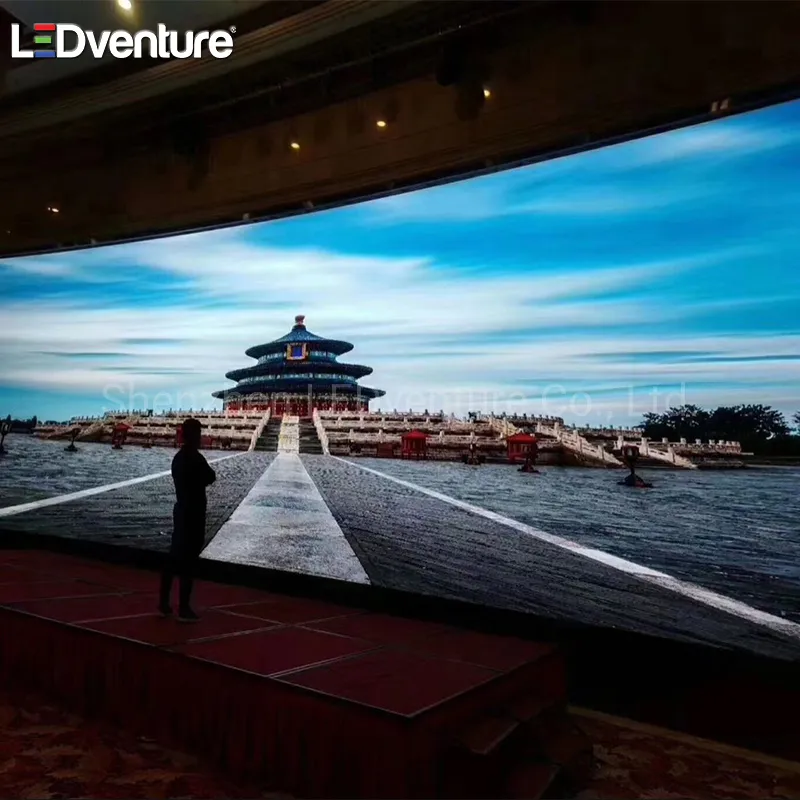

IF Series - Indoor Fixed Retail Store Supermarket Wall Mounted Advertising LED Display Screen is popular for indoor video wall advertising media, such as in airport, shopping mall, shows etc. It features light weight design, HD resolution with high contrast rate, and excellent refresh rates to ensure superior image quality.
| Pixel Pitch | 1.5mm, 1.8mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 7.62mm, 8mm, 10mm |
| Brightness | 800nits-1200nits |
| Cabinet Size | 640mmx480mm, 640mmx640mm, 960mmx480mm |
| Max. Power | 150W/panel |
| LED Brand | Epistar |
| Refresh Rate | 1920-3840HZ |

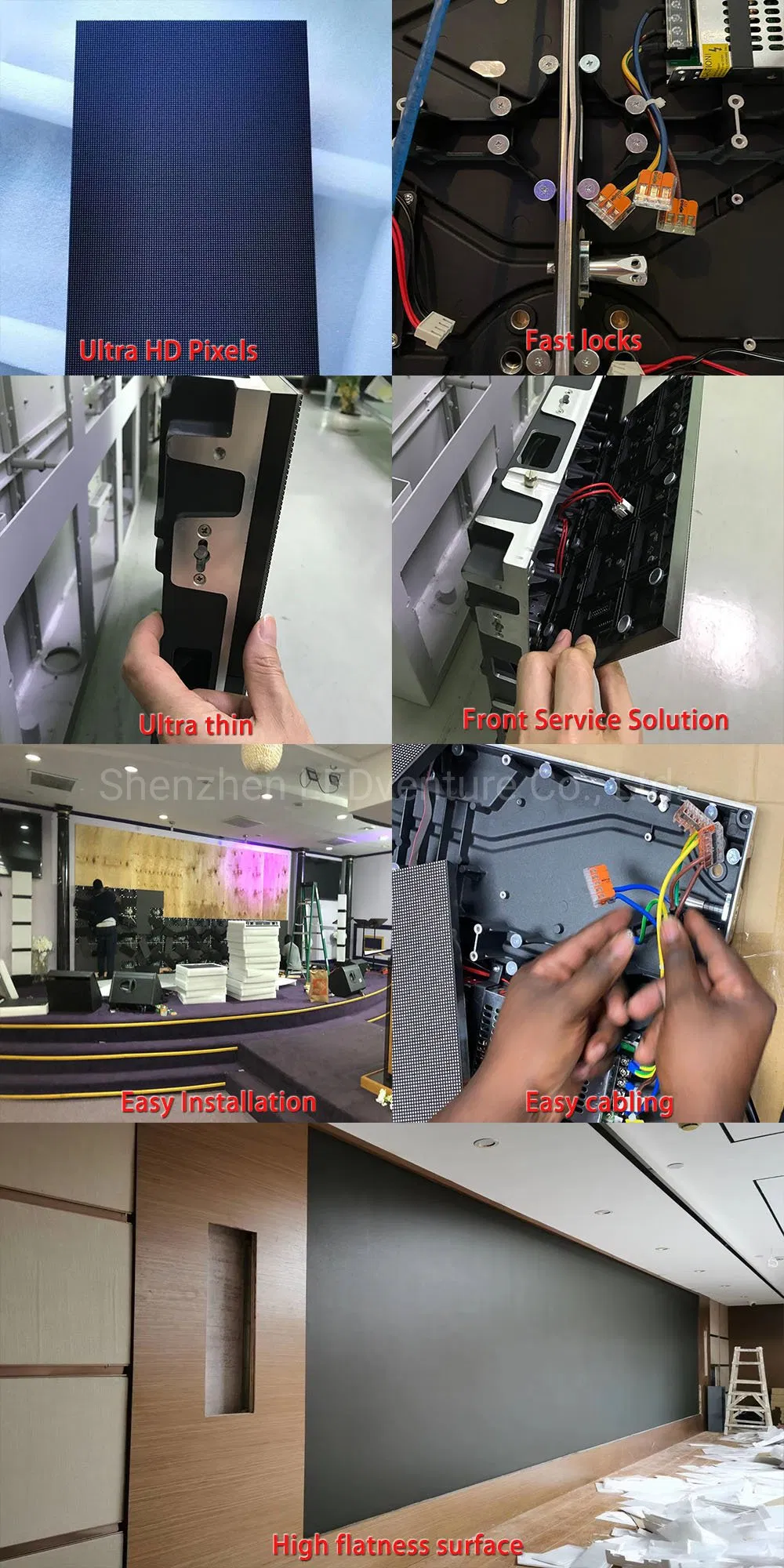

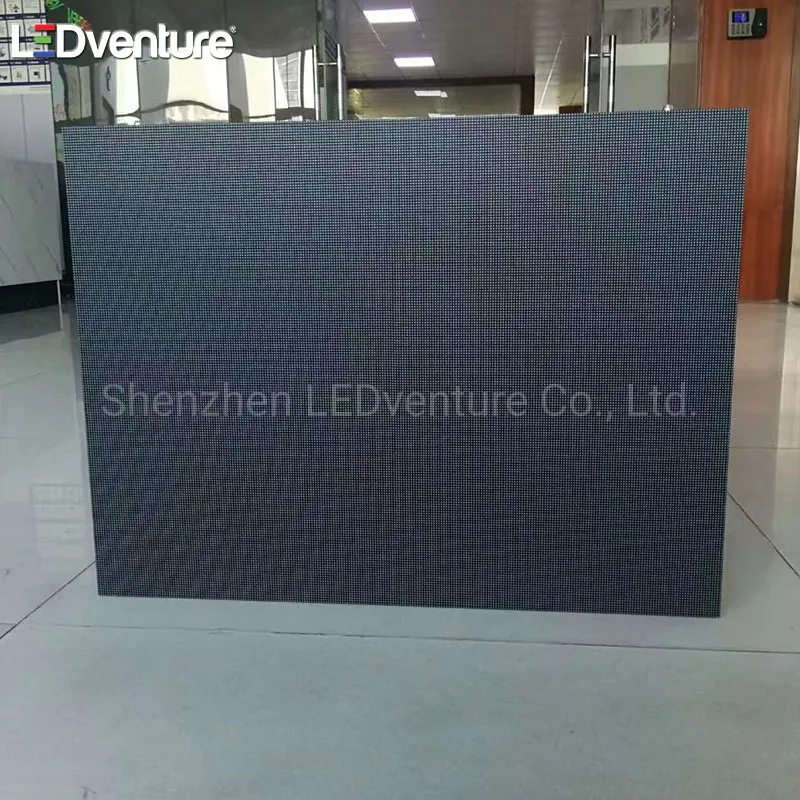

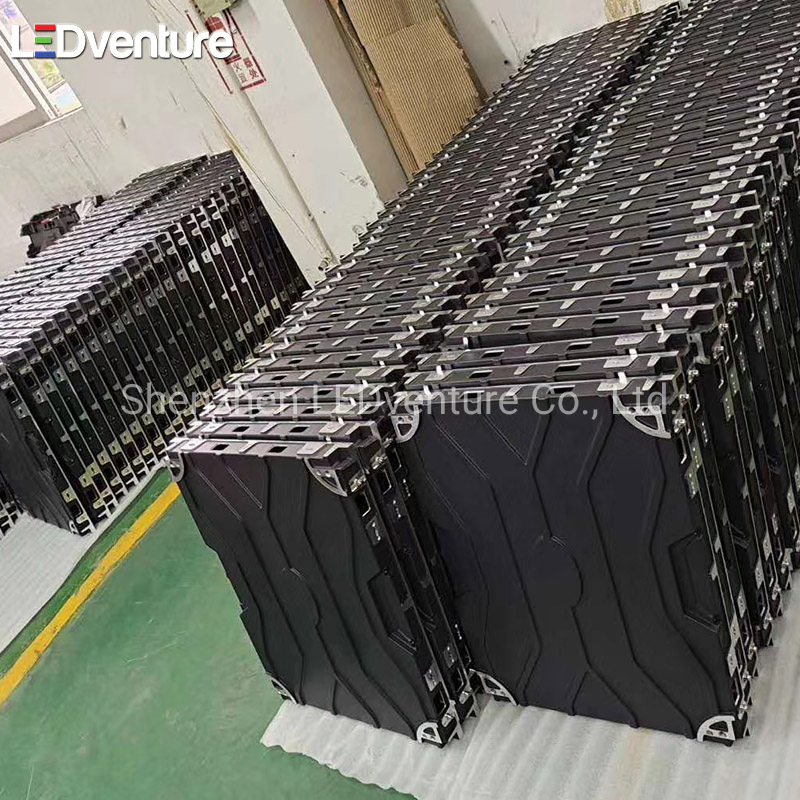

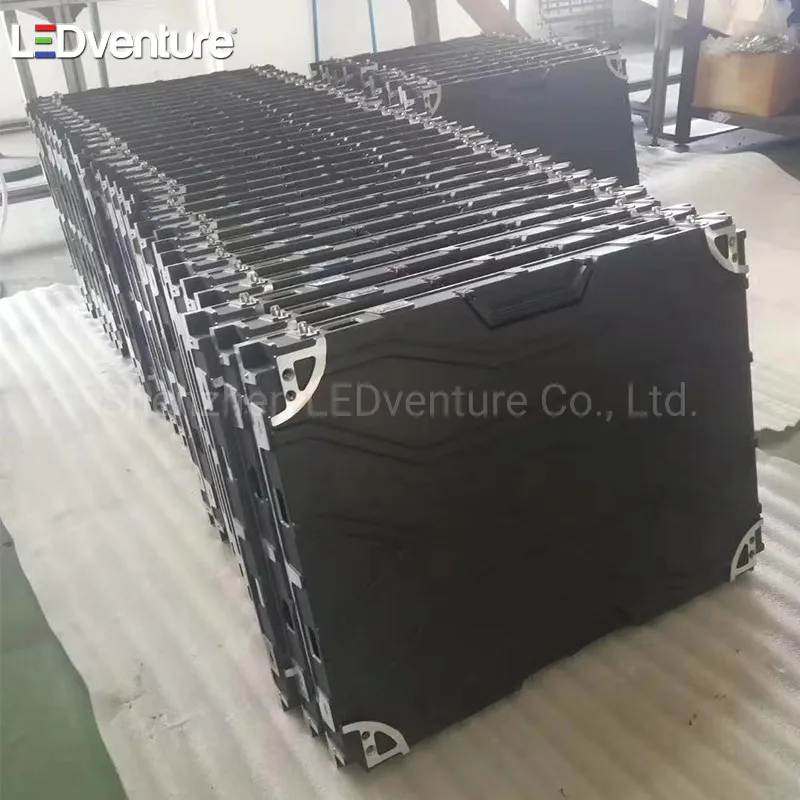

Detailed Photos & Hardware
Technical Specification

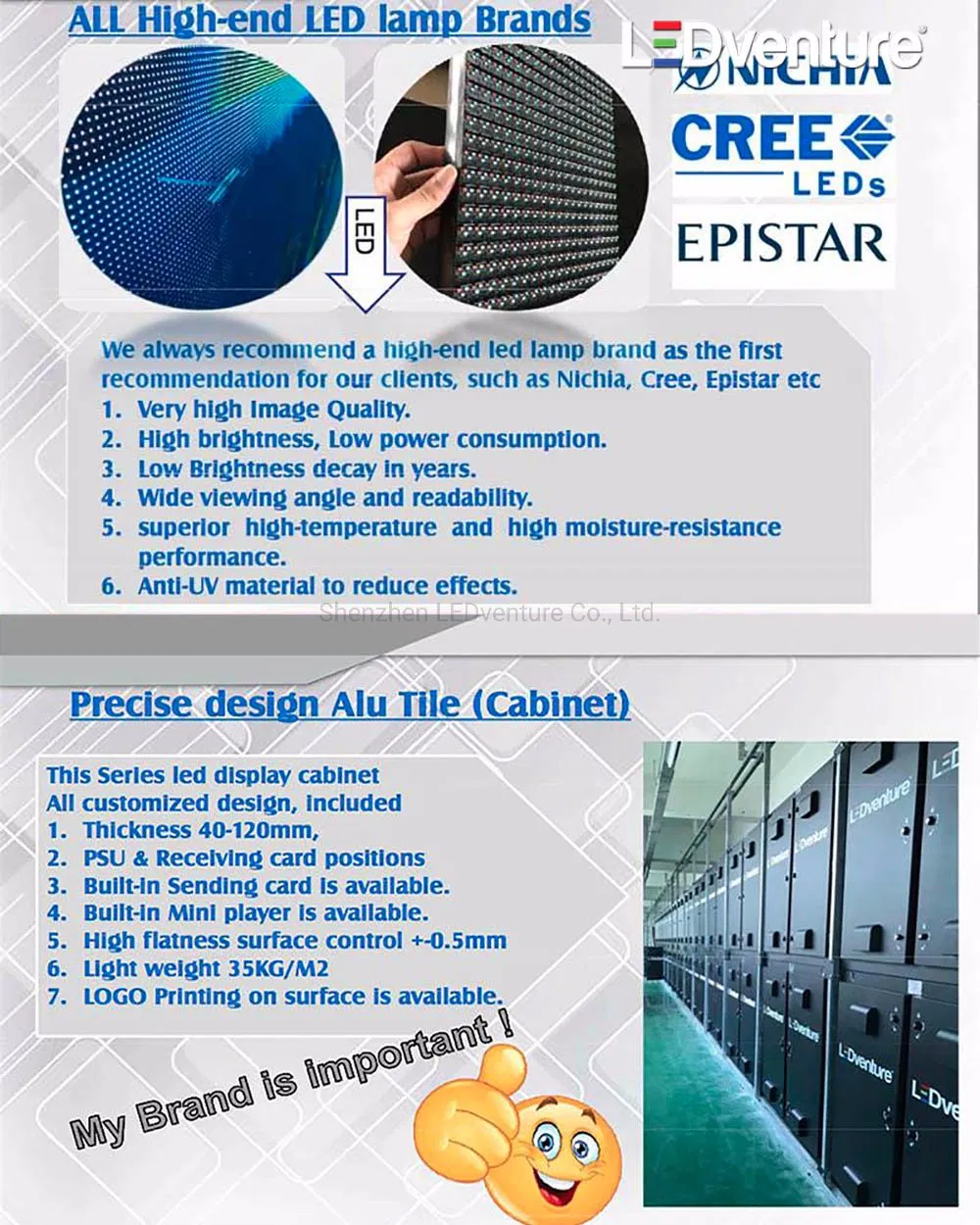

Material Quality Level: All of our product materials are top quality levels, including SMD, IC components, PCB, screws, and PSU brands. This ensures the LED display screen remains stable with minimal after-sale service requirements.
| Item | IF Series Indoor Wall Mounted LED Display Screen |
| Module Resolution | 64*32 pixels |
| Module Size | 320 mm x 160 mm |
| Viewing Angle | ≤140° |
| Gray Scale | 16 bits |
| Input Voltage | AC110-240V, 50HZ/60HZ |
| Lifespan | ≥100,000 hours |
| Control Mode | Video frequency synchronization |

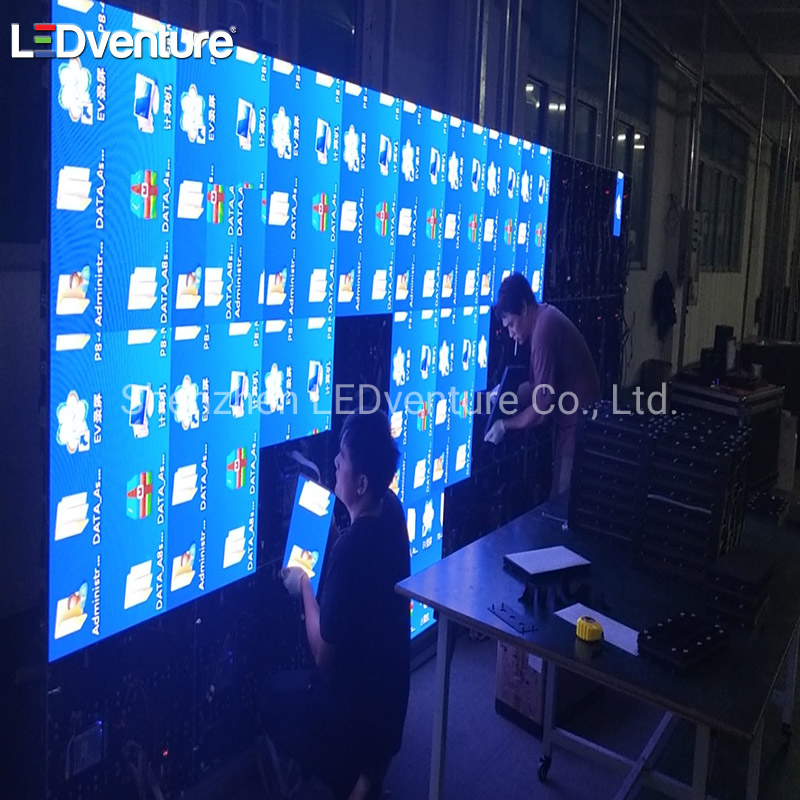

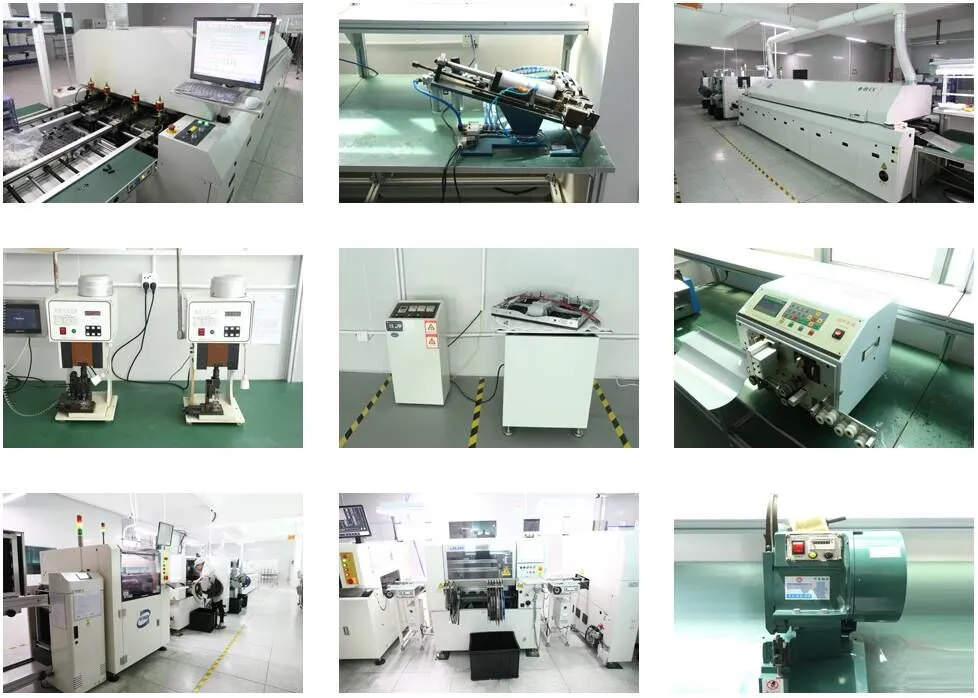

Installation & Workshop

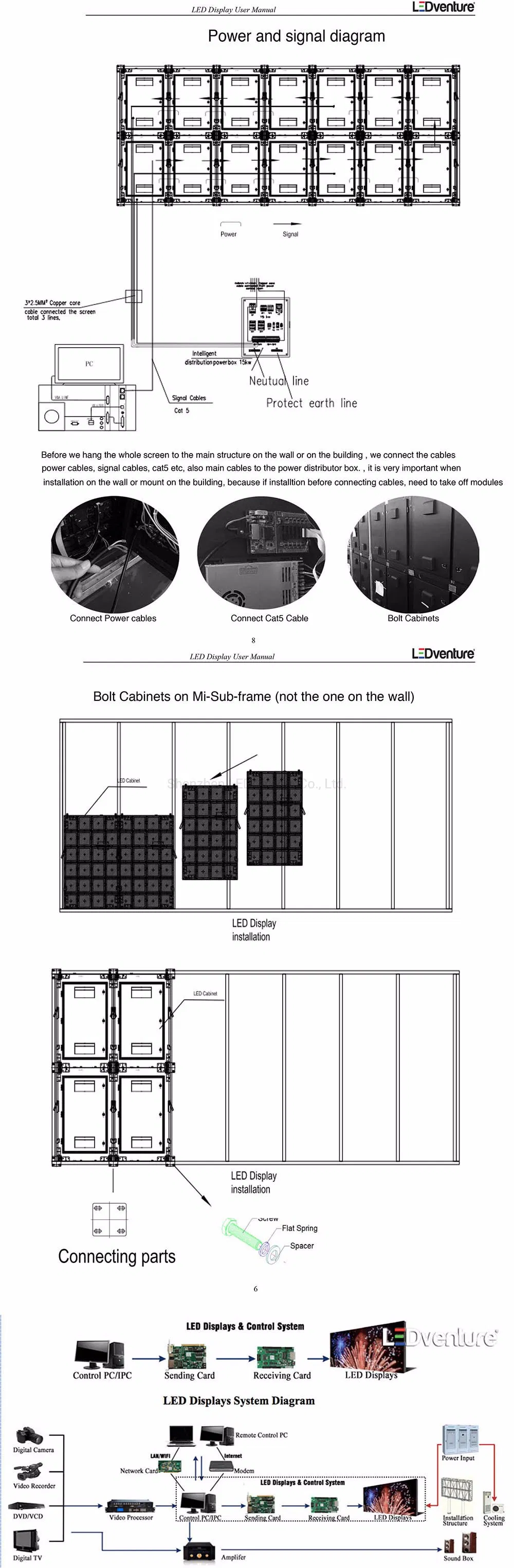

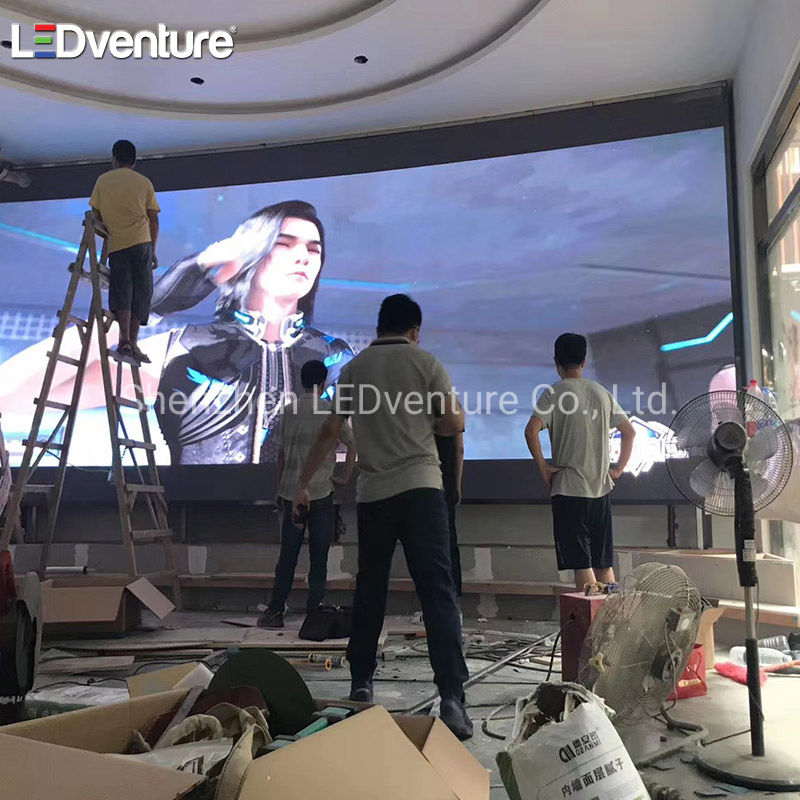

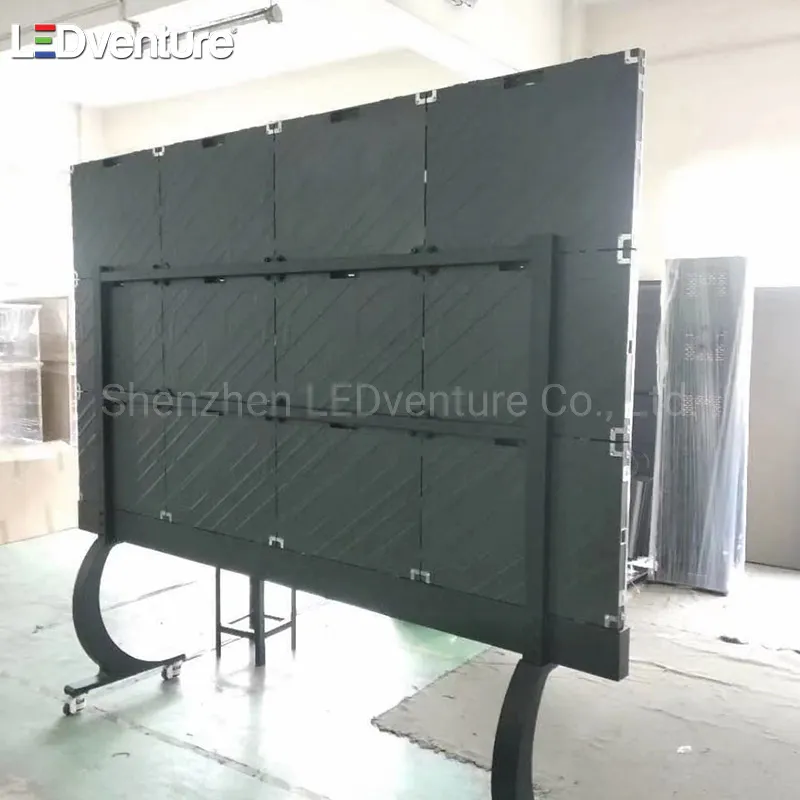

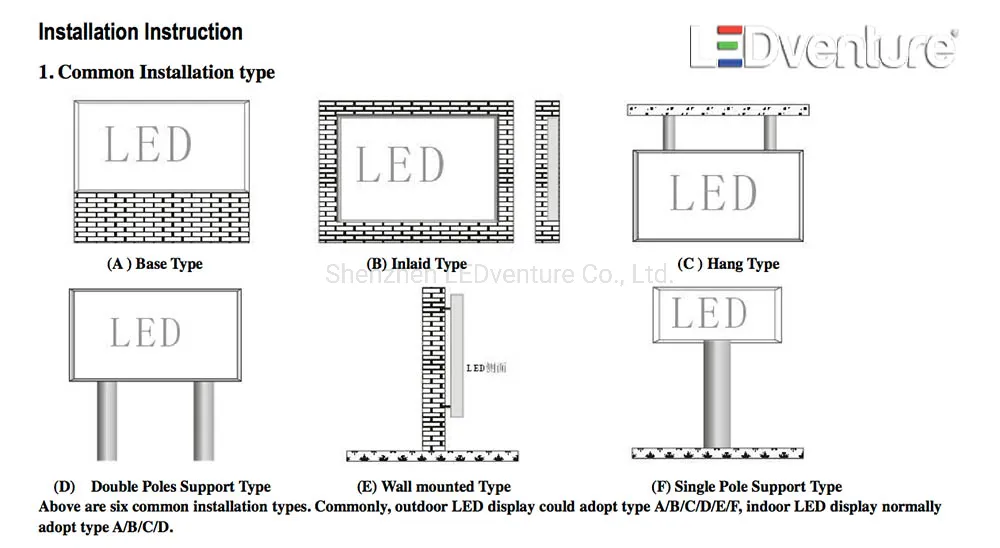

Indoor led video wall available fixed on the wall, on pillars, or standing. System hardware includes sending cards, processor, and receiving cards.
Production & Certificates

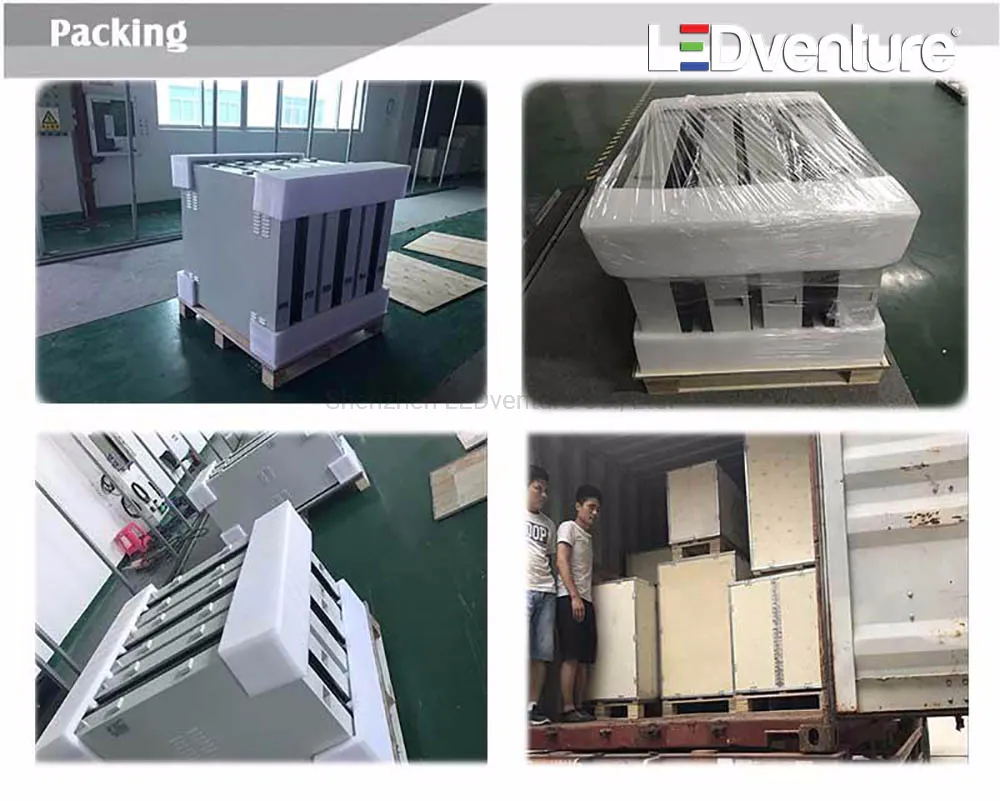

Packing Information
By plywood cases, packing well and easy to load.
Frequently Asked Questions
Can I get a sample before official order?
Sample orders are available for quality check and market test.
What is your payment method?
Our usual practice is T/T for mass orders. At least 30-50% deposit in advance, with the balance paid before delivery.
What is your shipping and packing way?
We provide plywood cases or flight cases per customer requests. Mass orders are shipped by Sea; others usually by express or airline.
Can we make any size of led display?
No, sizes are determined according to the LED module or cabinet dimensions.
How to install led display?
We provide drawings of the steel structure or hanging truss according to your requirements, and an installation guide.
Is it available to print customer required logo?
Yes, please confirm the logo design details with our team before production starts.
