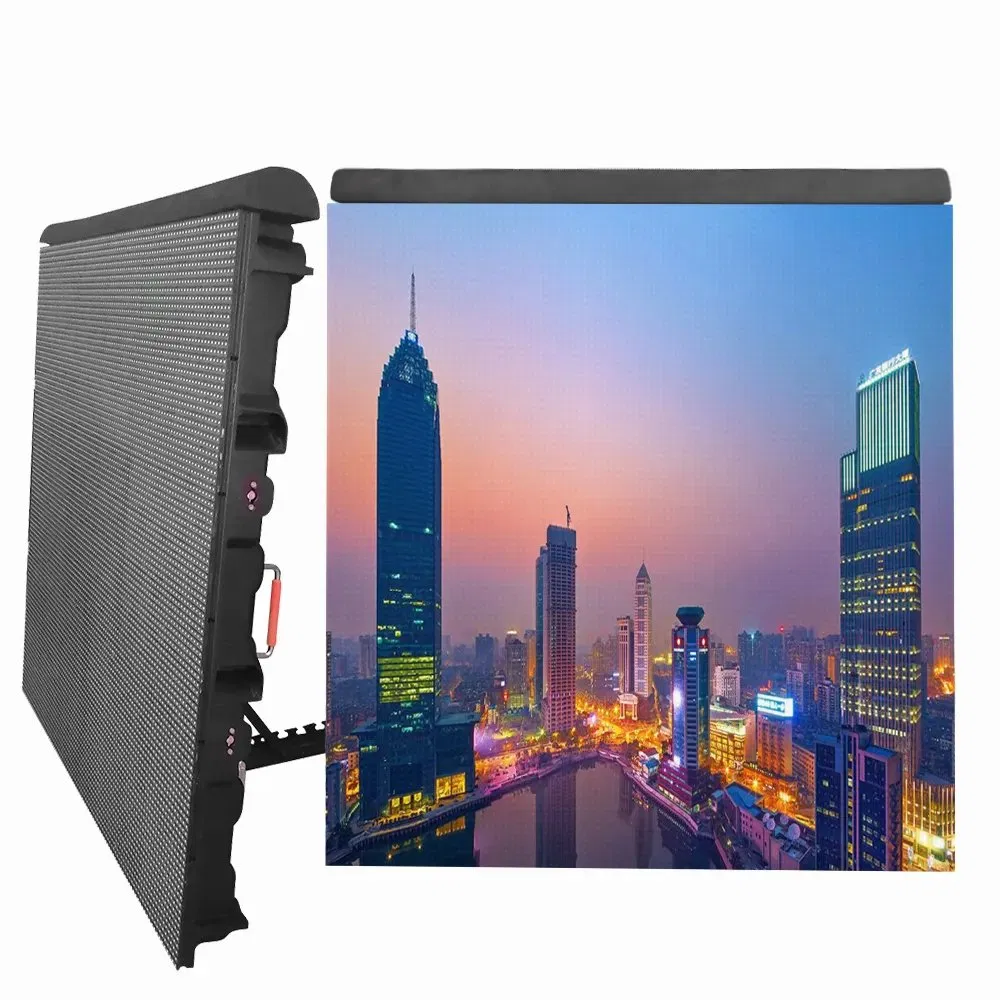

| Model | P10 |
| Pixel Pitch | 10mm |
| Pixel Configuration | 1R, 1G, 1B (SMD3535) |
| Brightness | 7500 CD/Sqm |
| Refresh Rate | 1920Hz |
| Gray Scale | 16 bit |
| Scanning Mode | 1/4 Scan |
| Display Type | LED Video Display |

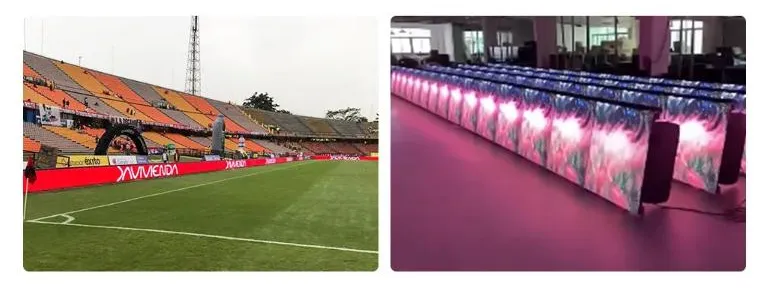

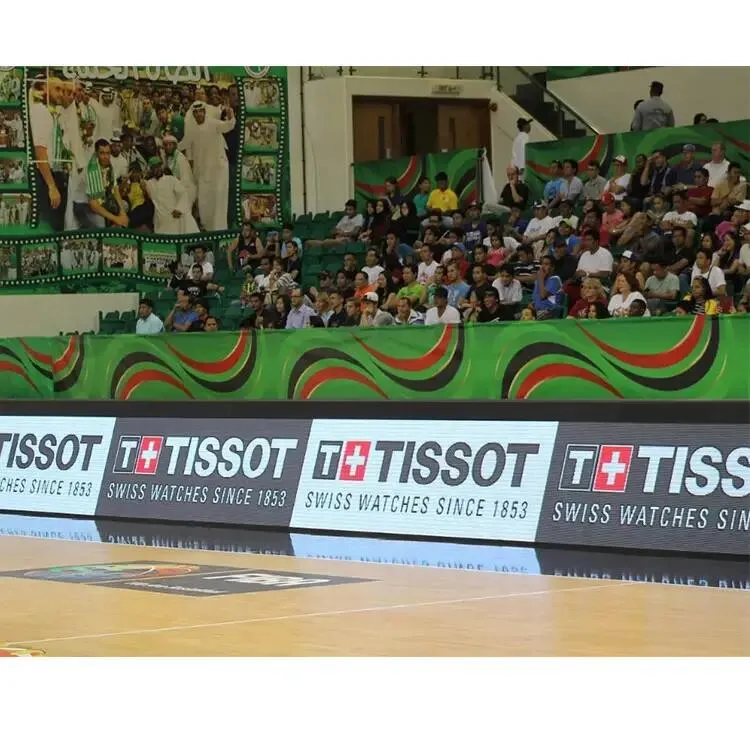

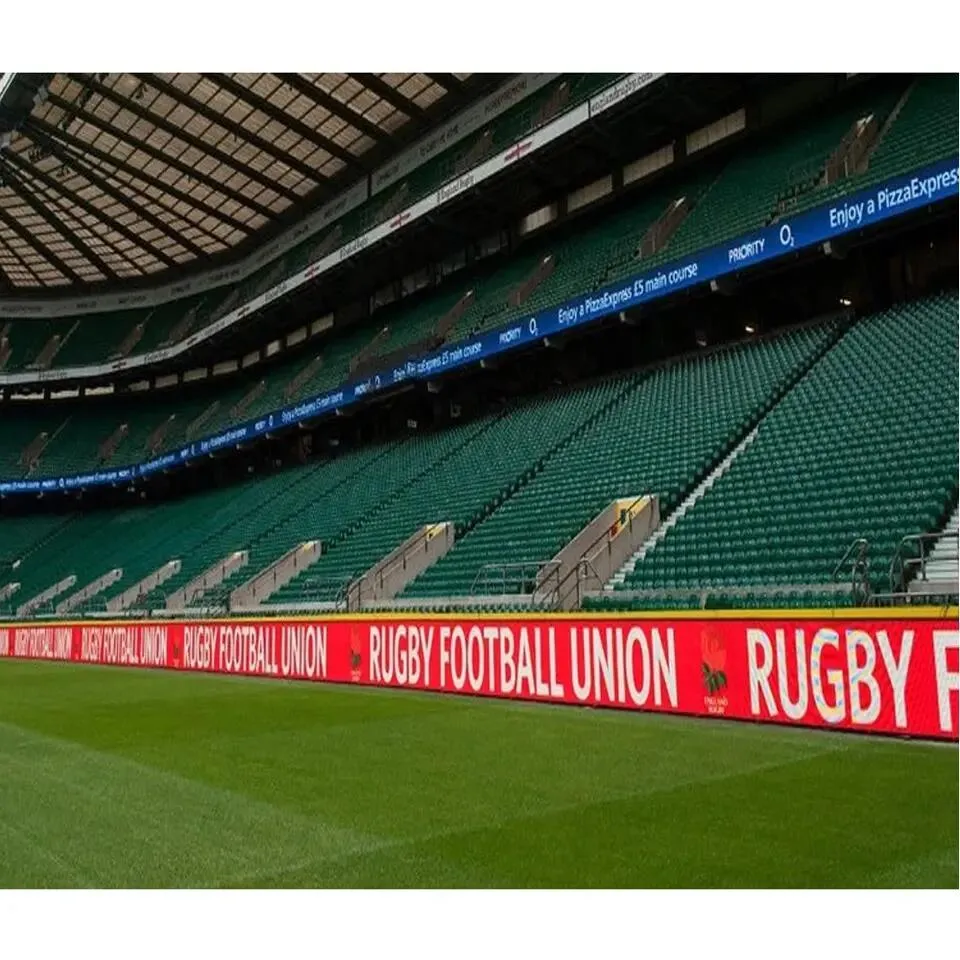

| Application | Stadium Sport / Perimeter Rental |
| Cabinet Size | 960*960*150mm |
| Module Size | 320*160mm |

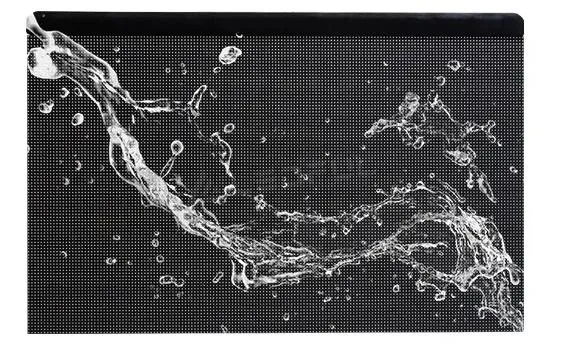

| IP Rating | IP65 Waterproof |
| Viewing Angle | 140°(H) / 140°(V) |
| Power Consumption | Max 690W / Avg 130W per Sq.m |

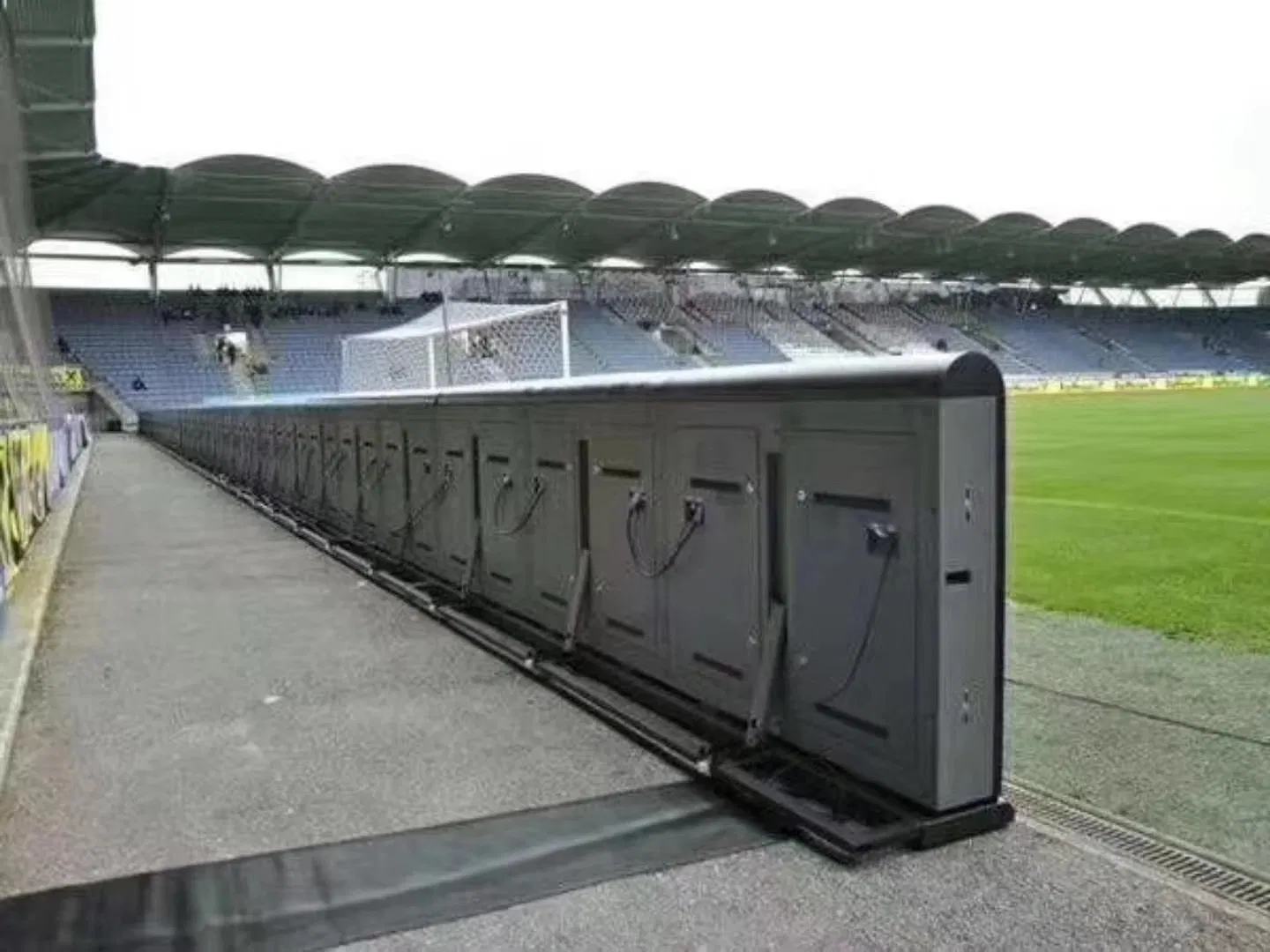

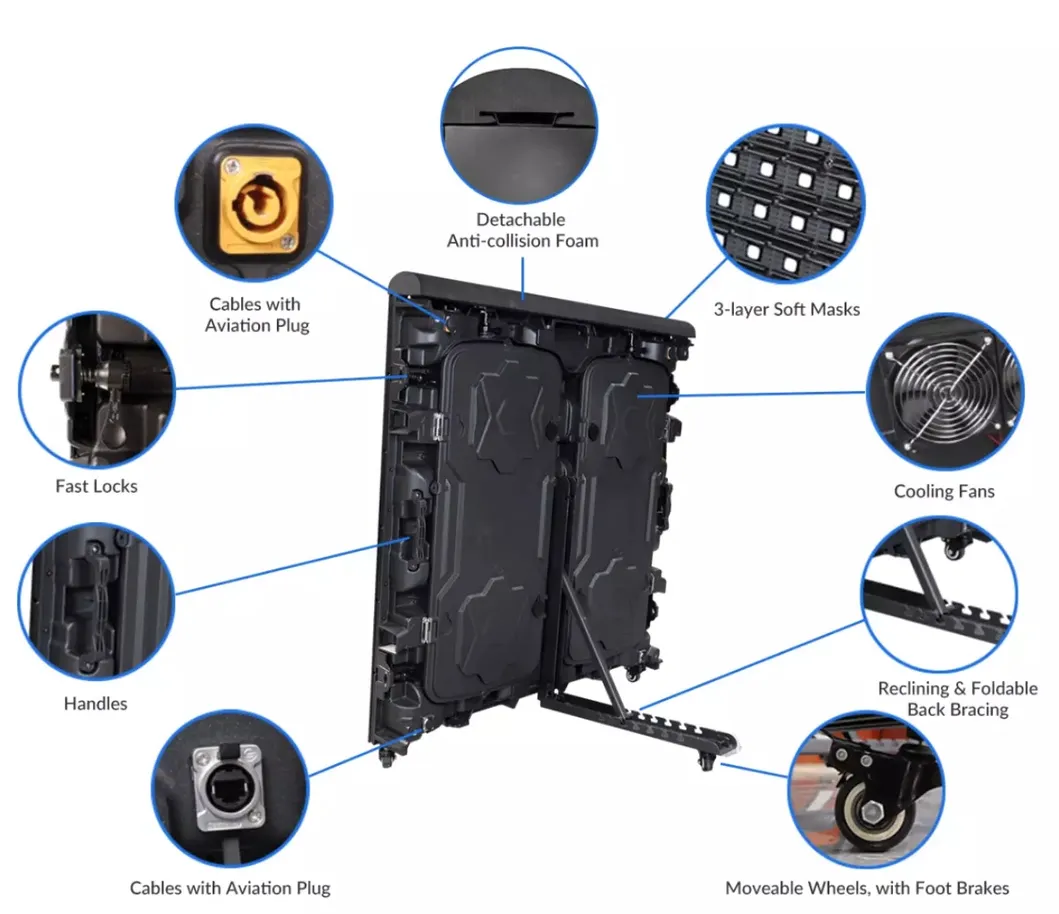

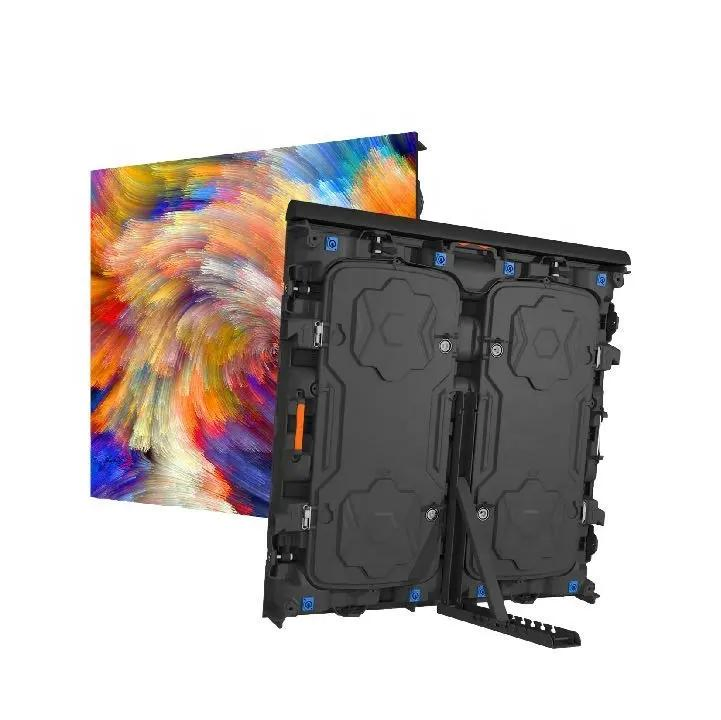

Solid, compact, and strong cabinet design built for all-weather conditions to prevent damage from external impacts.

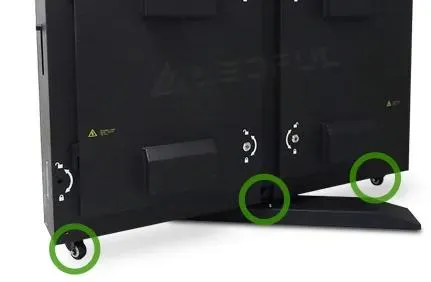

Rotating base and wheels design for emergency exits. Allows for quick and easy movement, meeting football association safety requirements.

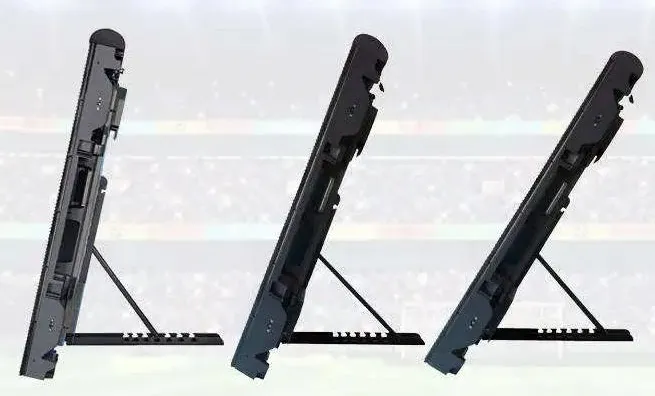

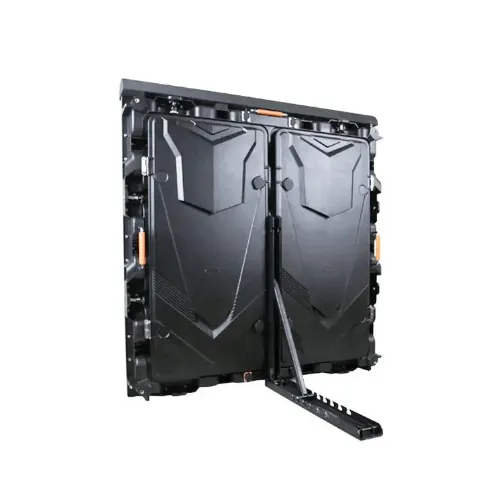

The cabinet bracket can be adjusted between 0° and 90° to ensure the best viewing angle for spectators and cameras.

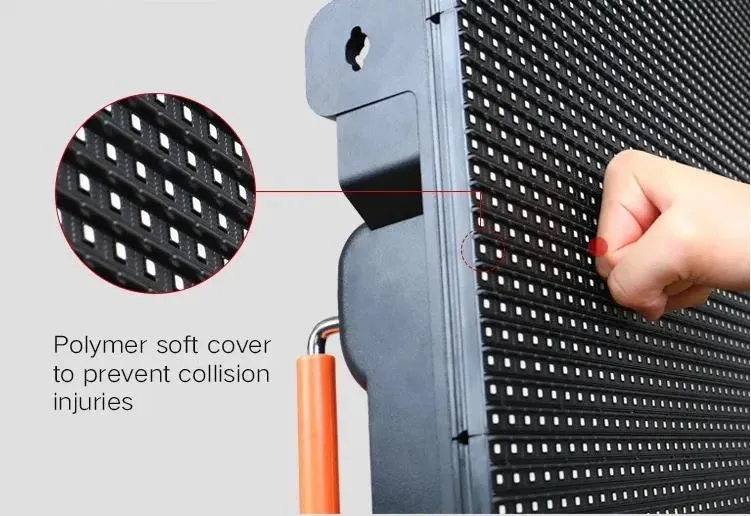

Equipped with a protective top cover to prevent player injuries and rubber module masks to protect LEDs from ball strikes.
Payment Terms: 30% deposit for production, 70% balance before shipment.
Lead Time: Within 10-15 working days upon receipt of deposit.
Training: Comprehensive technical training provided.
Warranty: 2 years quality guarantee.
