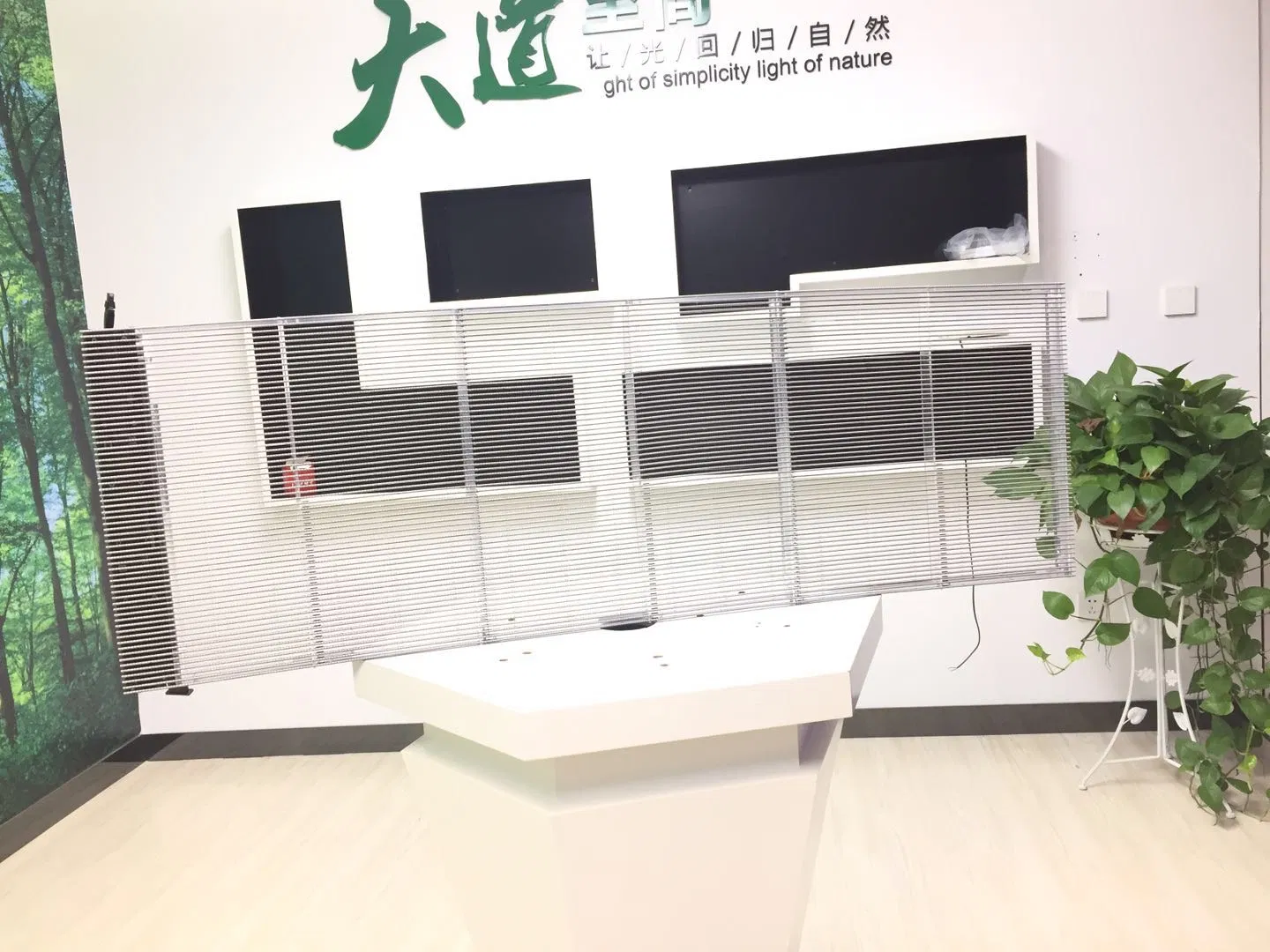

Window Display Amazing Transparent Display for Jewelry Store/for Building/Curtain LED Display
Window Display Amazing Transparent Display for Jewelry Store/for Building/Curtain LED Display
Window Display Amazing Transparent Display for Jewelry Store/for Building/Curtain LED Display
Window Display Amazing Transparent Display for Jewelry Store/for Building/Curtain LED Display
Window Display Amazing Transparent Display for Jewelry Store/for Building/Curtain LED Display
1 / 5
Window Display Amazing Transparent Display for Jewelry Store/for Building/Curtain LED Display
Window Display Amazing Transparent Display for Jewelry Store/for Building/Curtain LED Display
Window Display Amazing Transparent Display for Jewelry Store/for Building/Curtain LED Display
Window Display Amazing Transparent Display for Jewelry Store/for Building/Curtain LED Display
Window Display Amazing Transparent Display for Jewelry Store/for Building/Curtain LED Display

Window Display Amazing Transparent Display for Jewelry Store/for Building/Curtain LED Display

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📦 BASIC INFORMATION
Model NO.
TS-3.96
Pixel Pitch
H3.96/V7.81mm
Pixel Configuration
1R,1G,1B
Pixel Density
32256 DOT/M2
Scanning Mode
1/7 Scan
Display Type
LED Video Display
Application
Advertising
IP Rating
IP30
Certification
CE, FCC
Cabinet Material
Die Cast Aluminum
Brightness
4000 CD/Sqm
LED
Nationstar SMD1921
📝 PRODUCT DESCRIPTION
High brightness up to 4000 nits, suitable for indoor installation.
Ideal for installation behind store windows near streets or high-traffic passages for advertising.
Transparent design with light transmittance reaching 70%, ensuring background visibility.
Supports cabinet sizes of 1000mm*500mm and 1000mm*1000mm.
Pixel pitch H3.96/V7.81: 3.96mm width, 7.81mm height distance between LEDs.

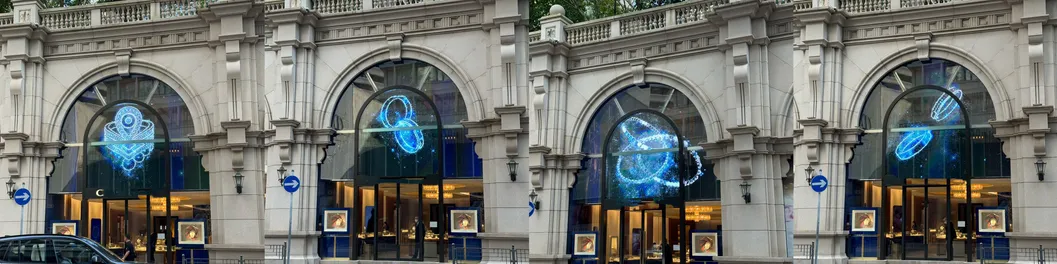

🖼️ PRODUCT DISPLAY

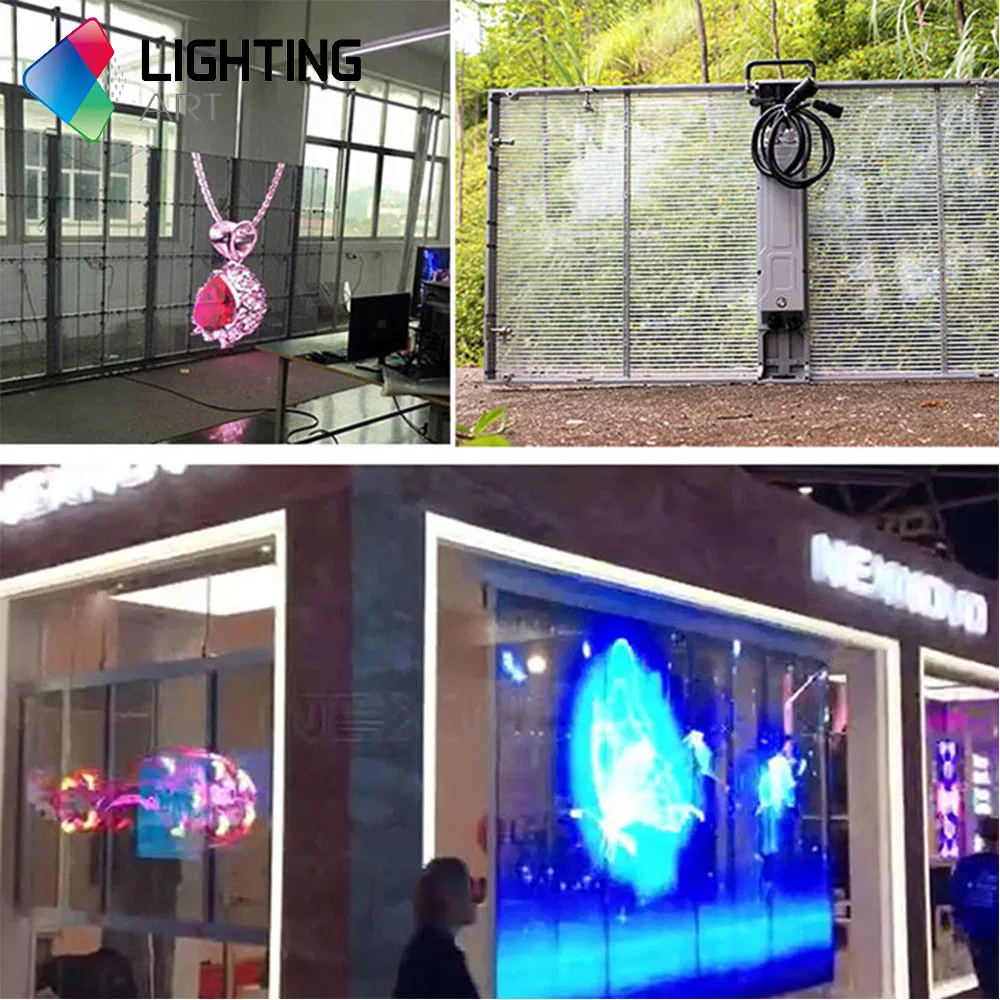

Transparent LED Display
📊 TECHNICAL SPECIFICATIONS
LED & Module Parameters
Pixel PitchH3.96/V7.81 (1R1G1B)LEDs TypeSMD1921 NationStar
Module Dimension500*125 mmModule Definition126*16 dots
Red Wavelength622 nmLuminous Intensity450 mcd (Red)
Green Wavelength522 nmLuminous Intensity730 mcd (Green)
Blue Wavelength472 nmLuminous Intensity105 mcd (Blue)

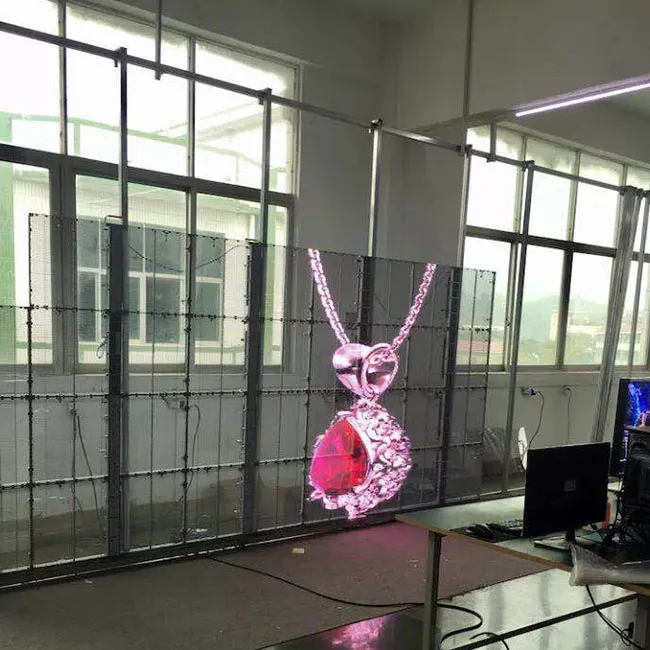

LED Chip LED Cabinet Whole Screen
Screen Working Parameters
Transmittance>75%
Viewing AngleH 140°, V 140°
Max Power Consumption680 W/m²
Average Power Consumption240 W/m²
Refresh Rate>1920 Hz
Life Span≥100,000 hours
Operating Temperature-30ºC ~ +60ºC
🛠️ SERVICE & DELIVERY
After-sale Service:
  • Two years warranty.
  • 24 hours online service, lifetime free support.
  • Professional engineer services for maintenance and technical support.
Delivery & Payment:
  • Production time: Approx. 25 days (including aging test).
  • Payment: 30% T/T in advance, 70% before shipping.
  • Packaging: Plywood case or flight case options.
🏭 FACTORY & CERTIFICATES

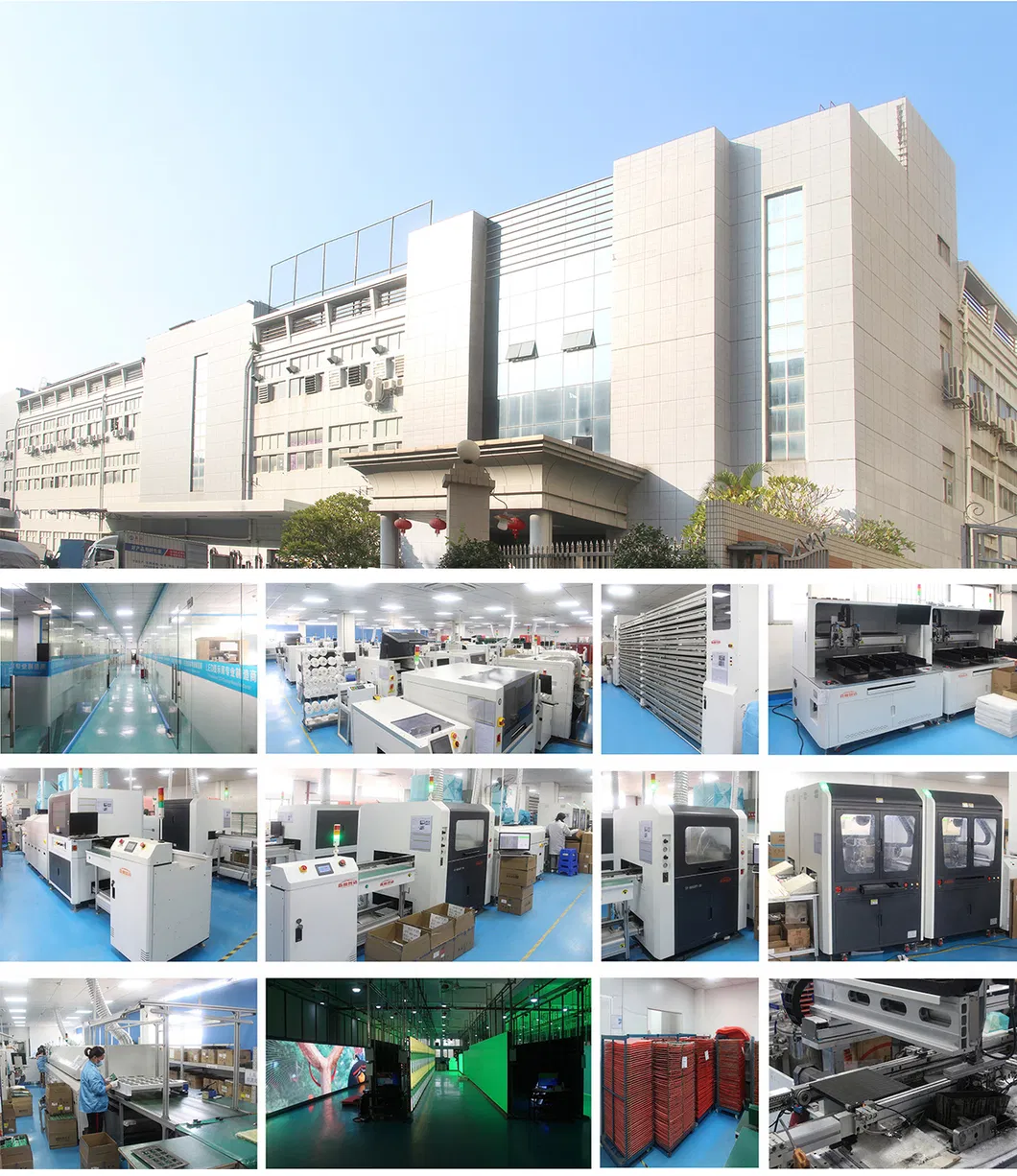

Factory Aging Test Packaging Certificates
❓ FREQUENTLY ASKED QUESTIONS
Q1: What is the transparency of this LED screen?
The screen features a high transparency rate of over 75%, allowing light to pass through and making it perfect for window displays.
Q2: Can this screen be used for outdoor environments?
While it has a high brightness of 4000 nits, it is rated IP30 and designed for indoor installation, typically behind glass windows.
Q3: What are the cabinet size options?
The standard cabinet sizes supported are 1000mm*500mm and 1000mm*1000mm.
Q4: What is the expected lifespan of the LED screen?
The screen is designed for high durability with a lifespan of ≥100,000 hours.
Q5: What kind of after-sales support is provided?
We provide a two-year warranty and 24-hour lifetime online technical support for all our products.
Q6: What is the production lead time?
The production time for a standard 1-200 m² screen is approximately 25 days, which includes rigorous aging and quality testing.
