Application:
1. It's a series of indoor fine pitch LED screen which can be fixed installed.

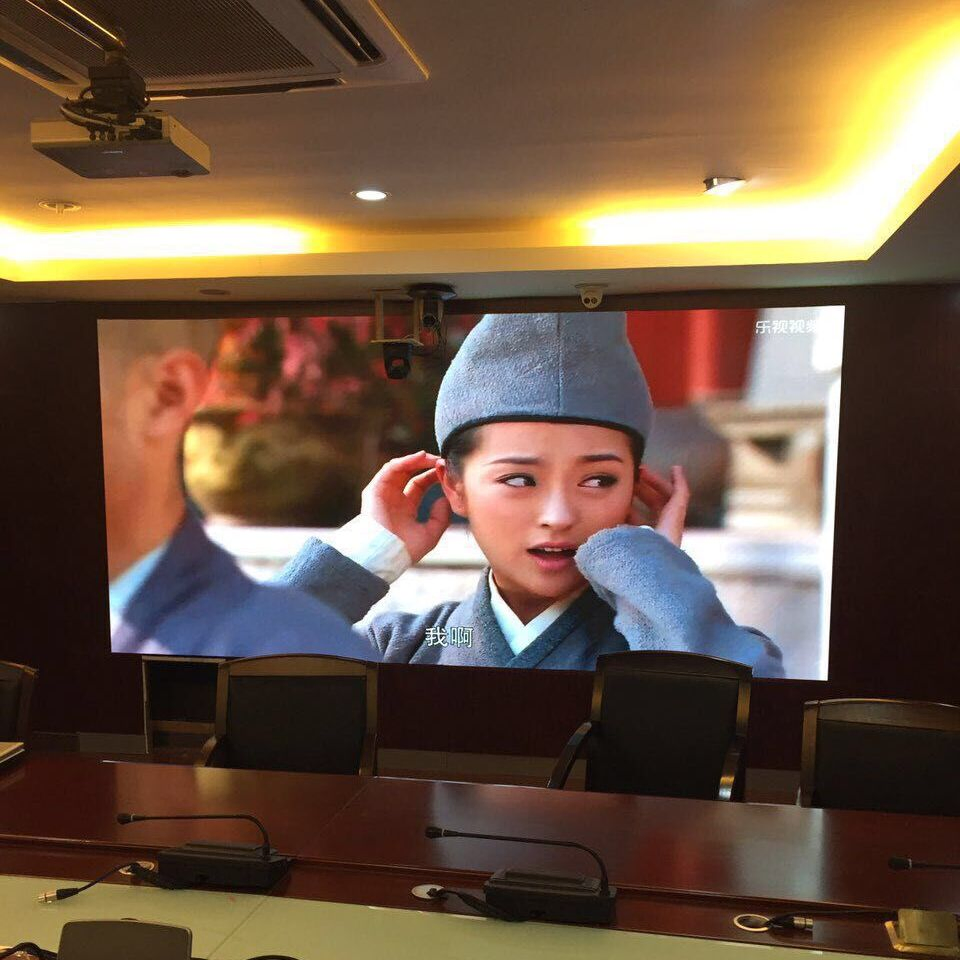

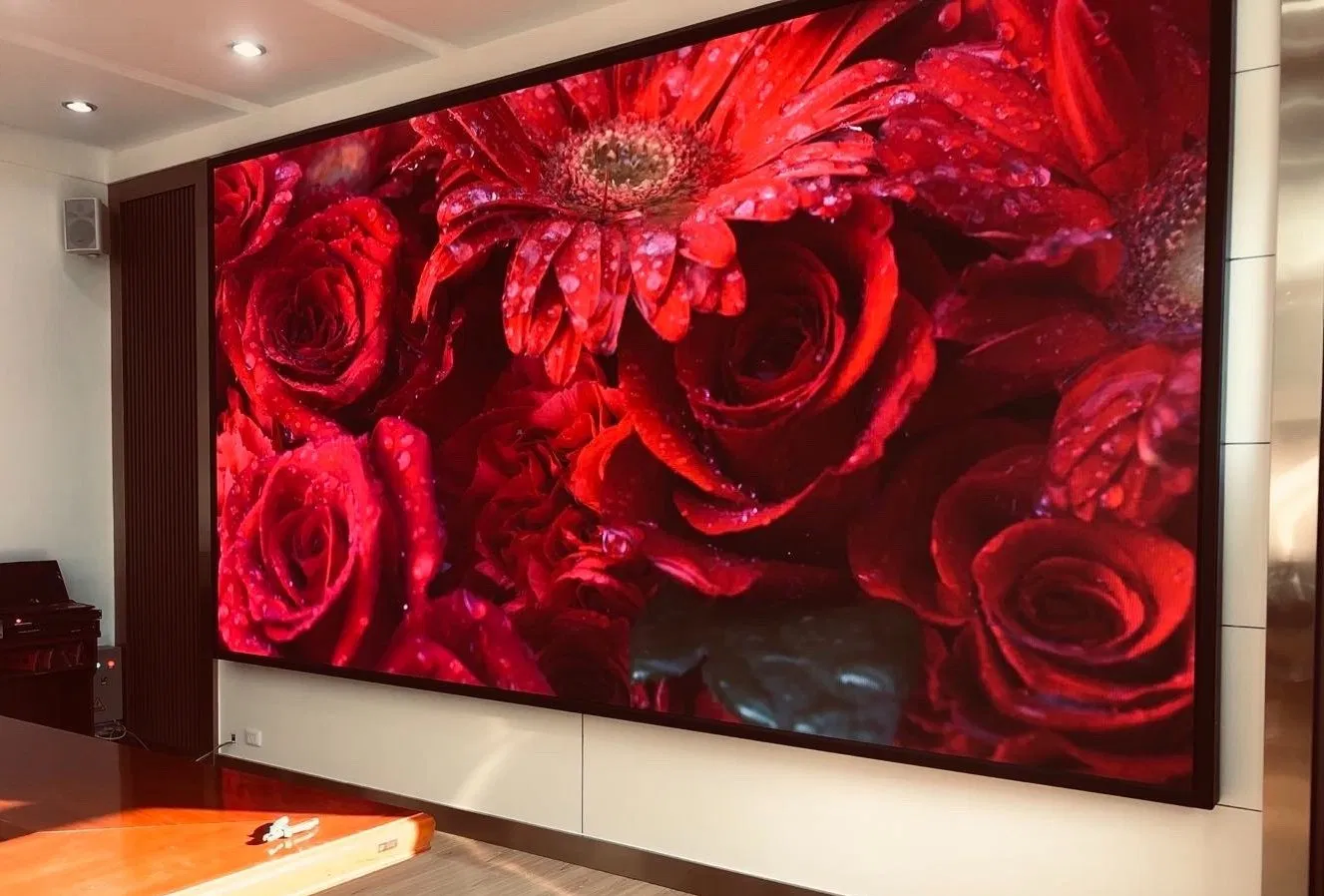

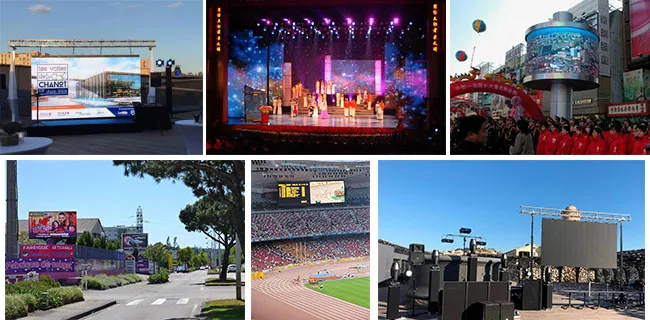

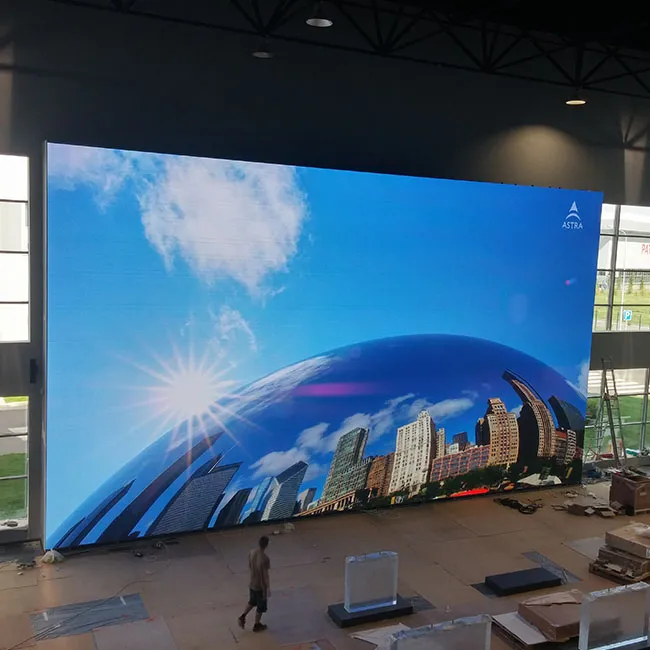

2. Indoor commercial advertising billboard, stage, banks, stock exchange centers, theme park, airport, schools, government agencies, exhibition, meeting rooms, cinemas, hotels, and a variety of public facilities and etc.
Product Features:

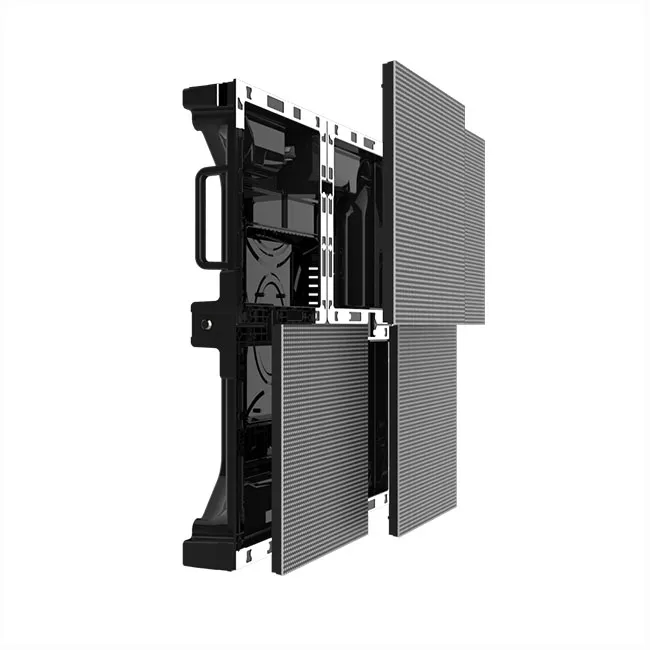

| Pixel Pitch (mm) | 1.25 | Module Resolution (pixels) | 192x96 |

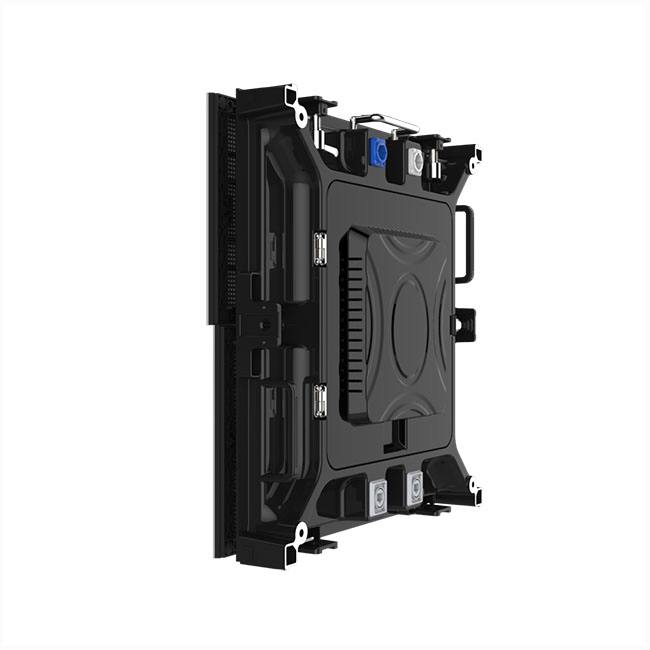

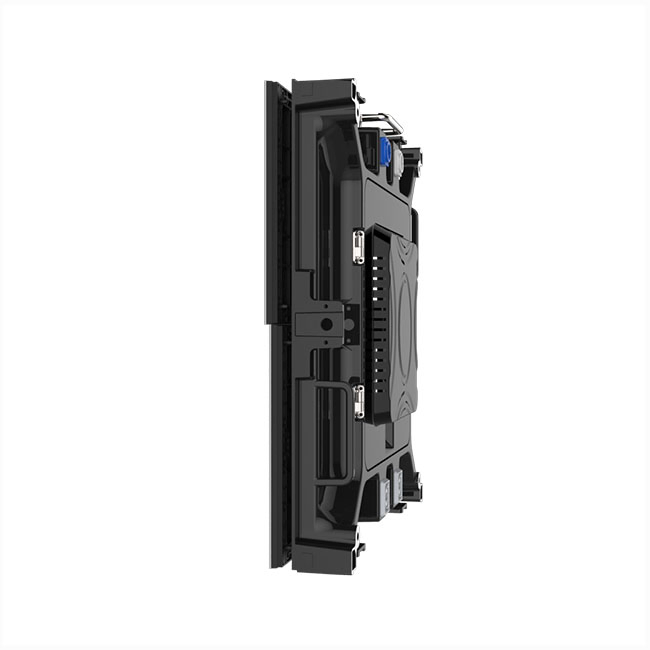

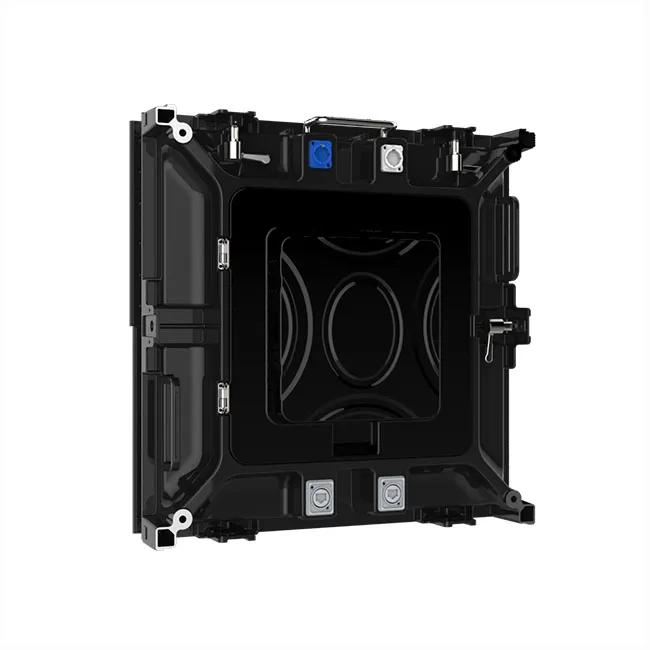

| Cabinet Size (mm) | 480x480x88 | Cabinet Resolution (pixels) | 384x384 |
| LED Encapsulation | SMD1010 | Driver Mode (Scan) | 1/26 |
| Cabinet Weight (kg) | 6.8 | Physical Density (pixels) | 640000 |
| Brightness (NIT) | <600 | Gray Scale (BIT) | 14 |
| Contrast Ratio | 3000:1 | Refresh Rate (Hz) | 1920/3840 |
| Viewing Angle (H/V) | ±140°/±140° | Protection Grade | IP30 |
| MAX Power Consumption | 462 W/m² | Average Power | 182 W/m² |
| Optimal Viewing Distance | ≥1.2m | Input AC Power | 100-240 V |
We provide comprehensive solutions for high-end rental and fixed LED displays, including hanging bars, sending cards, video processors, software, and necessary cabling.

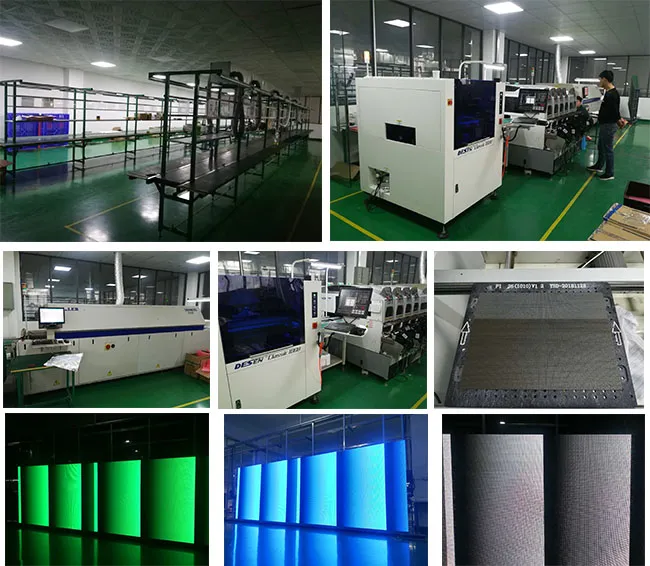

Factory Quality Control:
Trade Terms:
1. Production time for 0-200 m² screen is approx 25 days (includes aging test).
2. Payment: T/T, 30% in advance and 70% before shipping.

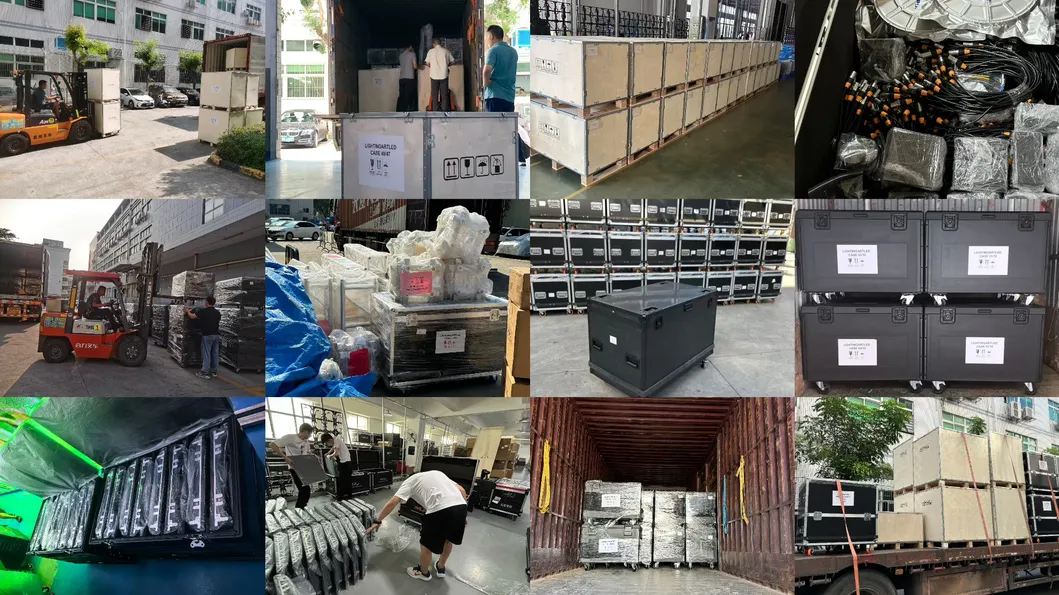

3. Plywood case or flight case packaging provided.
