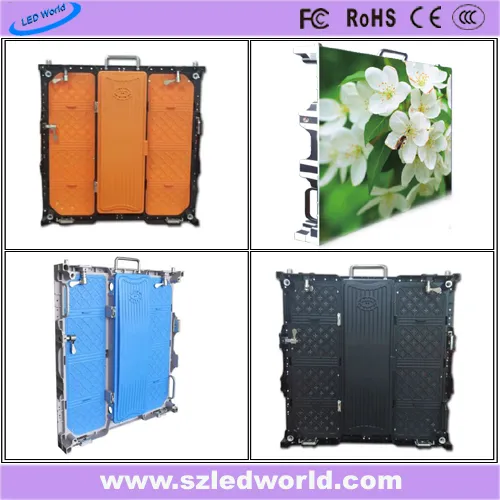

Indoor LED Display Module & Panel Board
Ensure cargo is sealed. Storage temperature should be maintained between -30ºC and 60ºC upon receipt.
Use preheating model: 30% brightness for 0.5-2 hours. Recommended to work 8+ hours daily. Best used at least once a week.
Use a soft brush to clean the display surface. Liquid cleaning is strictly prohibited.
| Items | P2.5mm | P3mm | P4mm | P5mm | P6mm | P10mm |
|---|---|---|---|---|---|---|
| Pixel Density | 160,000 | 111,111 | 62,500 | 40,000 | 27,777 | 10,000 |
| Module Size(mm) | 160x160 | 192x192 | 256x128 | 320x160 | 384x192 | 320x160 |
| Cabinet Size(mm) | 960x960 | 960x960 | 1024x1024 | 960x960 | 960x960 | 960x960 |
| Brightness | 1300cd/㎡ | 1300cd/㎡ | 1300cd/㎡ | 1300cd/㎡ | 1300cd/㎡ | 1000cd/㎡ |
| Viewing Distance | >2.5m | >3m | >4m | >5m | >6m | >10m |
| Driver Mode | 1/32 scan | 1/16 scan | 1/16 scan | 1/16 scan | 1/16 scan | 1/8 scan |
| LED Life | 100,000 hours | |||||

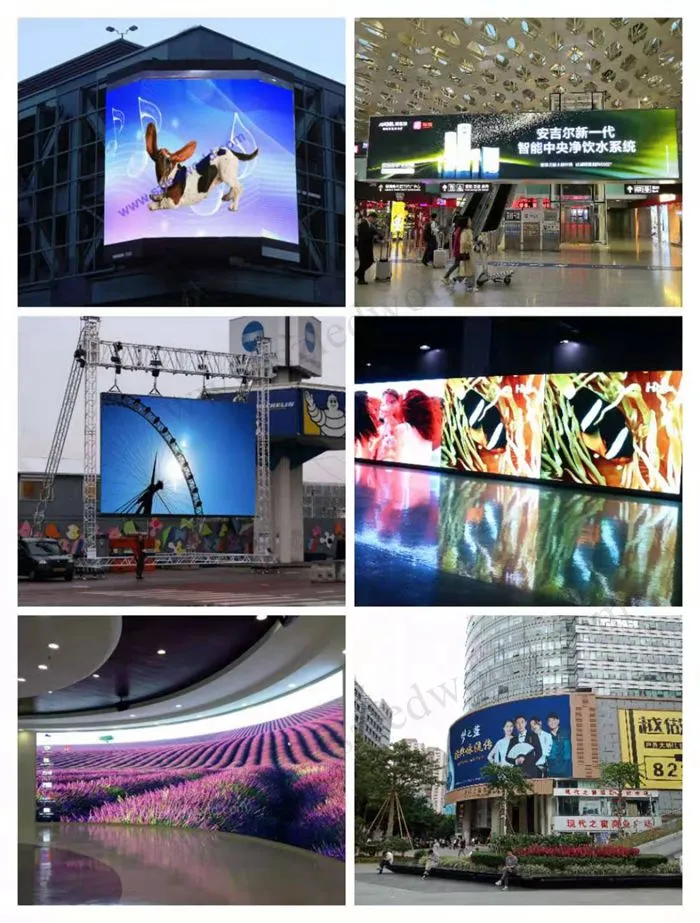

| Business | Supermarkets, Shopping Malls, Hotels, Restaurants, Travel Agencies. |
| Public Places | Airports, Subway Stations, Museums, Exhibition Halls, Stadiums. |

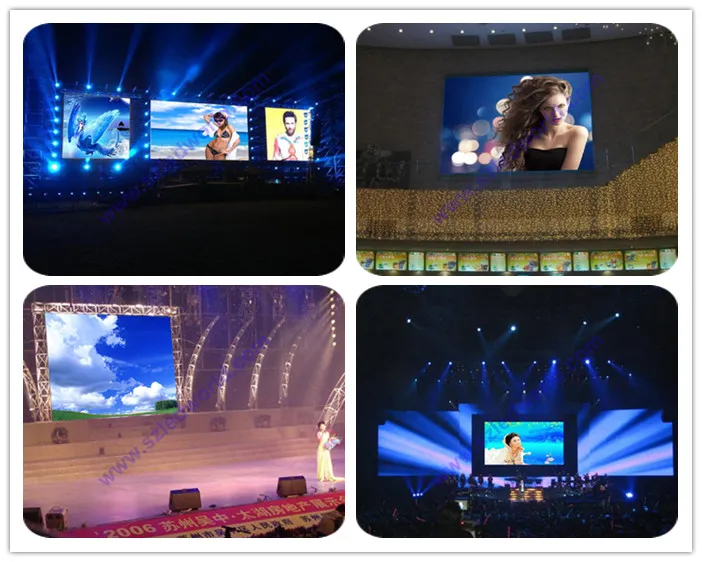

| Entertainment | Movie Theaters, Night Clubs, Bars, Casinos, Fitness Halls. |
| Financial & Medical | Banks, Hospitals, Schools, Security Companies. |
