📋 Basic Specifications
Pixel Configuration
1R, 1G, 1B
Pixel Density
1,000,000 dots/sqm
Display Type
LED Video Display
Application
Stage, Advertising, Shopping Guide
Certification
CE, RoHS, CCC, ETL

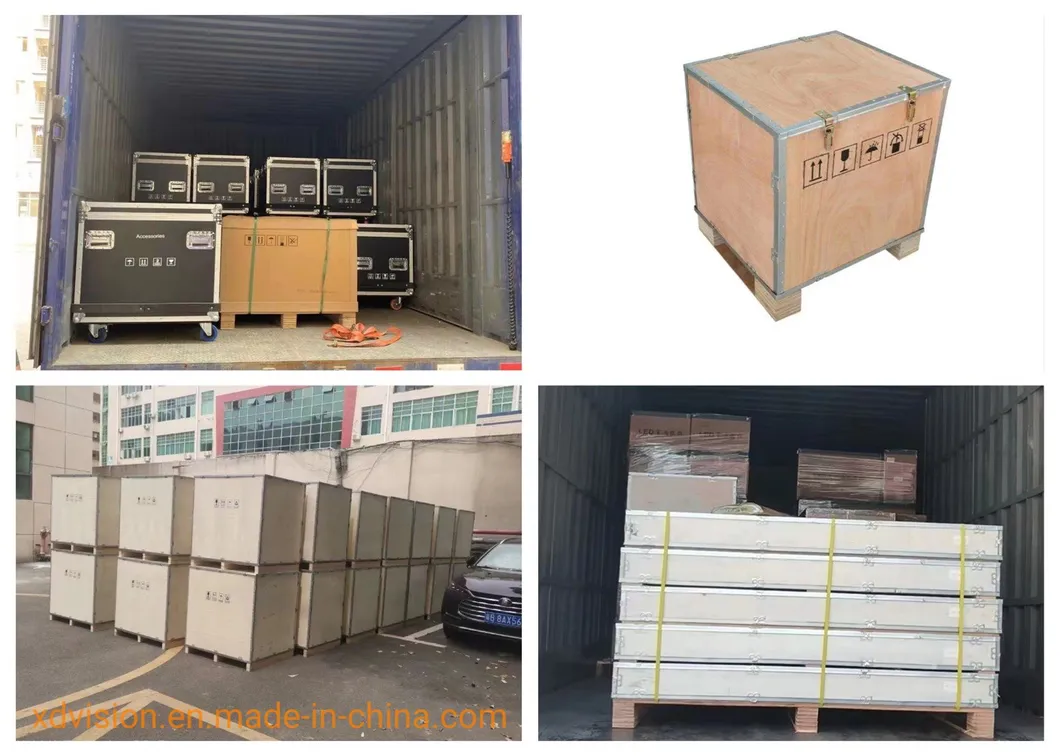

Transport Package
Plywood Case
🚀 Product Description
This professional fine pitch LED display series features advanced R&D and independent design, delivering high-definition visual performance. Our indoor full-color LED screens are ideal for environments requiring high precision, such as command centers, monitoring rooms, and conference video centers.

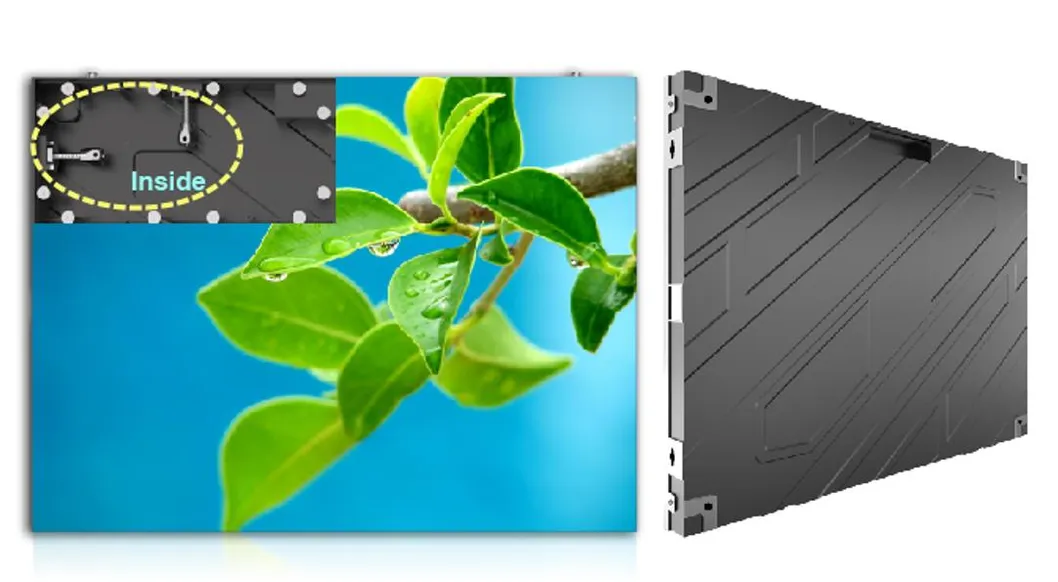

Precision Cabinet: Die-cast Aluminum cabinet for seamless connection with high accuracy.
Front Maintenance: Full front maintenance and modular design, fast and convenient for servicing.
Flexible Splicing: Different size options and mixed size cabinet splicing available to meet various requirements.
Multi-Pitch Options: Wide range of pitches from ph1.0, ph1.25 up to ph2.5.

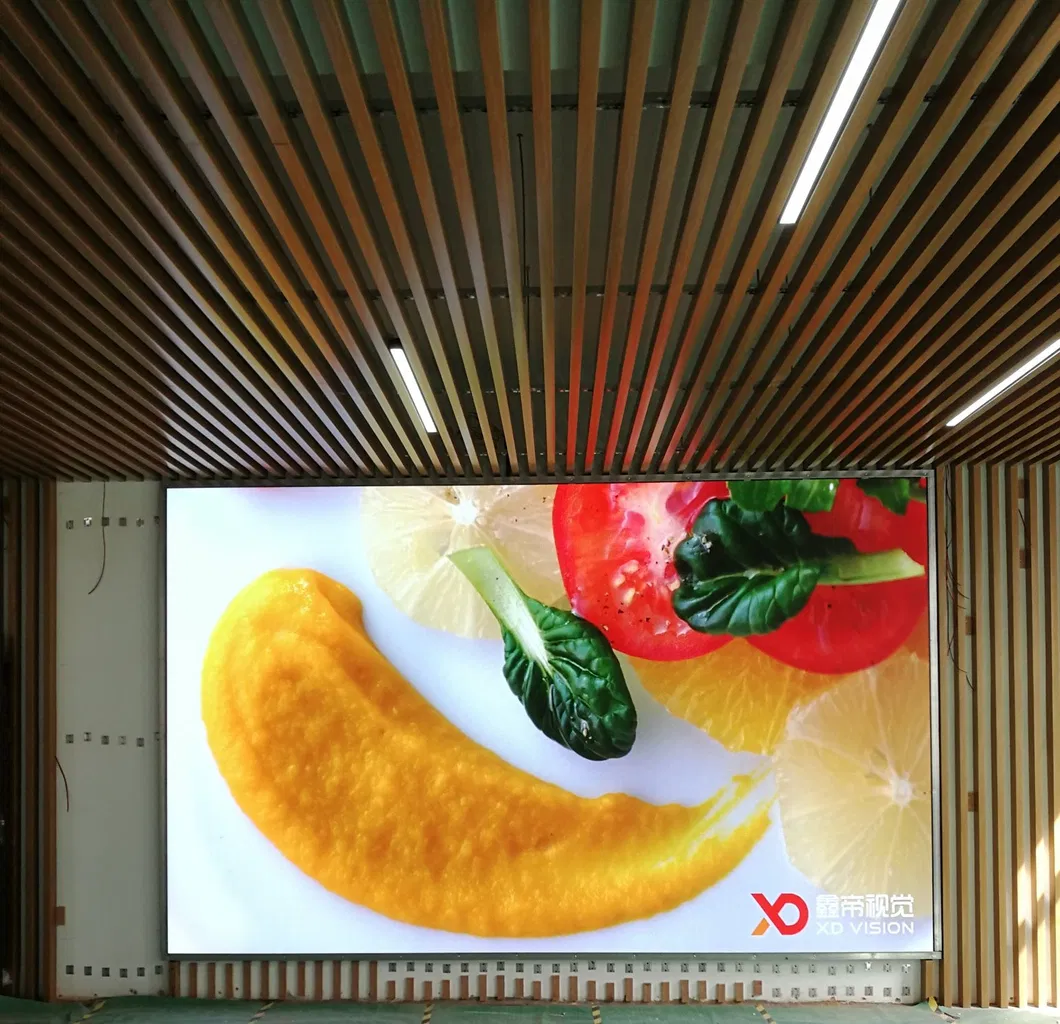

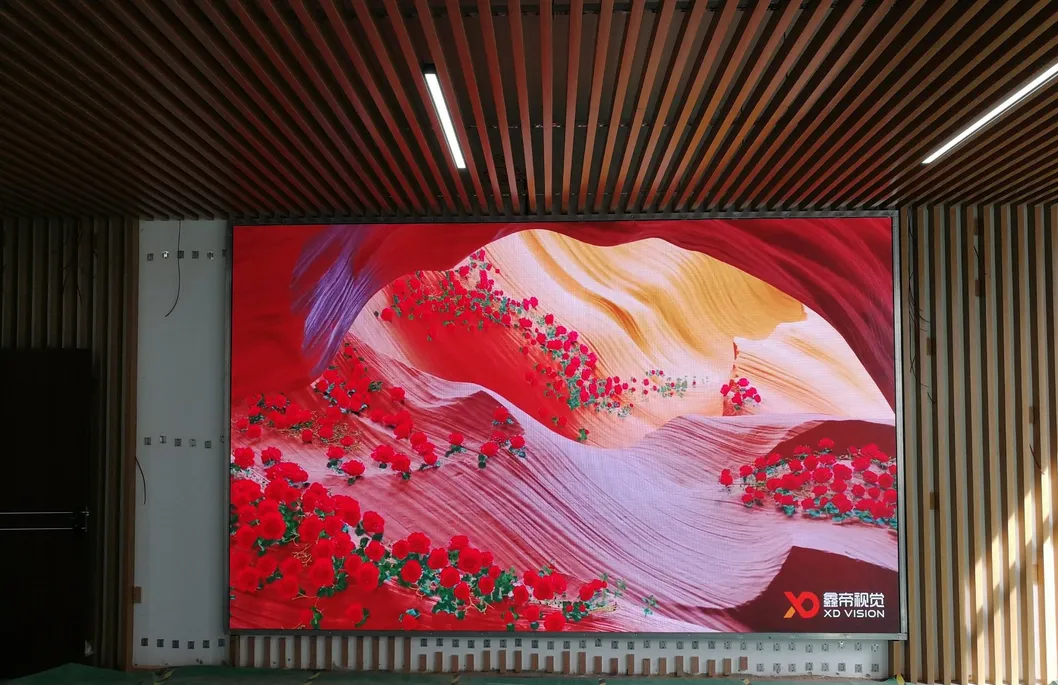

Versatile Installation: Supports fixed, floor standing, and hanging installation methods.
📊 Technical Specifications
| Part Number |
XD640-1.0 |
XD640-1.25 |
XD640-1.53 |
XD640-1.86 |
XD640-2.5 |
| Pixel Pitch |
1.0mm |
1.25mm |
1.538mm |
1.86mm |
2.5mm |
| LED Config |
SMD0808 |
SMD1010 |
SMD1212 |
SMD1515 |
SMD1515 |
| Module Size |
320x160mm |
320x160mm |
320x160mm |
320x160mm |
320x160mm |
| Refresh Rate |
≥3840Hz |
≥3840Hz |
≥3840Hz |
≥3840Hz |
≥3840Hz |
| Brightness |
≥600 CD/m² |
≥600 CD/m² |
≥600 CD/m² |
≥600 CD/m² |
≥600 CD/m² |
| Gray Scale |
16 bit |
16 bit |
16 bit |
16 bit |
16 bit |

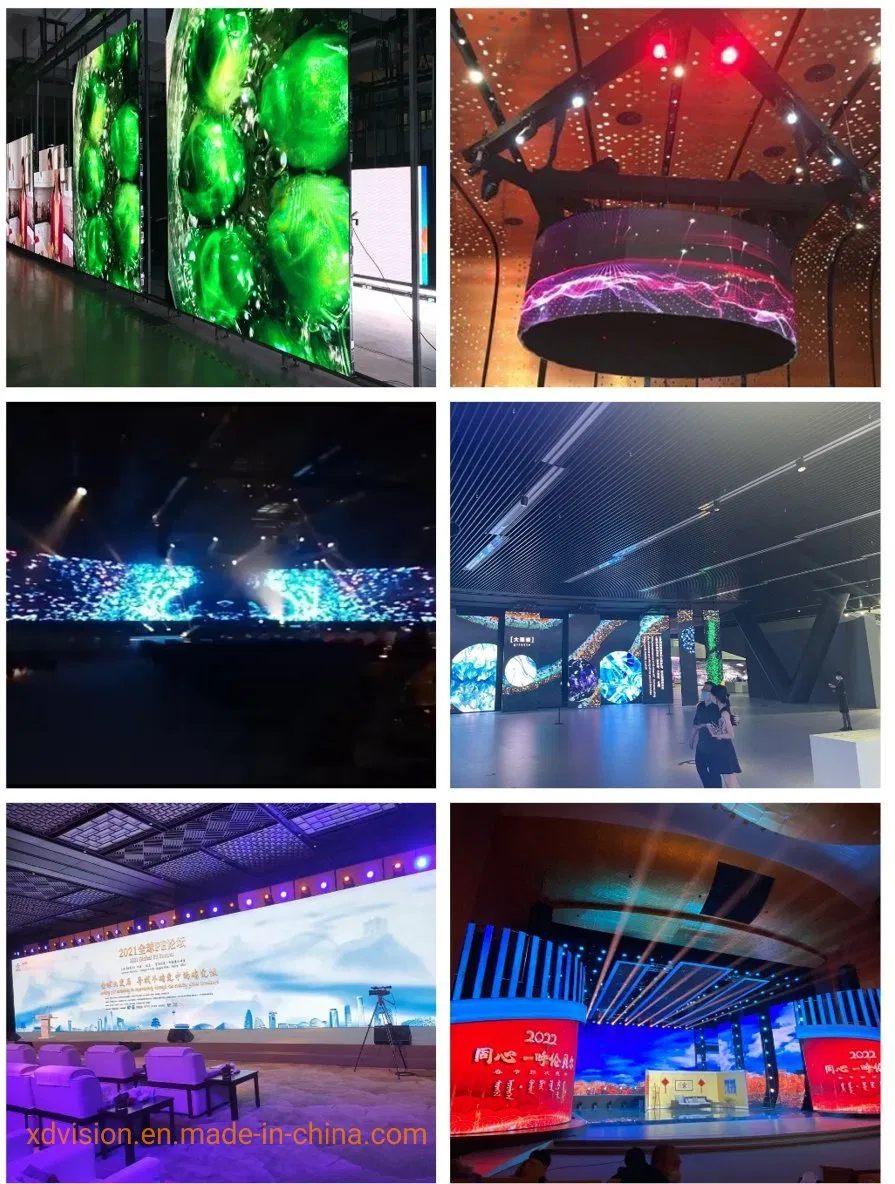

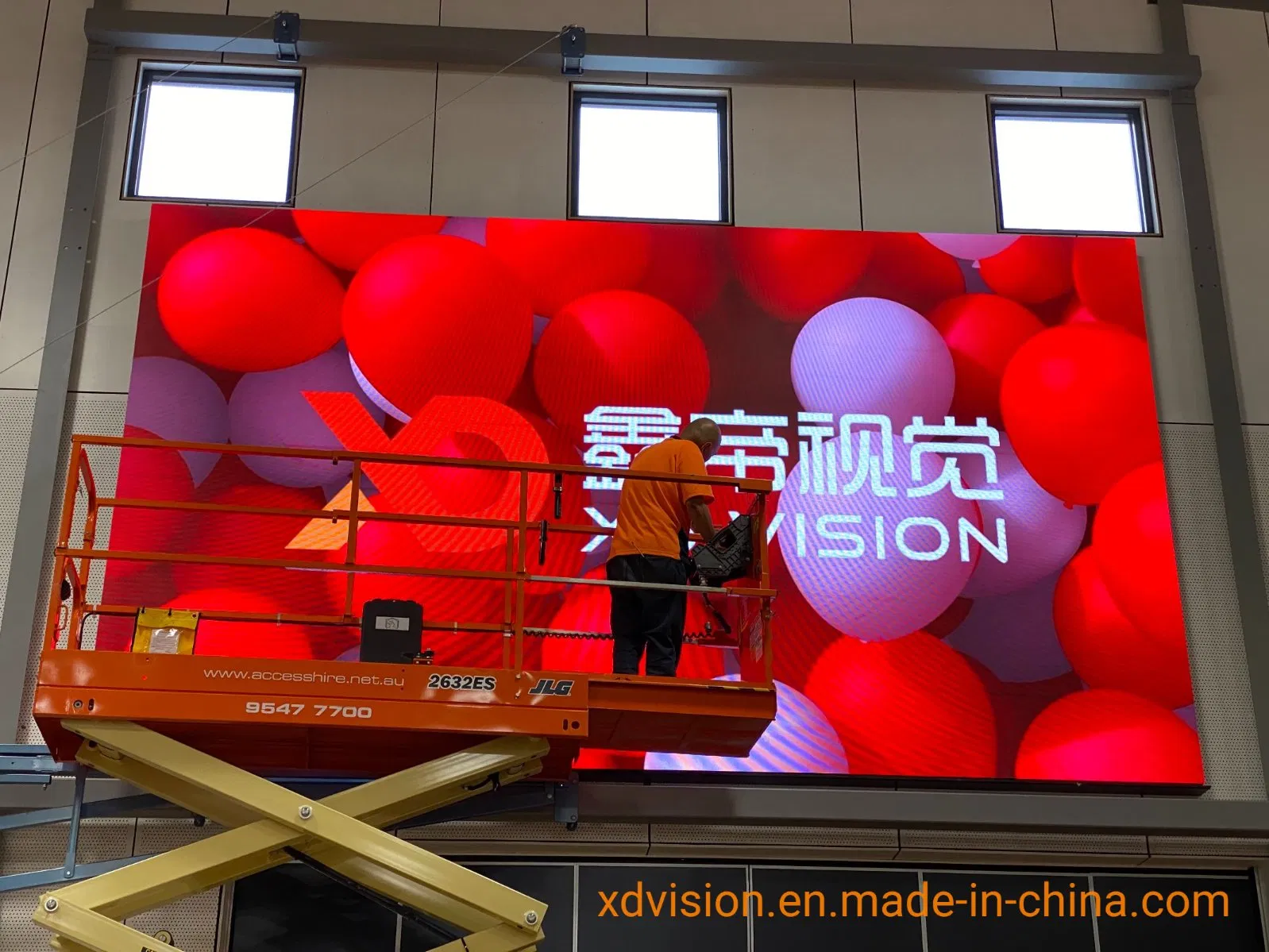

🖼️ Project Cases

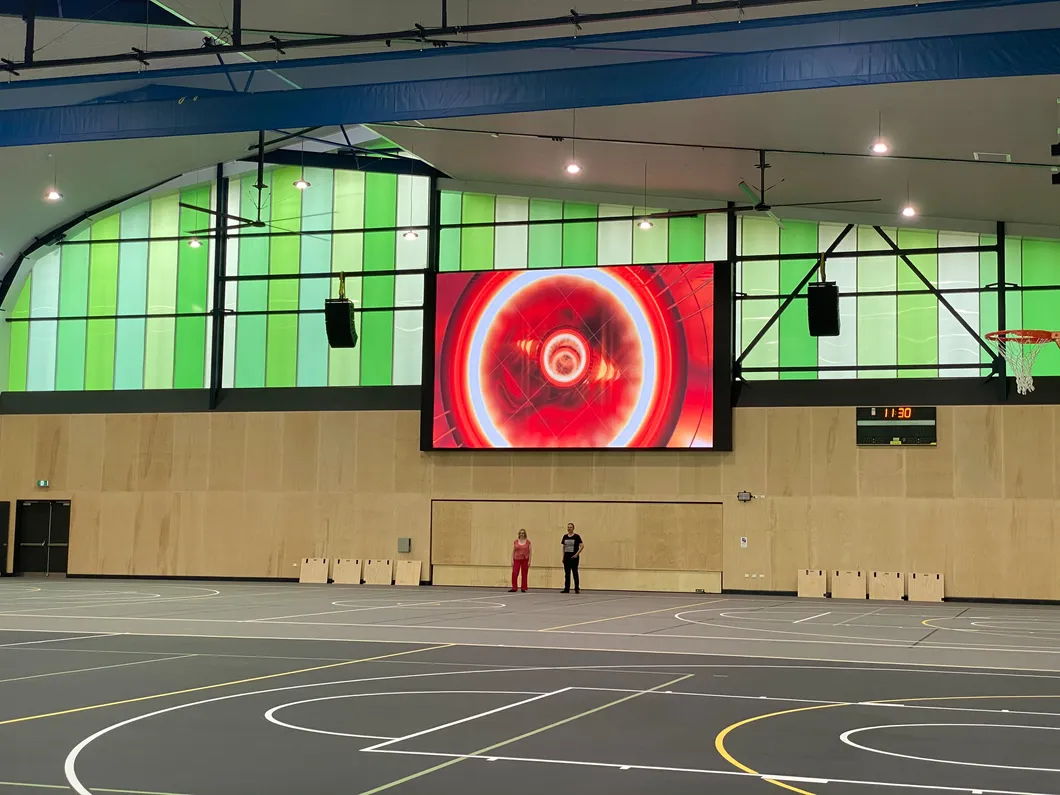

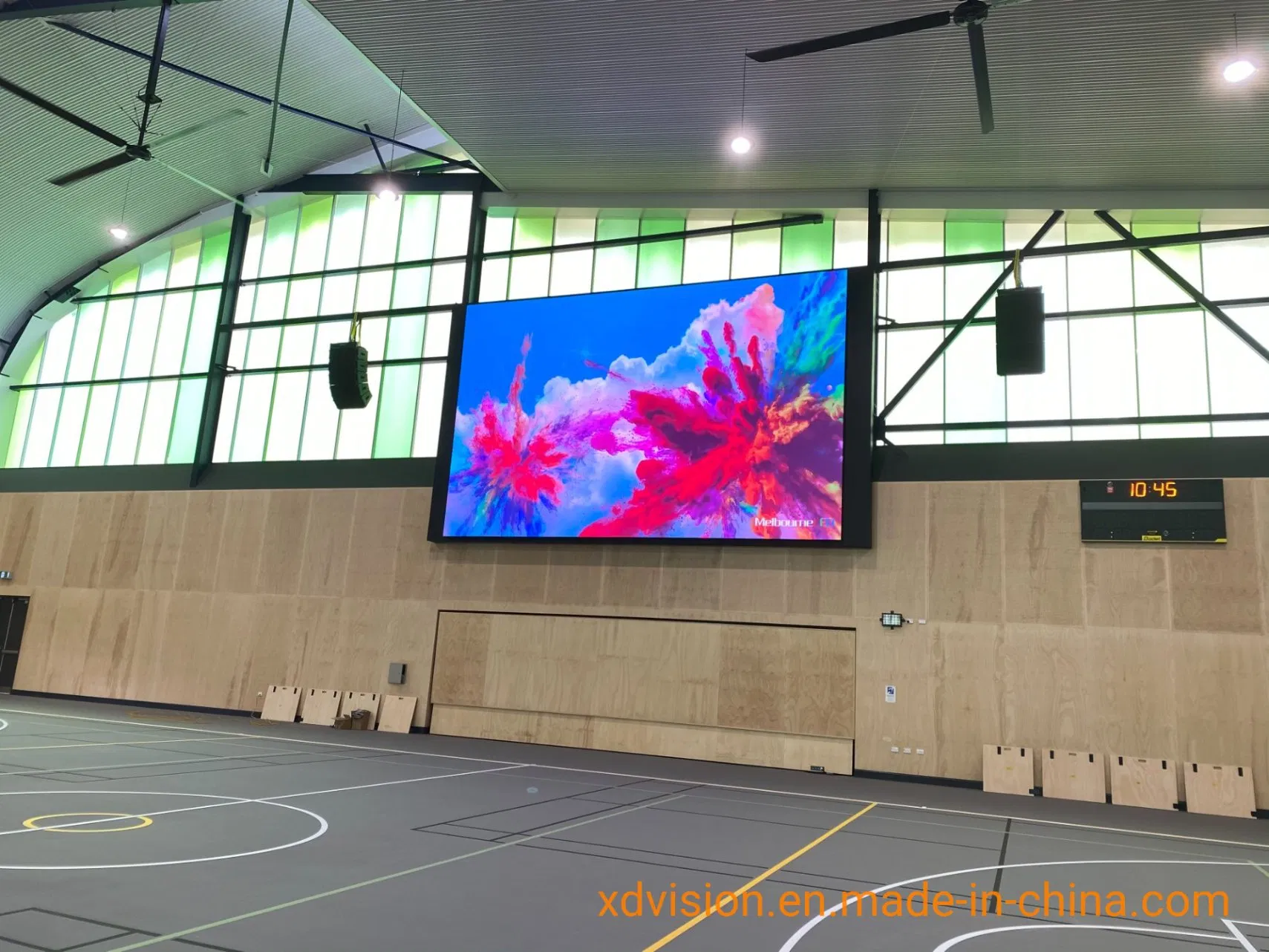

Gymnasium Display

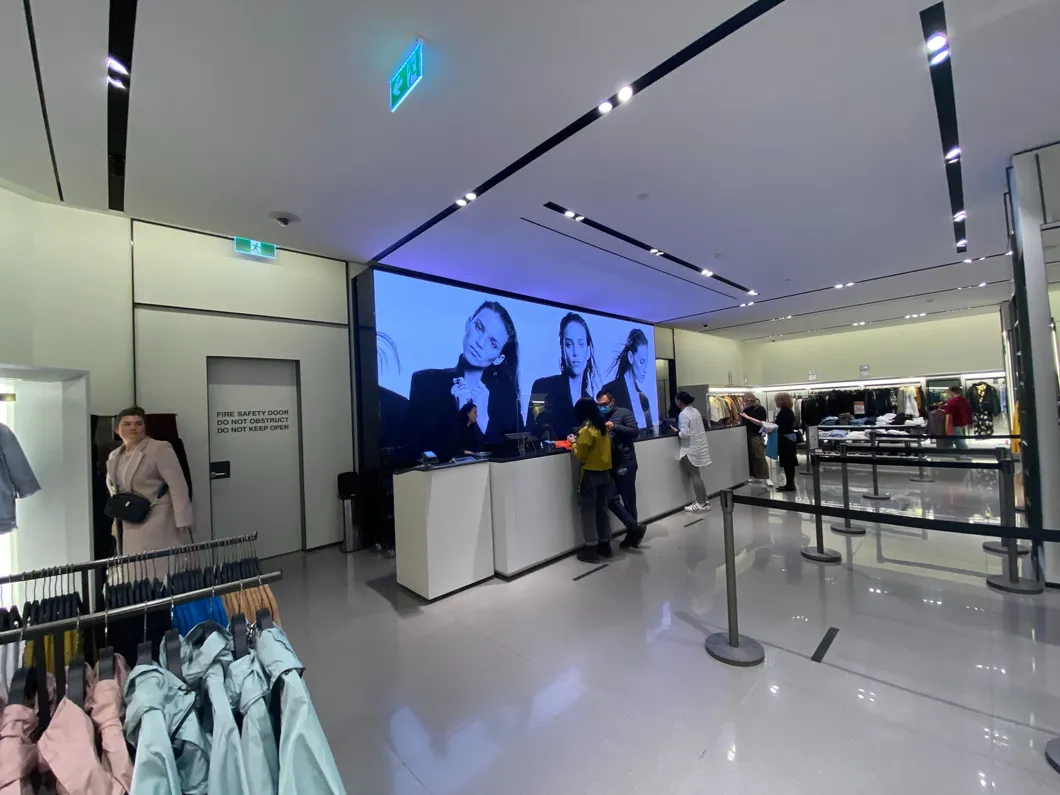

Chain Store Display

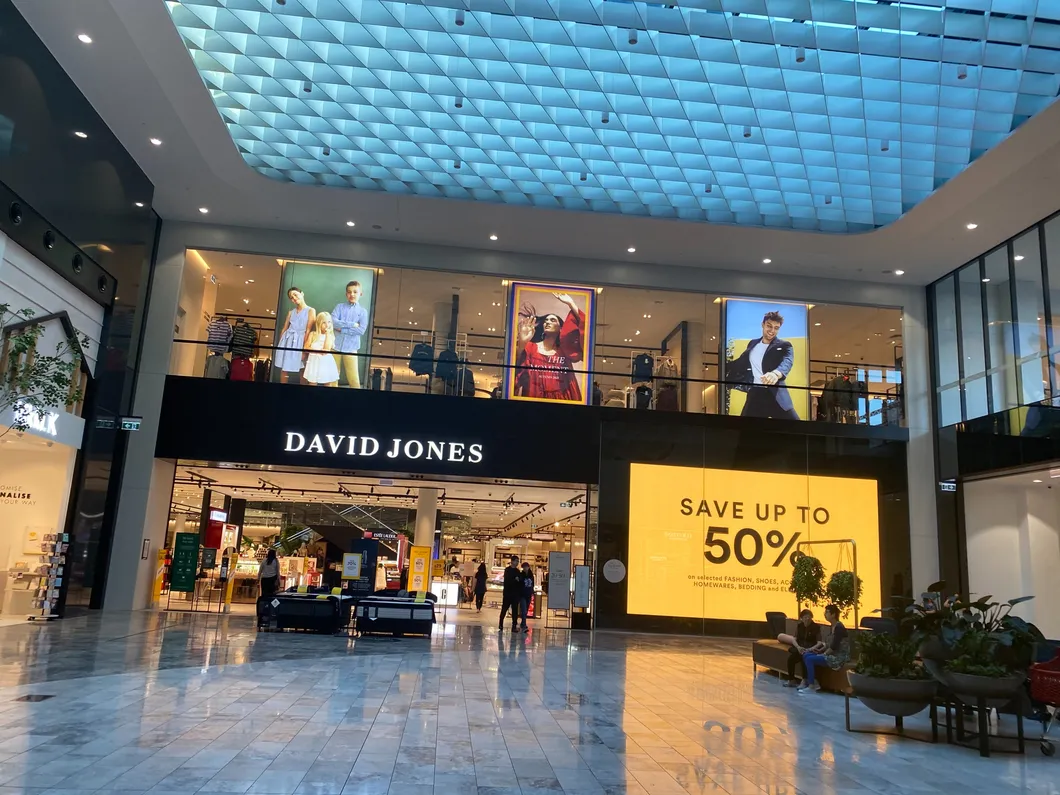

Shopping Mall Display

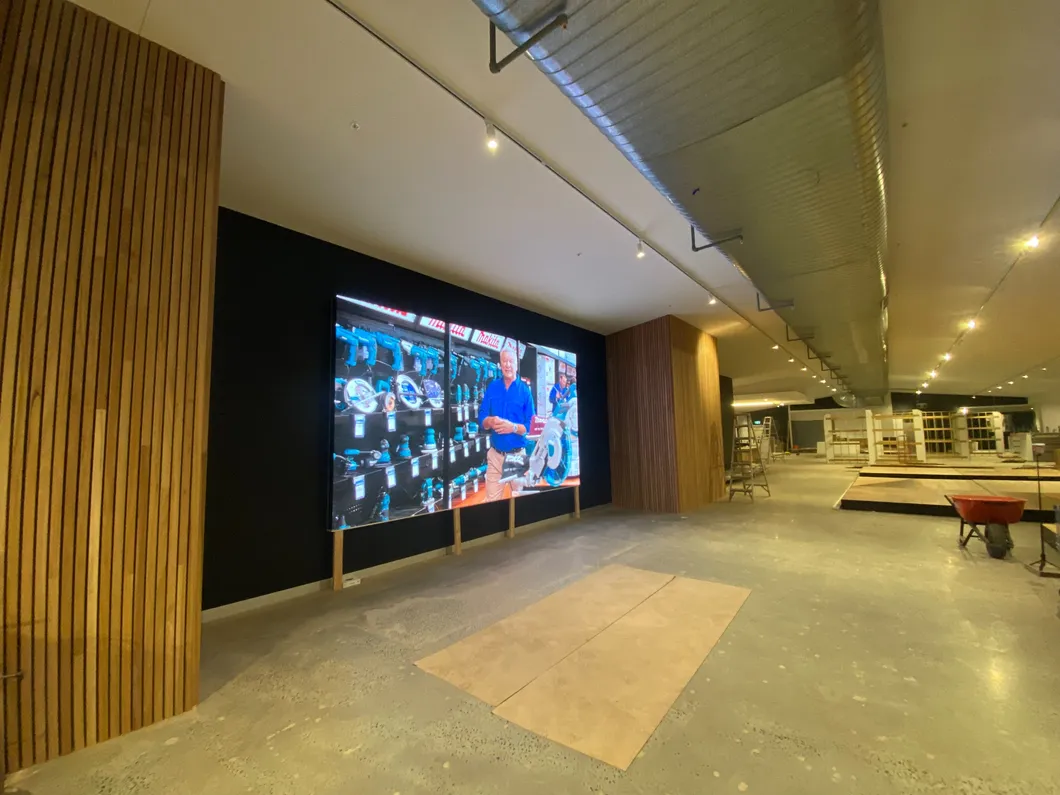

Conference Room

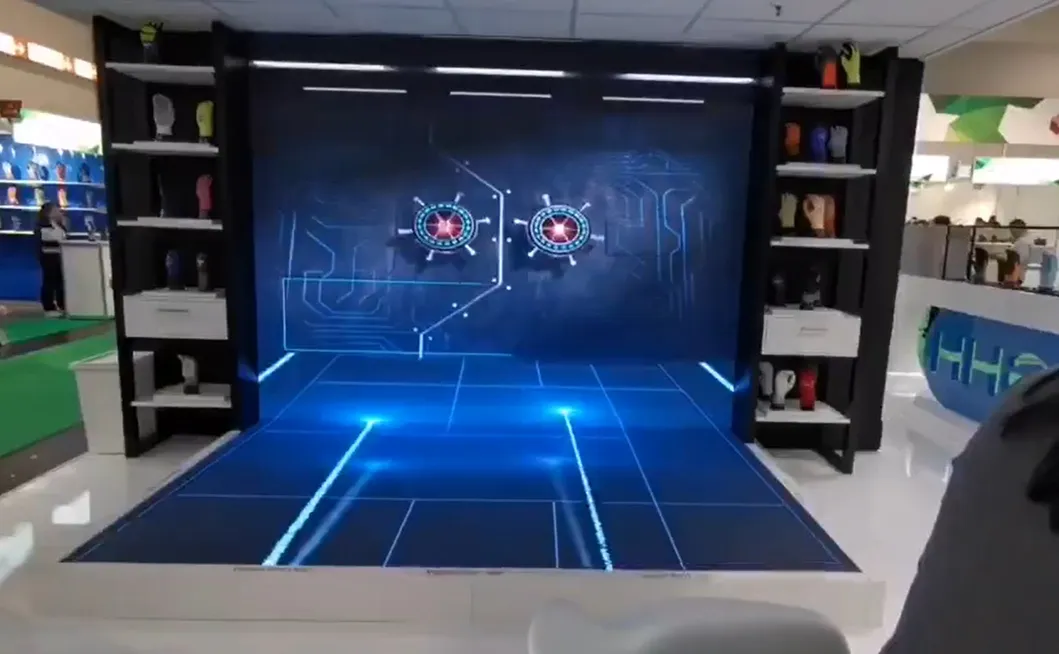

Trade Show

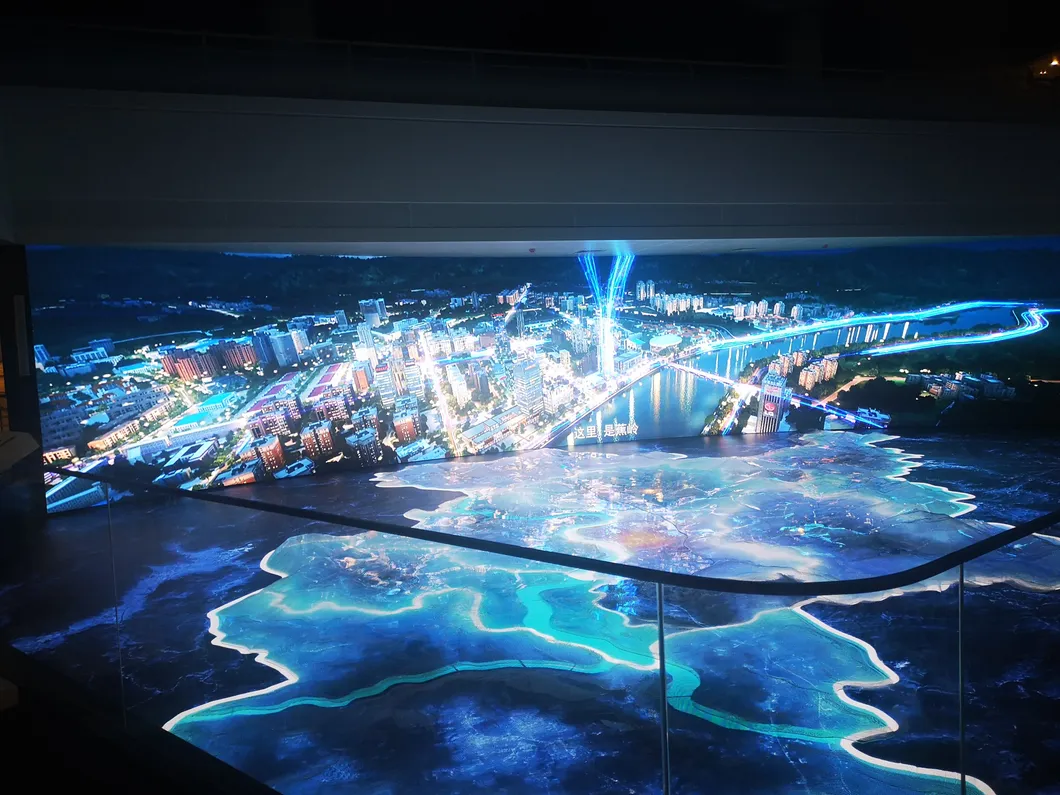

Real Estate Sand Table

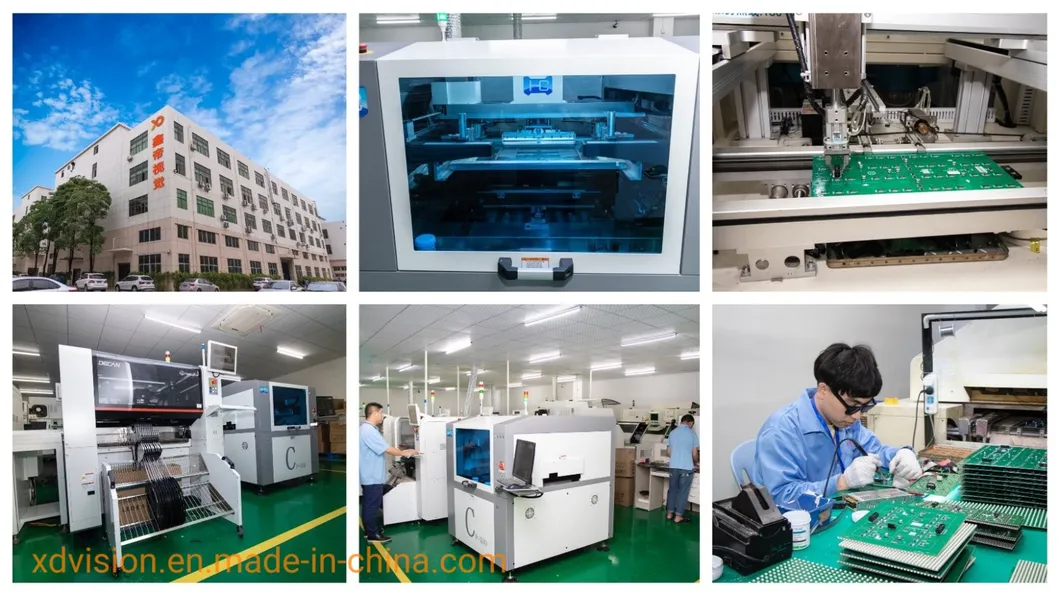

🏭 Workshop & Quality Control
❓ Frequently Asked Questions
What are the main advantages of the die-cast aluminum cabinet?
The die-cast aluminum cabinet provides high structural accuracy, ensuring seamless splicing between cabinets for a perfect visual experience. It is also lightweight and aids in heat dissipation.
Can I perform maintenance from the front of the screen?
Yes, this series supports full front maintenance. The modular design allows for fast and convenient replacement of modules without needing access to the rear.
What pixel pitches are available for this series?
We offer a wide range of pixel pitches including 1.0mm, 1.25mm, 1.37mm, 1.53mm, 1.667mm, 1.86mm, 2.0mm, and 2.5mm to suit different viewing distances.
What is the lifespan and refresh rate of these LED displays?
These displays feature an operating life of approximately 100,000 hours and a high refresh frequency of ≥3840Hz, ensuring flicker-free video performance.
Are custom shapes or creative designs available?
Yes, we can design and manufacture custom LED displays including round, cylindrical, hexagonal, and flexible modules for concave or convex screen requirements.

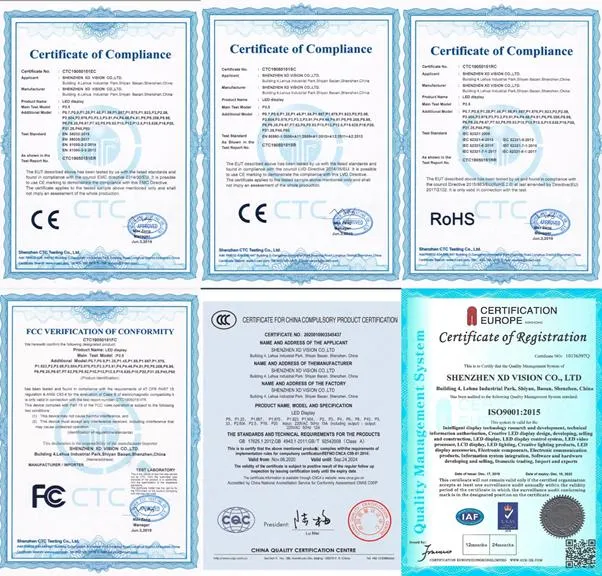

What certifications do these products hold?
Our products are fully certificated by international standards including ROHS, CCC, CE, FCC, and CNAS, ensuring high quality and safety.
